JBL Professional DSi 2.0 Series - 4-Channel Home Theater Amplifiers with 96 kHz DSP and Dante/AES67 Connectivity

Out of stock
SKU: DSI-2-0-SERIES
(0)
6.240,26 € inc. VAT

If you have any questions about this product, we can assist you by filling out the contact form

Ask an expert

Chat Email +34 621046470
Features Each amplifier offers 4 channels with bridgeable outputs to easily power the entire JBL home theater speaker line. The amplifiers are designed to meet the exact power requirements of JBL home theater speakers, for a single JBL home theater solution. A new amplifier design enables high-power 2” output (SA and MA models), allowing up to 4 surround speakers to be powered by a single channel. The D models interface with Dolby Atmos directly, with no additional processing hardware required. All models feature SNMP and Ethernet connectivity for third-party networking and control. The SA4-D, MA4-D, and LA4-D models add Dante/AES67 connectivity. All models include a HiQ port for interfacing with HARMAN Audio Architect control software over a standard TCP/IQ network. Best-in-class 96 kHz/32-bit floating-point processing incorporates FIR filtering, LevelMAX™ limiting, 8-channel parametric EQ, delay adjustments, and more. Crown DriveCore technology replaces hundreds of amplifier parts with a single chip for superior efficiency and reliability. Built-in JBL Cinema Speaker presets match all JBL cinema speakers. Amplifiers are power-matched to JBL cinema speakers for optimal performance and quick system setup. Recall presets, mute channels, monitor amplifier status, and power on and off via a combo GPIO/AUX port. SNMP connectivity allows direct interfacing with third-party theater management and control systems. An intuitive front-panel LCD and encoder interface let you configure amplifier settings with the push of a button. Ultra-quiet operation: 51 dBA maximum fan noise All models are standard 2RU 19-inch (482 mm) rack-mount units. Weight: 23.2 lbs (10.5 kg) Frequency response: 20 Hz–20 kHz THD: 0.35%? Power Supply: 100–220 V +/- 10%, 50/60 Hz? Power Connector: Standard IEC type, 320 input for detachable connector, 100–240 V? Fits 10 AWG wire
  • Brand:JBL Professional
  • Model:DSi 2.0 Series (SA4 / SA4-D / MA4 / MA4-D / LA4 / LA4-D)
  • Channels:4 (bridgeable outputs)
  • Internal processing:96 kHz / 32 bit float; FIR; LevelMAX limiters; 8-band parametric EQ; retardation
  • Network connectivity and control:SNMP and Ethernet on all models; HiQ port for HARMAN Audio Architect (TCP/IP); GPIO/AUX 2 in/2 out
  • Network Audio (-D models):Dante/AES67 (2× RJ45) with direct interface to Dolby Atmos Connect
  • Analog inputs:Terminal block (balanced)
  • Speaker outputs: Barrier strip, supports cable up to 10 AWG
  • Supported impedances:2–16 Ω (stereo/dual); 4–16 Ω (bridge)
  • Frequency response:20 Hz – 20 kHz (±0.5 dB at 4 Ω)
  • THD:0.35% (20 Hz–20 kHz at rated power)
  • Ventilation noise:max. 51 dBA (at 1 m)
  • Nominal powers (1 kHz, 20 ms, 2 ch, 0.5% THD):SA4: 350/700/1,050 W (8/4/2 Ω); MA4: 750/1,400/2,100 W (8/4/2 Ω); LA4: 1,300/2,200/1,200 W (8/4/2 Ω)
  • Bridge power:SA4: 1300 W ×2 (8 Ω) / 2200 W ×2 (4 Ω); MA4: 2,600 W ×2 (8 Ω) / 4,200 W ×2 (4 Ω); LA4: 4,000 W ×2 (8 Ω) / 2,300 W ×2 (4 Ω)
  • Chassis formats:2RU (19”/482 mm)
  • Dimensions (D × W × H):437.2 × 482 × 88 mm
  • Net weight:10.5 kg
  • Feeding:100–220 V ±10 %, 50/60 Hz
  • Network connector:IEC 320 for detachable cable

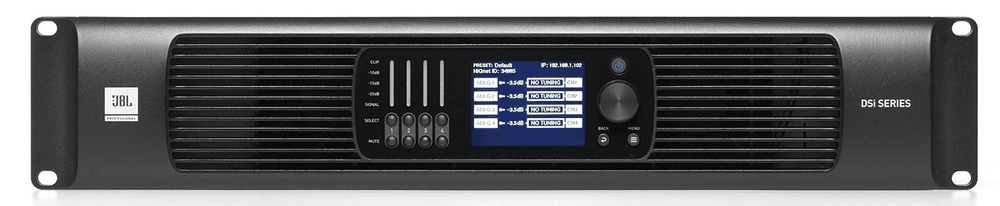

  • User interface:Front LCD and encoder with mute and configuration
  • Intended application:Professional 5.1/7.1 rooms and immersive installations
  • Amplifier Technology:High-efficiency Crown DriveCore
  • Includes in the box:DSi 2.0 Amplifier, IEC Power Cable, Quick Start Guide
  • Type New
  • Vendor JBL PROFESSIONAL
  • SKU DSI-2-0-SERIES

Buy JBL Professional DSi 2.0 Series - 4-Channel Home Theater Amplifiers with 96 kHz DSP and Dante/AES67 Connectivity
