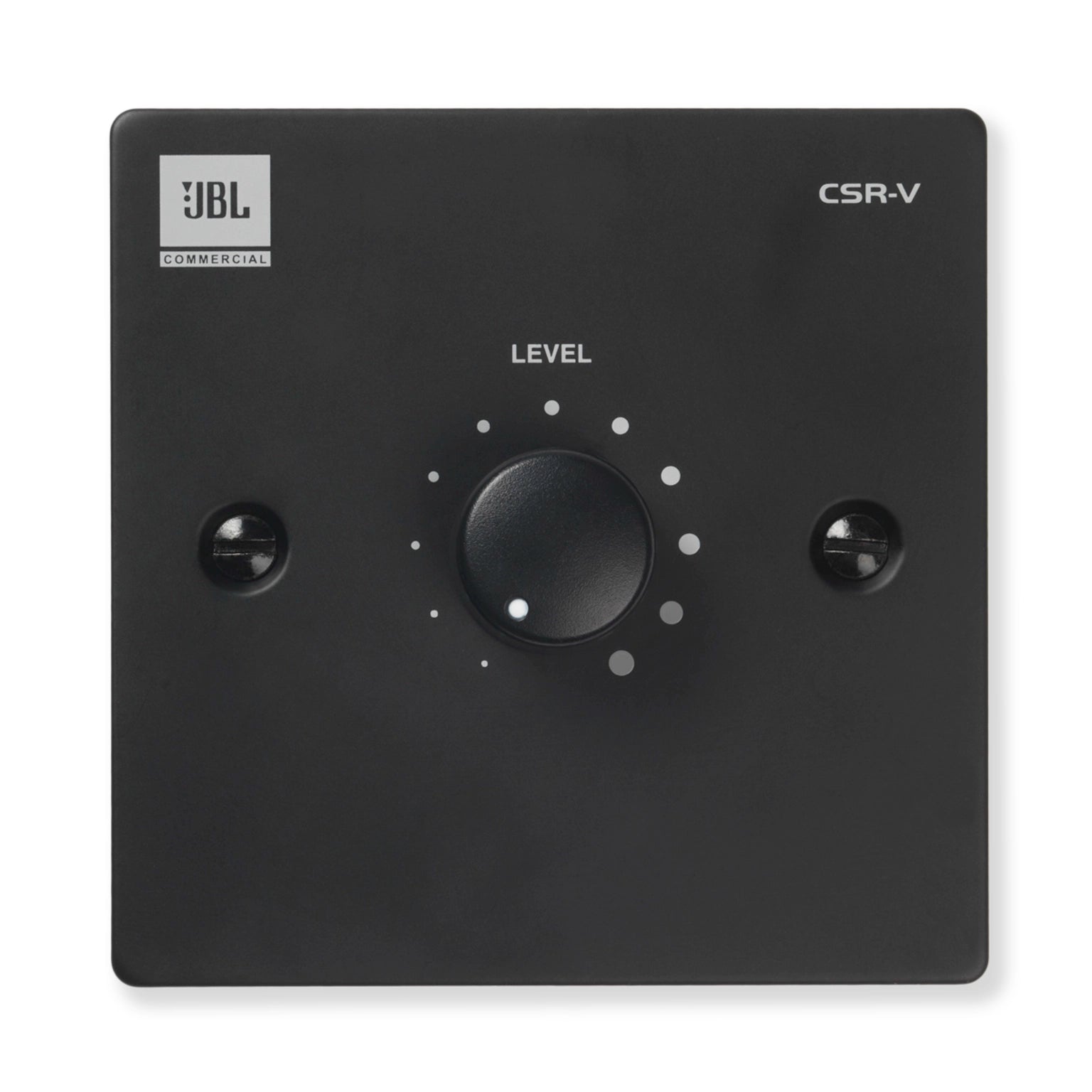

The CSR-V-EU-BLK is the official JBL Commercial wall panel for remote zone volume control in installed audio systems. Designed to work with JBL CSM mixers, VMA/CSMA mixer-amplifiers and CSA amplifiers, it employs analog DC voltage control and connects via Cat 5 RJ-45 cable up to 305m in length. The European 86x86mm ( 60mm fixing centres) form factor facilitates mounting in standard EU wallboxes , and the black finish fits discreetly into corporate, retail, hospitality or education environments. As a volume remote , the CSR-V is dimmer , allowing the level to be raised or lowered within a set limit on the mixer, ensuring safe and predictable operation.

Main features

• Control : remote volume of the selected source/zone on the mixer.
• Easy connection : 1 × RJ-45 ( Cat 5 cable, T568B standard), max. range 305 m .
• European format : plate 86 × 86 mm , fixing at 60 mm , profile approx. 18.8 mm .
• Compatibility : CSM-14/28/21/32 mixers; VMA-160/1120/1240 and VMA-260/2120 mixer-amplifiers; CSMA-180/1120/240/280/2120 ; CSA-140Z/180Z/1120Z/240Z/280Z/2120Z/1300Z/2300Z and CSA-2120 amplifiers ( one per output channel , depending on the model).
• Safe Installation : Wiring rated VW-1 or higher.
• Finish : black (available in white in the EU-WHT variant).

Product benefits

• Total flexibility : works with distributed lines (VMA/CSMA) and CSM zone systems, maintaining local user control.
• Rapid deployment : A single passive Cat 5 cable and standard EU box mounting reduce installation times.
• Safe operation : volume control by attenuation that does not exceed the maximum level defined on the mixer.
• Scalability : possibility of several remotes (depending on the equipment) and runs of up to 305 m to cover large areas.

Use cases

• Commercial and hospitality establishments: level control by area at the bar, dining room, or terrace.
• Education and corporate: volume adjustment in classrooms, meeting rooms, and hallways.
• Fitness and leisure centers: local control for instructors or staff.

Frequently Asked Questions

• Can I change the source from this panel? No. The CSR-V controls the volume. Remote source selection is achieved with the CSR-2SV or CSR-3SV models (2 or 3 sources).
• Which cable should I use? Straight Cat 5 ( T568B standard) with RJ-45 connector, up to 305 m .
• Does it work with my VMA/CSMA? Yes; VMA/CSMA and several CSA models support CSR-V (on some, one per output channel ).

Description for projects

JBL CSR-V-EU-BLK wall-mounted remote control: DC voltage volume control for JBL Commercial equipment; RJ-45 connection ( Cat 5 cable, T568B ), range 305 m ; European format 86 × 86 mm ( 60 mm centres), profile approx. 18.8 mm ; compatibility with CSM mixers, VMA/CSMA mixer-amplifiers and CSA amplifiers (see model details); volume attenuation function; black finish.
