JBL PROFESSIONAL

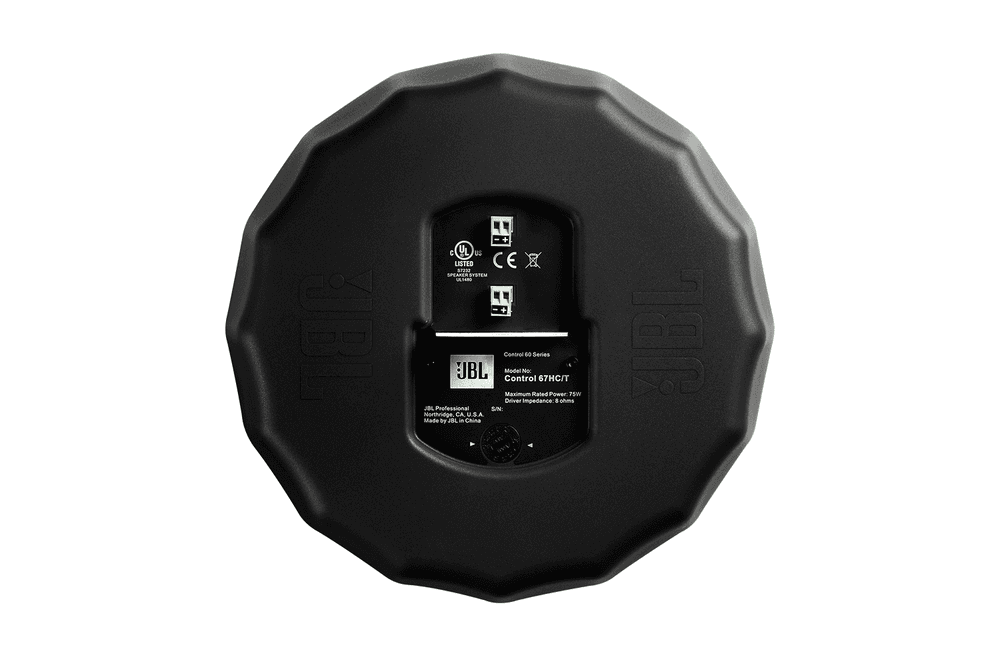

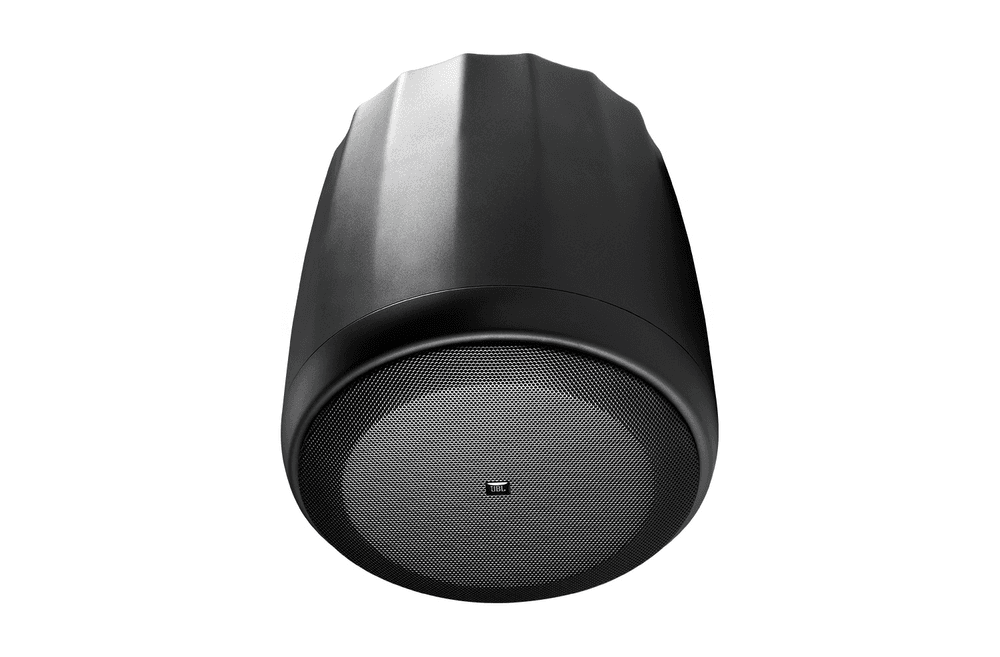

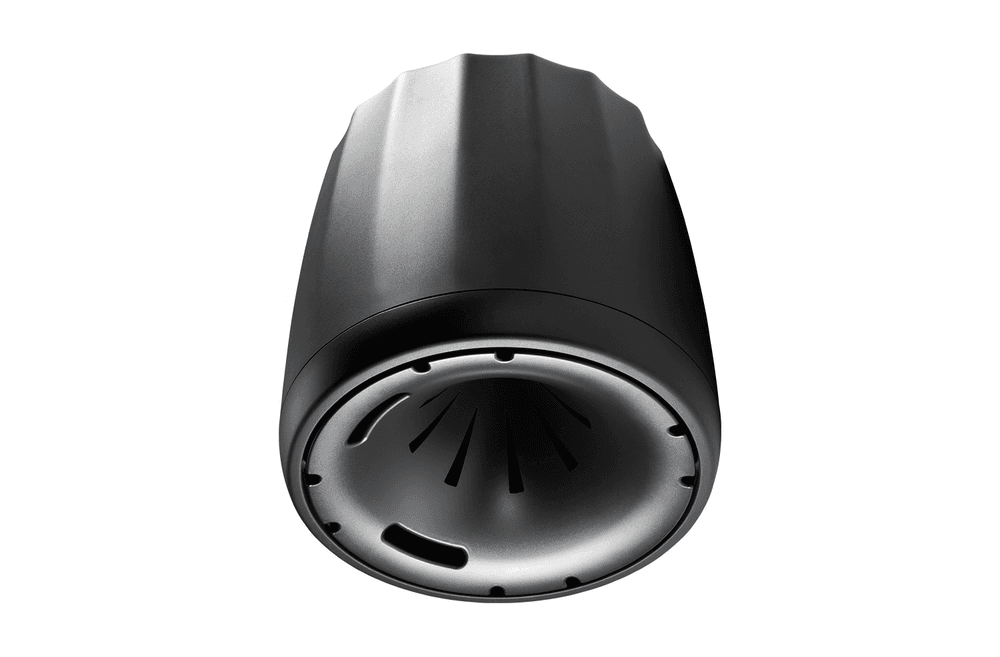

JBL Professional Control 67HC/T - 75° Narrow Coverage Pendant Speaker for High Ceilings (2 Units)

Only 2 left
SKU: CONTROL-67-HC-T EAN13: 50036903875
(0)
1.806,87 € inc. VAT

If you have any questions about this product, we can assist you by filling out the contact form

Ask an expert

Chat Email +34 621046470
The Control 67HC’s tight, tightly controlled coverage is ideal for improving speech intelligibility and music clarity in venues with high ceilings or in rooms with difficult acoustics such as convention centers, transit hubs, exhibit halls, and hotel atrium areas. Features: RBI Radiation Boundary Integration technology Well-controlled 75° coverage for excellent clarity in high, reverberant ceilings 6.5" (165 mm) low-frequency drivers with silk dome tweeter for exceptional sonic fidelity High sensitivity of 93 dB 75-watt, 8-ohm, 60-watt multi-tap transformer Black or white
  • Brand:JBL Professional
  • Model:Control 67HC/T
  • Guy:2-way pendant speaker with narrow coverage
  • Guidance technology:RBI (Radiation Boundary Integrator)
  • Nominal coverage:75° (+15°/−20°)
  • Frequency response (−10 dB):75 Hz – 17 kHz
  • Range (±3 dB):110 Hz – 16 kHz
  • Sensitivity (1 W/1 m):93 dB
  • Maximum SPL at 1 m:112 dB (continuous pink noise) / 118 dB (peak)
  • Permissible power:75 W AES (100 h) / 150 W program (300 W peaks)
  • Nominal impedance:8 Ω
  • Line operation:70/100 V with 60 W multi-socket transformer
  • Tomas 70 V:60 W / 30 W / 15 W / 7.5 W
  • Tomas 100 V:60 W / 30 W / 15 W
  • Transformer insertion loss:0.5 dB (7.5–15 W), 0.6 dB (30 W), 0.7 dB (60 W)
  • LF Transducer:165 mm (6.5″) polypropylene coated cone, 25 mm coil, fiberglass resin former
  • HF Transducer:25 mm (1″) textile dome, neodymium motor, ferrofluid, aluminum former
  • Enclosure material:High-impact polystyrene (HIPS)
  • Rack:Zinc-plated steel with powder coating; paintable (removable grille)
  • Connections:2 x 2-pin Euroblock (input and loop-thru), max. cable 2.5 mm²; rubber covers included
  • Suspension system:Single point with 2 galvanized steel cables of 4.5 m tensionersGripple;SWL 45 kgvia cable
  • Environmental protection: IP44(splashes); passes humidity, salt spray, temperature and UV tests
  • Certifications:UL1480 Listed Loudspeaker; UL1876 Transformer; UL1598/UL2239 Listed Suspension; TUV; CSA; IEC60849/EN60849 Compliant
  • Dimensions (Diameter × Height):333 × 344 mm (369 mm to the top of the bracket)
  • Net weight (per unit):5.9 kg
  • Shipping weight (pair):14.1 kg
  • Included accessories:2 complete suspension systems, 2 Euroblock connectors, 2 rubber covers
  • Optional accessory:Top cap / terminal coverMTC-PC60HC
  • Available finishes:Black or white (-WH)
  • Supply:Pack of 2 units
  • Type New
  • Vendor JBL PROFESSIONAL
  • SKU CONTROL-67-HC-T
  • Bar-code 50036903875

Buy JBL Professional Control 67HC/T - 75° Narrow Coverage Pendant Speaker for High Ceilings (2 Units)
