JBL PROFESSIONAL

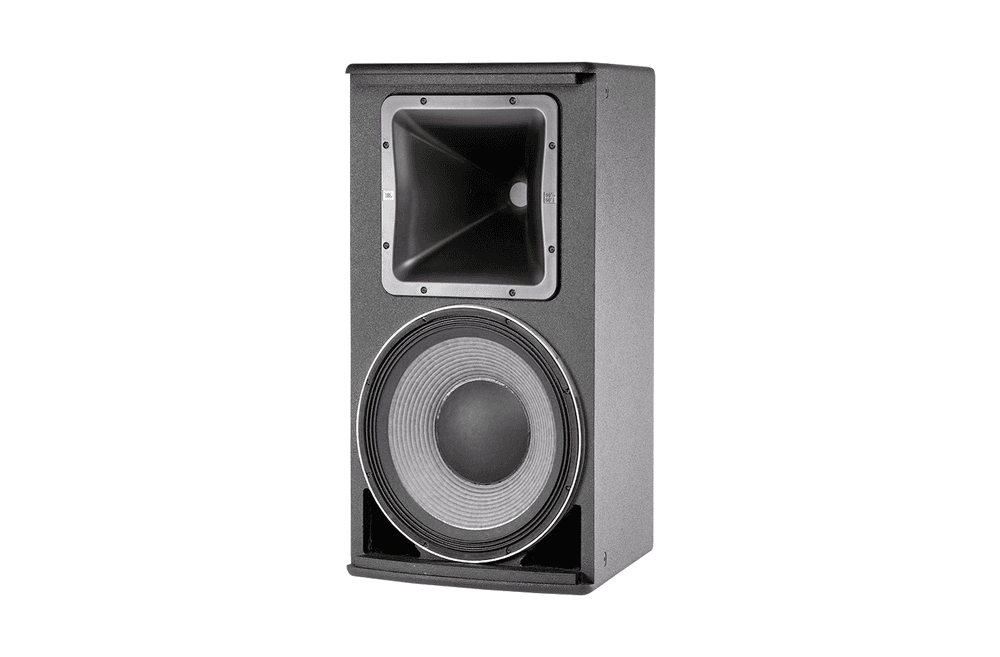

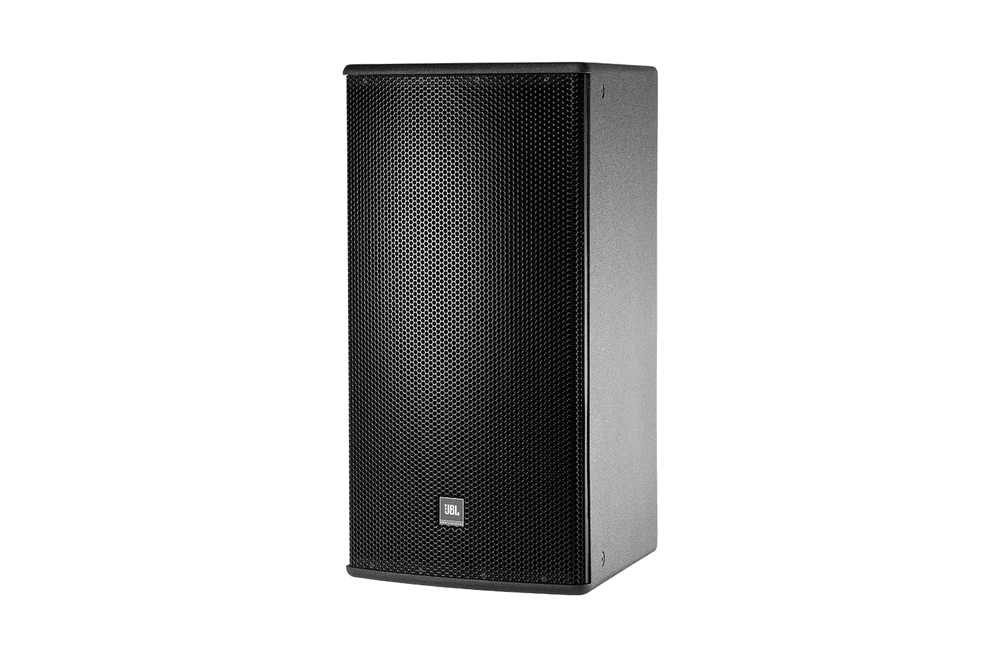

JBL Professional AM7215-95 - 2-way high-power speaker with 1 x 15" LF and 90° x 50° rotating horn

Only 2 left
SKU: AM7215-95 EAN13: 691991011535
(0)
5.776,14 € inc. VAT

If you have any questions about this product, we can assist you by filling out the contact form

Ask an expert

Chat Email +34 621046470
The AM7215 loudspeakers are lightweight, high-power, 2-way, full-range loudspeaker systems consisting of the 380 mm (15 in) JBL Differential Drive® dual-voice-coil 2265H low-frequency driver and the 38 mm (1.5 in) exit 2432H high-frequency compression driver with a 75 mm (3 in) voice coil. The large-format Progressive Transition waveguide provides excellent coverage. The waveguide is rotatable, so the speaker system can be used vertically or horizontally. Steeply sloped passive arrays minimize band overlap. Well-controlled off-axis response improves arrayability.Features? 90° x 50° Coverage? 2265H Differential Drive® low-frequency driver? 2432H high-frequency compression driver? Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion? Rotating waveguide for vertical or horizontal orientation? Switchable Bi-Amp/Passive? Available in Black, White, and WRC/WRX finishes
  • Brand:JBL Professional
  • Model:AM7215-95
  • Guy:2-way full-range speaker for fixed installation
  • Nominal coverage:90° × 50° (guidePT-H95HF-1rotary)
  • Operating mode:Bi-Amp / Passive switchable
  • Passive crossover frequency:1.2 kHz
  • Frequency response (±3 dB):40 Hz – 20 kHz
  • Frequency range (−10 dB):34 Hz ​​– 20 kHz
  • Directivity Index (DI):10.4 dB
  • Directivity factor (Q):11.0
  • System sensitivity (1 W/1 m):96 dB SPL (passive mode)
  • AES Power (2 h):LF 1000 W (4000 W peak) HF 100 W (400 W peak)
  • System power (IEC, 100 h) in passive mode:600 W (2400 W peak)
  • Maximum SPL (1 m):Bi-amp — LF 128/134 dB, HF 133/139 dB Passive — 124/130 dB
  • LF Transducer:1 × JBL 2265H, 380 mm (15"), Differential Drive®, 75 mm coil
  • HF Transducer:JBL 2432H, 38 mm (1.5") output, 75 mm coil
  • Nominal impedance:8 Ω
  • Enclosure:Trapezoidal, Finnish birch 11-ply (16 mm), DuraFlex™ finish
  • Rack:14-gauge perforated steel with acoustically transparent foam
  • Suspension points:15 × M10 (4 on top, 4 on the bottom, 2 per side, 3 at the rear)
  • Input connectors:NL4 Neutrik Speakon® and barrier terminals (parallel, loop-through)
  • Environmental protection:Mil-Std 810; IP-x3 (IEC 529)
  • Dimensions (height × width × depth):781 × 420 × 503 mm
  • Net weight:27.2 kg
  • Available finishes:Black, white; WRC/WRX versions
  • Optional accessories:MTU-1 U-bracket; M10 × 35 mm eye bolts with washer
  • Type New
  • Vendor JBL PROFESSIONAL
  • SKU AM7215-95
  • Bar-code 691991011535

Buy JBL Professional AM7215-95 - 2-way high-power speaker with 1 x 15" LF and 90° x 50° rotating horn
