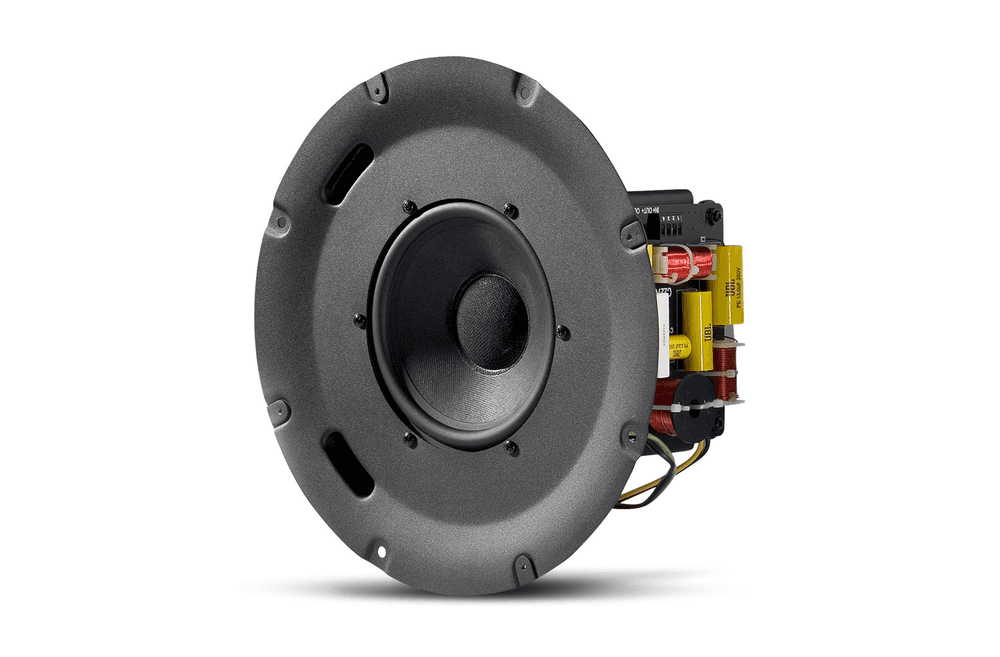

JBL Professional Control 227C - 6.5″ (8 Ω) Coaxial Ceiling Speaker with HF Compression Driver for Use with Pre-Installed Backcan
The JBL Professional Control 227C is a 2-way coaxial ceiling loudspeaker designed for professional installations requiring superior sound quality and uniform coverage across large areas. Its 120° conical driver pattern maintains consistent directivity across a wide bandwidth, allowing it to cover more area with fewer points. It combines a Kevlar-reinforced 165 mm (6.5") woofer with a 25 mm (1") compression driver , managed by a steep crossover network that ensures a smooth, natural midrange, excellent speech intelligibility , and extended response for music.
The 227C (8 Ω) version is designed for low impedance operation with standard amplification. For 70/100 V distributed lines, choose the Control 227CT version. The 227C is supplied pre-mounted on a 305 mm diameter metal carrier baffle and is designed for installation with a pre-installed backcan (e.g., MTC-200BB6 , available separately). It features a removable multi-pin connector with screw terminals , allowing for pre-wiring and installation of the speaker during construction. It is suitable for use in plenums/air handling spaces when installed with a UL-listed backcan.
Main features
-
Controlled 120° coverage with constant directivity for uniformity of level and timbre.
-
Premium coaxial system : 6.5″ Kevlar woofer + 1″ compression driver .
-
Reference performance : 150 W continuous (2 h) / 100 W (100 h), sensitivity 90 dB , max. 112/118 dB (average/peak).
-
Wide response : 75–17 kHz (±3 dB) and 43–19 kHz (−10 dB) for voice and music.
-
Professional installation : ported baffle Ø 305 mm , depth 147 mm from the back of the baffle, barrier connector with screw (up to 2.5 mm²).
-
Backcan and optional grilles : MTC-200BB6 (0.5 ft³), MTC-RG6/8 (round) or MTC-SG6/8 (square) grilles, MTC-TB6/8 (tile bridge).
Product benefits
-
Fewer points per zone : the stable 120° pattern reduces speakers without compromising coverage.
-
Superior intelligibility and natural media thanks to coaxial topology and high slope crossing.
-
More agile work : removable connector for pre-wiring and ported baffle with the transducer already mounted.
-
Project compatibility : suitable for UL listed backcan plenum ; version 227CT available for 70/100 V.
Use cases
-
Retail, hospitality and catering with background music and clear notices.
-
Corporate and education : meeting rooms, classrooms and common areas that require uniformity and discretion in ceiling.
-
Convention centers, museums and airports with requirements for wide coverage and intelligibility.
Frequently Asked Questions
-
Does it include a 70/100 V transformer? No. The Control 227C is 8 Ω . For distributed lines, use the Control 227CT .
-
Which backcans and grilles are compatible? MTC-200BB6 (310 mm diameter cut) and MTC-RG6/8 (round) or MTC-SG6/8 (square) grilles, all optional.
-
Is it suitable for plenum mounting? Yes, when installed with a UL-listed backcan such as MTC-200BB6 or MTC-300BB8 , meeting UL1480/UL2043, NFPA-90/70.
Project description
JBL Control 227C ceiling loudspeaker (8 Ω), 6.5″ coaxial; 120° conical coverage; frequency response 75–17 kHz (±3 dB) / 43–19 kHz (−10 dB) ; sensitivity 90 dB (2.83 V/1 m, half space); max. SPL 112 dB average / 118 dB peak (calc.); IEC power rating 150 W (2 h, 600 W peak) / 100 W (100 h, 400 W peak); crossover 2.2 kHz (HP/LP 3rd order + conjugate). Transducers: LF 165 mm Kevlar + HF compression 25 mm . Ported metal baffle Ø 305 mm ; depth 147 mm from the rear of the baffle; removable multipin connector with screw terminals (max. 2.5 mm²). Optional backcan MTC-200BB6 (internal volume 0.5 ft³ ≈ 14.2 L; ceiling cutout Ø 310 mm ; overall height 206 mm ; 193 mm above ceiling). Plenum use with UL-listed backcan.
