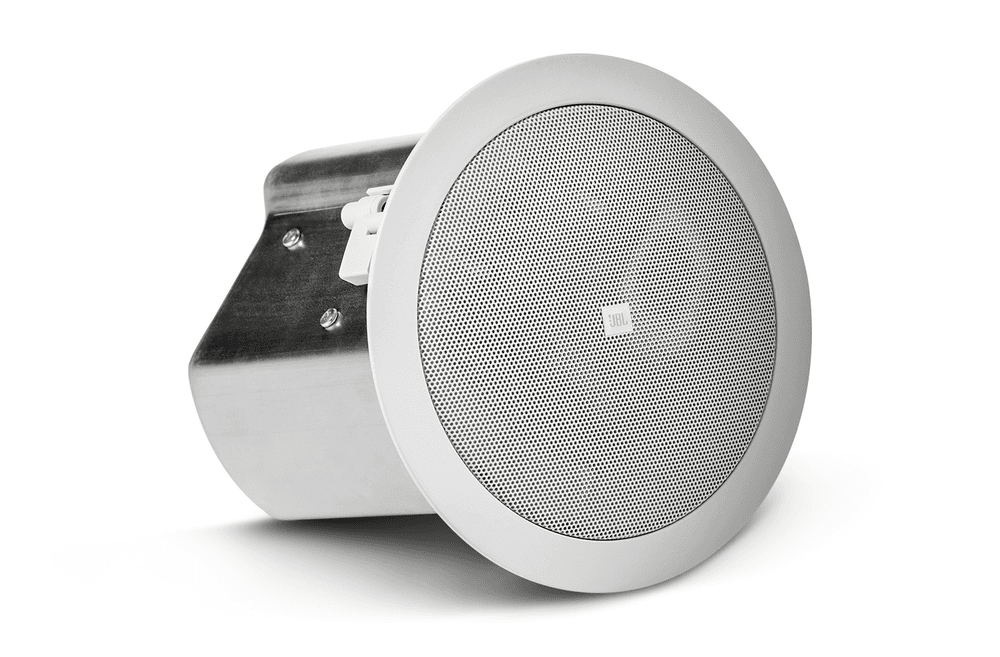

JBL Professional Control 14C-VA - 4" EN54-24 Coaxial Ceiling Speaker with Integrated Backcan (2-Pack)
The JBL Professional Control 14C-VA is a two-way ceiling loudspeaker, EN54-24 certified, designed for voice evacuation and fixed PA systems that demand high intelligibility, reliability, and wide, even coverage. It features a 100mm woofer with a polypropylene cone and butyl rubber surround, paired with a 19mm liquid-cooled soft dome tweeter. The assembly is mounted in a vented, paintable, UV-resistant (UL94-V0 / UL94-5VB) baffle, with a pre-installed blind-mount metal backcan for quick installation and stable performance in plenum spaces.
With a bandwidth of 74 Hz to 20 kHz (−10 dB), 120° conical coverage, and 87 dB sensitivity, the Control 14C-VA delivers consistent on- and off-axis sound. It can operate on low impedance (8 Ω: 30 W continuous pink noise / 60 W program, 120 W peak) or on 70/100 V lines using its multi-tap transformer (25/12.5/6.3 W, plus 3.2 W at 70 V only). It features a ceramic connection block with brass inserts, a watertight cable gland for 4–9 mm round cable, and a thermal fuse, complying with BS5839 Part 8. Supplied in pairs (2 units), with grille, C-ring, ceiling rails, cutting template, and paint mask.
Main features

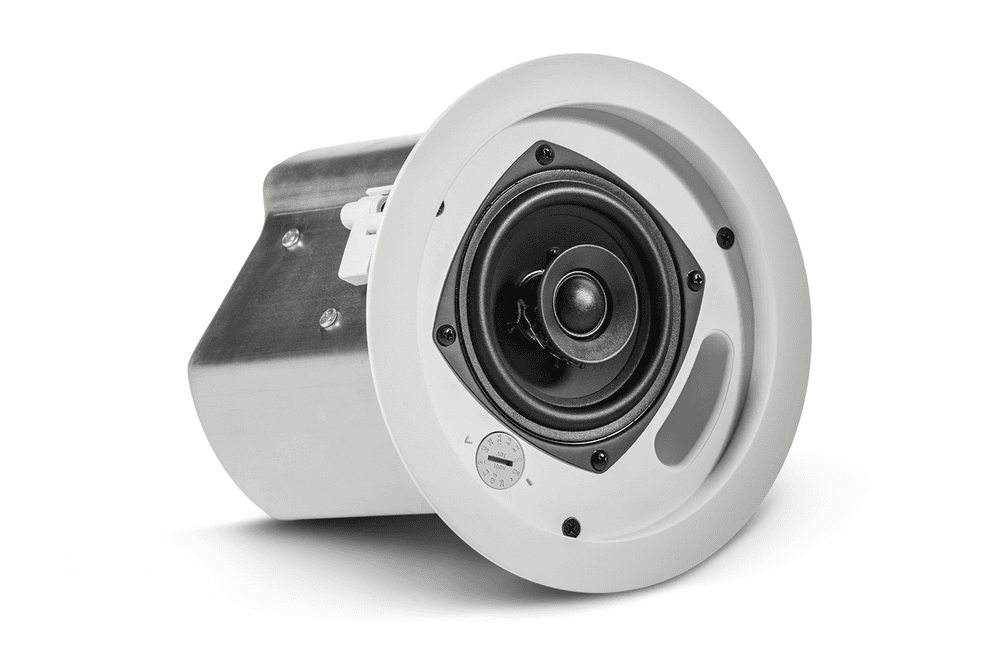

- 2-way coaxial design: 100mm woofer (polypropylene, butyl surround, anodized aluminum former) + 19mm liquid-cooled soft dome tweeter.
- EN54-24 (Type A) certification for life safety applications; ceramic terminals and thermal fuse.
- Wide 120° coverage with consistent off-axis response; DI ≈ 8.1 dB (Q ≈ 7.6).
- Frequency response (−10 dB): 74 Hz–20 kHz; (±3 dB): 100 Hz–15 kHz.
- Sensitivity: 87 dB; Max SPL (1 m): 102 dB average / 108 dB peak (low Z).
- Combined operation: 8 Ω direct and 70/100 V with 25/12.5/6.3 W taps (and 3.2 W at 70 V).

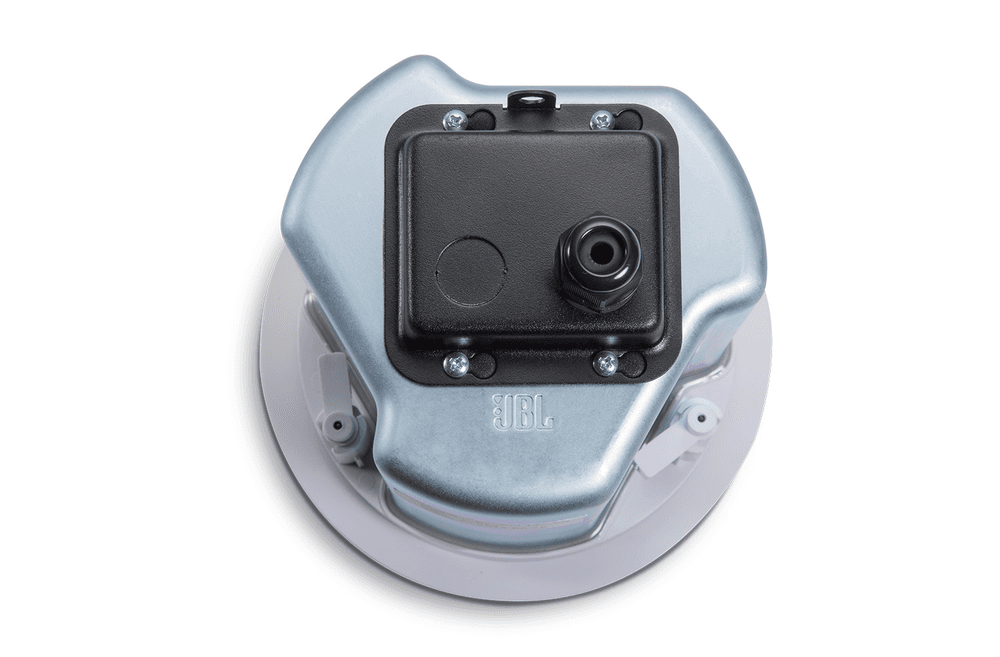

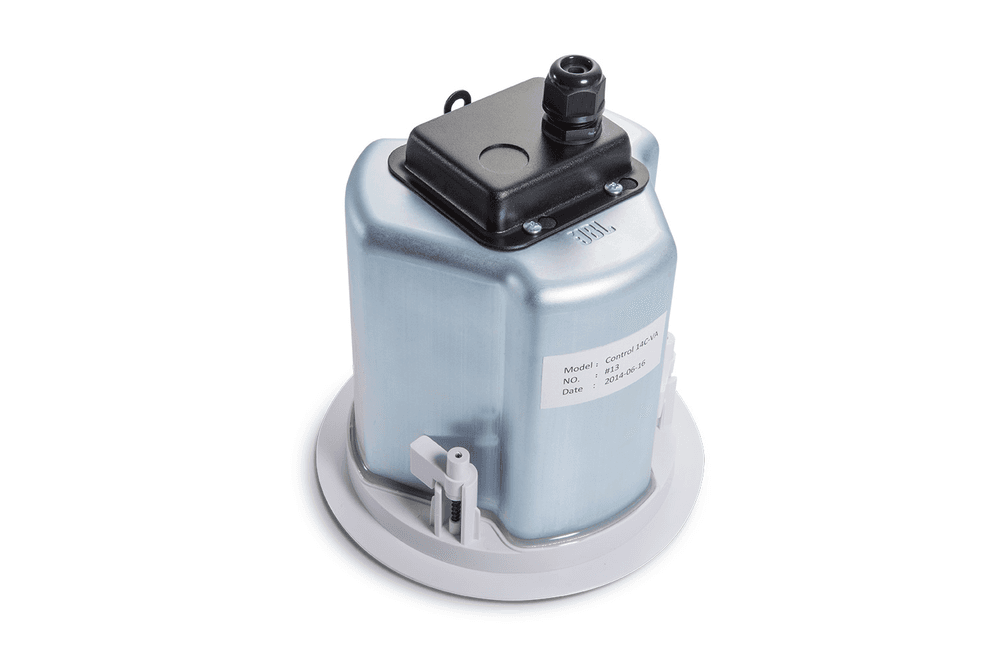

- Professional installation construction: integrated zinc-plated steel backcan, paintable ABS baffle (UL94-V0 / UL94-5VB), suitable for plenum use.
- Protection rating: IP-21; compliant with UL1480, UL2043, NFPA 90 and NFPA 70; UL1876 transformer; CE and RoHS.
- Compact dimensions: Ø 196 mm × 217 mm (depth from baffle to cable gland end); cut Ø 170 mm; ceiling thickness up to 35 mm (up to 55 mm with optional kit).
Product benefits
-
Safety and regulatory compliance: EN54-24 (Type A) certified and integration of elements required for voice alarm, such as ceramic block, thermal fuse and sealed cable gland.
-
Uniform intelligibility and coverage: 120° conical pattern and HF waveguide maintain message clarity and consistent tone over wide areas.
-
Integration versatility: operates at 8 Ω and 70/100 V, ideal for new projects or expansions of existing systems.
-
Quick and clean installation: blind mounting backcan, included hardware and access to wiring from the roof face for more efficient work.
-
Durability in continuous use: moisture-resistant cone, butyl rim, and materials certified for demanding commercial environments.
Use cases
- Voice evacuation, public address systems and background music in airports, shopping centers and stations.
- Hotels, convention centers, retail and education: common areas, corridors and waiting rooms with clear communication requirements.
- Corporate applications: lobbies, meeting rooms and corridors with a demand for high intelligibility.
Frequently Asked Questions
-
Is it certified for voice alarm? Yes, it complies with EN54-24 (Type A) and BS5839 Pt 8 for connections.
-
Does it work at 70/100 V and low Z? Yes, it includes a 25/12.5/6.3 W multi-socket transformer (and 3.2 W at 70 V) and an 8 Ω bypass.
-
What is the cutting size? Ø 170 mm; visible diameter of the assembly Ø ≈ 196 mm; depth 217 mm.
-
What accessories are included? Grid, C-ring, 2 tile rails (600 mm), cutting template and paint mask.
-
Is it sold in pairs? Yes, this item is sold in packs of 2 units.
Project description
EN54-24 (Type A) 2-way coaxial ceiling speaker with 100 mm woofer and 19 mm tweeter; 120° coverage; frequency response (−10 dB) 74 Hz–20 kHz, (±3 dB) 100 Hz–15 kHz; sensitivity 87 dB; low power Z 30 W continuous (pink noise), 60 W program (120 W peak); max. SPL 102 dB (108 dB peak) at 1 m; 70/100 V transformer with 25/12.5/6.3 W taps (and 3.2 W at 70 V only) and 8 Ω bypass; 12 dB/oct crossover; ceramic block connections; Ø 4–9 mm cable glands; UL94-V0/5VB ABS baffle and zinc-plated steel backcan; IP-21; Dimensions Ø 196 mm × 217 mm; cutout Ø 170 mm; ceiling thickness up to 35 mm (55 mm with MTC-TCD). Pack of 2 units.
