JBL Professional Control 126WT - 6.5" In-Wall Speaker with 70/100V Transformer (2-Pack)

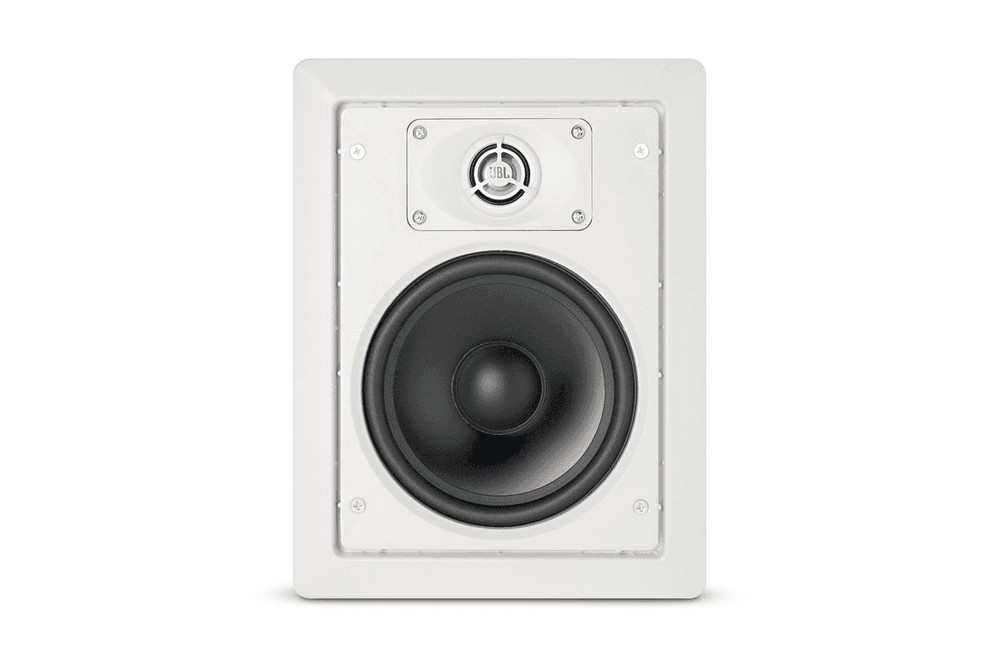

The JBL Professional Control 126WT is a high-quality in-wall loudspeaker from the Control Contractor series, designed to deliver superior performance with minimal visual impact in boardrooms, reception areas, retail spaces, hospitality venues, museums, or surround sound environments. Its two-way architecture combines a 165mm woofer with a polymer-coated aluminum cone and butyl rubber surround with a 25mm pure titanium dome tweeter mounted on an EOS™ waveguide and a swiveling low-diffraction bracket (≈ −10°). A steep crossover maintains a natural midrange and even coverage. The WT model integrates a multi-tap transformer for 70/100V lines, ideal for distributed systems in commercial installations.
With a bandwidth of 38 Hz to 20 kHz (−10 dB), sensitivity of 88 dB, and wide dispersion (≈ 180° H × 160° V), the Control 126WT delivers extended bass, excellent intelligibility, and a homogeneous soundstage across the entire listening area. Connection is made via a screw-in Euroblock connector for quick and secure pre-wiring, and the unit comes with a cutting template and paint mask. For new construction, the WB6 pre-installation frame is available.
Main features
- 2-way in-wall: 165mm woofer (coated aluminum, butyl surround) + 25mm titanium dome tweeter in EOS™ guide and swivel low diffraction bracket.
- Extended response of 38 Hz–20 kHz (−10 dB) with 3rd order crossover (18 dB/oct) for natural mids and uniform coverage.
- Multi-tap transformer for 70/100 V: 30/15/7.5 W (100 V) and 30/15/7.5/3.7 W (70 V).
- Typical wide dispersion: 180° (H) × 160° (V), suitable for ambient music and critical listening.
- Professional installation: screw-on Euroblock connector (up to 1.5 mm²), paintable baffle and grille, cutting template included.
- Compact dimensions and shallow depth: 280 × 215 × 105 mm; only 99 mm from the wall face to the back.
- Optional rough-in frame WB6 for fixing to studs in new construction.
Product benefits
-
Professional-grade sound with discreet aesthetics: high-quality materials and a paintable grille to blend into any environment.
-
Intelligibility and detail: titanium dome with EOS™ guide and tweeter orientation to direct high frequencies to the listening area.
-
Versatility in commercial installations: operation on 70/100 V networks with several sockets to adjust level and power per zone.
-
Quick and safe assembly: Screwed Euroblock, cutting template and WB6 frame option to speed up construction.
-
JBL tonal consistency: product voice aligned with other Control Contractor models for mixed wall, ceiling or surface systems.
Use cases
- Background and foreground music in retail, restaurants, hotels and museums.
- Boardrooms, receptions and convention centers with clear voice reinforcement.
- Surround zones in corporate or exhibition spaces.
Frequently Asked Questions
-
Can the 126WT model operate at 8 Ω? It does not include a direct 8 Ω tap on the connector; it is designed for use with 70/100 V amplifiers and transformer tap selection.
-
What high-pass filter is recommended for 70/100 V? It is advisable to use an HPF between 30 and 70 Hz (many amplifiers integrate it at ≈ 70 Hz) to avoid transformer saturation; the higher the selected tap, the higher the cutoff should be set.
-
What cut should I make in the wall? 246 × 181 mm; the template is included.
-
Is it sold in pairs? Yes, this reference corresponds to a pack of 2 units (shipping weight of the pair: 6.2 kg).
Project description
2-way in-wall speaker with 165 mm woofer (coated aluminum, butyl surround) and 25 mm tweeter (titanium dome, EOS™ waveguide, adjustable ≈ −10°); frequency response (−10 dB) 38 Hz–20 kHz; sensitivity 88 dB (1 W/1 m); power 50 W continuous / 100 W program / 200 W peak (pink-noise test); typical coverage 180° H × 160° V; 70/100 V transformer with 30/15/7.5 W (100 V) and 30/15/7.5/3.7 W (70 V) taps; screw-on Euroblock connector (max. 1.5 mm²); optimum rear volume 20–40 L; dimensions 280 × 215 × 105 mm; Depth behind wall 99 mm; cutting opening 246 × 181 mm; maximum wall thickness 32 mm. Pack of 2 units.
