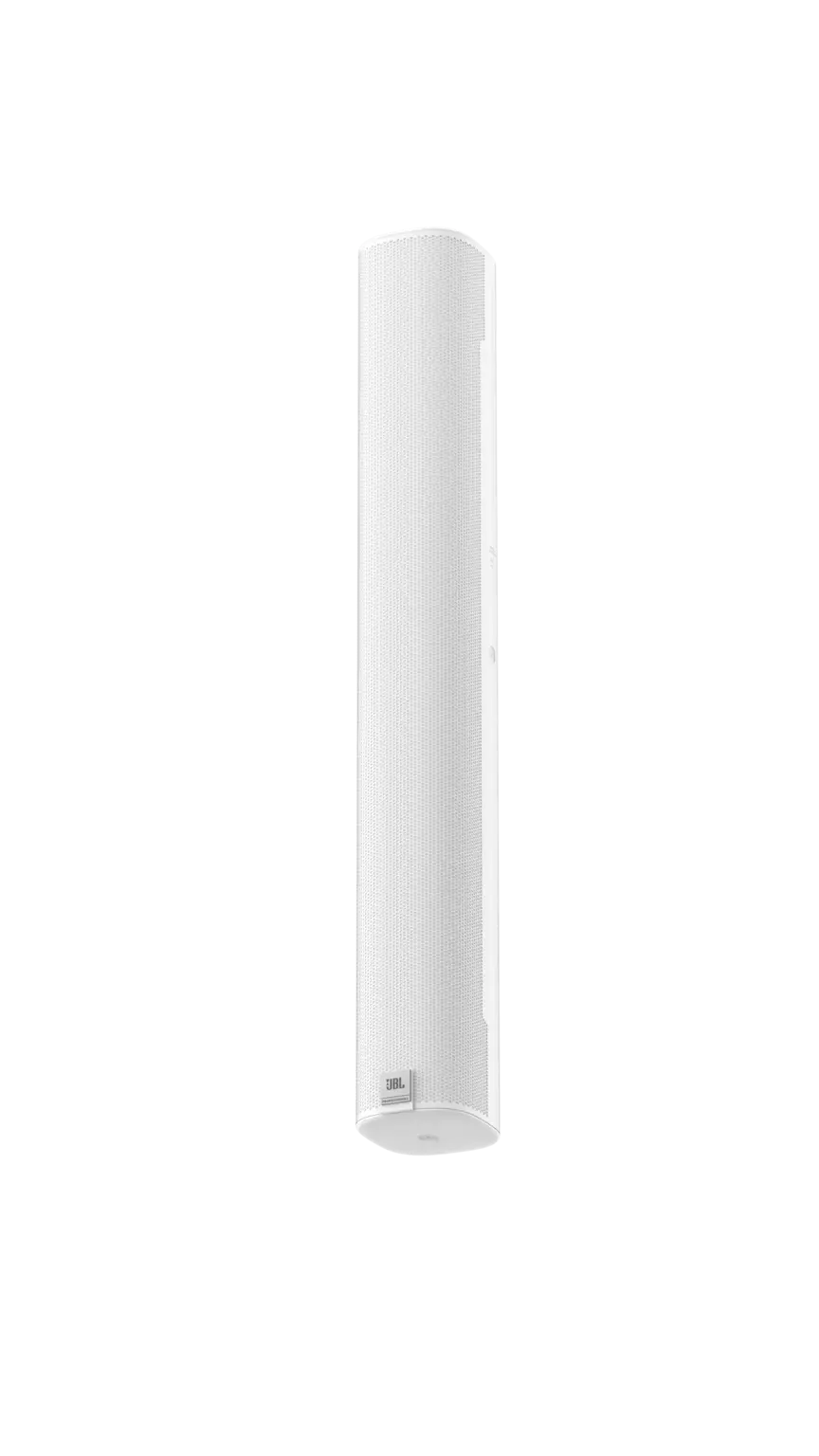

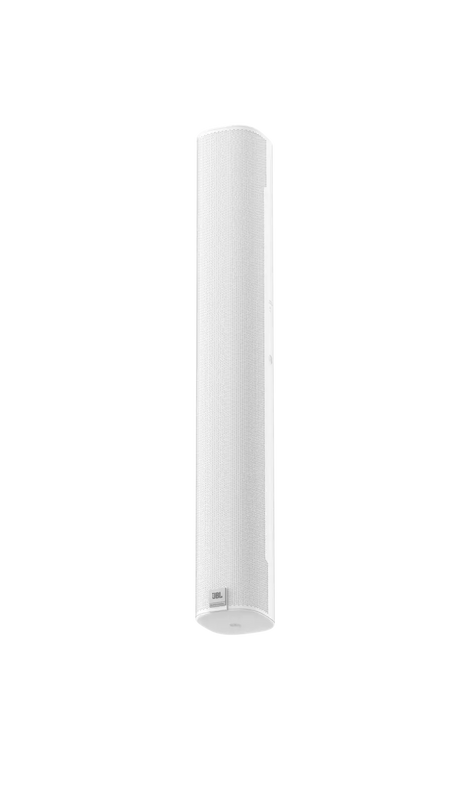

JBL Professional COL600 - 600mm Slim Column Speaker with 160°×110° Coverage and −10° Native Tilt (White)
The JBL Professional COL600 is a sleek and discreet passive floorstanding speaker designed to blend seamlessly into modern architectural spaces without compromising performance. Its 2-way array combines two 125 x 55 mm "racetrack" woofers with a 25 mm tweeter positioned at the top of the column. The native -10° vertical axis tilt directs energy towards the audience even when the cabinet is mounted flat against a wall, preventing unwanted ceiling reflections. It offers very wide horizontal (160°) and focused vertical (110°) coverage, with a frequency response of 70 Hz to 20 kHz and a peak SPL of 111 dB , making it ideal for speech and background music in meeting rooms, classrooms, retail spaces, lobbies, and hallways.
The COL600 supports direct 8 Ω input and features a 20 W multi-socket transformer for 70/100 V networks, making it easy to use in distributed systems. Its slim design (only 93 mm deep) helps meet accessibility requirements when flush-mounted, and the IP54-rated construction—hydrophobic-backed grille, treated drivers, and terminal cover—ensures reliability against dust and splashes. L-brackets are supplied for close-to-wall mounting, along with a low-profile , swivel/tilt wall bracket for precise orientation adjustment. Finished in white.
Main features
- 2-way array: 2 × 125 × 55 mm woofers and 1 × 25 mm tweeter positioned on top for clear coverage.
- 160° (H) × 110° (V) coverage with integrated −10° down-tilt that avoids physically tilting the cabinet.
- Frequency response (−10 dB): 70 Hz–20 kHz; (±3 dB): 105 Hz–20 kHz.
- Level: sensitivity 86 dB (2.83 V/1 m); SPL max. 105 dB continuous / 111 dB peak at 1 m.
- Flexible operation: 8 Ω direct and 70/100 V transformer with 20/10/5 W sockets (and 2.5 W at 70 V).
- Optimized installation: Includes 2 L-brackets (top/bottom or side) and low-profile swivel/tilt wall mount.
- Robust and safe construction: PC+ABS UL94-V0 enclosure, powder-coated steel grille, IP54 and UV index.
- Slim format: 598 × 102 × 93 mm (W × H × D), weight 3.5 kg per unit.
Product benefits
-
Architectural integration without visual impact: slim column 600 mm high and 93 mm deep for close wall mounting.
-
Controlled and homogeneous coverage: 160° H to cover wide areas and 110° V with −10° native angles that focus the sound on the audience.
-
System versatility: use at 8 Ω or 70/100 V with zone selection of sockets.
-
Reliability in real installations: IP54 rating, hydrophobic backing grid and terminal cover to protect the wiring.
-
Quick and precise assembly: included pan/tilt hardware and multiple M6 inserts simplify fine orientation.
Use cases
- Conference rooms, classrooms and small auditoriums.
- Retail, hospitality and catering with background music and voice reinforcement.
- Lobbies, corridors, stations and concourses ; fill and audio applications for video.
Frequently Asked Questions
-
Do I need to physically tilt the box? No, it's not necessary: the column has a built-in -10° tilt of the vertical axis. The included bracket allows you to add up to an additional -10° (depending on the wall).
-
What 70/100V outlets does it include? 20/10/5W at 70V and 100V, plus 2.5W at 70V only, plus an 8Ω bypass.
-
Recommended high-pass filter? 70 Hz at 8 Ω and 60 Hz for any transformer tap.
-
Is it suitable for outdoor use? It has an IP54 rating (dust/splash protection) with the terminal cover installed and without positive tilt; suitable for indoor and covered areas.
-
What hardware comes as standard? Two L-brackets and a low-profile swivel/tilt wall bracket, plus a trim piece.
Project description
2-way passive column speaker (2 × 125 × 55 mm LF + 1 × 25 mm HF); 160° (H) × 110° (V) coverage with vertical axis at −10°; frequency response (−10 dB) 70 Hz–20 kHz / (±3 dB) 105 Hz–20 kHz; sensitivity 86 dB (2.83 V/1 m); max. SPL 105 dB continuous / 111 dB peak; impedance 8 Ω (direct mode); 70/100 V transformer with 20/10/5 W taps (and 2.5 W at 70 V) + 8 Ω bypass; recommended HPF 70 Hz (8 Ω) / 60 Hz (70/100 V); PC+ABS UL94-V0 enclosure, SPCC steel grille; IP54 and UV resistant; Euroblock 4 pin terminal (0.5–2.5 mm²), max. 8 mm case diameter; dimensions 598 × 102 × 93 mm; weight 3.5 kg; white color.
