JBL Professional AW566 - High-power all-weather two-way speaker with 1 x 15" LF and rotating horn (60° x 60°)

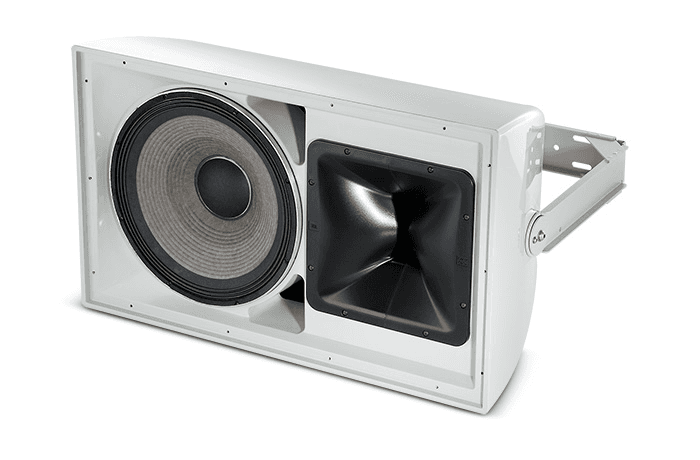

The JBL Professional AW566 is a two-way passive loudspeaker for fixed installation, designed for reliable performance in demanding indoor and outdoor environments. It features a 15" JBL 2265H woofer with Differential Drive® technology and a JBL 2432H compression driver (1.5" exit, 3" voice coil) coupled to a large-format PT™ (Progressive Transition) waveguide with a 60° × 60° pattern. The rotating horn ensures proper coverage in both vertical and horizontal mounting, guaranteeing intelligibility and pattern control across wide areas.

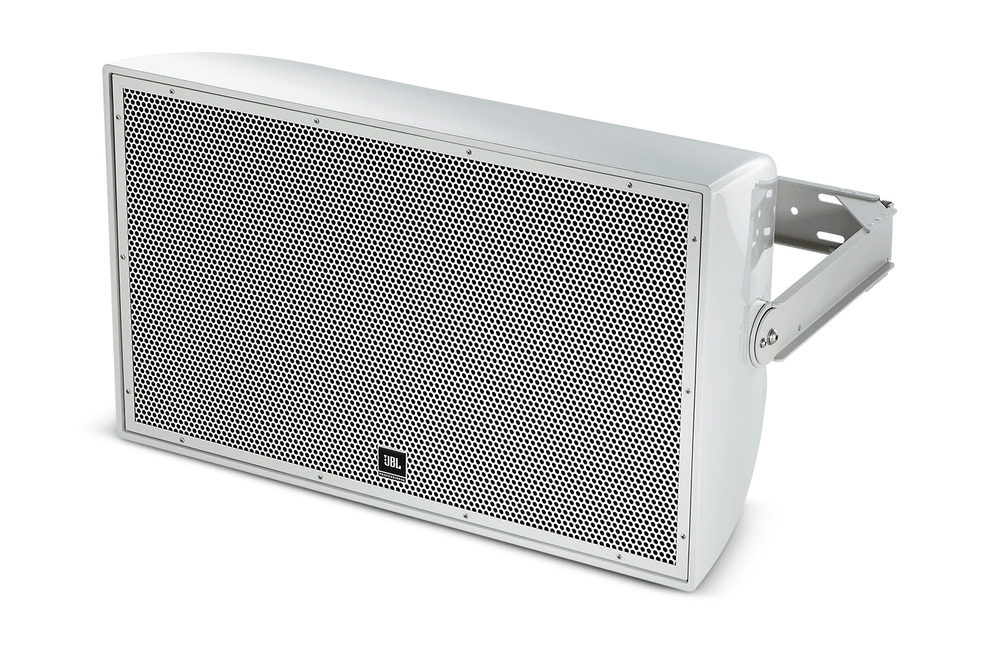

For versatile installation, the system can be operated at low impedance (8 Ω) or on distribution lines thanks to its internal 400 W transformer for 70/100 V with selectable taps. Its hand-laminated, heavily braced fiberglass enclosure, along with the three-layer stainless steel grille and IP55C (IEC 529) environmental rating, provides true weather resistance against rain, humidity, dust, and salt spray. It is supplied with a heavy-duty U-shaped mounting bracket and is available in gray (gel-coat similar to Pantone 420C) and black .
Note: Some promotional materials may show a non-LS version. Only the LS models are sealed, and these models also comply with EN 54-24 for voice evacuation systems. The standard AW566 is not an EN 54-24 model.
Main features
- 2-way all-weather speaker with 1 × 15" LF (JBL 2265H Differential Drive®) and JBL 2432H HF driver.
-
Nominal coverage 60° × 60° using large PT™ waveguide and rotating horn .
- Operation at 8 Ω or 70/100 V with integrated 400 W transformer (70 V sockets: 400/200/100 W; 100 V: 400/200 W).
-
100% fiberglass enclosure and triple-layer stainless steel grille; IP55C for permanent outdoor use.
- Response (±3 dB) 54 Hz – 18 kHz ; range (−10 dB) 35 Hz – 20 kHz .
- Power (IEC, 100 h) 600 W (peak 2400 W ); Max SPL 128 dB continuous / 134 dB peak; sensitivity 100 dB (1 W/1 m).

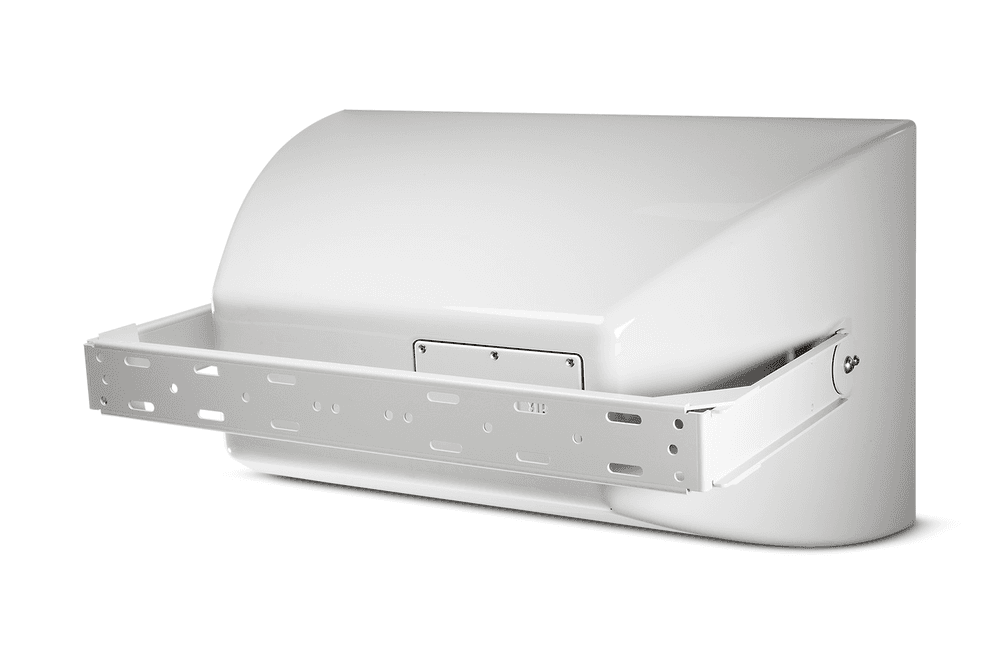

- Includes U-bracket ; covered barrier terminals (CE) and M10/M6 anchor points.
- Finishes: gray or black.
Product benefits
-
Controlled and uniform coverage : the PT™ guide maintains the 60° × 60° pattern with low distortion for greater clarity at medium and long distances.
-
Sustained performance : the Differential Drive® woofer reduces thermal compression, delivering punchy bass and high output capability.
-
Flexible installation : low impedance option or 70/100 V lines, with rotating horn to adapt the directivity to the orientation of the enclosure.
-
True “all-weather” resistance : anti-corrosion materials and seals designed for outdoor use to minimize maintenance.
-

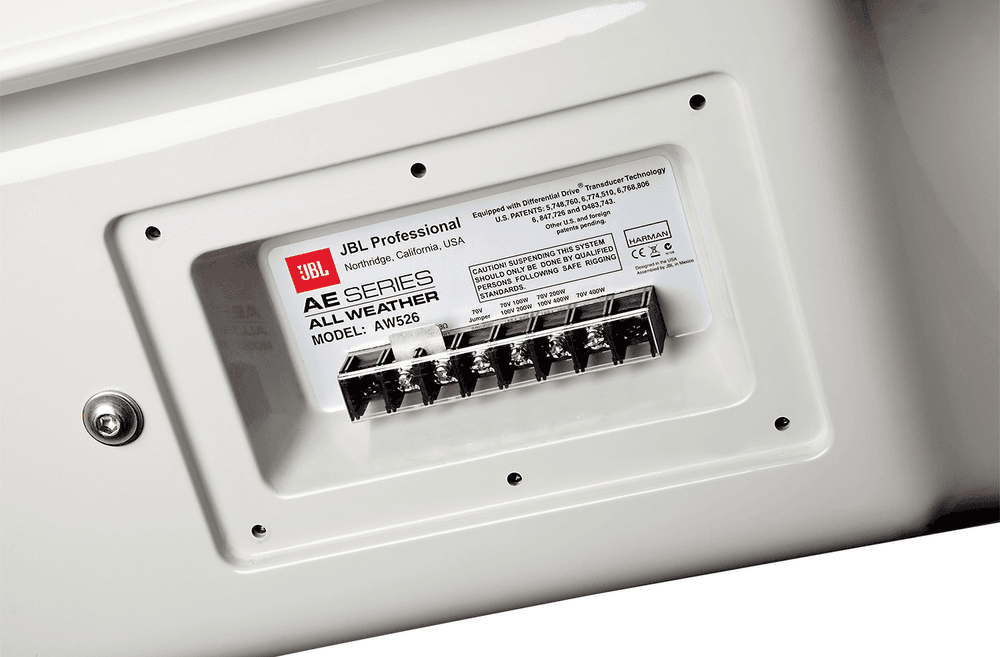

Professional integration : connections via barrier terminals, U-bracket included and multiple fixing points for alignment and safety.
Use cases
- Sports facilities, outdoor entertainment venues, theme centers.
- Water parks, municipal swimming pools, tourist resorts and seafront promenades.
- Cruise ships, marinas and busy public spaces.
Frequently Asked Questions
-
How does the AW566 differ from the AW566-LS? The LS model adds sealed components and EN 54-24 compliance for voice evacuation. Acoustic performance and the 60° × 60° pattern are equivalent.
-
Can I rotate the speaker to mount it horizontally? Yes. The waveguide is rotatable to maintain coverage when changing orientation.
-
Does it include a stand and can it be used at 100V? Yes. It includes a U-shaped stand and has an internal 400W transformer with 70/100V outlets, as well as 8Ω operation.
Project description
2-way all-weather passive loudspeaker, 1 × 380 mm JBL 2265H LF and 1 × JBL 2432H HF (38 mm exit), PT-H66HF-1 rotating waveguide with 60° × 60° coverage; frequency response (±3 dB) 54 Hz–18 kHz, range (−10 dB) 35 Hz–20 kHz; crossover 1.1 kHz; IEC power 600 W (2400 W peak); sensitivity 100 dB (1 W/1 m); max. SPL 128 dB continuous / 134 dB peak; 400 W transformer with 70 V 400/200/100 W and 100 V 400/200 W taps; nominal impedance 8 Ω; fiberglass enclosure; three-layer stainless steel grille; IP55C (IEC 529); CE barrier terminal connectors; mounting points 2 × M10 (U-bracket included), 2 × M6 (stabilization) and 1 × rear M10 (security); dimensions 485 × 810 × 478 mm; weight 28.3 kg; finishes grey or black.
