JBL Professional AW295 - All-weather 2-way speaker with 1 x 12" LF, 90° x 50° coverage and rotating horn

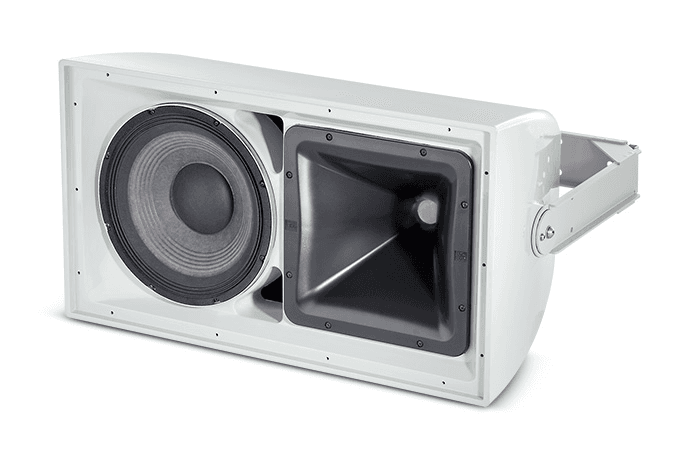

The JBL Professional AW295 is a high-power passive system for fixed installation that combines a 12" JBL 2262H woofer with Differential Drive® technology and a JBL 2432H compression driver (1.5" exit, 3" voice coil). Both operate on a large-format PT™ (Progressive Transition) waveguide with 90° × 50° coverage . The horn is rotatable , so the pattern is maintained in both vertical and horizontal mounting. Note: Official materials may show a non-LS unit; the sealed parts apply to the AW295-LS submodel (compliant with EN 54-24).

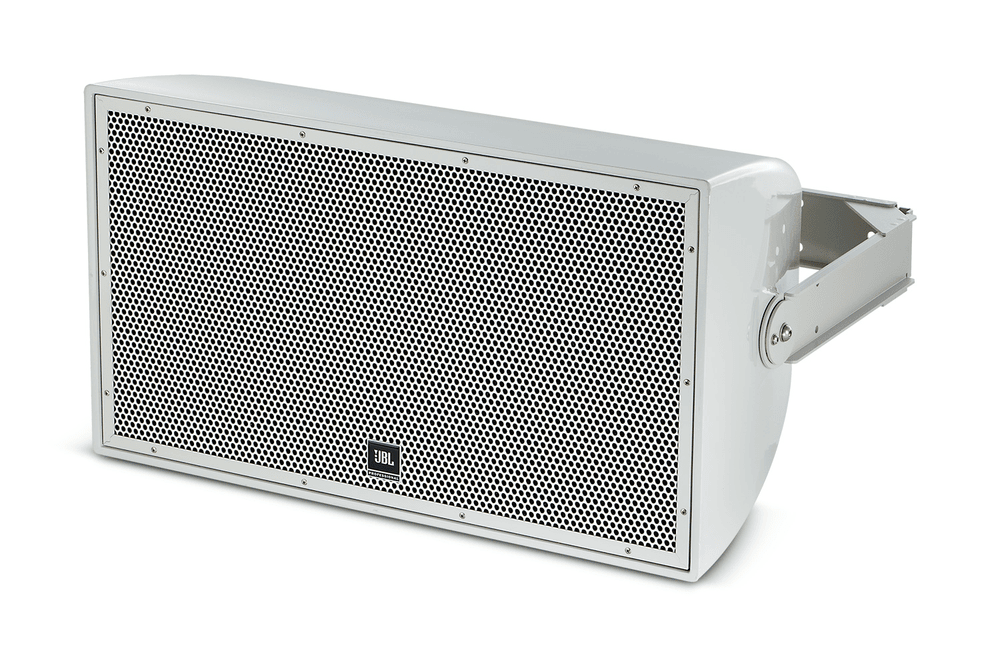

Its all-weather construction is genuine: a 100% hand-laminated fiberglass enclosure with heavy-duty bracing and a three-layer stainless steel grille with open-cell foam and mesh. It incorporates an internal 400W transformer for 70/100V (400/200/100W outlets at 70V and 400/200W at 100V) and operates at 8 Ω . It has an IP55C environmental rating and comes with a corrosion-resistant U-shaped mounting bracket .
Main features
-
2-way all-weather system with 1 x 12" LF JBL 2262H Differential Drive® and HF JBL 2432H driver.
-
90° × 50° coverage via large PT™ guide and rotating horn for vertical or horizontal orientation.
-
Integrated 400W transformer for 70/100V and use at 8 Ω without external accessories.
-
Fiberglass enclosure and triple-layer stainless steel grille ; IP55C for permanent outdoor use.
- Includes U-type mounting bracket and M10/M6 anchor points for stabilization and security.
- Available finishes: grey (gel-coat) and black .
Product benefits
-
Consistent intelligibility : The PT™-controlled 90° × 50° pattern reduces unwanted reflections and maintains clarity at medium and long distances.
-
Sustained output : The Differential Drive® design minimizes thermal compression, delivering punchy bass and high SPL capability.
-
Integration versatility : low impedance option or operation on 70/100 V networks with high power taps.
-
Weatherproof : anti-corrosion materials and seals for rain, humidity, dust and salt spray.
-
Professional deployment : U-bracket included and hardware for precise orientation and secure installation.
Use cases
- Sports facilities, theme parks and outdoor entertainment venues.
- Water parks, swimming pools, marinas and coastal resorts.
- Public squares, fairgrounds and cruise ship decks.
Frequently Asked Questions
-
Is the AW295 EN 54-24 certified? No. That certification applies to the AW295-LS , which also uses sealed components. The standard AW295 shares the same acoustic architecture, but not the certification.
-
Can the horn be rotated for horizontal mounting? Yes. The PT™ guide is rotatable to maintain the 90° × 50° pattern in any orientation.
-
Does it include a stand and does it work at 100V? Yes. It comes with a U-shaped stand and has an internal 400W transformer with 70/100V outlets, as well as 8Ω operation.
Project description
2-way all-weather passive loudspeaker, 1 × JBL 2262H LF (300 mm) and 1 × JBL 2432H HF (38 mm exit, 75 mm voice coil); PT-H95HF-1 rotating waveguide with 90° × 50° coverage; frequency response (±3 dB) 53 Hz–18 kHz , range (−10 dB) 43 Hz–20 kHz ; crossover 1.3 kHz ; IEC power 500 W ( 2000 W peak); sensitivity 98 dB (1 W/1 m); max. SPL 126 dB continuous / 132 dB peak; 400 W transformer with 70 V 400/200/100 W and 100 V 400/200 W sockets; nominal impedance 8 Ω ; CE barrier terminal connectors; IP55C ; three-layer fiberglass and stainless steel grille enclosure; mounting points 2 × M10 (U-bracket included), 2 × M6 (stabilization) and 1 × rear M10 (security); dimensions (height × width × depth, horizontal orientation) 409 × 732 × 452 mm ; weight 25.2 kg .
