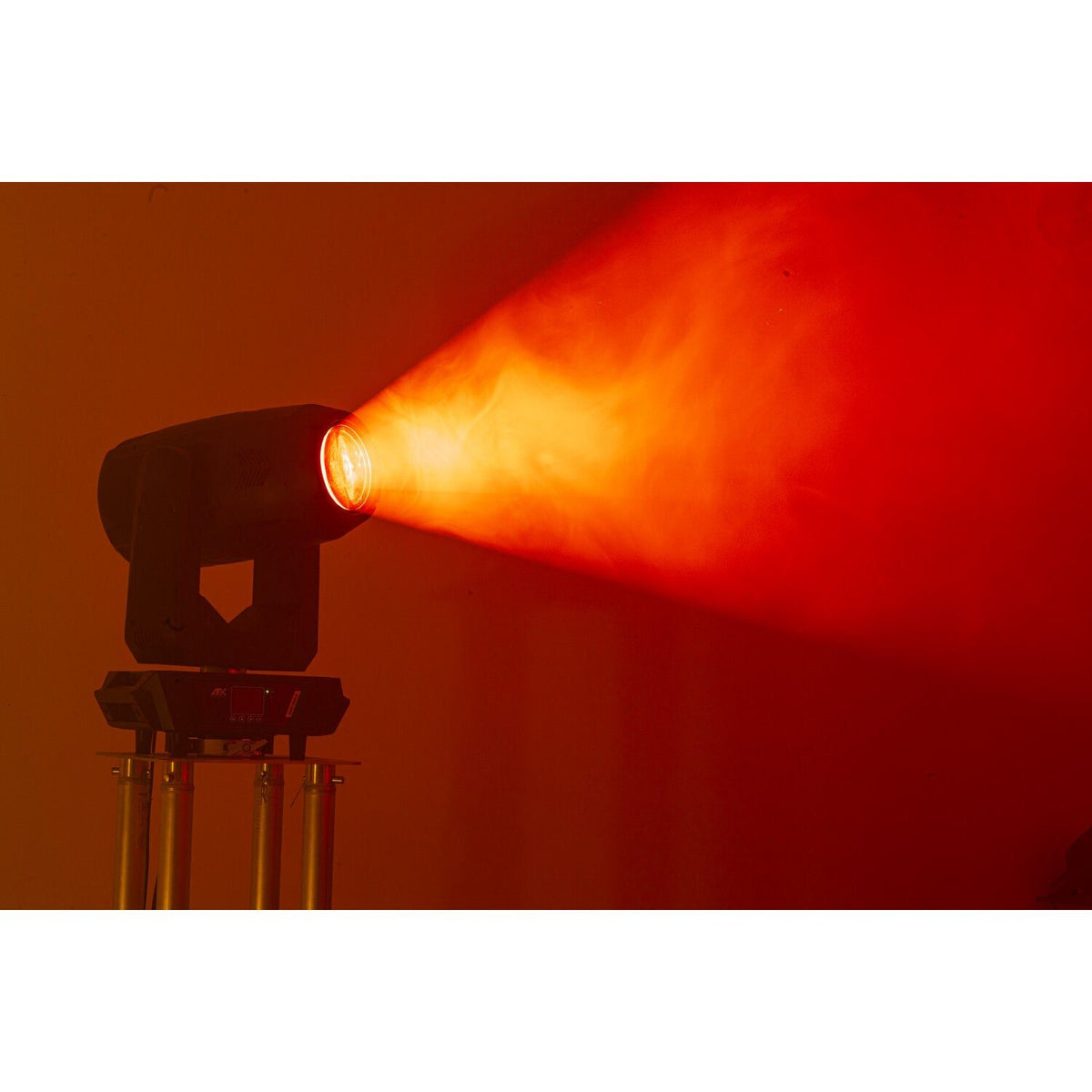

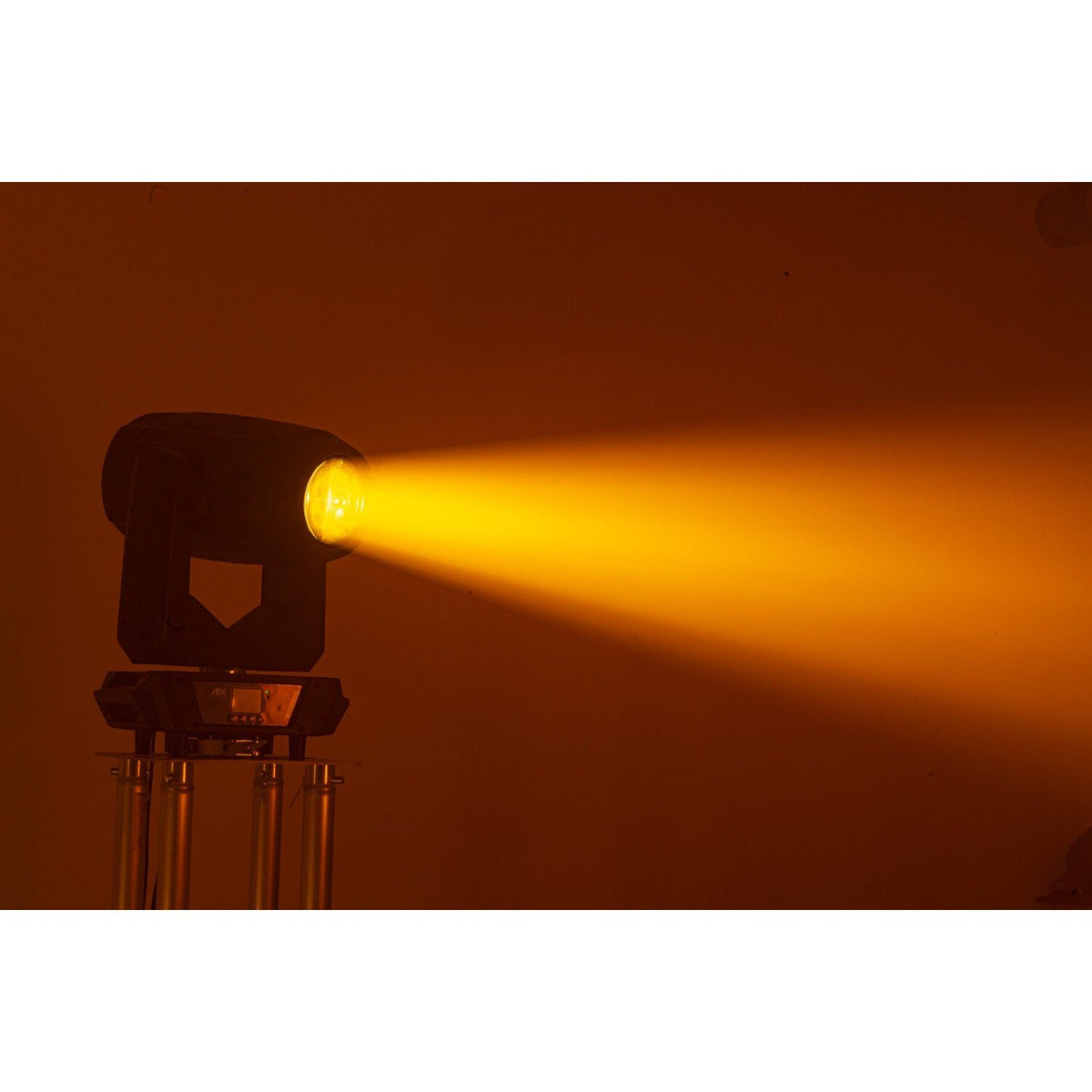

AFX Light HYBRID-470LED-FC - Hybrid Beam – Spot – Wash 470W Moving Head with Flightcase

AFX Light HYBRID-470LED-FC – 470W Hybrid Beam-Spot-Wash Moving Head with Flightcase

The AFX Light HYBRID-470LED-FC is a high-end moving head that integrates a powerful 470W white LED with BEAM, SPOT, and WASH functions in a single fixture. Mounted in a professional flightcase, it combines long-range electric focus, motorized zoom, a rotating and static gobo wheel, multi-facet prisms, and a CMY+CTO system for unlimited creative versatility. Perfect for touring, theaters, festivals, and large architectural installations.

Main features

• Light source: 1 × 470 W high power white LED.
• DMX Control: 23 or 21 USITT DMX-512 channels and ArtNet compatibility.
• Rotating gobo wheel: 2 interchangeable glass gobos + 5 metal gobos + open, with stream, dithering, bi-directional rotation and indexing.
• Static gobo wheel: 11 gobos + open and overlay (gobo morphing).
• Color wheel: 5 filters + open; “frost” filter for soft wash.
• Electric focus: 2.5 – 15 m with linear iris adjustment 5%–100%.
• Motorized zoom: BEAM 3°–36° and WASH 10°–60° with smooth movement.
• Prisms: 4 and 8 facets with adjustable speed and direction.
• Color: Linear CMY mixing + CTO for color temperature adjustment.
• Shutter/Strobe: Up to 25 flash/s with variable and random strobe modes.
• Operating modes: DMX, master-slave, sound-active and automatic (9 built-in programs), Totem mode.
• Assembly: Includes reinforced flight case for protection and transport.

Product benefits

• Maximum versatility: a single head covering narrow beam, gobo and wash functions.
• Professional optical quality: glass and metal gobos, multi-faceted prisms and flicker-free CMY mixing.
• Long range: Motorized focus and zoom allow coverage in large and distant settings.
• Easy transport: dedicated flight case that protects equipment during frequent tours and setups.
• Creative Control: Advanced ArtNet and DMX, Totem Mode, and automated sequencing for repeatable shows.

Use cases

• Concerts, festivals, and large-scale tours.
• Theaters, operas, and stage productions that require lighting precision.
• High-impact architectural installations and corporate events.
• Audiovisual and broadcast filming where flicker-free operation is required.
• Professional rentals and amusement parks with complex programming.

Frequently Asked Questions

• How do you replace glass gobos? Open the top compartment and remove the gobo holder; twist to replace the glass without tools.
• What is the power consumption? 470 W nominal; power supply 100–240 V AC, 50/60 Hz.
• Can I use ArtNet and DMX simultaneously? Yes; ArtNet is prioritized, and an internal switch allows fallback to DMX512.
• Is the flight case waterproof? It protects against shocks and vibrations, but it's not designed to withstand direct rain.

Description for projects

Hybrid moving head with 470 W white LED, DMX 23/21 channels + ArtNet, focus 2.5–15 m, zoom 3°–36°/10°–60°, rotating (glass/metal) and static gobo wheels, 4/8-facet prisms, CMY+CTO, iris 5–100%, strobe 25 flash/s, 9 programs, flightcase included.
