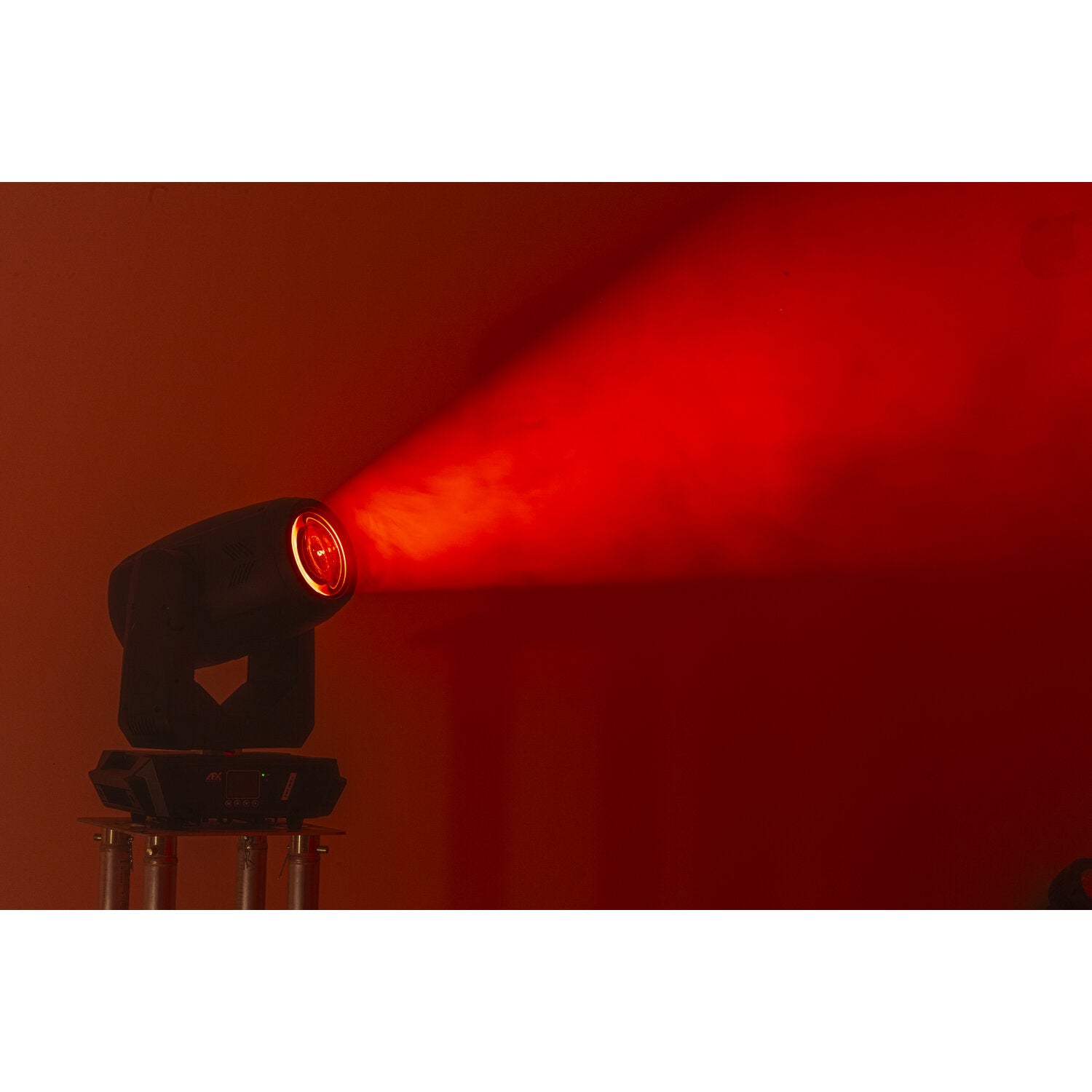

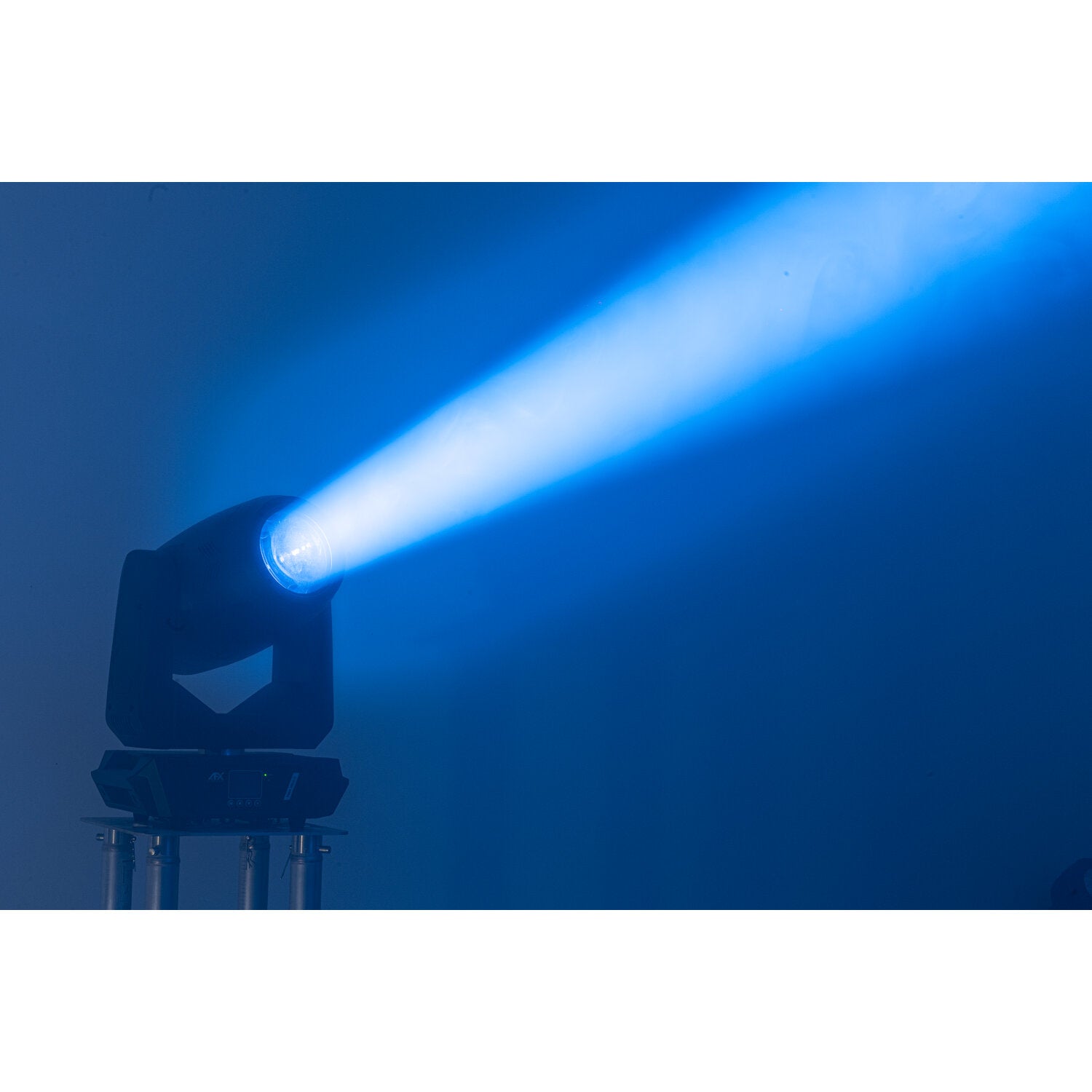

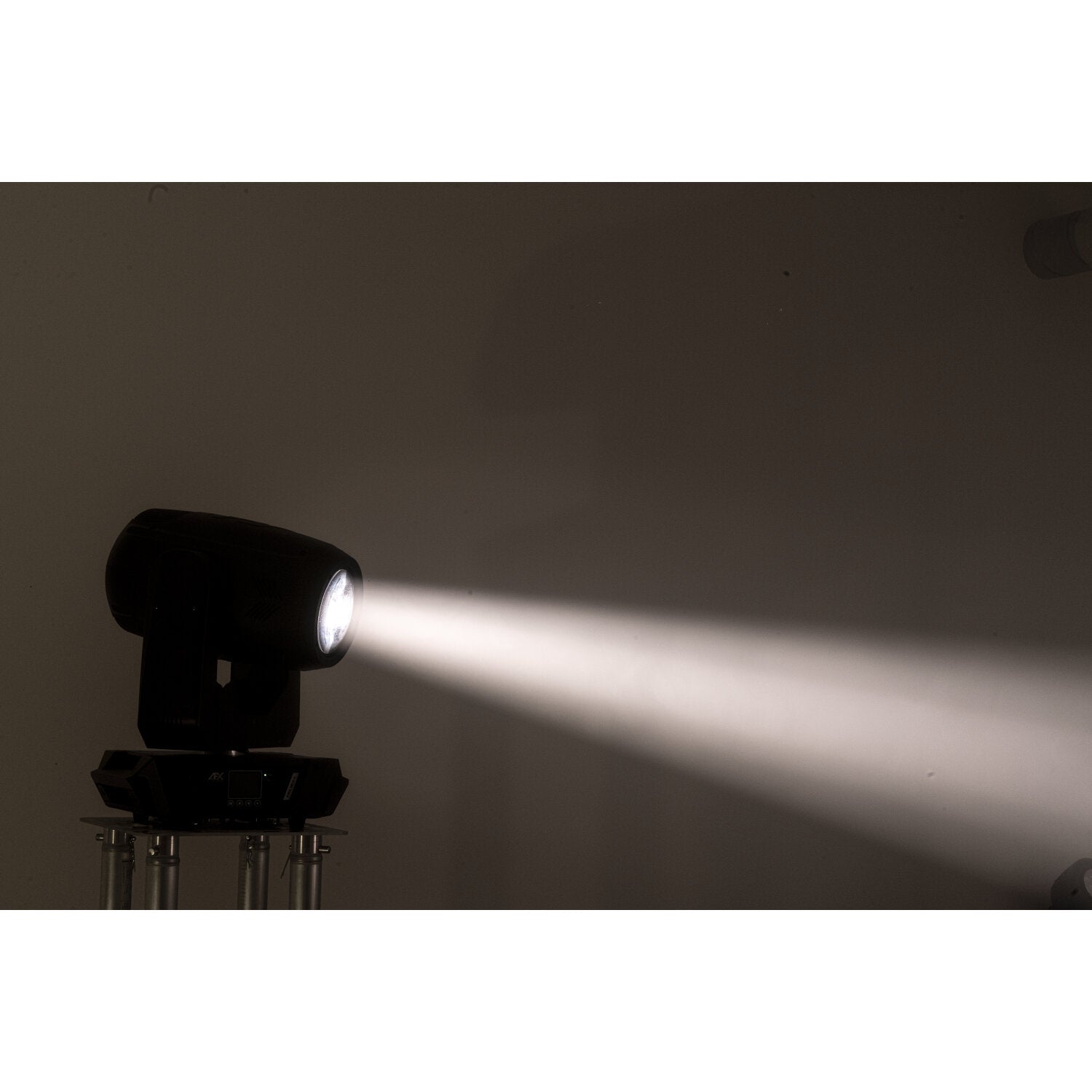

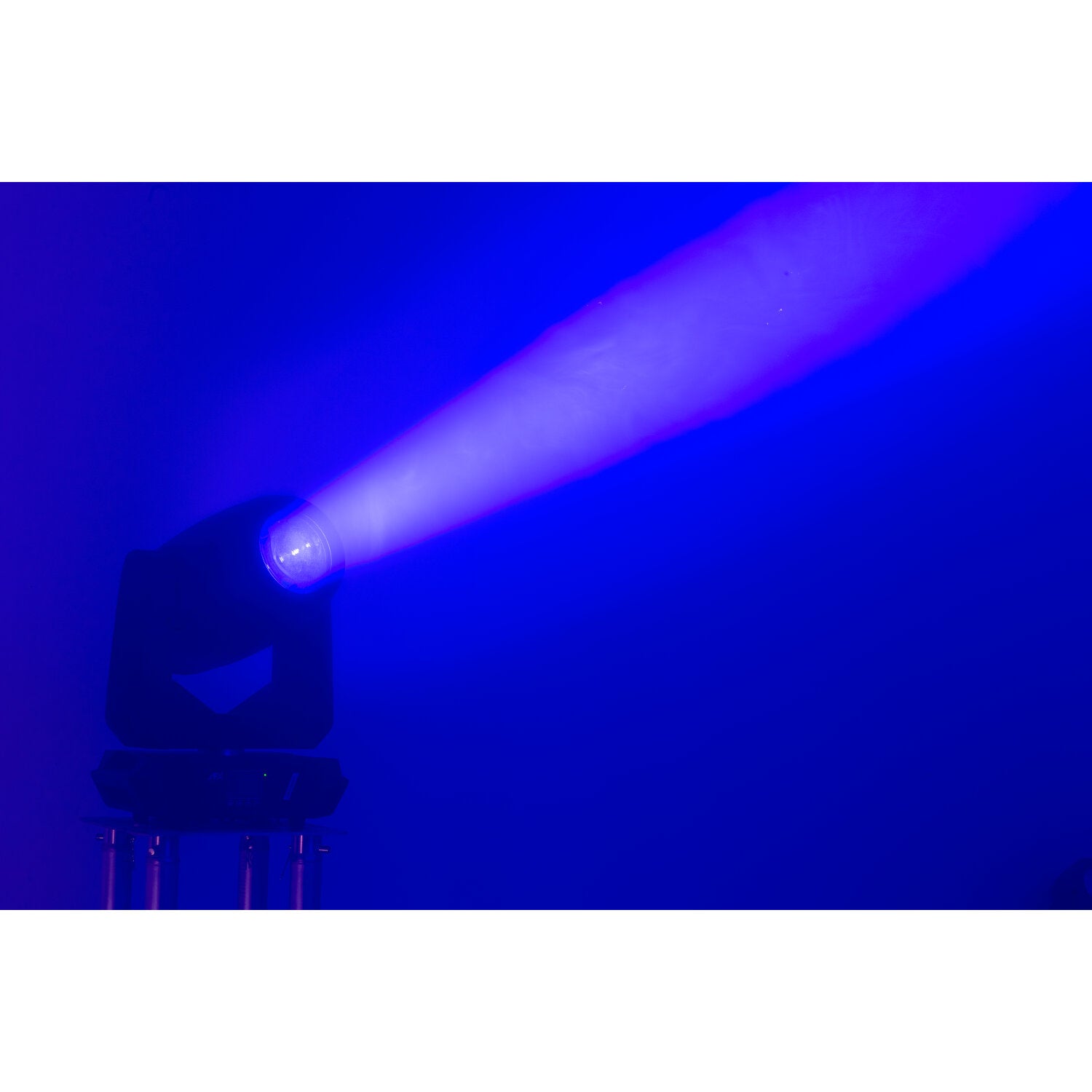

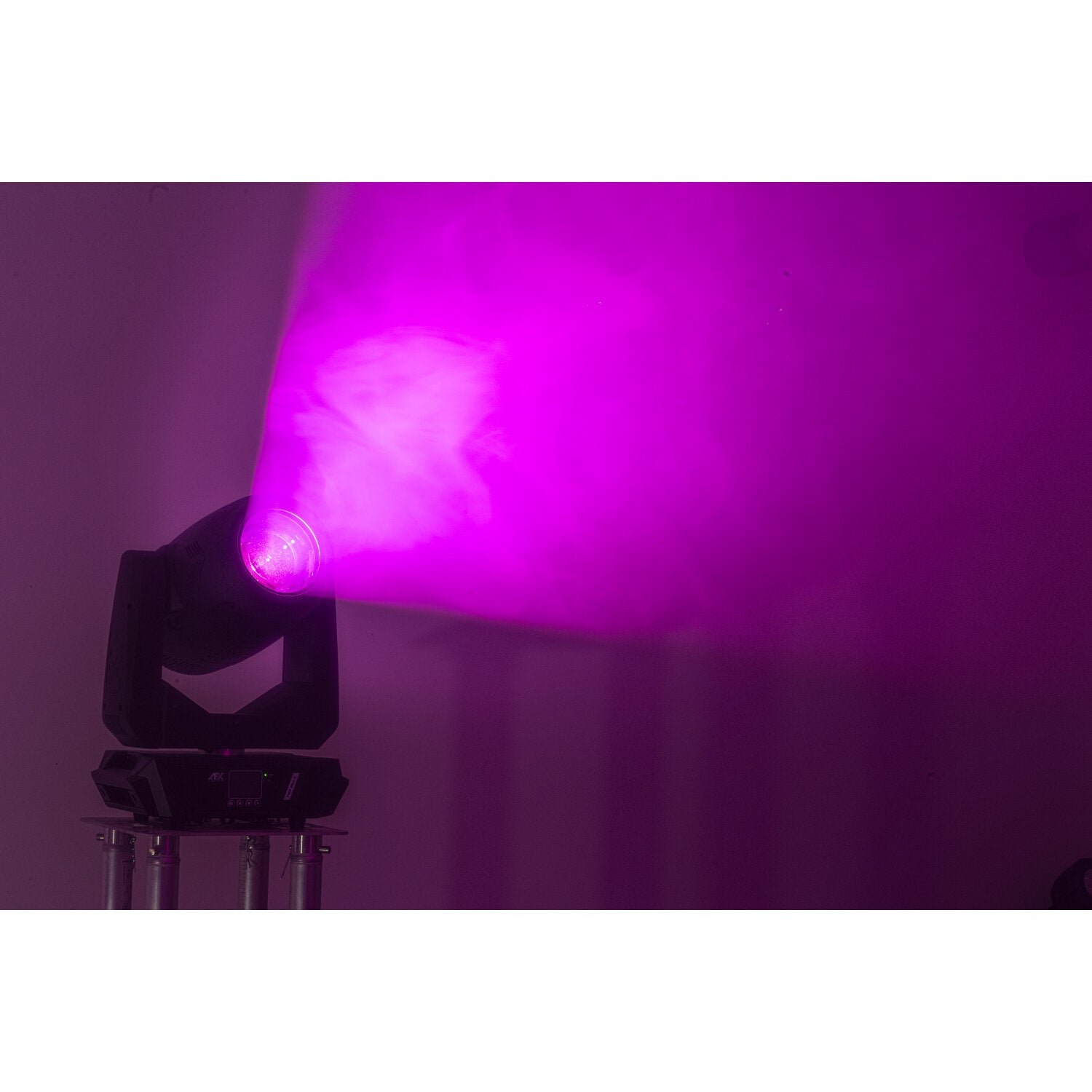

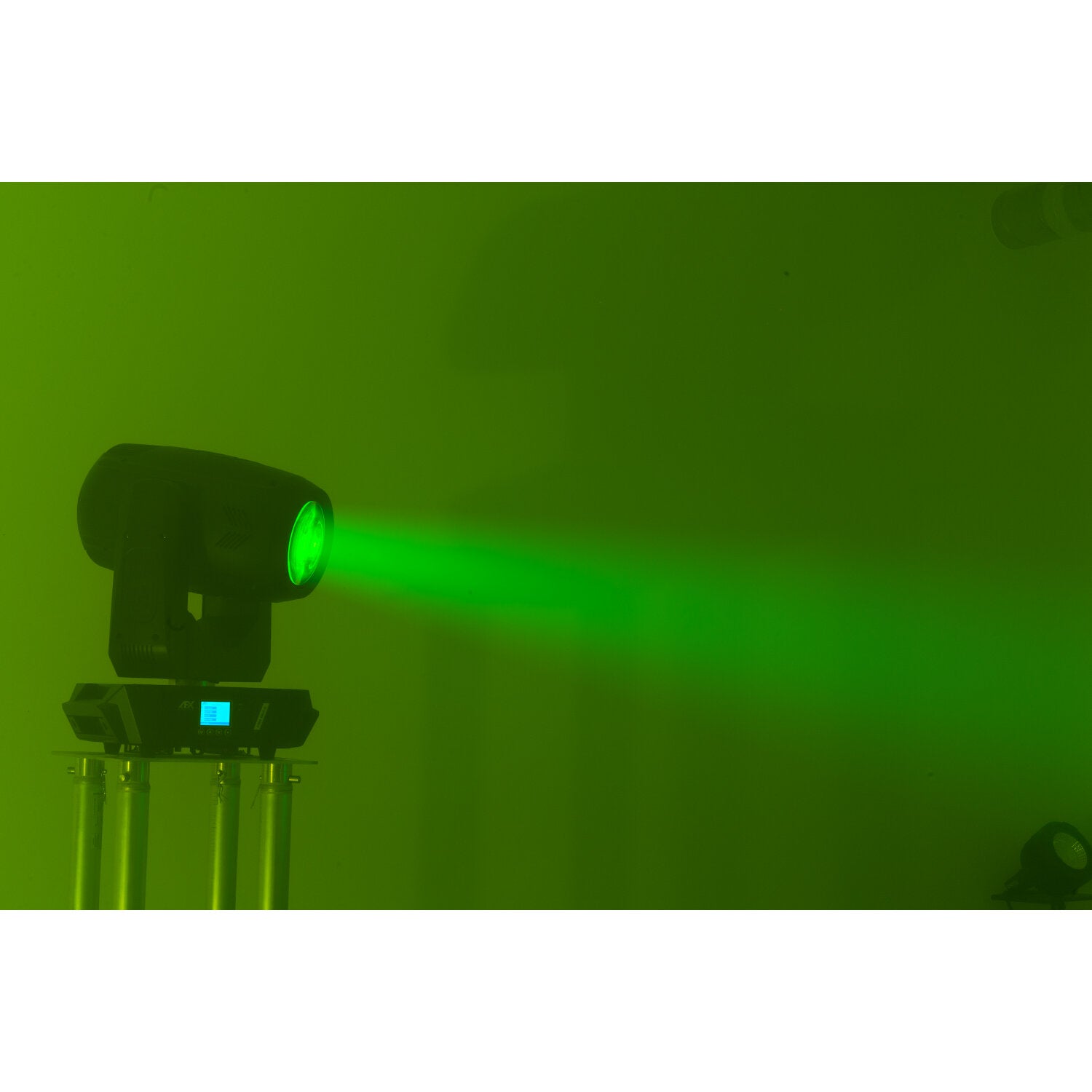

AFX Light HYBRID-360LED-FC – 360W Hybrid Spot-ZOOM Moving Head with Flightcase
The AFX Light HYBRID-360LED-FC is a powerful hybrid moving head that combines a precision SPOT beam and a wide WASH zoom in a single 360W unit. Equipped with a highly efficient 360W white LED lamp, improved flatfield optics and advanced DMX/ArtNet control, it integrates interchangeable gobo wheels, multi-facet prisms and CMY+CTO mixing for maximum creativity. Mounted in a professional flightcase, it offers automatic functions, Totem mode and a 2.8″ TFT touchscreen for intuitive control on the road, in theatres and on large events.
Main features
- Light source: 1×360 W high power white LED.
- Control: 22/20 USITT DMX-512 and ArtNet channels.
- Rotating gobo wheel: 2 interchangeable glass gobos + 5 metal gobos + open with stream, dithering, bi-directional rotation and indexing.
- Static gobo wheel: 11 gobos + open position and overlay (gobo morphing).
- Color wheel: 10 filters + open and “frost” filter.
- Prisms: 3-facet prism and 5-facet prism with adjustable speed and direction.
- Electric focus: 2.5 to 15 m with linear iris and flat beam optics.
- Motorized zoom: 3.5°–48° beam with smooth movement.
- Color mixing: Linear CMY + CTO for accurate color temperatures.
- Strobe/Shutter: Up to 25 flash/s with variable, random and pulse fade modes.
- Automatic functions: DMX, master-slave, sound-active, automatic (8 built-in programs) and Totem mode.
- Touch screen: 2.8″ TFT LCD (320×240 px) with 4 buttons and graphic menus.
- Rainbow effect: Variable direction and speed for dynamic transitions.
- Assembly: including reinforced flight case for transport and protection.
Product benefits
- Total versatility: covers SPOT and WASH functions with a single unit, reducing rig volume.
- Optical Quality: Flat field lens and CMY+CTO mixing ensure flicker-free uniformity.
- Unlimited creativity: rotating gobos, morphing and multi-faceted prisms for complex effects.
- Intuitive control: TFT touch screen and Totem mode make programming and synchronization easy.
- Professional reliability: robust flight case and long-life components for intensive touring.
Use cases
- Concerts and festivals that require quick beam and wash changes.
- Plays and musicals with gobos and smooth transitions between scenes.
- Large-format corporate events with automatic color programming.
- Temporary or traveling architectural installations.
- Audiovisual productions and studio filming without flicker.
Frequently Asked Questions
- How do I replace glass gobos? Open the top compartment to remove the gobo holder and replace the glass without tools.
- What zoom range does it offer? Range from 3.5° for a narrow beam to 48° for a wide wash.
- Can I sync multiple units? Yes; use Totem mode to have multiple heads act as one.
- Does the flight case protect against rain? It's designed for transport and impact, not for direct exposure to water.
Description for projects
360W SPOT–ZOOM hybrid moving head with DMX/ArtNet, 2.5–15 m focus, 3.5°–48° zoom, rotating and static gobos, 3/5-facet prisms, CMY+CTO, 25 flash/s strobe, 2.8" TFT, 8 programs, Totem, flightcase included.
- Type Lightning
- Vendor AFX LIGHT
- SKU HYBRID-360LED-FC-16-2018
