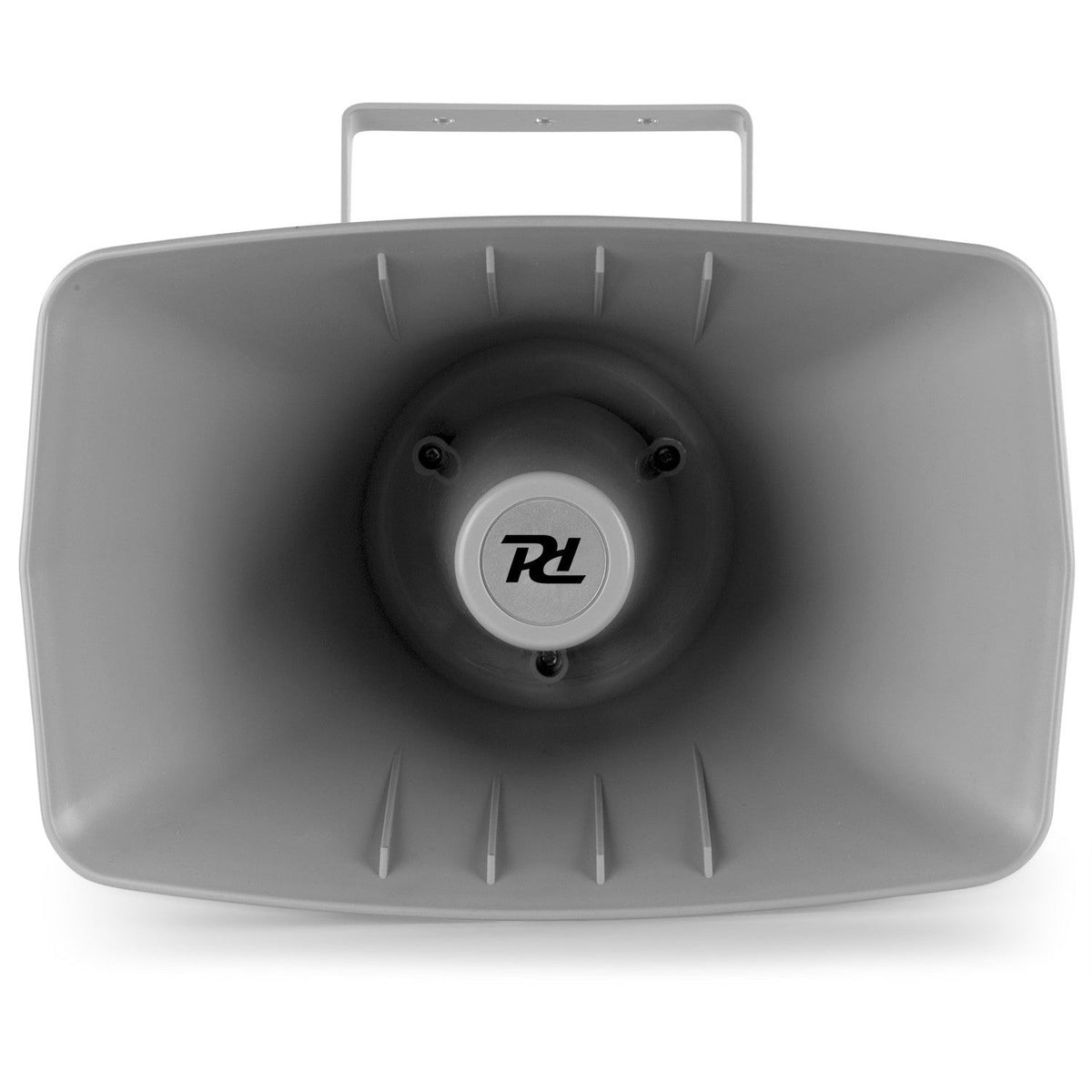

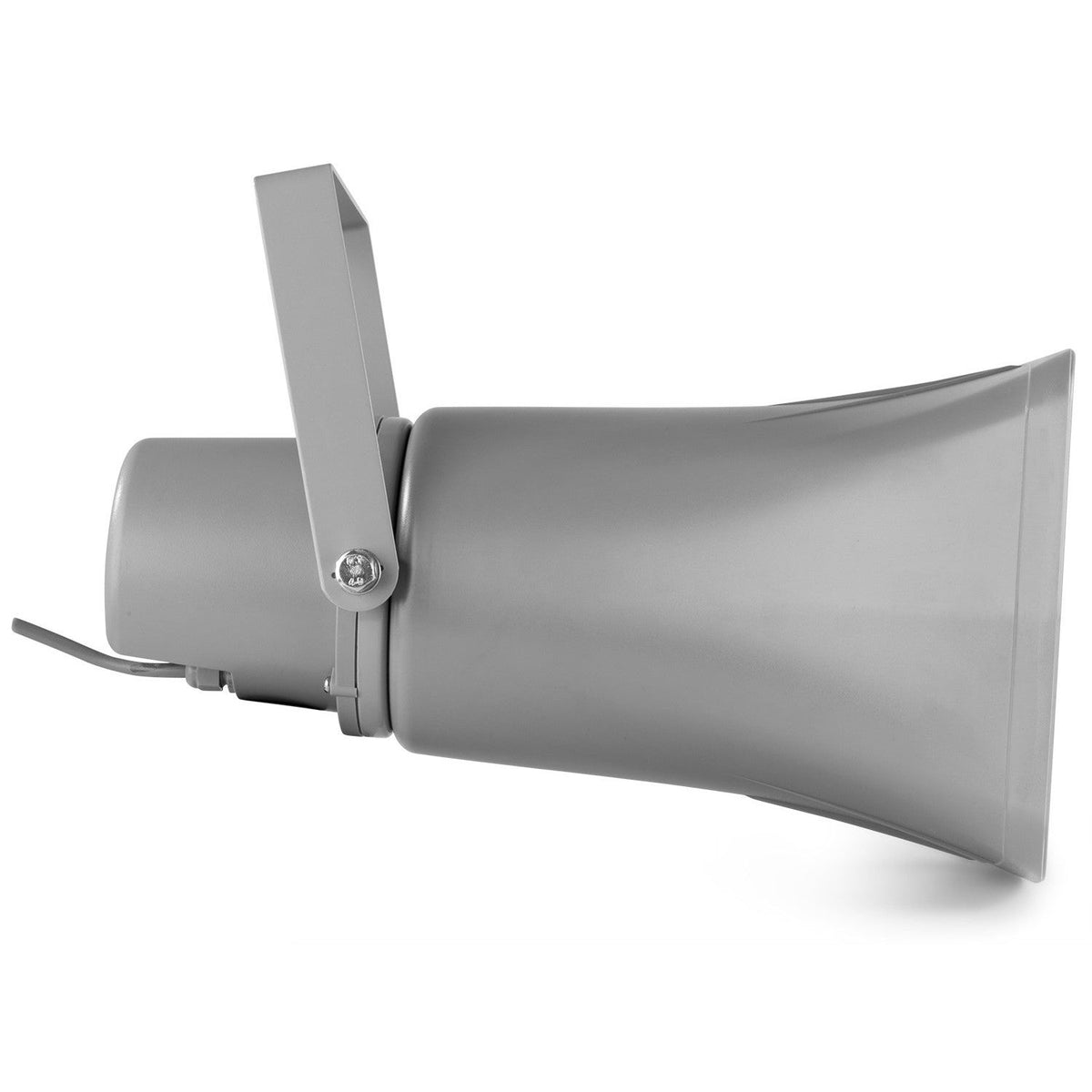

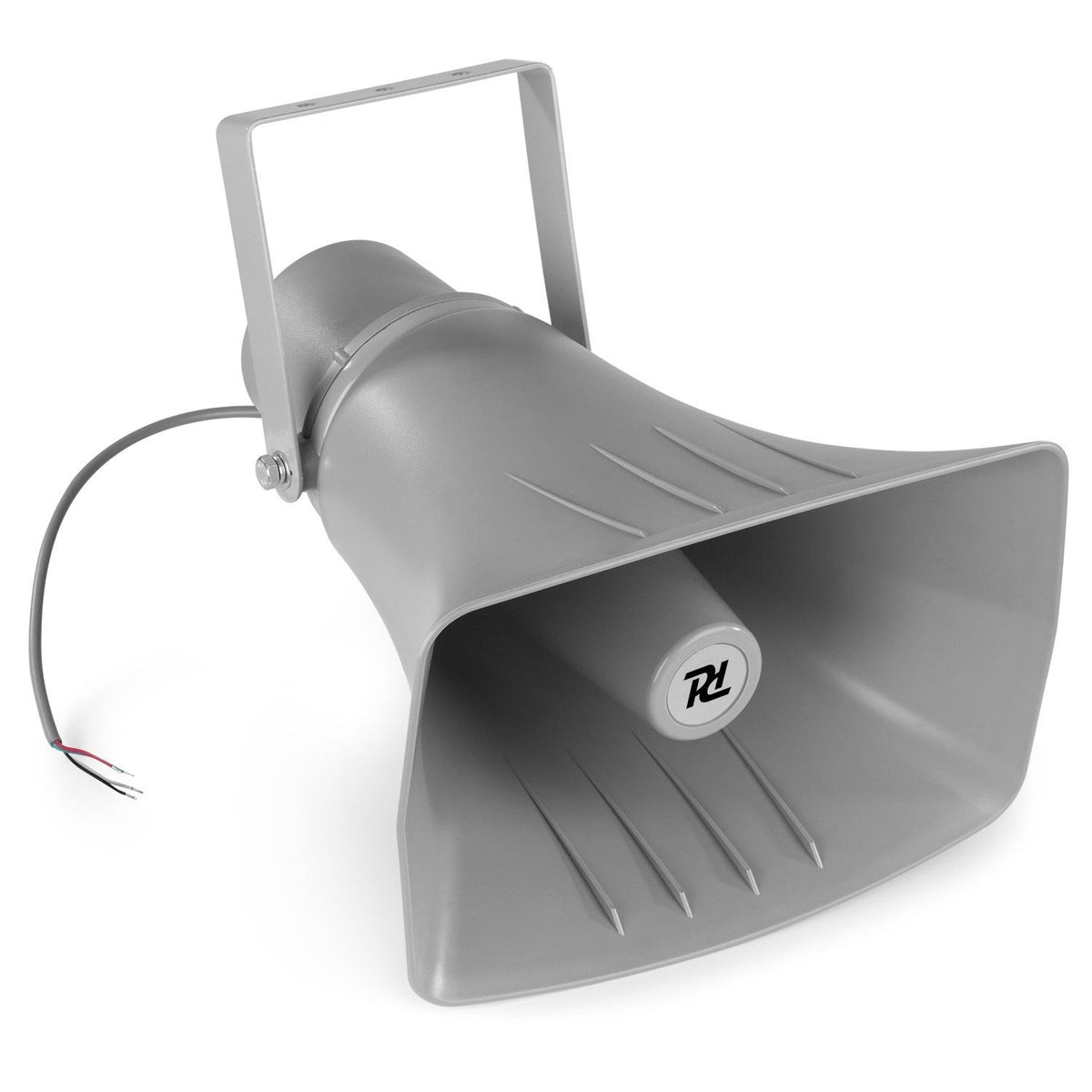

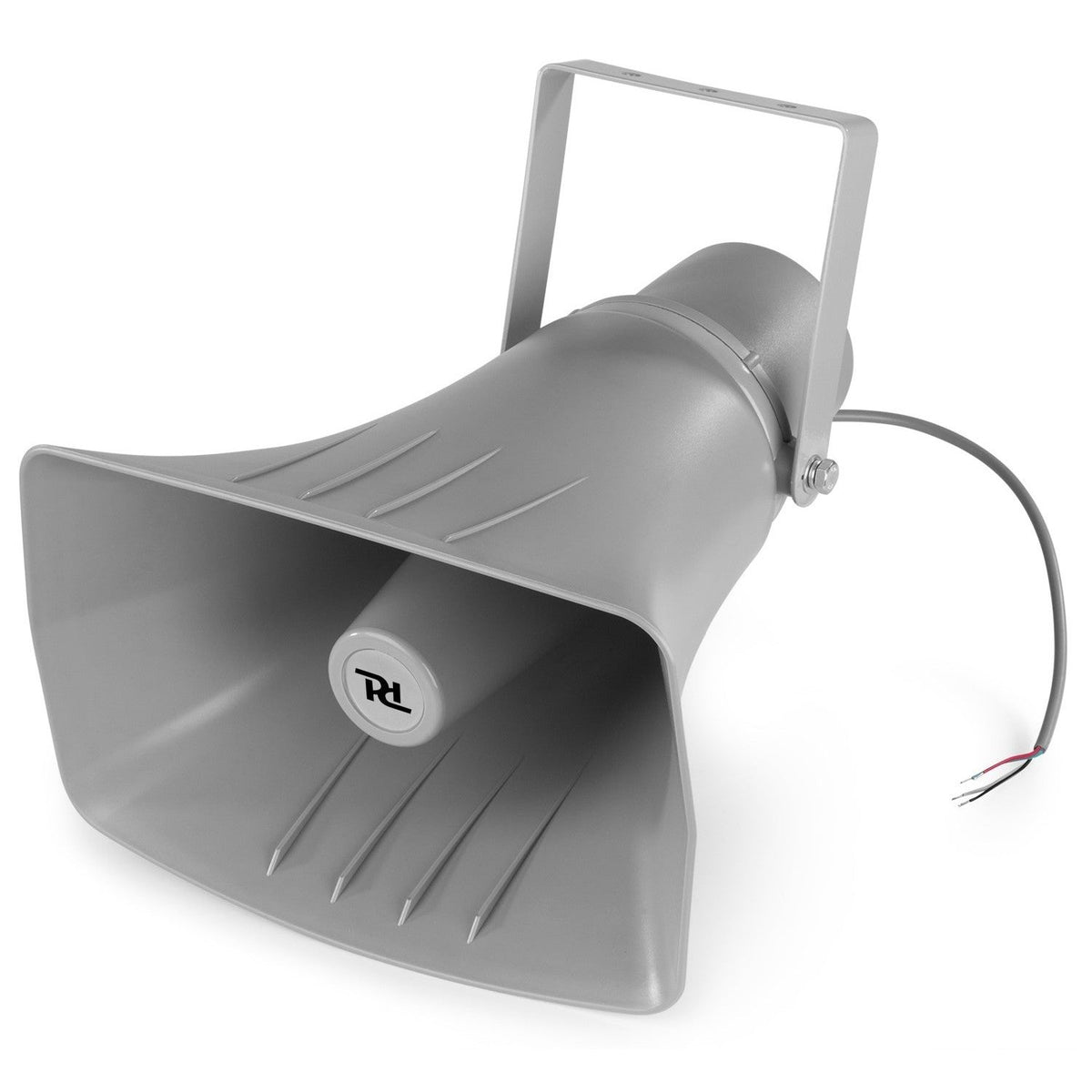

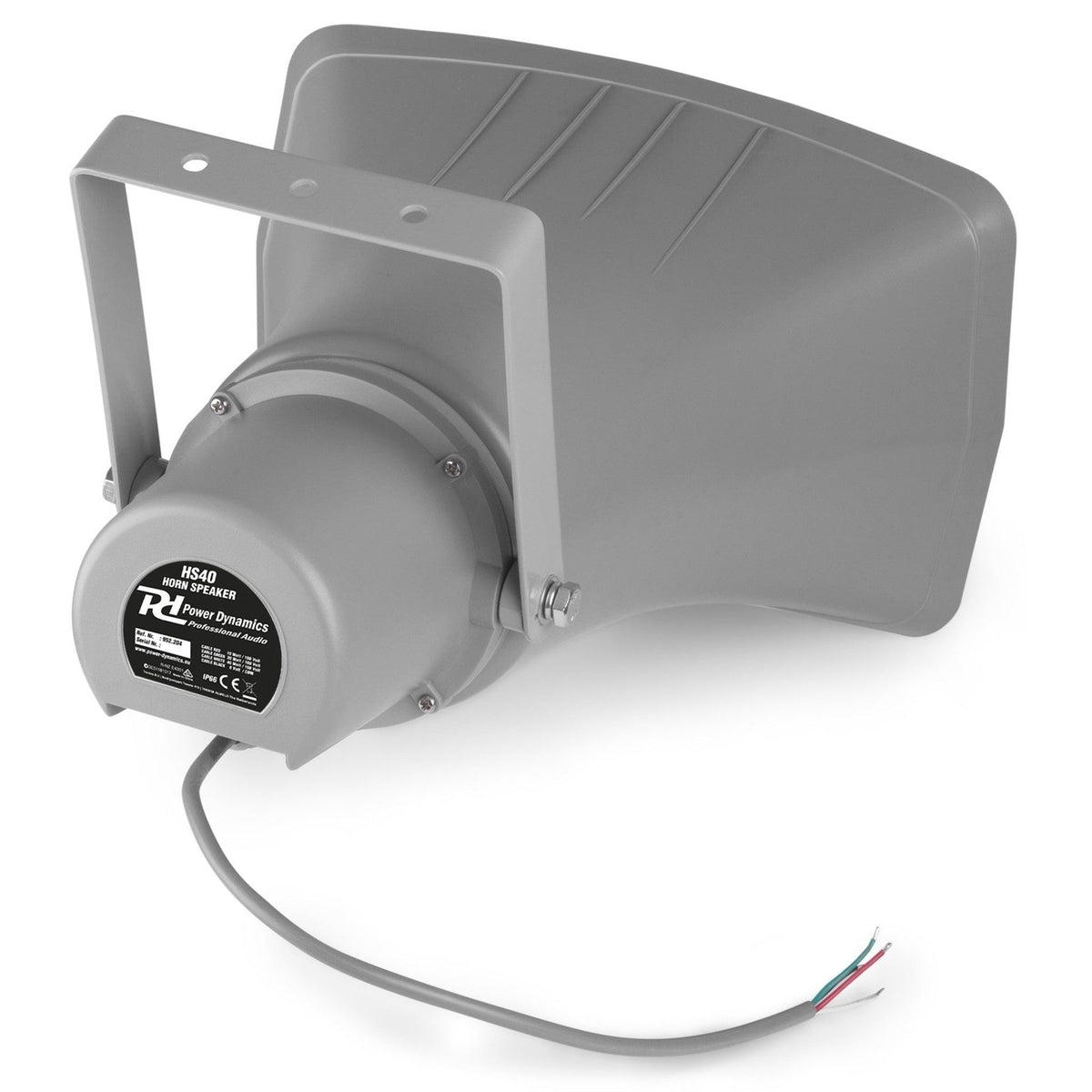

Power Dynamics HS40 - 40W 100V Outdoor Exponential Horn Speaker (IPX6)

Power Dynamics HS40 - 40W 100V Outdoor Exponential Horn Speaker (IPX6)

The Power Dynamics HS40 is an exponential horn loudspeaker designed to deliver clear and powerful audio performance in public address (PA) systems. Part of the renowned HS series, this model is built for durability and reliability, making it the ideal solution for permanent outdoor installations and demanding environments. Its 100V line system makes it perfect for projects requiring long cable runs and the connection of multiple loudspeakers in parallel, ensuring consistent sound quality without significant signal loss.

Built with a high-rigidity gray ABS plastic housing, the HS40 is designed to withstand the harshest weather conditions. Its IPX6 rating ensures complete protection against powerful water jets from any direction, making it a safe choice for uncovered areas. The speaker's rectangular design not only gives it a professional profile but also optimizes sound dispersion for wide and effective coverage.

Main Features

• High Power and Flexibility: It offers an RMS power of 40W and is equipped with a 100V transformer with selectable power taps (10W, 20W, and 40W), allowing precise adjustment of the volume level to balance different areas of the same system.
• Rugged Outdoor Construction: The ABS plastic housing and its IPX6 weather resistance rating protect it from rain, moisture, and dust, ensuring a long lifespan even in exposed locations.
• Optimized Acoustic Performance: With a frequency response of 400 Hz to 10,000 Hz and a high sensitivity of 103 dB, it is optimized for voice reproduction, ensuring that announcements and messages are transmitted with maximum intelligibility.
• 100V Line System: Ideal for large-scale distributed sound systems, simplifying installation and allowing the connection of numerous speakers to a single compatible amplifier.
• Easy Installation: It comes with a robust metal mounting bracket that makes it easy to fix to walls, posts or other structures, allowing precise adjustment of the coverage angle.

Product Benefits

The Power Dynamics HS40 loudspeaker is designed for installers and users seeking a high-performance, hassle-free public address solution. Its ability to operate on 100V systems reduces the complexity and cost of wiring in large installations. The robust construction minimizes maintenance, while its acoustic performance ensures clear and audible communications, enhancing safety and the overall experience in public spaces. Its passive design provides exceptional reliability by eliminating reliance on internal active electronic components that could fail under extreme conditions.

Use Cases

This horn speaker is exceptionally versatile and suitable for a wide range of commercial and industrial applications, including:

• Public address and background music systems in sports facilities such as stadiums, football fields and swimming pools.
• Safety announcements and notices in parking lots, train or bus stations and fairgrounds.
• Communications in noisy industrial environments such as factories, production halls and warehouses.
• Sound reinforcement of outdoor public spaces such as theme parks, plazas and recreational centers.

Frequently Asked Questions

Does this speaker require an amplifier?
Yes, being a passive speaker, it needs to be connected to a power amplifier compatible with 100V line systems.

What does the IPX6 weatherproof rating mean?
The IPX6 rating indicates that the speaker is protected against powerful water jets projected from any angle. This ensures reliable operation in heavy rain, but it is not designed to be submerged.

Can it be used in a standard 4 or 8 ohm home audio system?
No, the HS40 is designed exclusively for use in high impedance (100V line) commercial audio systems and is not compatible with low impedance home amplifiers.

How do I select the power of 10W, 20W or 40W?

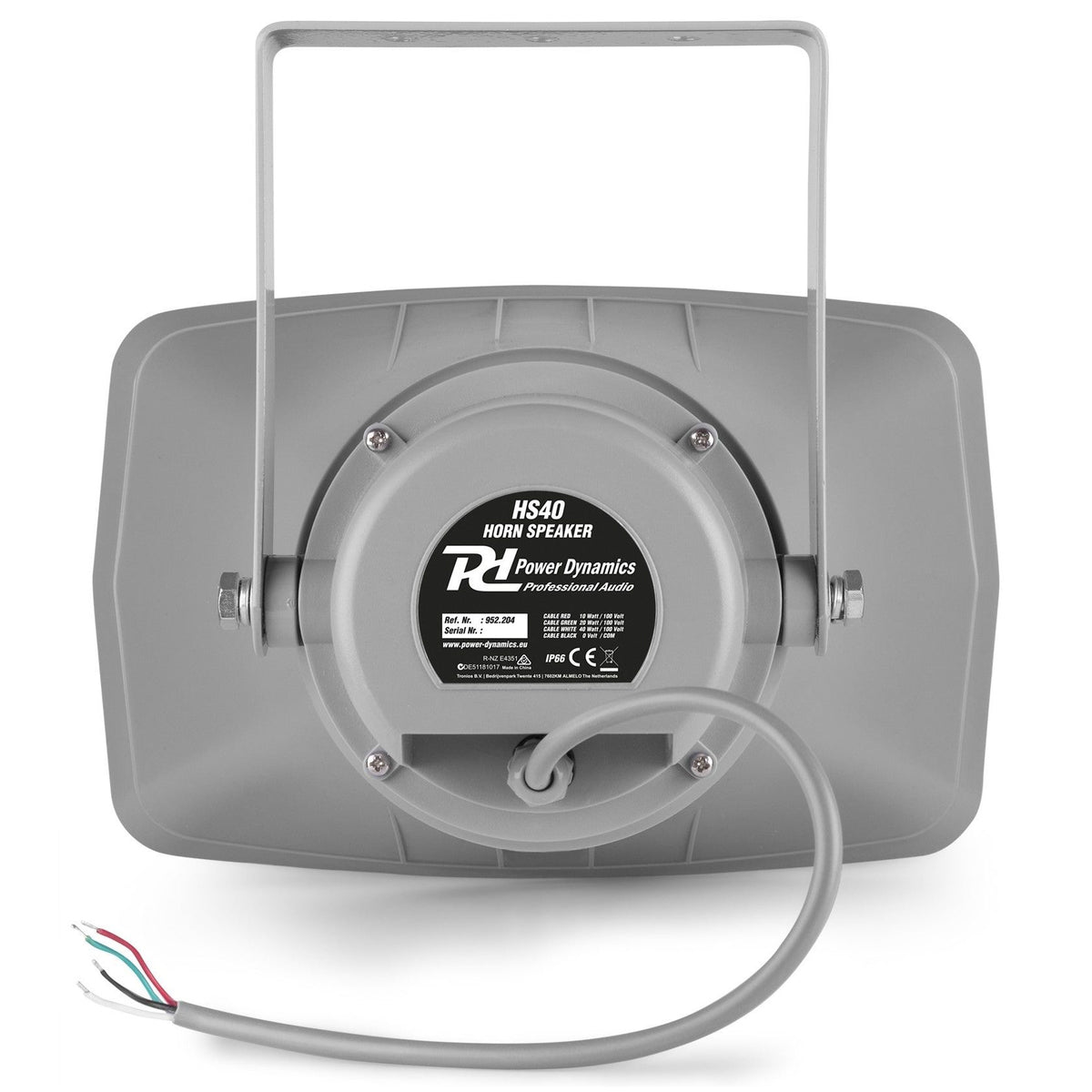

The power socket selection is made via a rotary selector located on the back of the speaker, allowing for quick and easy adjustment during installation.

Project description

Passive exponential speaker with rectangular horn for 100V line systems. 40W RMS power with selectable 10W and 20W outputs. Gray ABS plastic housing with IPX6 water resistance rating. Frequency response of 400 Hz to 10,000 Hz with a sensitivity of 103 dB (SPL @ 1W/1m). Dimensions of 315 x 207 x 368 mm and weight of 3 kg. Includes adjustable metal mounting bracket.
