beamZ Fuze610Z - 6×10W RGBW LED WASH Moving Head with 2°–24° Motorized Zoom and Remote Control Included

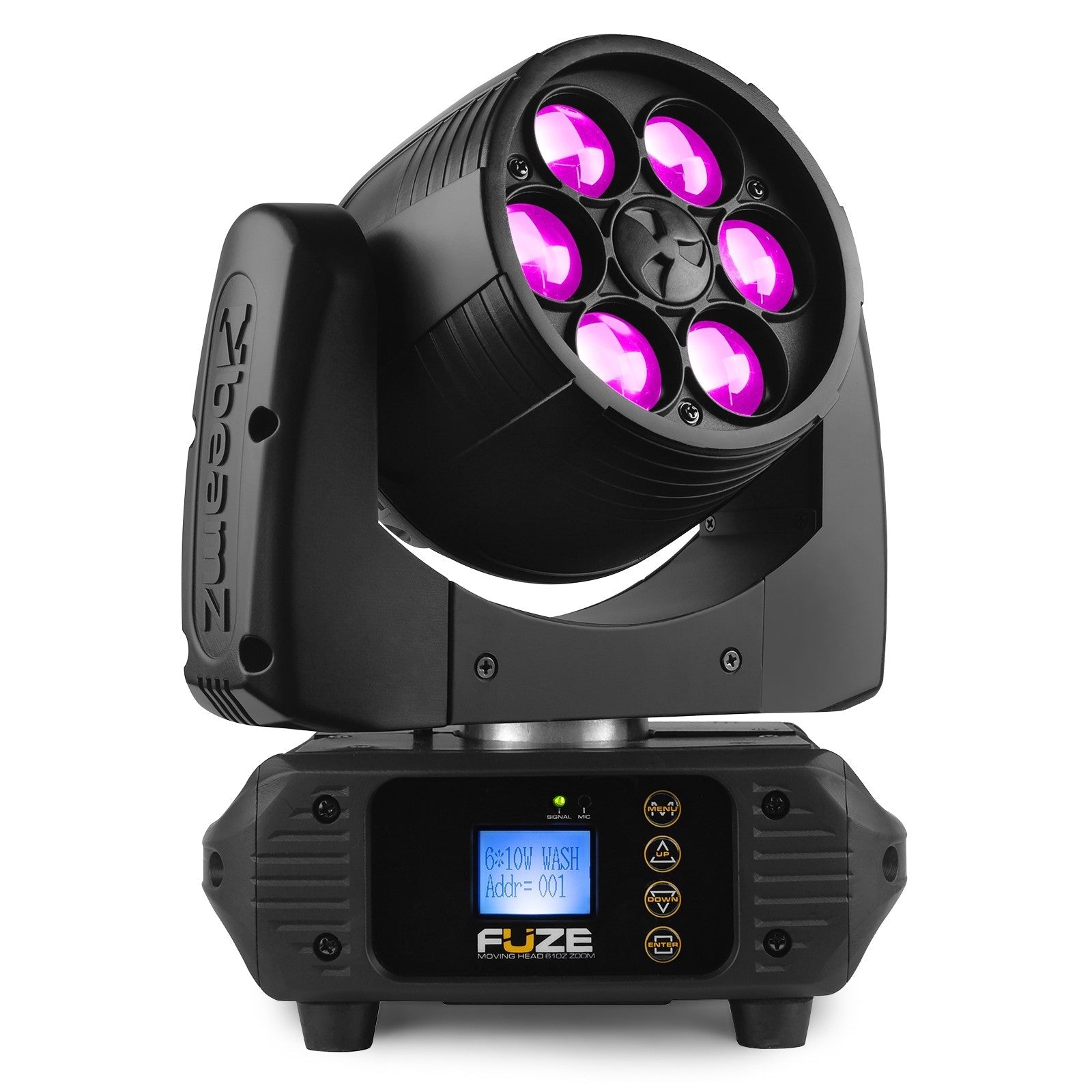

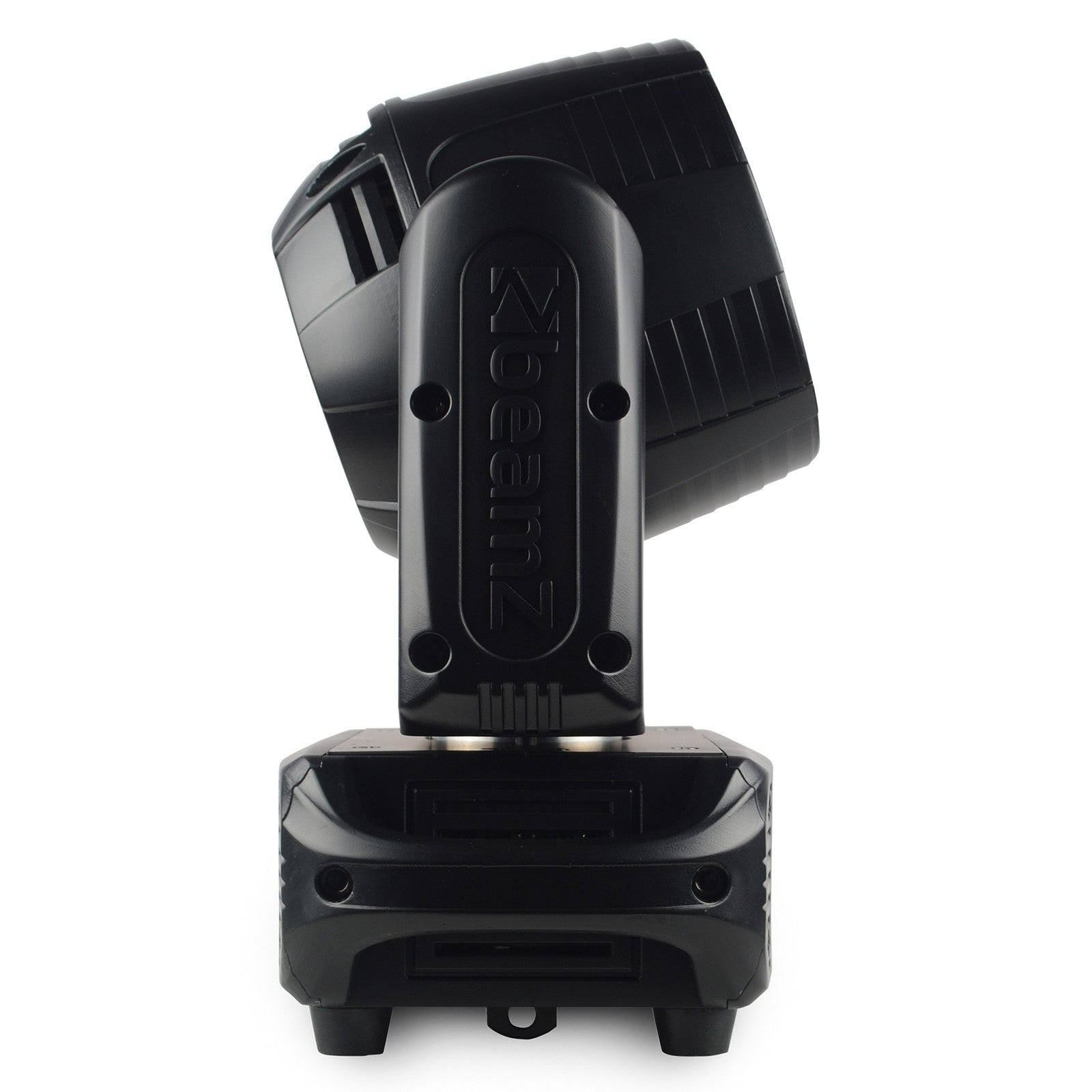

The beamZ Fuze610Z is a compact and lightweight WASH moving head equipped with six 10W 4-in-1 RGBW LEDs and motorized zoom to vary the beam angle between 2° and 24° . Its high-quality optics allow the six beams to be merged into a single, wider beam when required by the design, while the 16-bit motion resolution ensures precise positioning ( 630° Pan / 270° Tilt ). With a luminous flux of 39,000 lx @ 1 m , 0–100% dimming , and a 1–21 Hz strobe , it performs admirably on stages, in clubs, and at events. It can be controlled via DMX (13/15 channels) , automatic programs , sound-to-light , manual operation , or master/slave configuration. It includes a wireless remote control , Omega clamp , DMX cable , PowerCON , and safety cable .
Main features
-

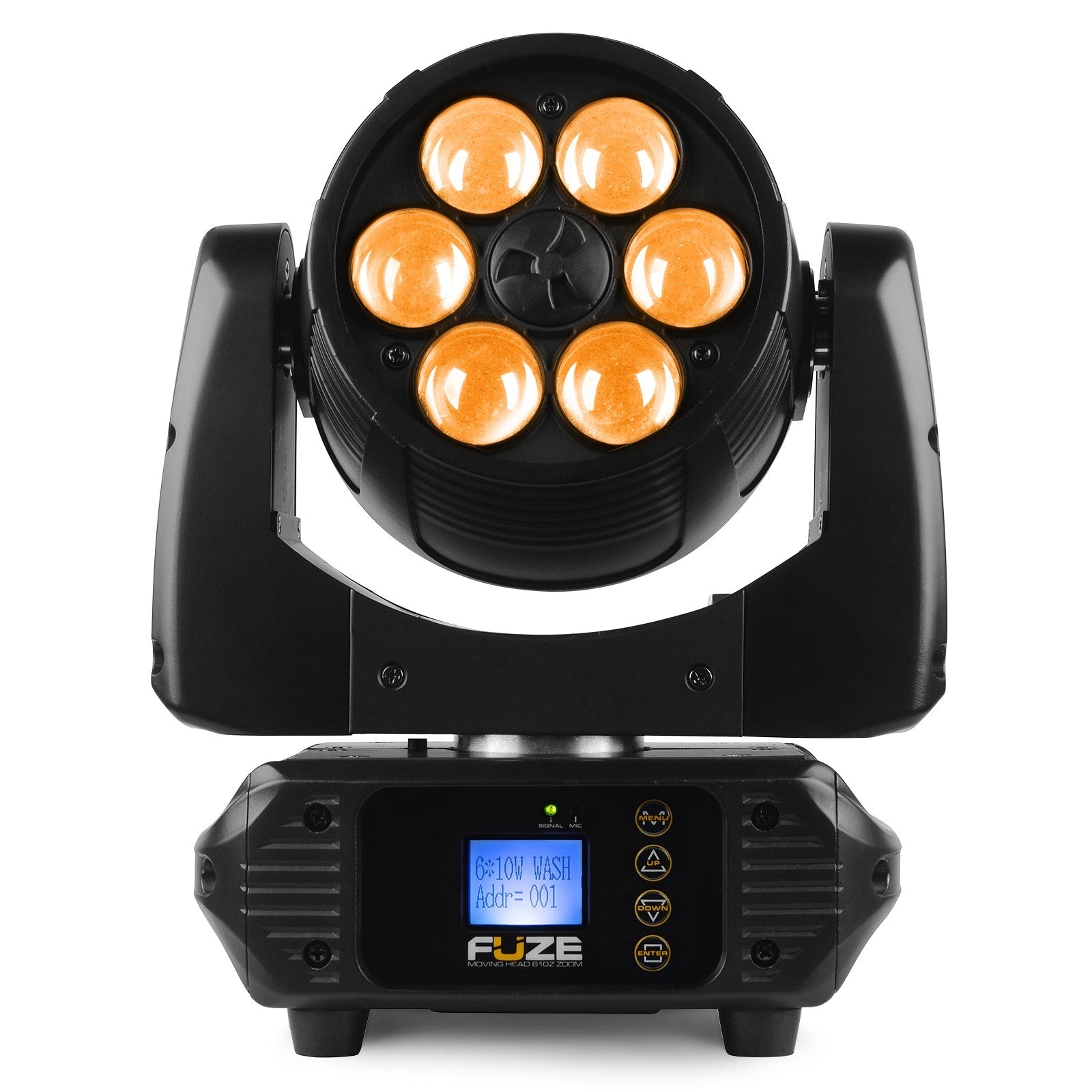

Light source: 6 × 10 W RGBW 4-in-1 (smooth and uniform color mixing).
-
Optics and zoom: 2°–24° beam with linear electronic zoom ; 8°–41° field angle for versatile coverage.
-
Output and effects: 39,000 lx @ 1 m , dimmer 0–100% , strobe 1–21 Hz .
-
Precision movement: Pan 630° / Tilt 270° with auto-correction and reset .
-
Control modes: DMX 13/15 channels , Auto , Sound to light , Manual , Master/Slave .
-

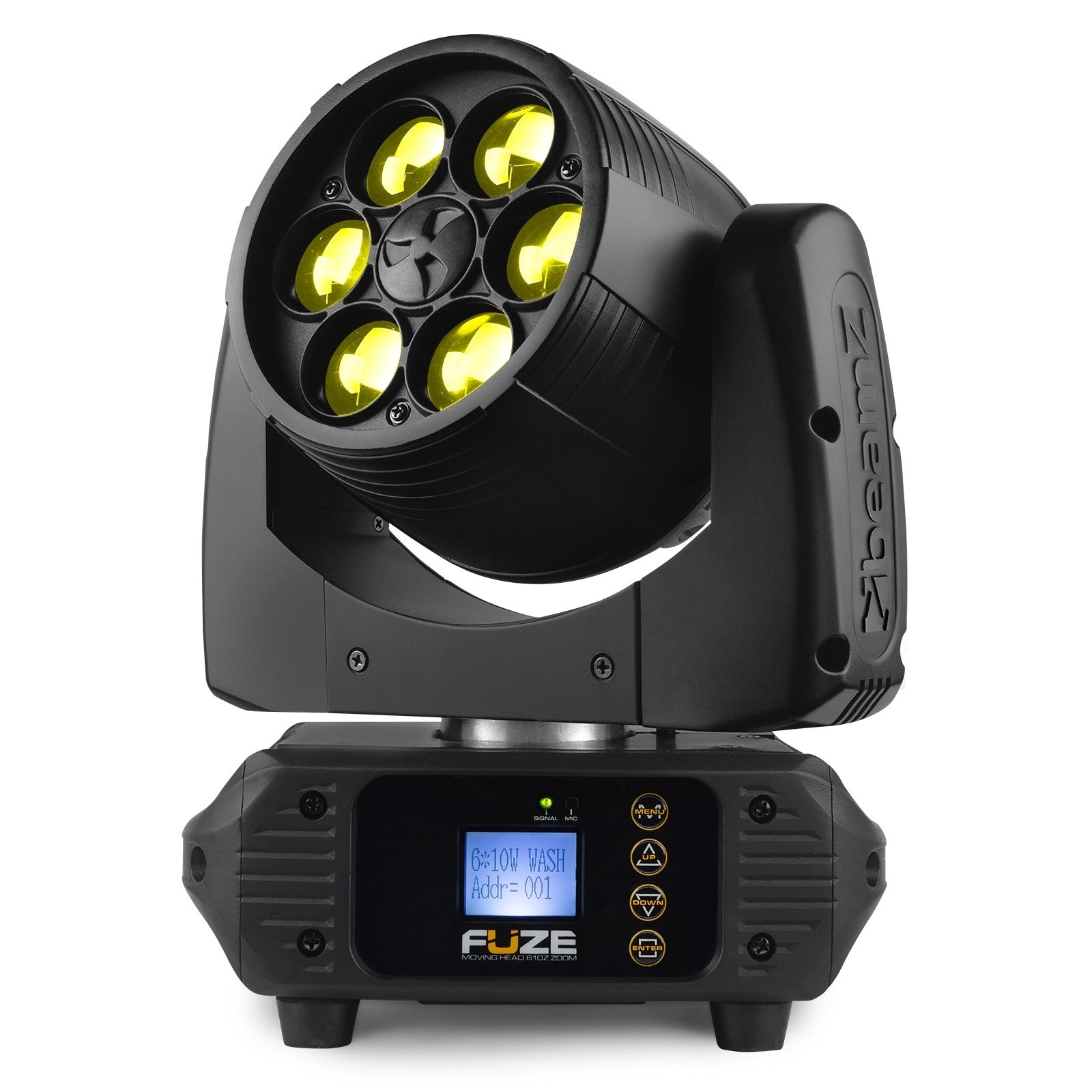

Interface and connectivity: LCD display , XLR 3 pin DMX in/out, PowerCON in/out .
-
Construction: IP20 , temperature-controlled fan , 240 × 230 × 260 mm , 4.55 kg .
-

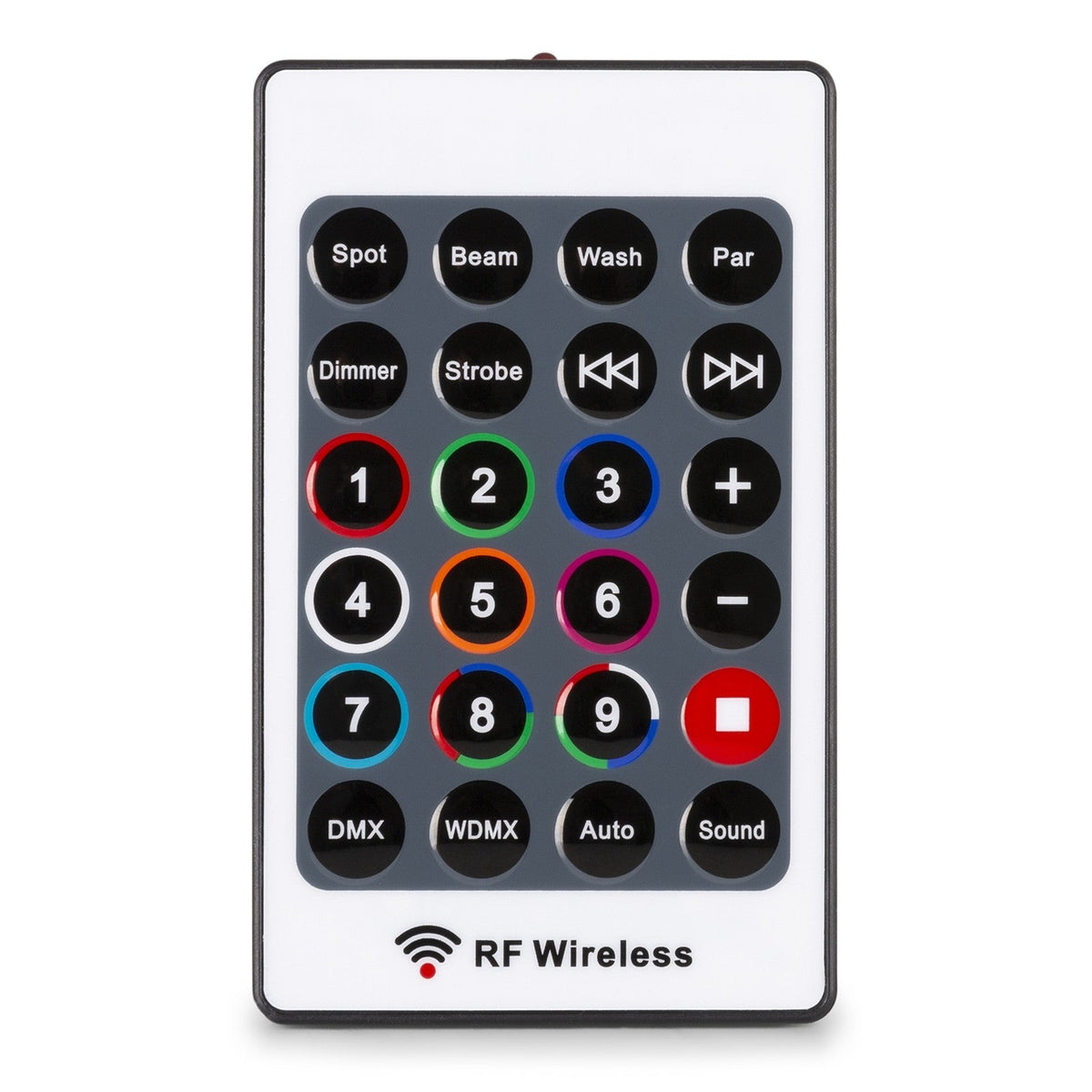

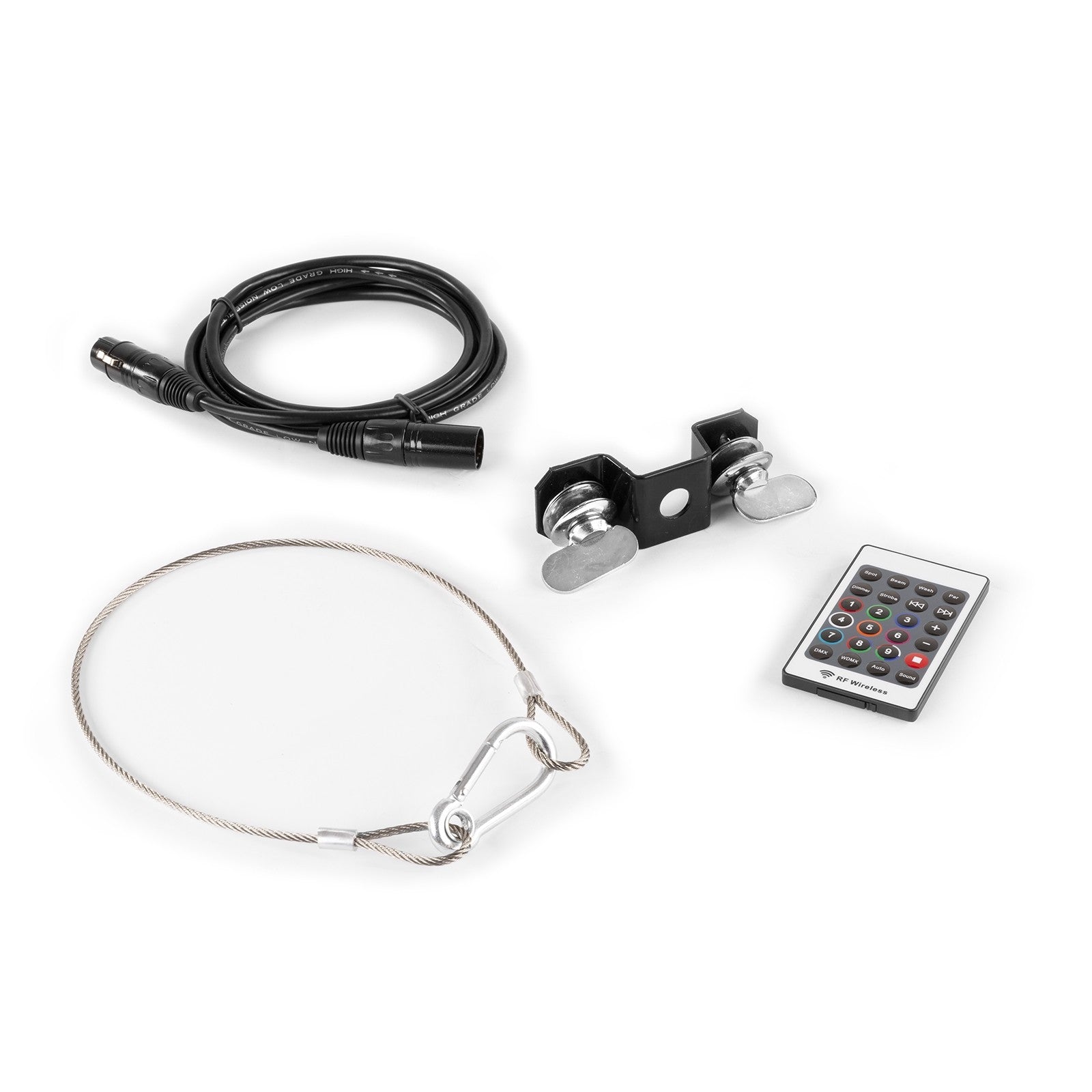

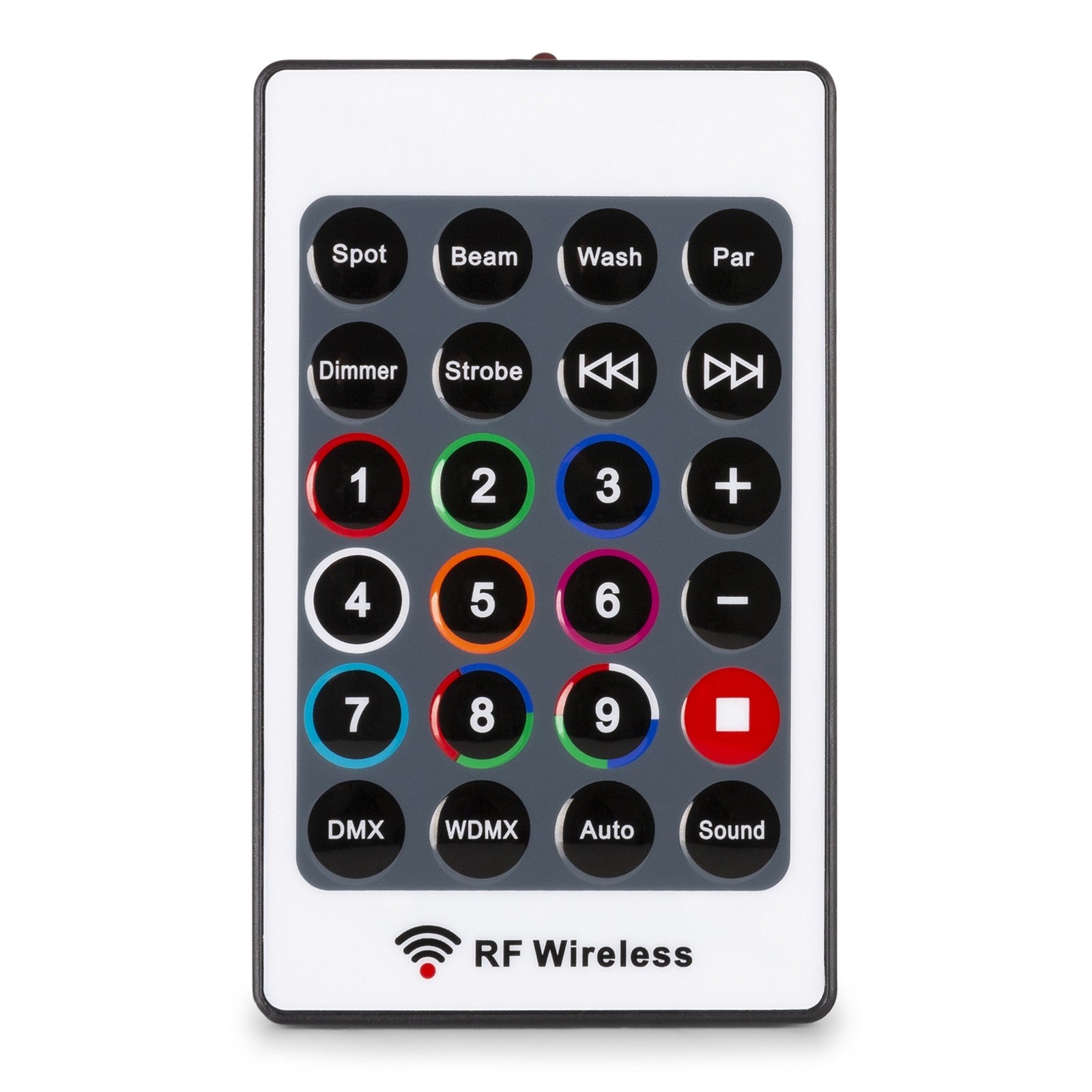

Included accessories: wireless remote, Omega claw , safety cable , PowerCON cable and DMX cable .
Benefits for your project
-
Total flexibility : from narrow beam (2°) to wide coverage (24°) with a zoom gesture.
-
Solid colorimetry : stable 4-in-1 RGBW mixing, no color shadows at the edge.
-
Fast workflows : concise DMX profiles, standalone modes, and included accessories for hassle-free mounting and operation.
-
Compact format : ideal when space and weight are critical without sacrificing power or control.
Use cases
-

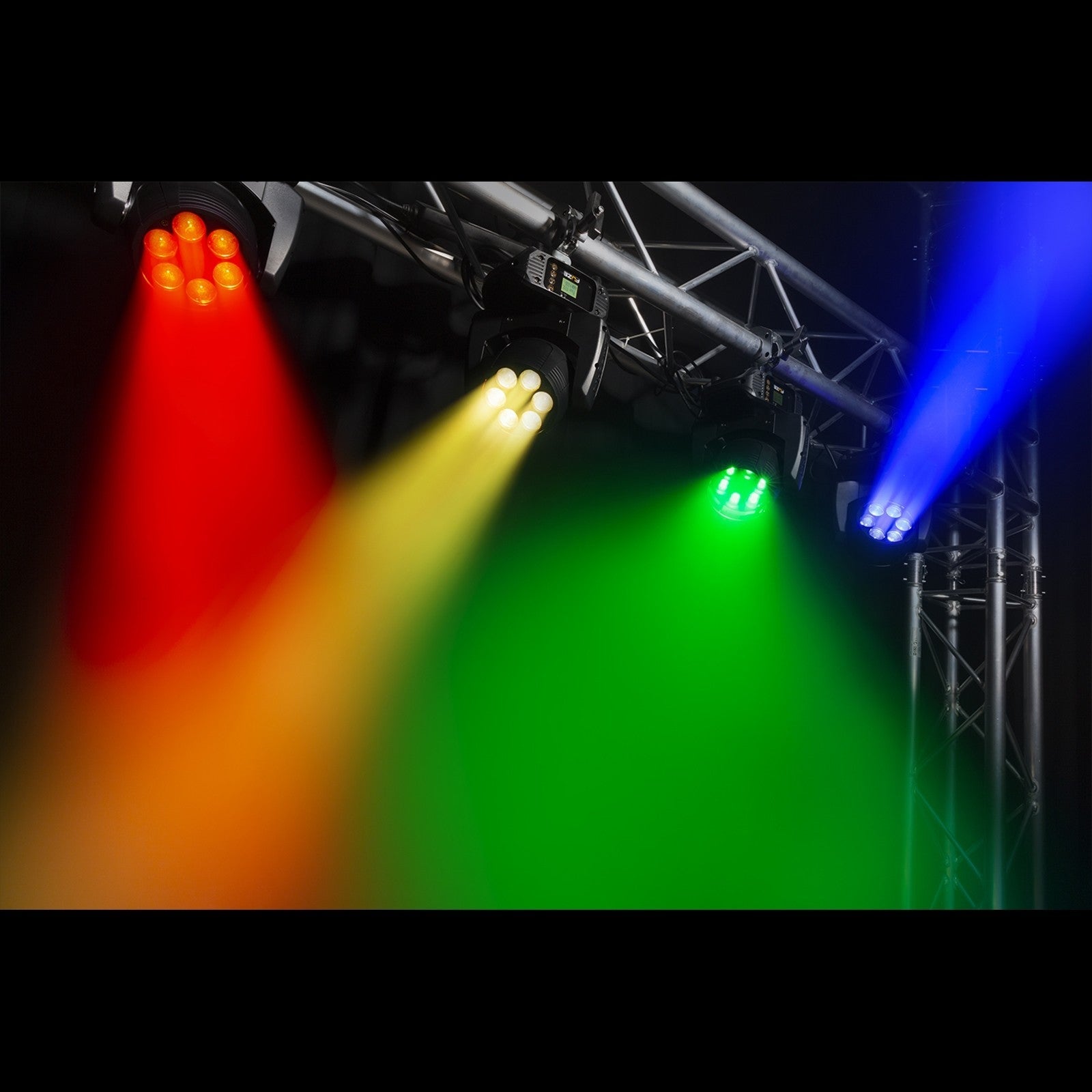

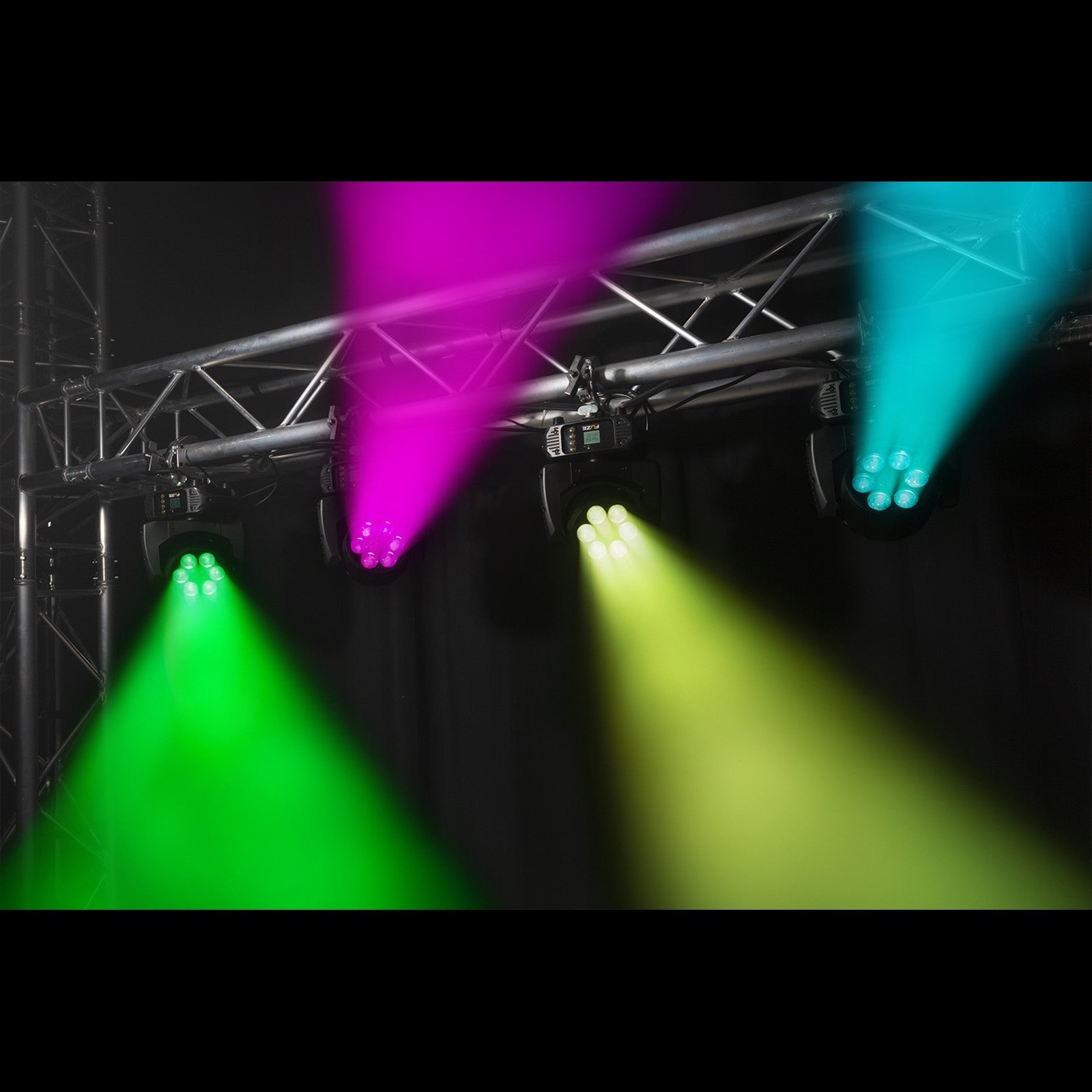

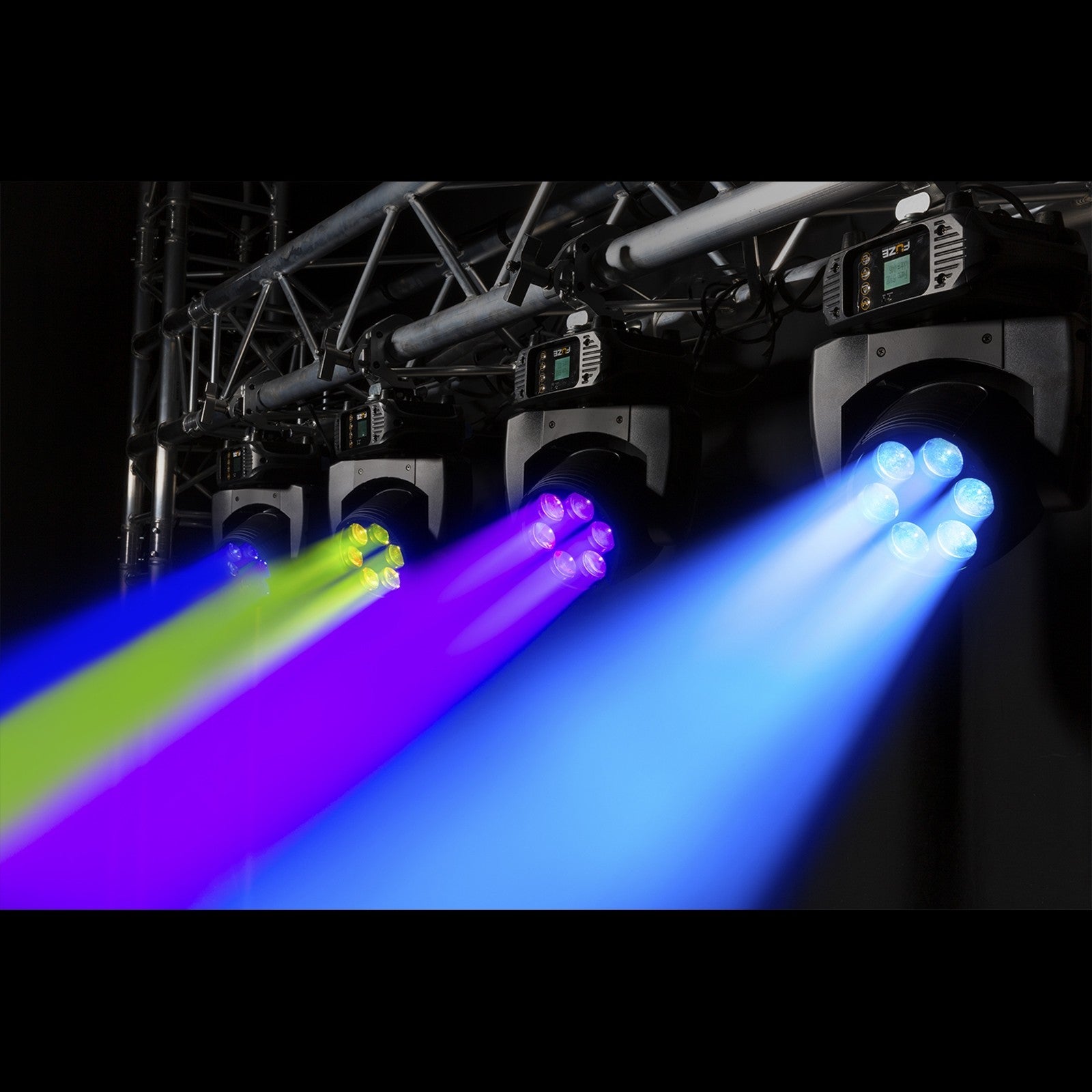

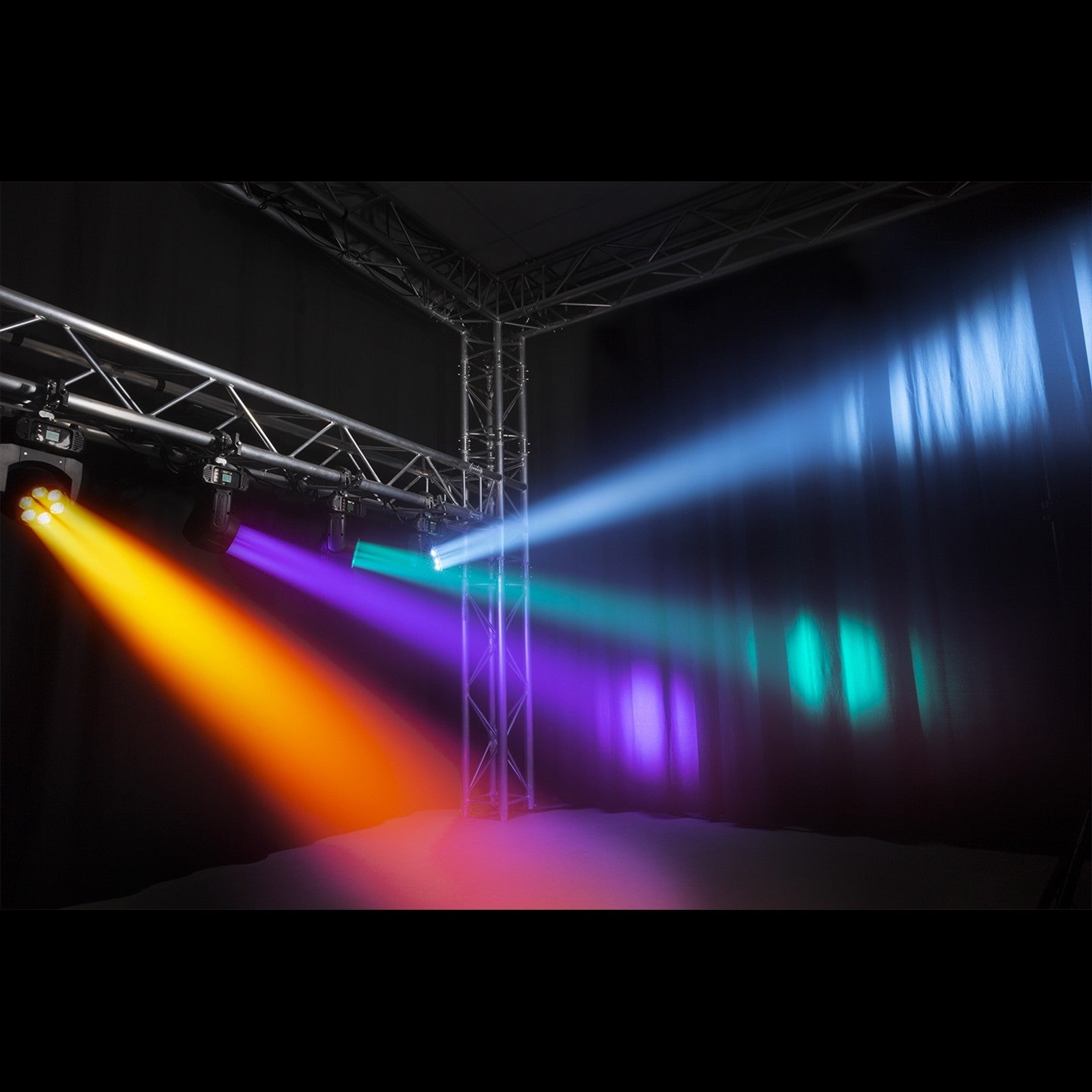

Small/medium format clubs, bars and live venues : uniform fill and dynamic zoom effects.
-
Events and mobile DJ : quick cover changes between intros, drops and ballads.
-
Theatre, television and corporate : precise spotlights with 16-bit movement and clean colors.
Frequently Asked Questions

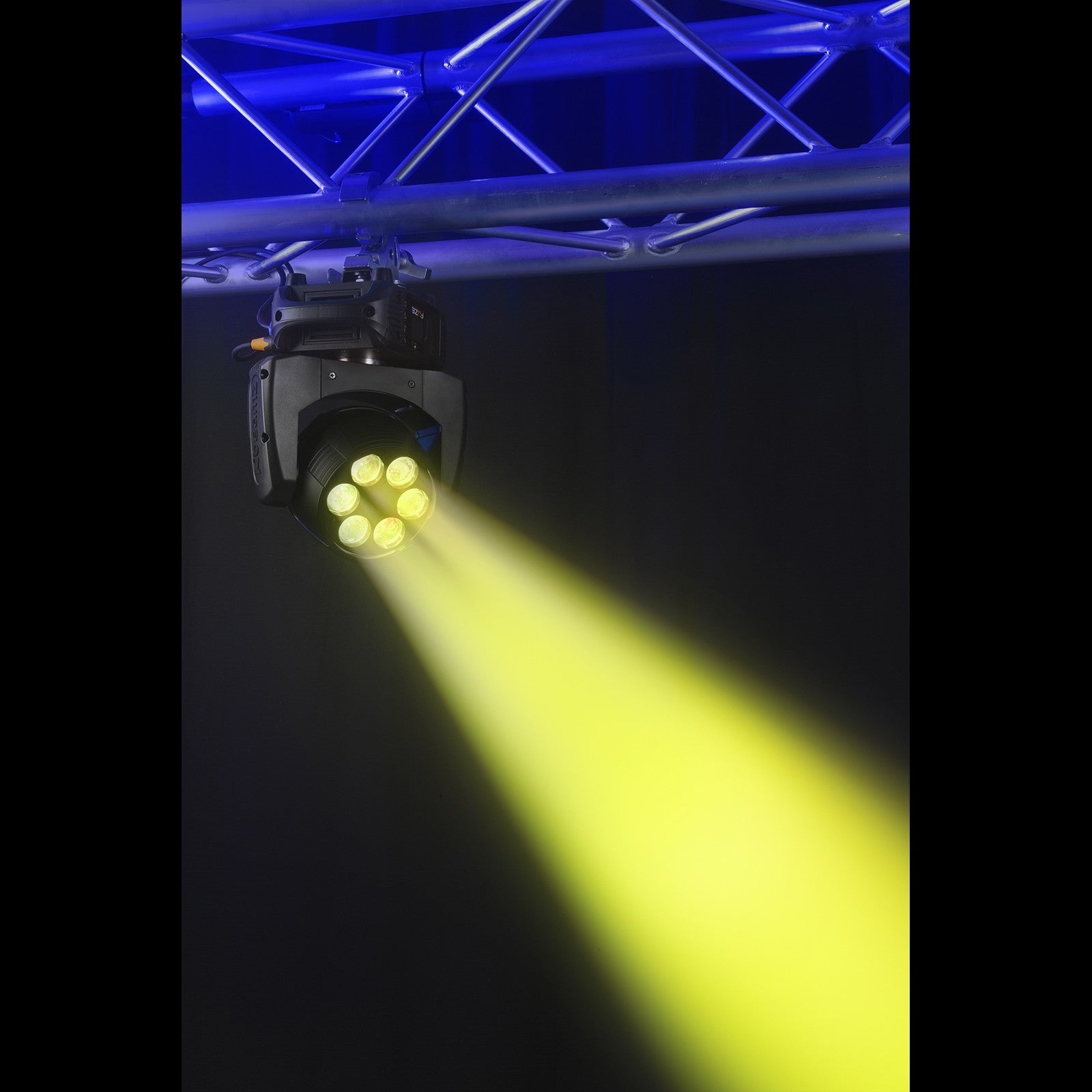

Can I group the six beams into one wider beam? Yes, the optics allow you to combine the beams to obtain a single, "fatter" beam.
Which DMX do I need? It has 13 or 15 channels to choose the level of control.
Does it come with mounting and control accessories? Yes: wireless remote , Omega , safety cable , PowerCON and DMX .
Control and connectivity
-
Modes: Automatic, Manual , DMX , Master/Slave and Sound to Light (adjustable sensitivity).
-

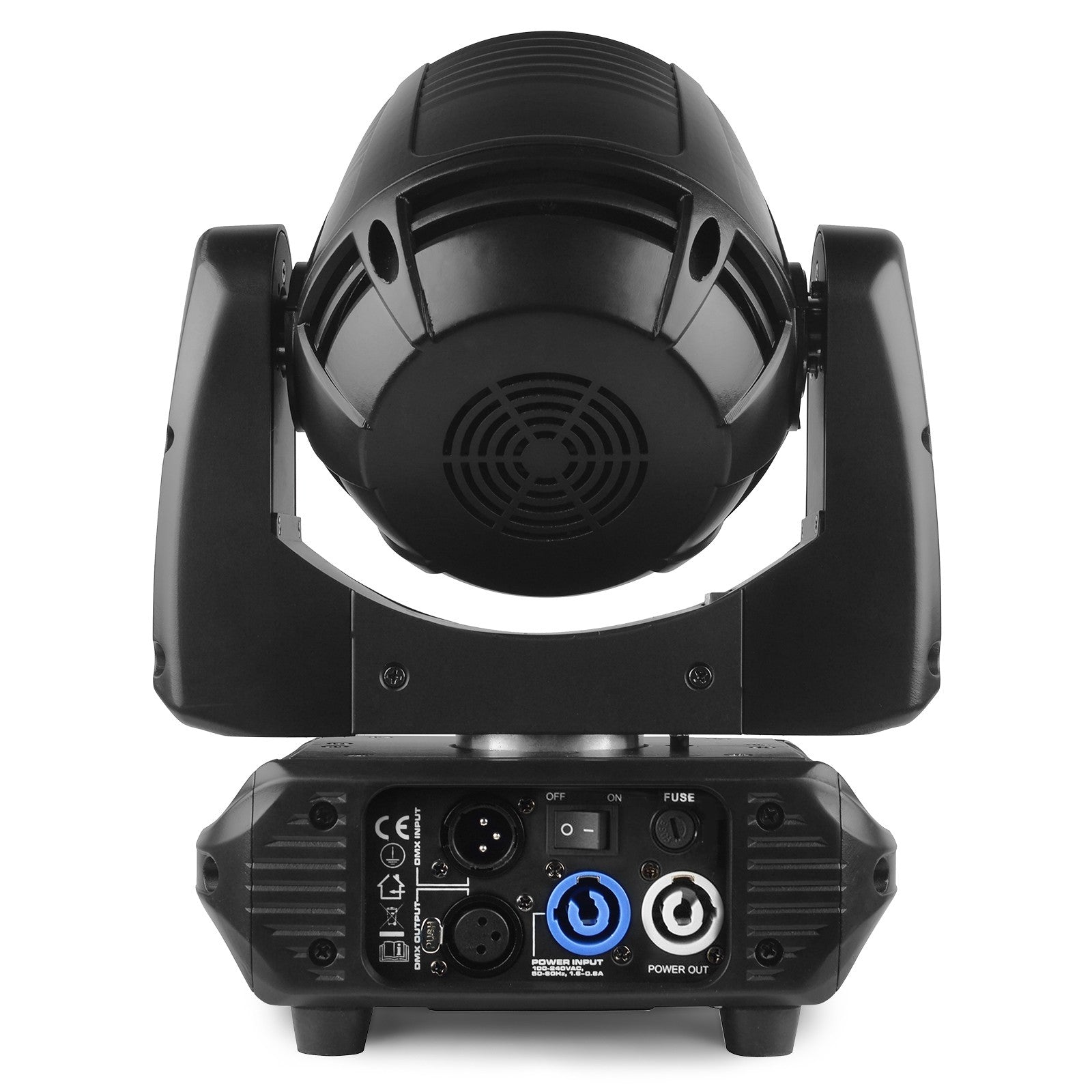

Connections: XLR 3 pin DMX in/out; PowerCON in/out.
-
Power supply: 100–240 VAC, 50/60 Hz ; consumption 0.6–1.1 A.
Project description
LED WASH moving head: 6 × 10 W RGBW 4-in-1 ; motorized zoom 2°–24° ( field 8°–41° ); 39,000 lx @ 1 m ; 0–100% dimmer ; 1–21 Hz strobe ; 630° pan / 270° tilt with auto-correction; 13/15 channel DMX ; Auto/Manual/Master-Slave/Sound modes; LCD ; 3-pin XLR ; PowerCON in/out ; IP20 ; temperature-controlled fan cooling; 240 × 230 × 260 mm ; 4.55 kg ; includes wireless remote, Omega clamp, safety cable, PowerCON cable and DMX cable.
