Triton Blue FS-02-004 - Main PCB Board for DMX Turbine TR-FAN-DMX1

Triton Blue FS-02-004 - Main PCB Board for DMX Turbine TR-FAN-DMX1

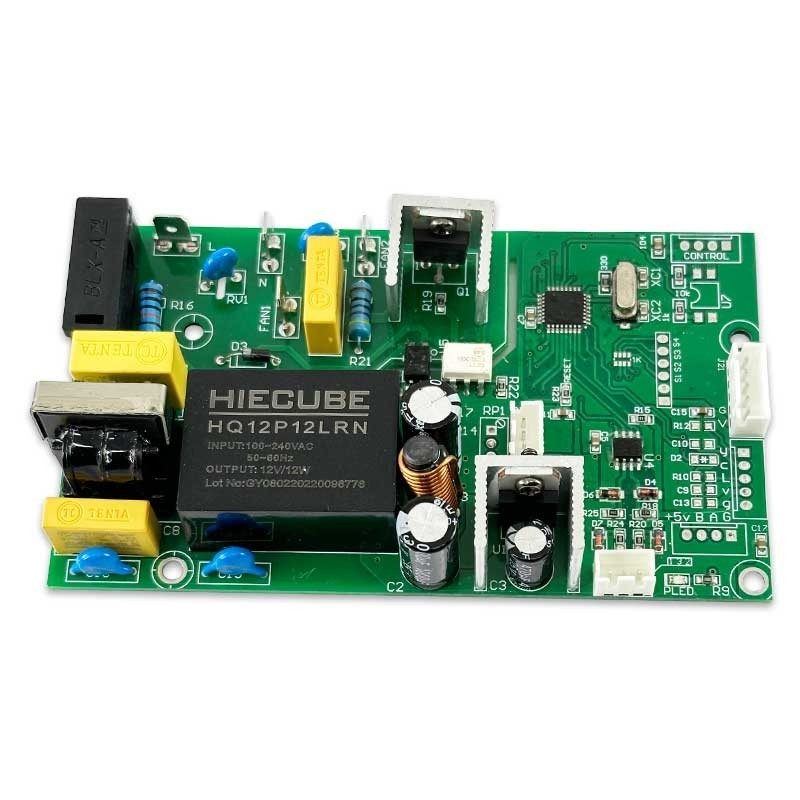

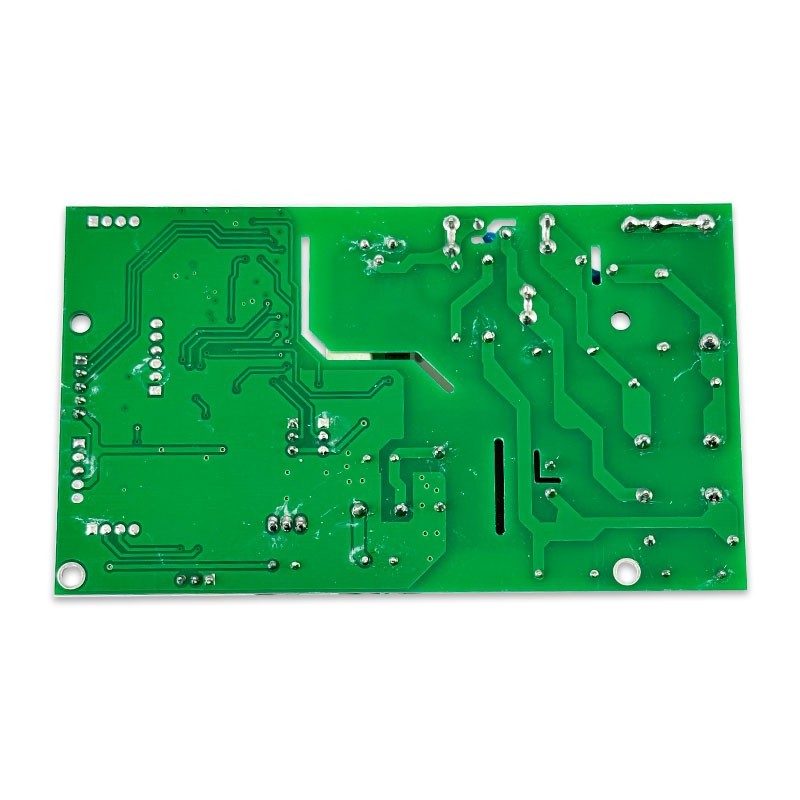

The Triton Blue FS-02-004 is the main printed circuit board (PCB), specifically designed as an original replacement for the Triton Blue TR-FAN-DMX1 special effects turbine. This component is essential for the proper functioning of the unit, as it manages key operations controlled via the DMX protocol. Being a genuine Triton Blue part, it guarantees perfect compatibility and hassle-free installation, restoring the turbine to its factory performance.

Manufactured with high-quality materials and adhering to the manufacturer's strict standards, this main board ensures the reliability and durability required for the demanding environments of live shows, television productions, theaters, and events. If your TR-FAN-DMX1 turbine has suffered an electronic failure or is not responding correctly to DMX signals, replacing this PCB is the most effective and economical solution to restore its full functionality without having to purchase a completely new unit.

Main Features

• Genuine Replacement Part: Original component manufactured by Triton Blue, ensuring compatibility and performance identical to the factory part.
• Specific Design: Developed exclusively for the TR-FAN-DMX1 professional wind turbine model.
• Central Function: Acts as the brain of the equipment, processing DMX signals for speed control and other essential fan functions.
• Precise Dimensions: With exact dimensions of 125 x 72 mm, the board fits perfectly into the computer chassis without the need for adaptations.
• Robust Construction: Quality welds and components for long service life and resistance in professional applications.

Benefits for Technicians and Event Companies

Choosing the FS-02-004 main PCB board offers significant advantages. First, it represents a cost-effective and sustainable repair solution , extending the lifespan of high-value equipment such as the TR-FAN-DMX1 turbine. For rental and event production companies, this translates into considerable savings in maintenance and replacement costs. Furthermore, using an original replacement part eliminates the risk of incompatibility-related failures, ensuring reliable and safe performance so that shows run smoothly.

Use Cases

This component is the ideal solution for repairing and maintaining the Triton Blue TR-FAN-DMX1 special effects turbine in a variety of professional environments:

• Technical Services: Essential for technicians specializing in the repair of spectacular lighting equipment and special effects.
• Rental Companies: Allows you to keep your inventory of wind machines in perfect working order, ready for any event.
• Fixed Installations: Essential for maintenance in theaters, television studios, nightclubs and theme parks that use the TR-FAN-DMX1 continuously.
• Touring Productions: A key spare part to have on hand to quickly resolve any technical issues during a tour.

Frequently Asked Questions

Is this PCB board compatible with other Triton Blue fan models?

No, the FS-02-004 board is designed and programmed exclusively for the TR-FAN-DMX1 DMX turbine model. Its compatibility and proper functioning with other equipment are not guaranteed.

What kind of problems does replacing this motherboard fix?

It typically solves problems related to lack of response to the DMX signal, erratic motor operation, ignition failures, or a general malfunction of the equipment's control logic.

Is installing the plate complicated?

The replacement of internal electronic components must be carried out by a qualified technician or personnel experienced in the repair of this type of equipment to ensure a safe and correct installation.

Project description

Main printed circuit board (PCB) designed as a replacement component for the Triton Blue TR-FAN-DMX1 DMX effects turbine. This is an original part from the manufacturer, part number FS-02-004. The board dimensions are 125 mm long by 72 mm wide. This component manages the main functions of the unit, including DMX control.
