Electro-Voice ETX-10P - 10" 2-Way Active PA Speaker, 2,000 Watts, 90° × 60° Coverage, FIR-Drive DSP

Electro-Voice ETX-10P - 10" 2-Way Active PA Speaker, 2,000 Watts, 90° × 60° Coverage, FIR-Drive DSP

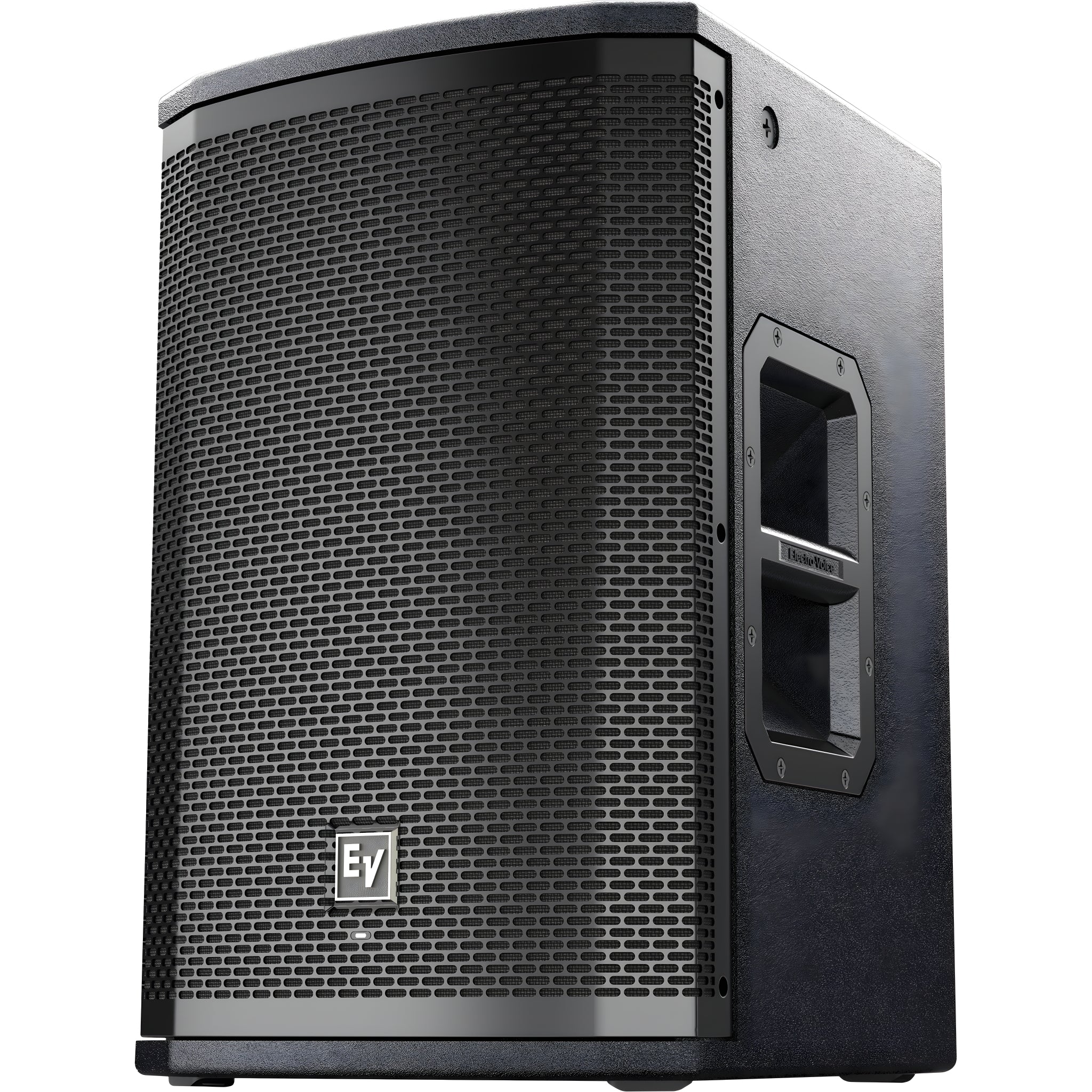

The Electro-Voice ETX-10P is a 2-way full-range system that combines a 10" SMX2100 woofer and 1.25" DH3-B compression driver with a 2,000W Class D amplifier and FIR-Drive processing, achieving 134 dB SPL peak with a 90° × 60° pattern. Its SST (Signal Synchronized Transducers) waveguide design delivers accurate and consistent coverage, while the tour-grade 18mm birch plywood enclosure with EVCoat finish and 16 AWG steel grille ensures durability for touring, rental, and fixed installation applications.

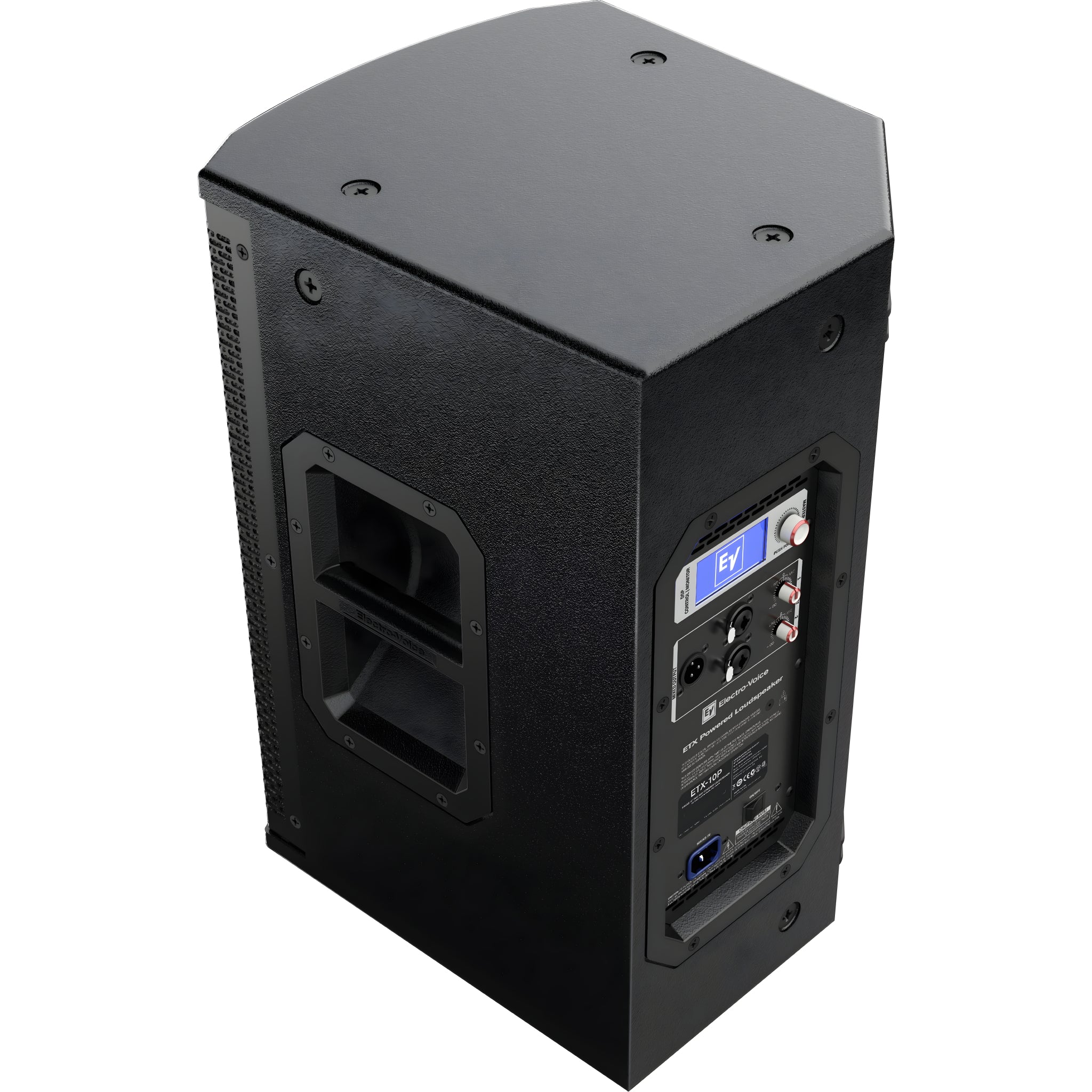

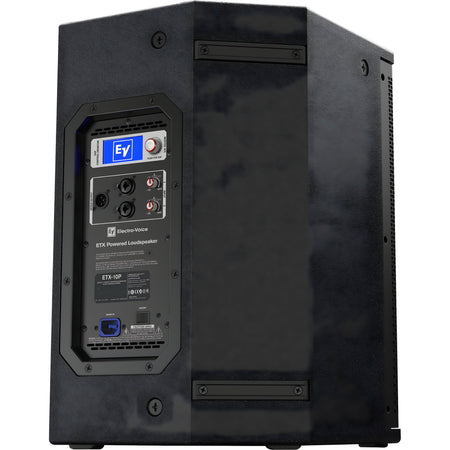

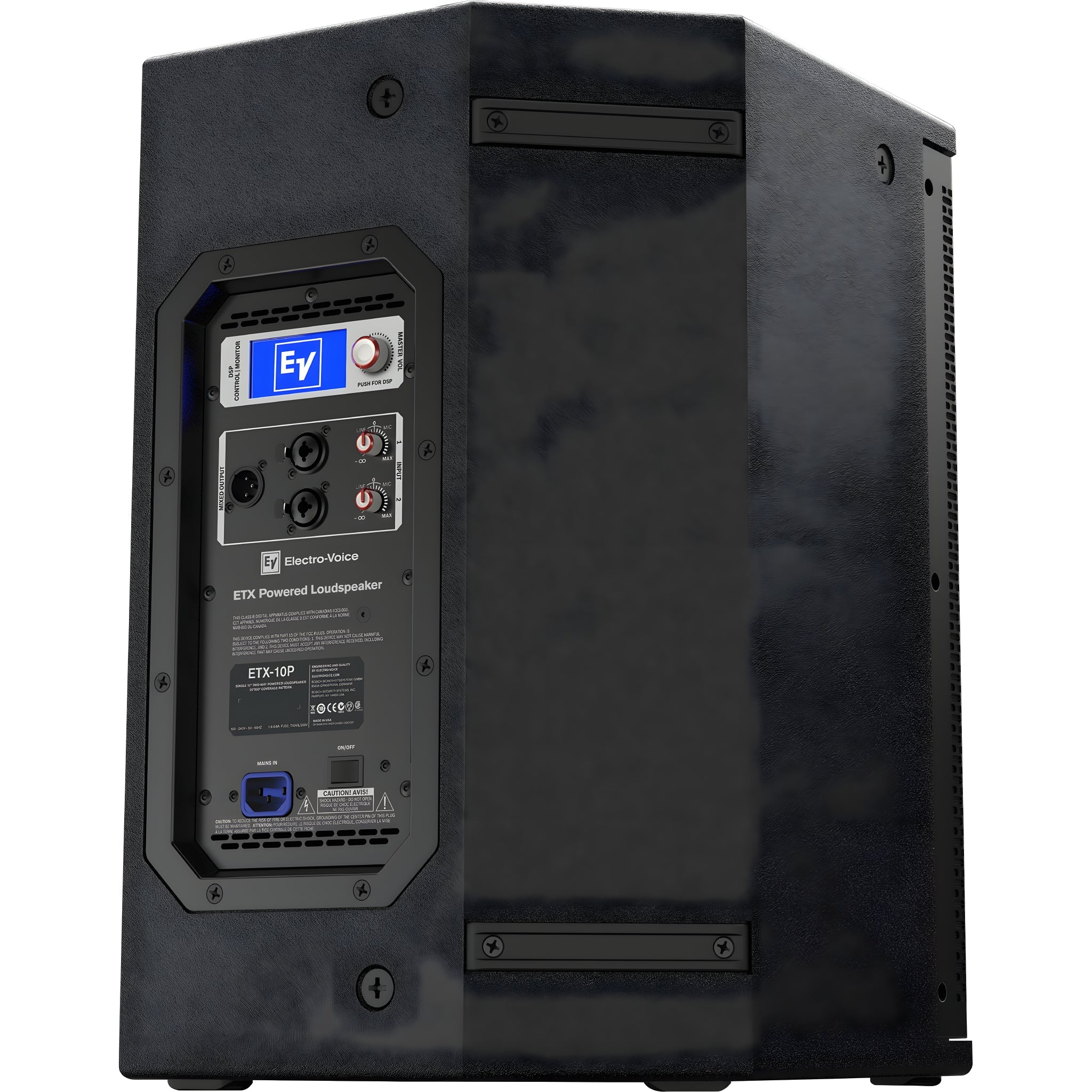

The rear panel features an integrated DSP with LCD display and single-encoder control for preset configuration by function ( Music/Live/Speech ) and location ( Tripod/Monitor/Array/Wall/Suspend ), plus a 3-band parametric Room EQ , wide-range delay and high-pass filter with generic options and optimized pairings with the ETX-15SP/ETX-18SP (24 dB/oct Linkwitz-Riley) subs. With a (-3 dB) response of 85–20,000 Hz and a (-10 dB) range of 65–20,000 Hz , the ETX-10P delivers vocal clarity, punch, and seamless integration with ETX-10P subwoofers. It includes 8 M10 suspension points , a dual-angle (0°/7.5°) pole socket, and a side carrying handle .

Main features

• Transducers: LF 10" SMX2100 + HF 1.25" DH3-B (titanium).
• Power and SPL: 2,000 W Class D amplification with 134 dB SPL peak .
• Coverage: 90° × 60° pattern optimized by SST waveguide.
• Frequency response: (−3 dB) 85 Hz – 20 kHz ; (−10 dB) 65 Hz – 20 kHz .
• Internal crossover: 1,700 Hz .
• DSP with LCD: Music/Live/Speech presets, Tripod/Monitor/Array/Wall/Suspend , 3-band Room EQ , HPF 80/100/120/150 Hz and ETX-15SP/ETX-18SP (LR 24 dB/oct) modes, polarity , granular delay .
• Connectivity: 2 × XLR/TRS combo inputs with level control + 1 × XLR link output .
• Construction: 18 mm birch ply with EVCoat and 16 AWG mesh; 8 × M10 for overhang and 35 mm 0°/7.5° socket.
• Dimensions and weight: 526 × 330 × 365 mm (H × W × D); 20.3 kg .

Product benefits

• Uniform and precise coverage thanks to the SST waveguide and 90° × 60° directivity.
• Fast deployment with presets per application/location, dedicated HPF and integrated delay for clean summing with subwoofers.
• Professional reliability : 18 mm birch enclosure, robust fittings and FIR-Drive processing with protection.

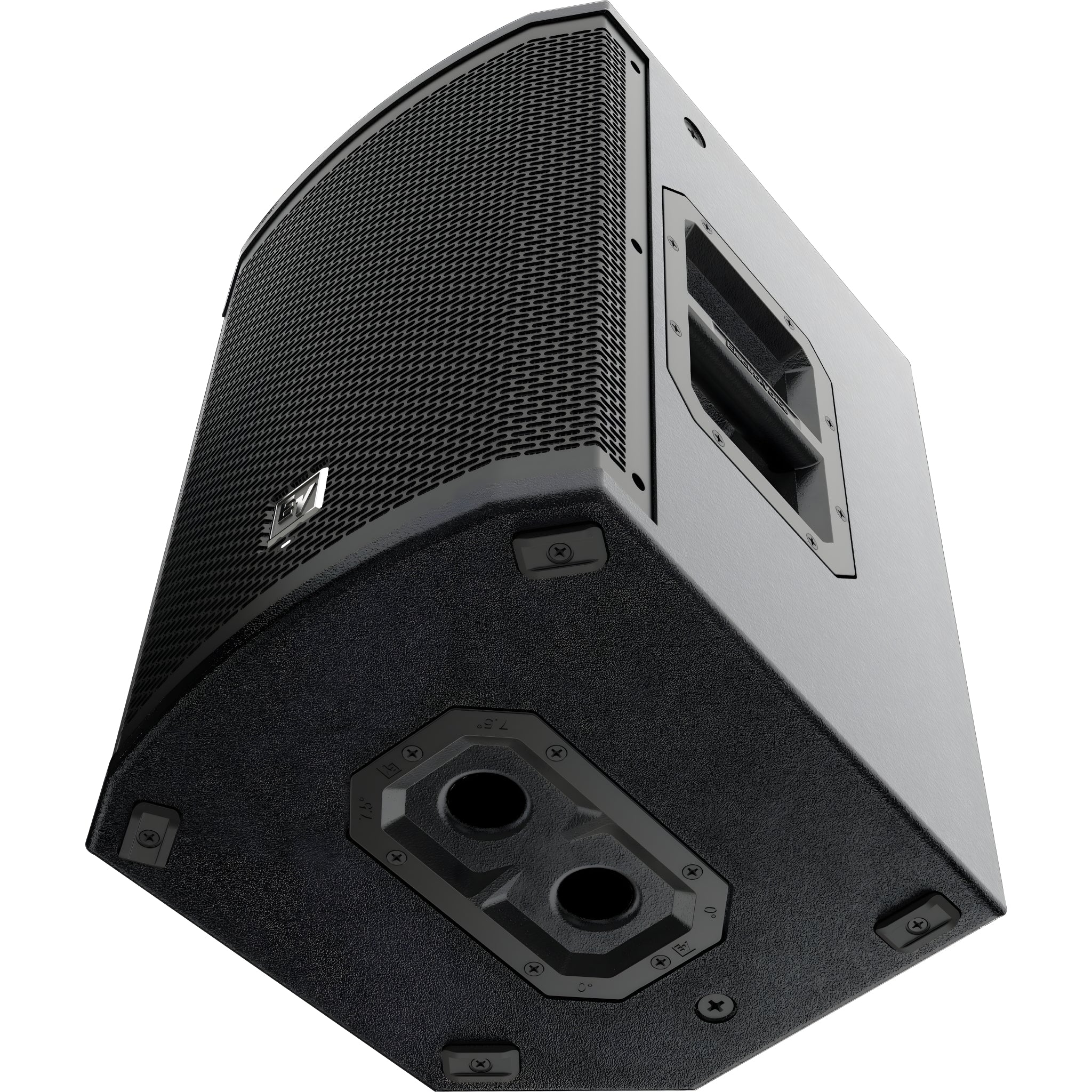

• Mounting versatility : tripod (0°/7.5°), stacking, floor monitor or suspension via 8 M10 points .

Use cases

• Main PA for corporate events, mobile DJ, venues, and professional rentals.
• Vocal and instrumental reinforcement for live performances where clarity and coverage control are prioritized.
• Sub-stacked systems with ETX filters and presets for immediate integration.

Frequently Asked Questions

• Does the cup allow the box to be tilted? Yes, it has two positions: 0° and 7.5° to optimize shooting when the box is raised.
• What filtering options are available for use with the sub? Selectable HPF at 80/100/120/150 Hz and specific ETX-15SP/ETX-18SP modes (LR 24 dB/oct) with optimized internal delay.
• What is the delay range? Up to 343 m in 0.25 m increments for time alignment.

Description for projects

Electro-Voice ETX-10P active speaker, 2-way; LF 10" SMX2100 , HF 1.25" DH3-B ; 2,000 W Class D; 134 dB peak SPL; coverage 90° × 60° ; response 85 Hz–20 kHz (−3 dB) / 65 Hz–20 kHz (−10 dB); crossover 1,700 Hz ; DSP with Music/Live/Speech presets , Location Tripod/Monitor/Array/Wall/Suspend , 3-band Room EQ , HPF 80/100/120/150 Hz and ETX-15SP/ETX-18SP (LR 24 dB/oct) modes, polarity , delay 0–343 m; I/O: 2× XLR/TRS + 1× XLR link ; 18 mm birch enclosure with EVCoat , 16 AWG grille ; 35 mm socket (0°/7.5°) and 8× M10 ; dimensions 526 × 330 × 365 mm ; weight 20.3 kg .
