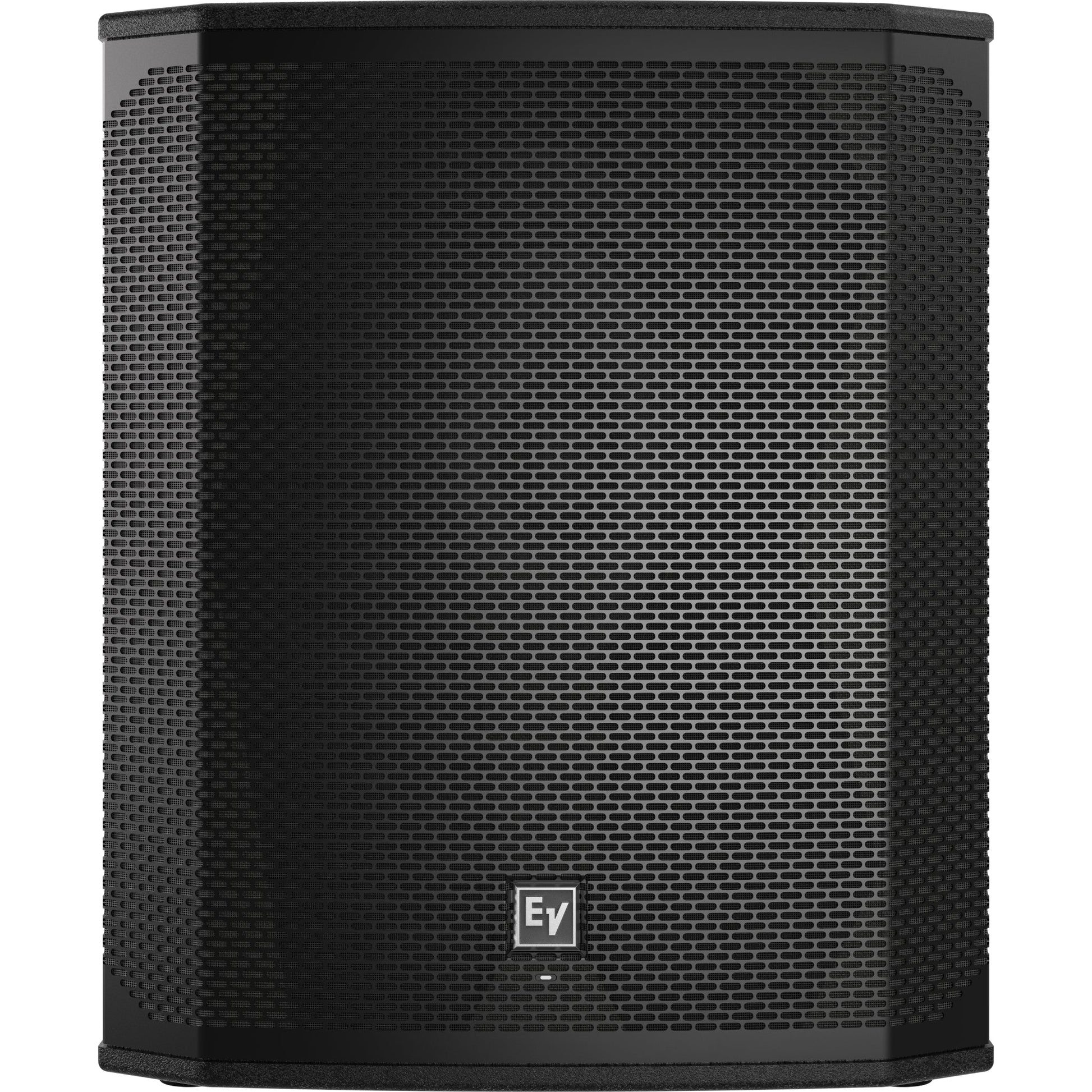

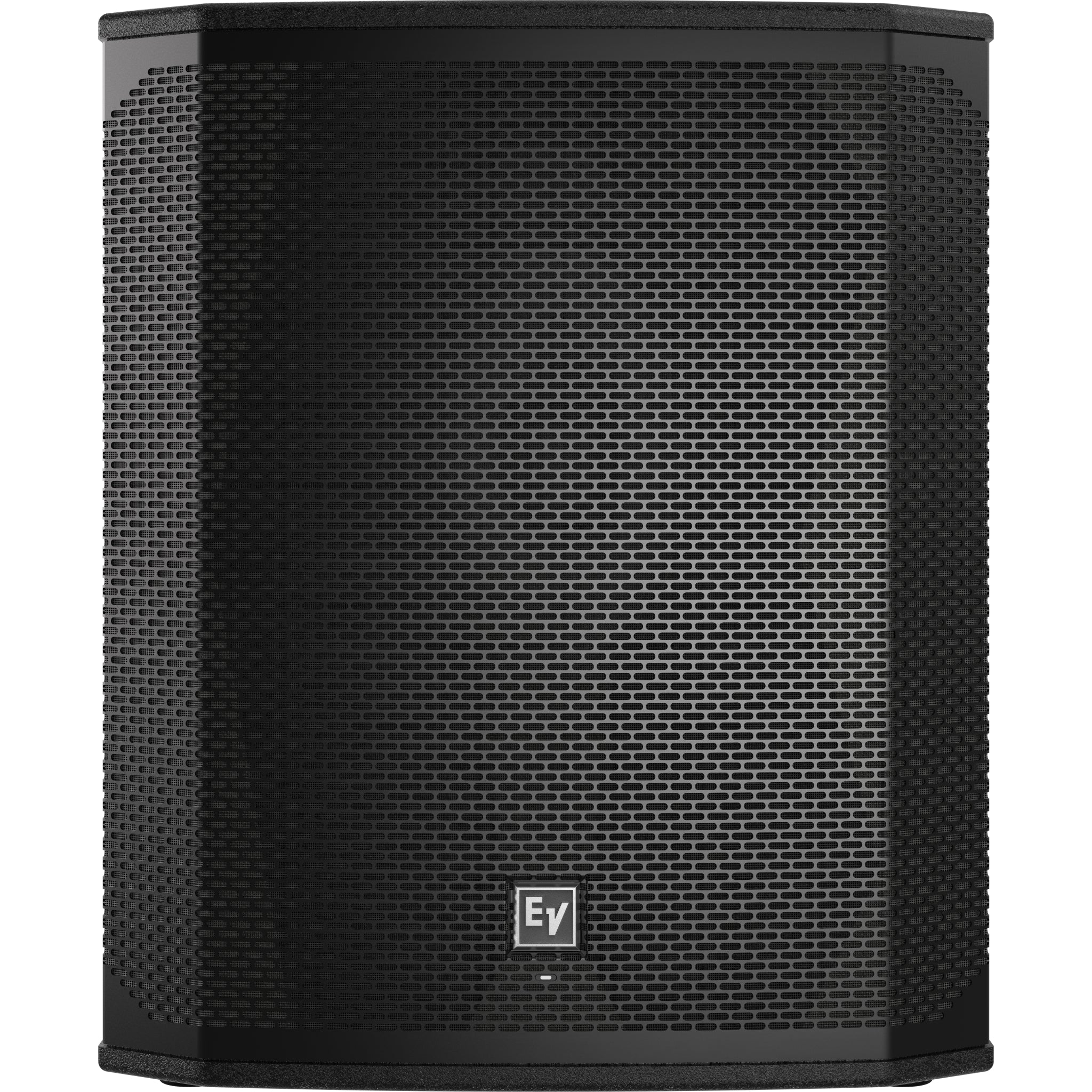

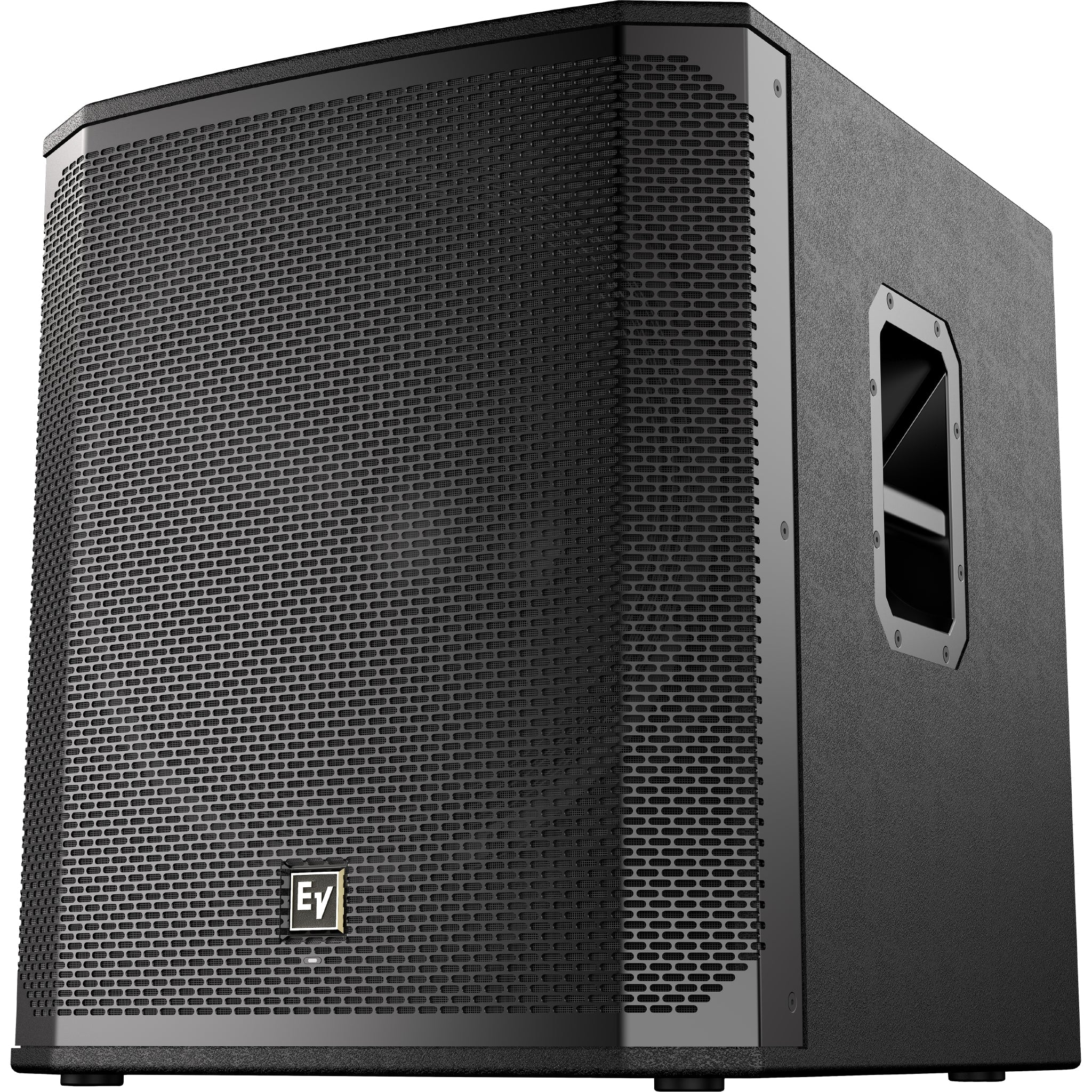

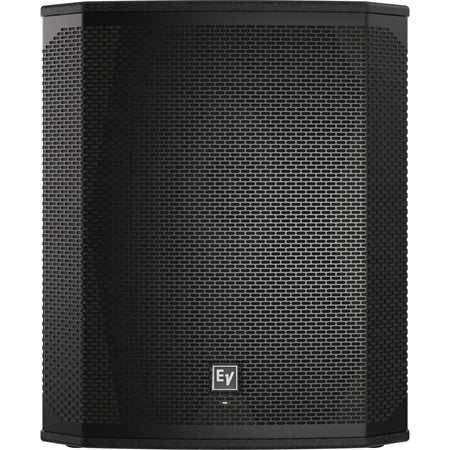

Electro-Voice ELX200-18SP - 18" Powered Subwoofer with QuickSmart DSP and Mobile Control
The Electro-Voice ELX200-18SP is an 18" powered subwoofer module designed to add low frequency pressure and extension to ELX200 series full-range PA systems and other portable or installed PA systems. It integrates 1200W Class D amplification with QuickSmart DSP ( single-knob interface with LCD display ) and the EVS-18L loudspeaker within a 15mm EVCoat coated plywood enclosure with dual handles and an M20 pole socket . It delivers up to 132dB peak SPL over a 40–145Hz (-10dB) and 47–105Hz (-3dB) range, delivering deep, controlled bass with high reliability.

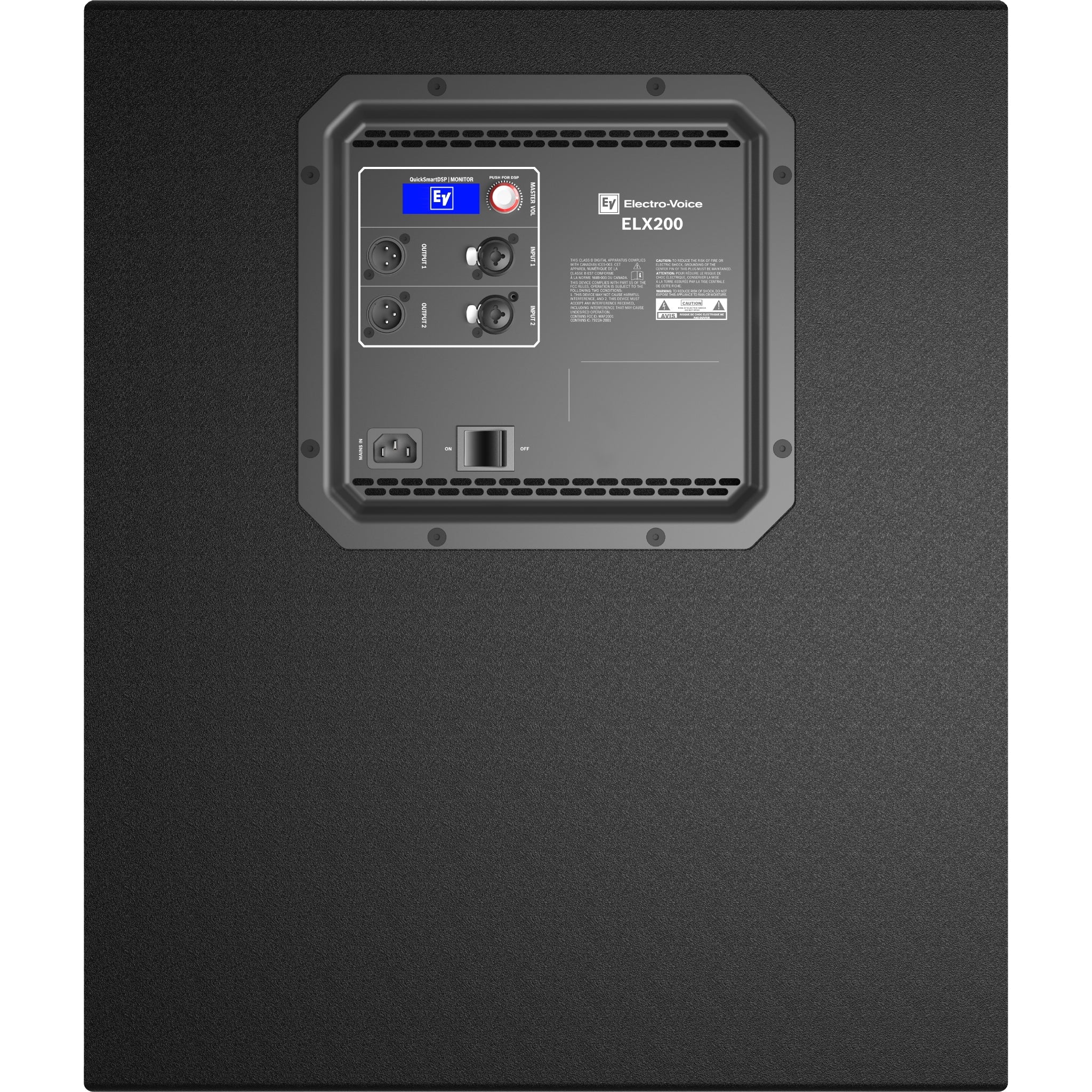

Using the EV QuickSmart Mobile app (iOS/Android), you can configure, control, and monitor up to six ELX200 cabinets simultaneously via Bluetooth Low Energy , providing immediate alerts in case of critical conditions. The DSP includes Music/Live/Club presets , sub/top crossovers , and five user memories . The rear panel features two XLR/TRS combo inputs and two XLR link outputs for daisy-chaining, and a selectable low-pass frequency of 80/100/120/150 Hz , simplifying integration with two-way loudspeakers.
Main features
-
18" with EVS-18L transducer developed by EV for high sensitivity and punch.
-
1200W Class D with QuickSmart DSP , one-knob + LCD interface and 5 user presets .
-
Wireless control with QuickSmart Mobile (BLE): up to 6 enclosures simultaneously and status notifications.
-
Max SPL 132 dB and range 40–145 Hz (-10 dB) / 47–105 Hz (-3 dB) .
-
Selectable low-pass filter : 80 / 100 / 120 / 150 Hz to match different tops.
-
Professional connectivity : 2 × XLR/TRS combo (input) + 2 × XLR (link).
-
Robust and portable construction : 15 mm wood with EVCoat , two handles and M20 threaded socket .
-
Finishes : black or white for integration into events and installations.
Product benefits
-
Deep, defined bass that reinforces kick drum and bass without muddying the mix.
-
Faster setups thanks to presets, sub/top crossovers, and user memories.
-
Room management : Adjust and monitor the system from the audience with the mobile app and receive alerts.
-
Designed for touring : durable finish, ergonomic handles and M20 satellite mount.
Use cases
-
Portable PA for bands, DJs, and rental companies looking for more bass punch.
-
Fixed installations (black or white) in clubs, auditoriums, schools or places of worship.
-
Modular systems with ELX200-10/12/15 tops or other compatible models.
Frequently Asked Questions
-
Does the Bluetooth connection transmit audio? No. It's used exclusively for control and monitoring via the app.
-
Can I mount a top on it? Yes, it includes an M20 threaded pole socket .
-
Which crossovers can I select? Low-pass adjustable at 80/100/120/150 Hz via the DSP.
Description for projects
Electro-Voice ELX200-18SP Powered Subwoofer ; EVS-18L (18") transducer; 1200 W Class D amplifier; max. SPL 132 dB ; response 47–105 Hz (-3 dB) , range 40–145 Hz (-10 dB) ; selectable low-pass 80/100/120/150 Hz ; 2 × XLR/TRS combo (in) + 2 × XLR link (out); QuickSmart DSP control with LCD and QuickSmart Mobile app (BLE); 15 mm plywood enclosure with EVCoat , two handles and M20 ; dimensions 600 × 507 × 574 mm ; weight 29.0 kg ; power supply 100–240 V~, 50–60 Hz (1/8 power consumption: 1.2–0.6 A) ; color black or white.
