Electro-Voice ELX200-15P-W - 15" 2-Way Active Loudspeaker in White with QuickSmart DSP and Mobile Control

Electro-Voice ELX200-15P-W - 15" 2-Way Active Loudspeaker in White with QuickSmart DSP and Mobile Control

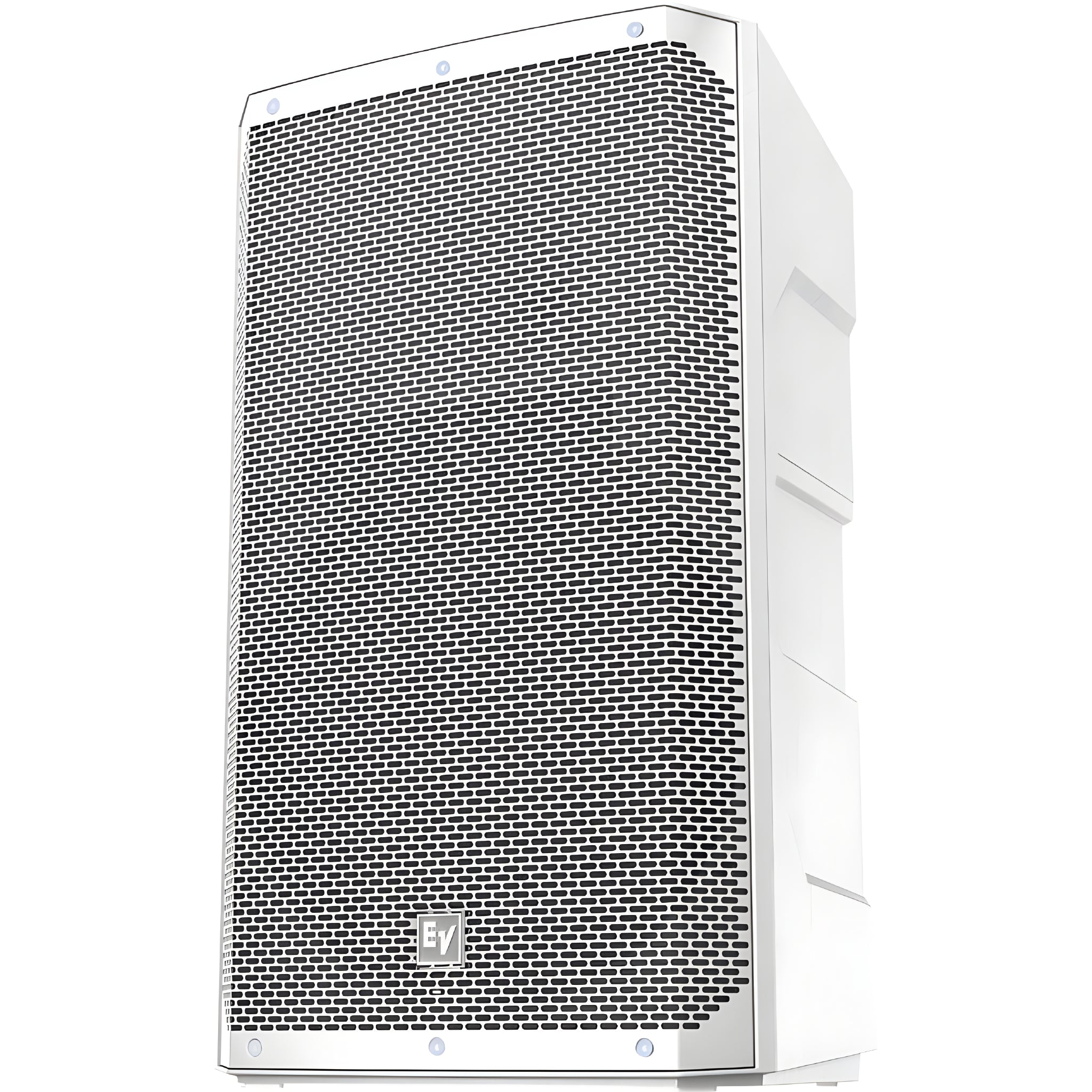

The Electro-Voice ELX200-15P-W is a 15-inch self-powered full-range system that combines an EVS-15M woofer with a 1" DH-1L compression driver in an SST waveguide to deliver precise 90° × 60° coverage , low distortion, and even projection in rooms of all sizes. Its 1200W Class D amplifier integrates QuickSmart DSP with LCD display and encoder control, allowing easy commissioning with application presets ( Music, Live, Speech, Club ), EQ, sub/top crossovers, five user memories, and visual limiter monitoring. The polypropylene enclosure is lightweight yet durable, incorporating a tripod/pole socket , three M10 suspension points , and a three-handle design for comfortable handling. The white finish allows for seamless aesthetic integration into corporate, hospitality, education, and house of worship spaces.

In terms of performance, it offers 48–19,000 Hz (−10 dB) , 55–16,000 Hz (−3 dB) and up to 132 dB max SPL at 1 m. The connection panel includes 2 XLR/TRS combo inputs , 1 stereo RCA AUX input, and 1 XLR output with input mix. In addition, the EV QuickSmart Mobile app (iOS/Android) allows you to configure, control, and monitor up to six ELX200 speakers simultaneously via Bluetooth Low Energy, with immediate notifications in critical conditions.

Main features

• Transducers: LF EVS-15M (15") + HF DH-1L (1", titanium diaphragm) on SST guide.
• Directivity: Nominal coverage 90° × 60° for consistent projection.
• Amplification and DSP: 1200W Class D with QuickSmart DSP , LCD, user presets, 3-band EQ, sub/top crossovers and 5 user presets .
• Mobile control: QuickSmart Mobile (iOS/Android) for control/monitoring of up to 6 speakers via BTLE with alerts.

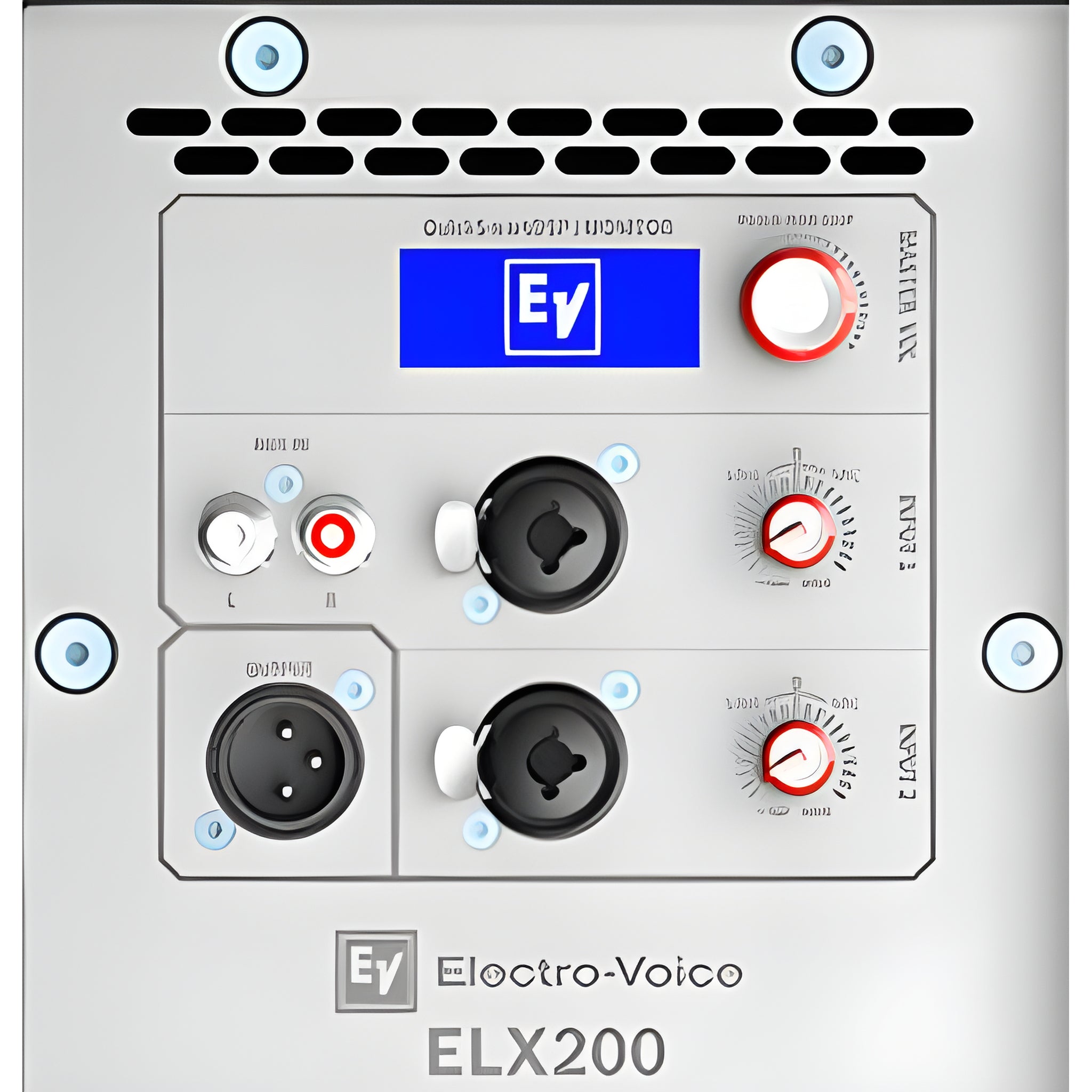

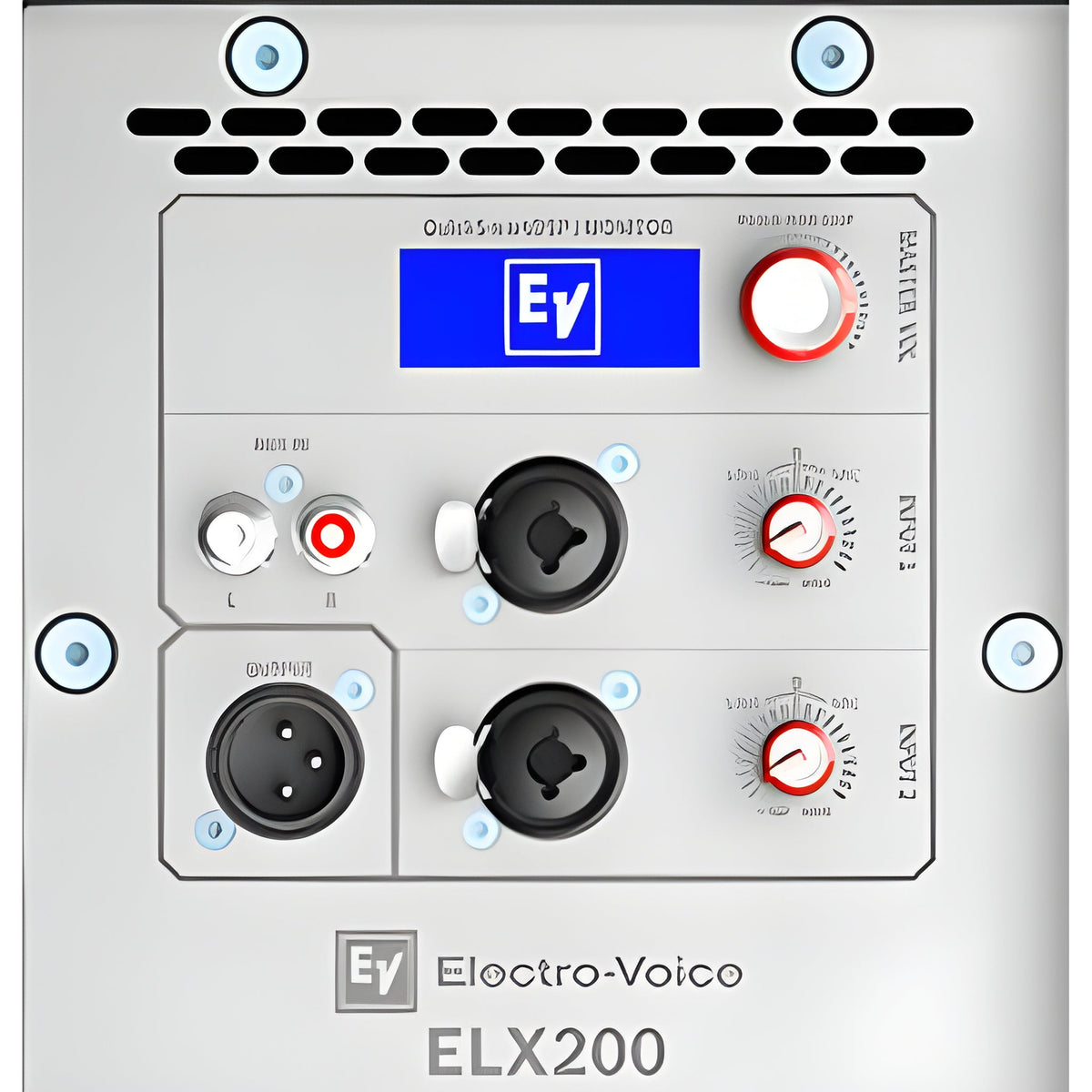

• Connectivity: 2 × XLR/TRS combo , 1 × stereo RCA (AUX), 1 × XLR (mix output).

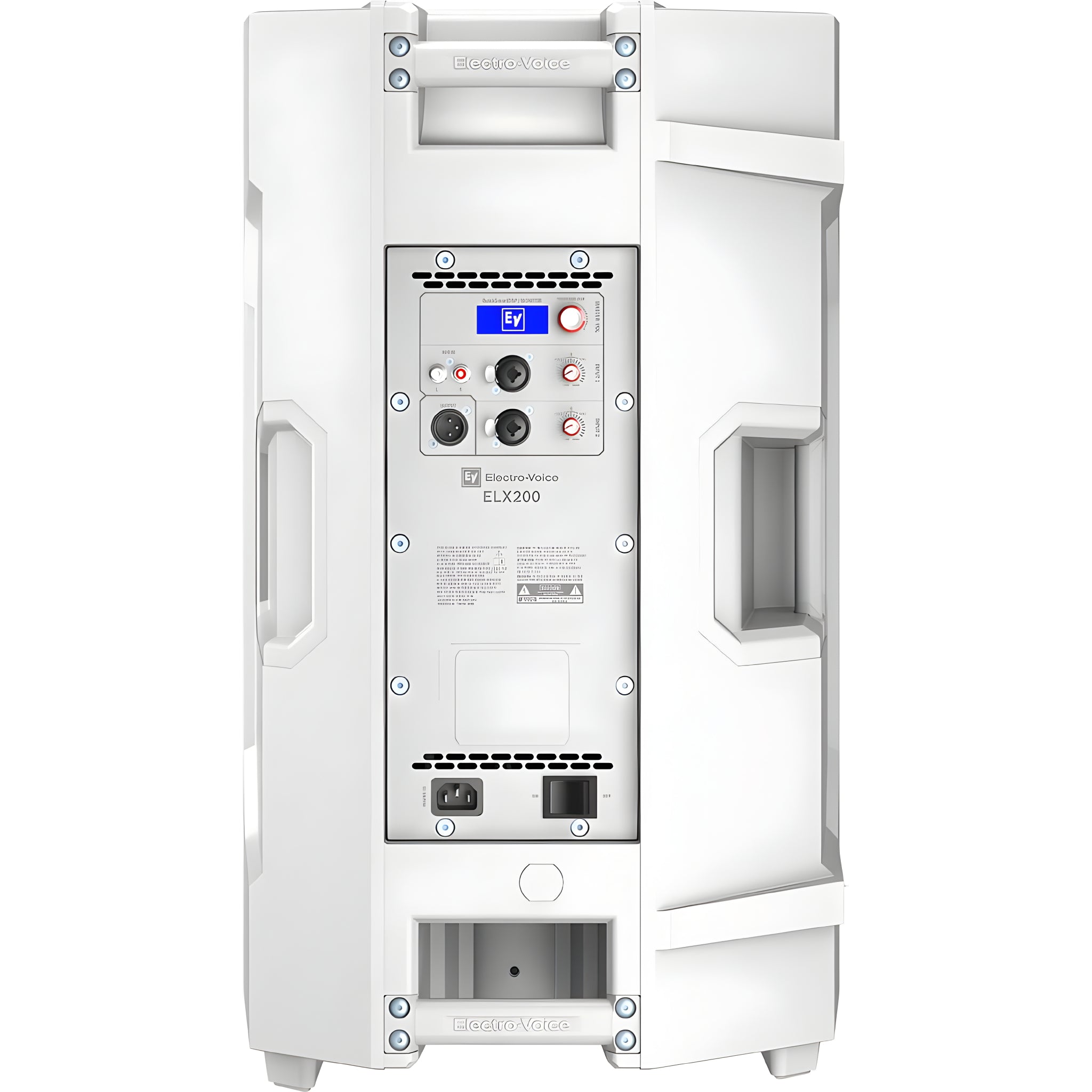

• Hardware: Tripod/pole socket , 3 M10 rigging points and three carrying handles .
• Enclosure: Polypropylene with 18 AWG powder-coated steel grille ; white .
• Performance: 48–19 kHz (−10 dB) , 55–16 kHz (−3 dB) , 132 dB SPL max.
• Global power supply: 100–240 V~ , 50–60 Hz; typical consumption (1/8 power) 1.2–0.6 A .
• Format: 710 × 423 × 384 mm ; 18.9 kg .

Product benefits

• Powerful and controlled sound: 132 dB SPL and SST guide for uniform coverage with excellent intelligibility.
• Quick setup: Presets, sub/top crossovers, and XLR mix output simplify deployment with or without a subwoofer.
• Room management: Adjust levels and parameters with the QuickSmart Mobile app while listening to the results.
• Ready for touring and installation: robust case, 3 × M10 , tripod/pole and three handles for intensive use.
• Aesthetic integration: discreet white finish for spaces where the equipment should go unnoticed.

Use cases

• Portable FOH and rental: pairs on tripod or pole, with or without subwoofer, and mobile control for quick adjustments.
• Fixed installation: auditoriums, churches, hotels and education requiring controlled 90° × 60° coverage.
• Voice and Music Booster: Dedicated presets for Speech , Live , Music and Club .

Frequently Asked Questions

• Does the white finish change the performance? No. Black and white share the same specifications.
• Can I link multiple speakers together? Yes, using the XLR mix output and control them wirelessly (up to 6 ) with QuickSmart Mobile.
• Can it be hung? Yes, it has three M10 mounting points ; use certified hardware and follow the manufacturer's guidelines.

Description for projects

Electro-Voice ELX200-15P-W active loudspeaker (white); 2-way; 90° × 60° coverage; 48–19,000 Hz (−10 dB), 55–16,000 Hz (−3 dB); 132 dB max. SPL; 1200 W Class D amplifier with QuickSmart DSP (LCD, presets, 5 memories); EVS-15M (15") + DH-1L (1") transducers; 1.6 kHz crossover ; 2 × XLR/TRS + RCA stereo inputs; 1 × XLR (mix) output; 18 AWG polypropylene enclosure with grille; 3 × M10 pole socket hardware; power 100–240 V~ 50–60 Hz (typ. 1.2–0.6 A at 1/8 power); 710 × 423 × 384mm ; 18.9 kg .
