ELUMEN8 DMX BLINDER FOR DWE (lamps not included)

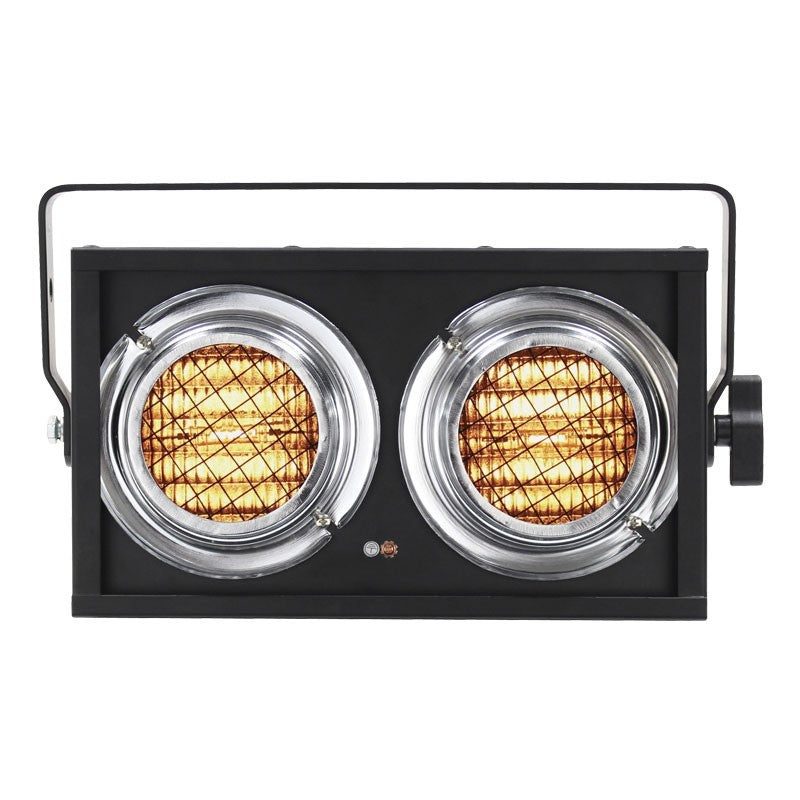

DMX blinder for 2 DWE lamps (DB 1300 DMX 2) Elumn8

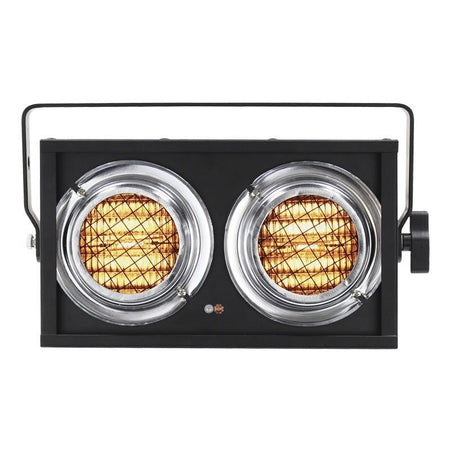

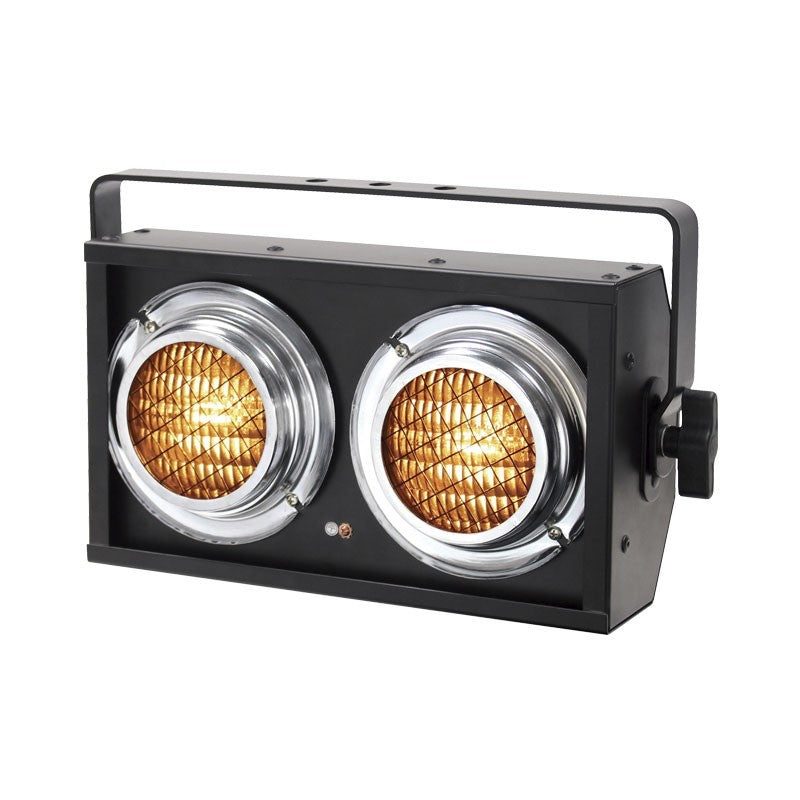

• This blinder model is used with industry standard 650W DWE MFL lamps, wired in series, with 2 cells offering the warm tones of halogen from a compact and rugged chassis.
• The blinder features a built-in 1-channel DMX dimmer that allows traditional blinders to be added to lighting fixtures without bulky dimmer switches.

• Ideal for use on stages and events
• For two 650W 120V DWE lamps connected in series (not included)

• Characteristics
  • Optics

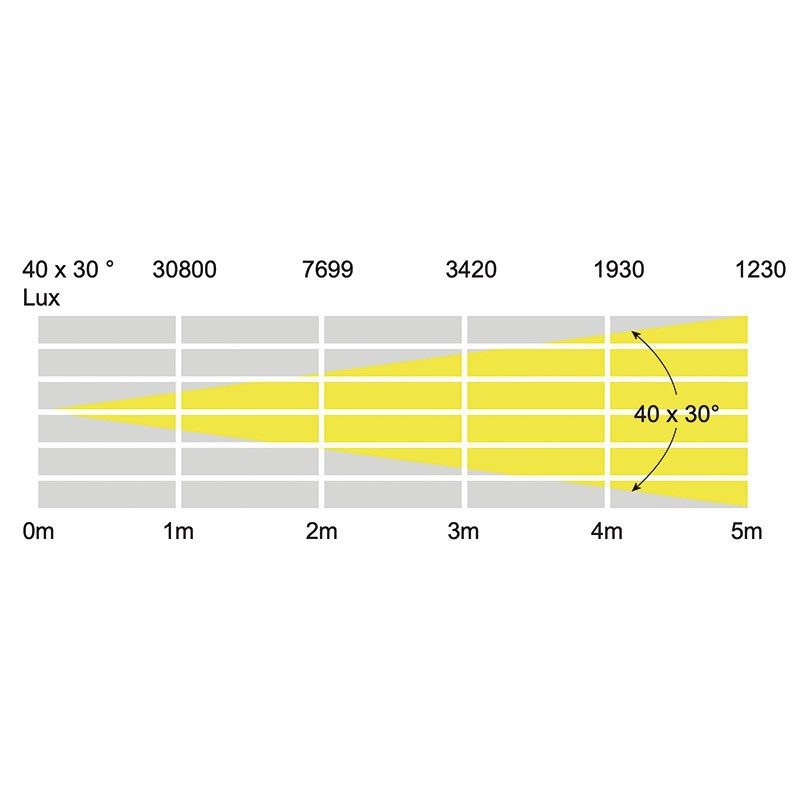

    • Beam angle 40º x 30º
  • Control
    • DMX channels: 1
    • Manual, automatic and master/slave modes
    • Dimmer: 0 - 100% dimming
    • DMX channel assignment switches via DIP
  • Other features

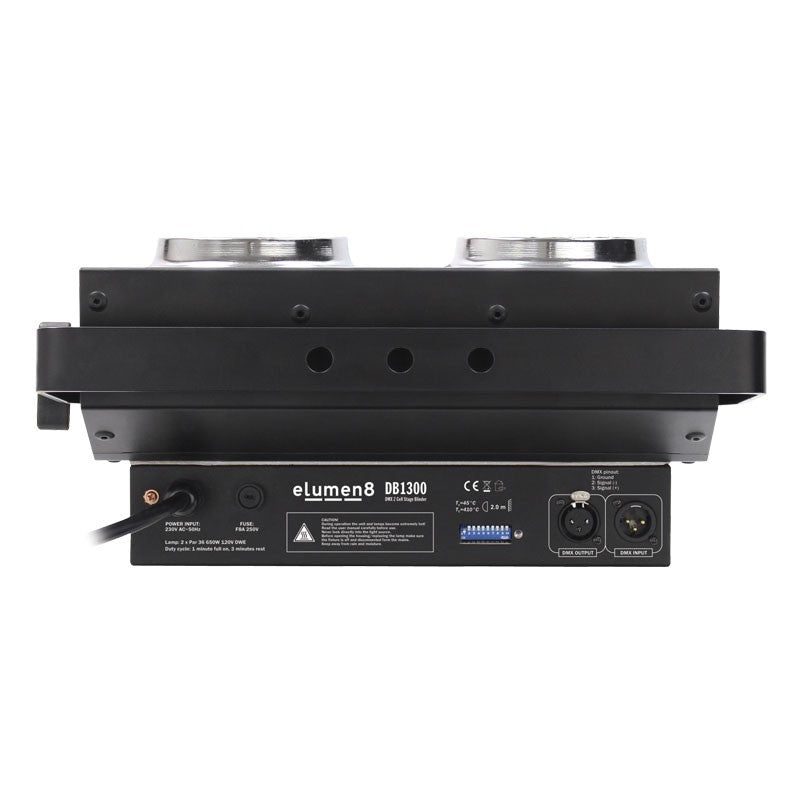

    • 3-pin XLR input/output
    • Convection cooling (no fan)
  • Specs
    • Power consumption: 1320W
    • Max. ambient temperature Ta: 45 C
    • Max. distance from flammable surfaces: 0.5 m
    • Minimum distance to illuminated object: 2 m
    • Duty cycle: 1 minute (full power)
    • Cooling time: 3 minutes
    • Power supply: 240V, 50Hz
    • Fuse: F8A 250V

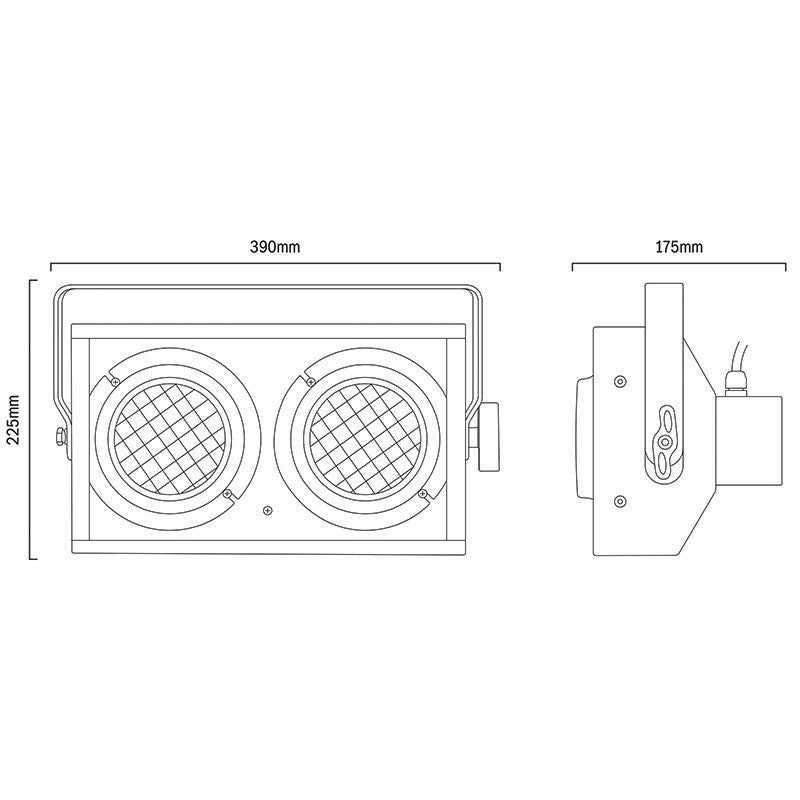

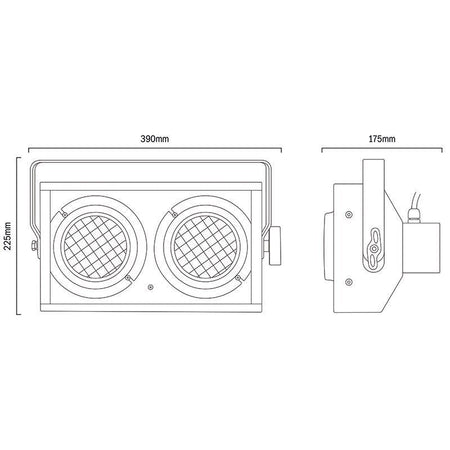

    • Dimensions: 225 x 390 x 175 mm
    • Weight: 3.2 kg

• What does the packaging include?
  • 1 DMX Blinder for 2 DWE lamps
  • 1 UK power cable. Schuco to mains not included
  • 1 User Manual

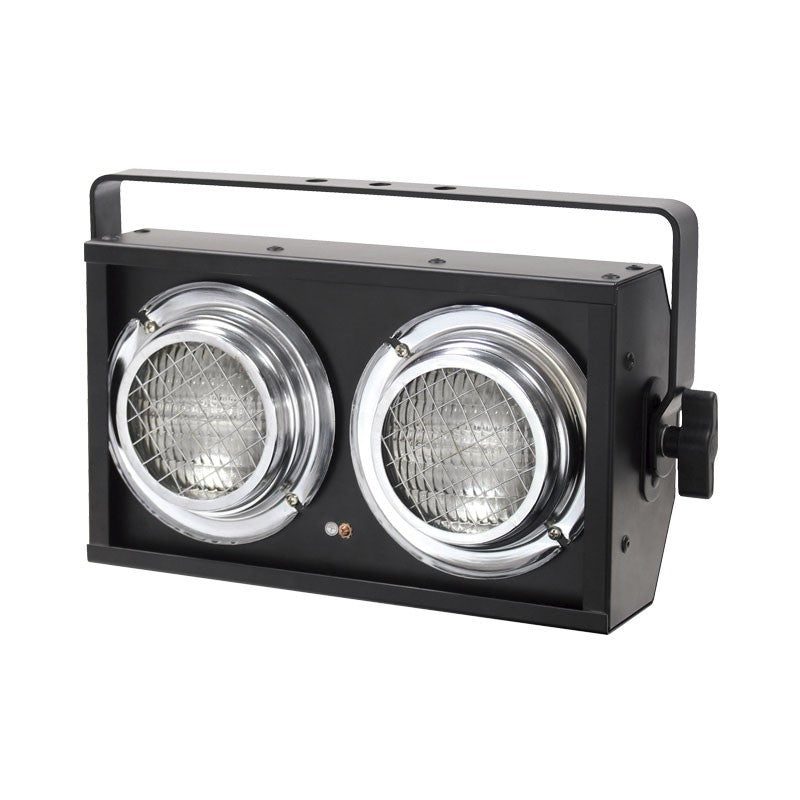

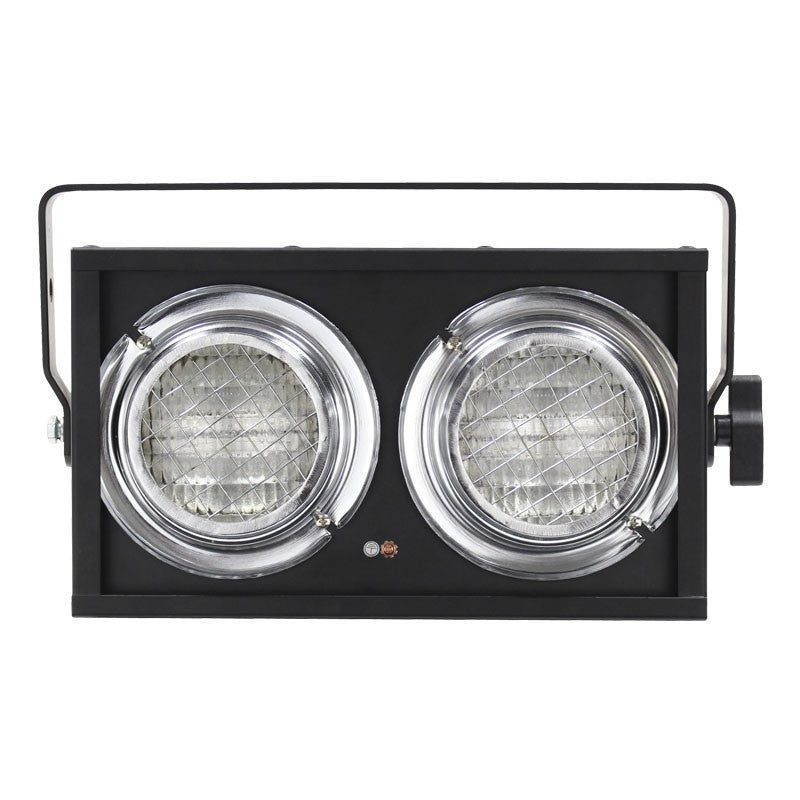

• Note: The lamps that can be seen in some of the images are not included, they are supplied as an accessory with reference 003-0105
