Electro-Voice EKX-15P - 15" 2-Way Powered Loudspeaker with QuickSmartDSP and 90° × 60° Coverage

Electro-Voice EKX-15P - 15" 2-Way Powered Loudspeaker with QuickSmartDSP and 90° × 60° Coverage

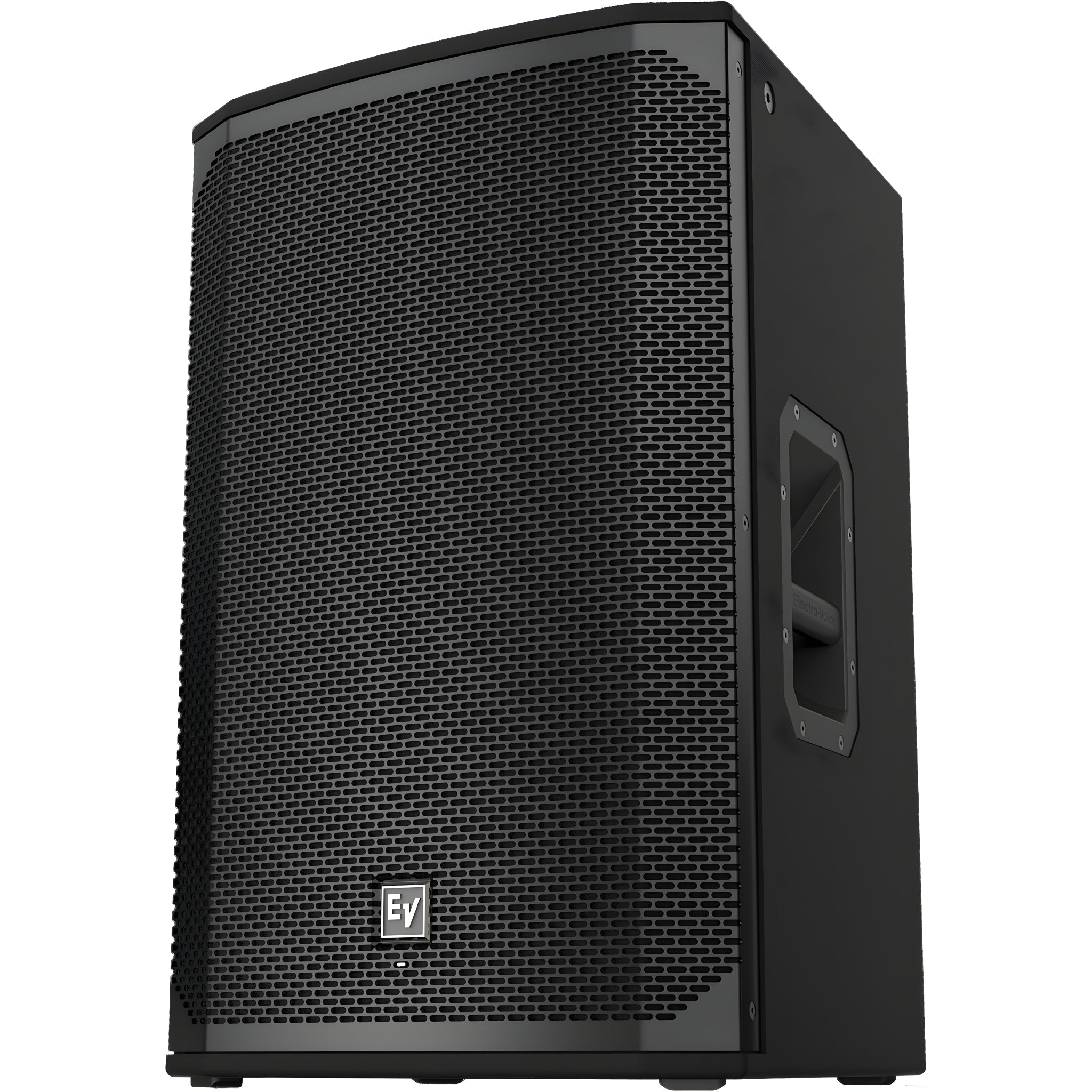

The Electro-Voice EKX-15P is a 15" active full-range system designed for portable PA and fixed installation that combines 1500W Class D amplification with QuickSmartDSP processing. It integrates an EVS-15M woofer and a 1" DH-1M compression driver (titanium diaphragm) in a 90° × 60° constant directivity waveguide with SST technology for uniform coverage. The 15mm plywood enclosure with EVCoat incorporates 8 M10 points , tripod/pole socket , 2 metal handles and a powder-coated 18 AWG steel grille . It delivers up to 134 dB SPL peak and offers a range of 48–20,000 Hz (-10 dB) / 55–18,000 Hz (-3 dB) , with a crossover at 1.7 kHz . On the rear panel there are 2 XLR/TRS combo inputs , a stereo RCA input and an XLR link/mix output for expanding your system.

Main features

• Power & DSP : 1500W Class D amplifier with QuickSmartDSP , LCD display and single encoder control.
• Controlled Coverage : 90° × 60° pattern with SST guide for precise and consistent dispersion.
• Performance : up to 134 dB SPL peak ; response 55–18 kHz (-3 dB) / 48–20 kHz (-10 dB) .
• EV Transducers : EVS-15M (15") + DH-1M (1") with titanium diaphragm; 1.7 kHz crossover .

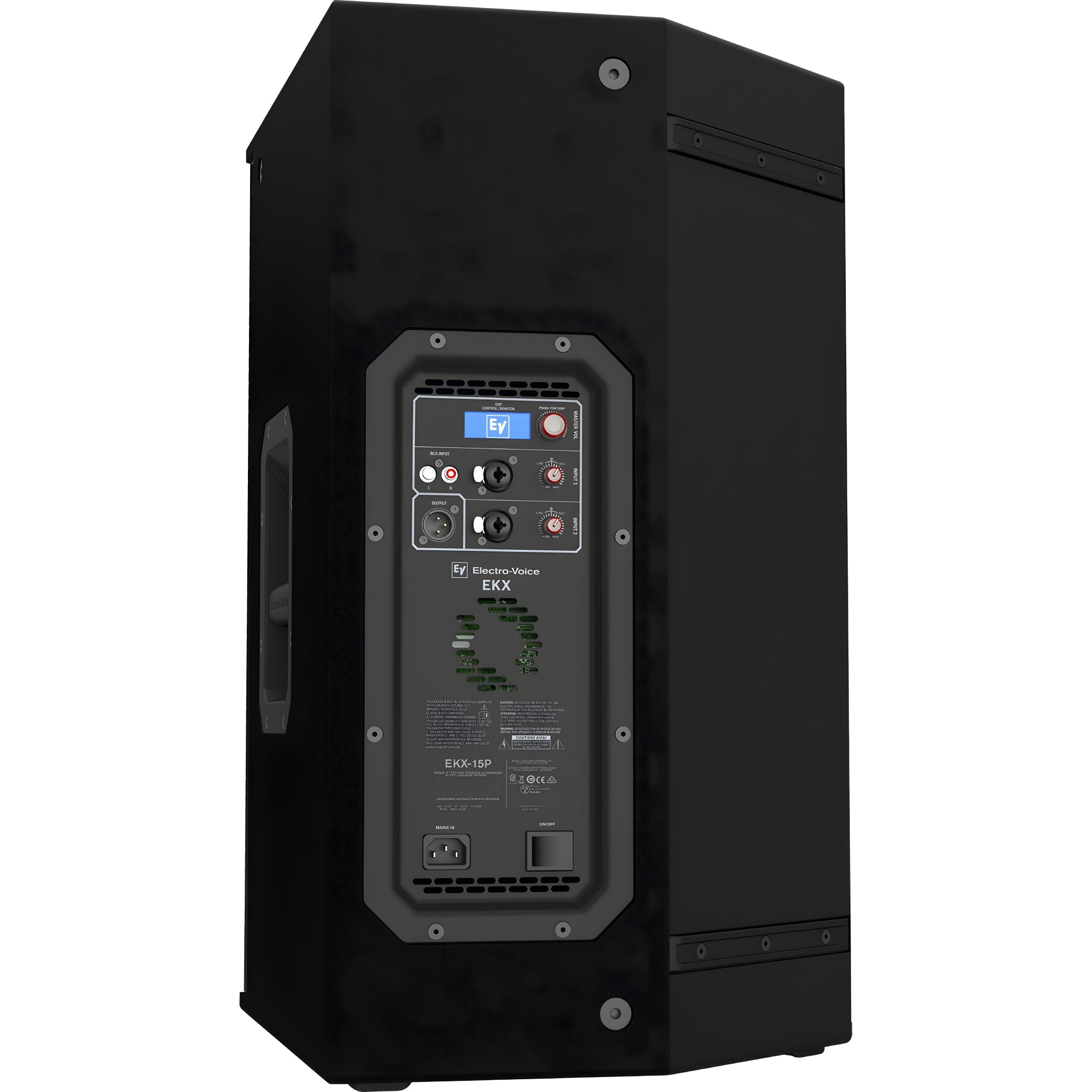

• Connectivity : 2x XLR/TRS + stereo RCA inputs; 1x XLR output with mix of both inputs (link/mix out).

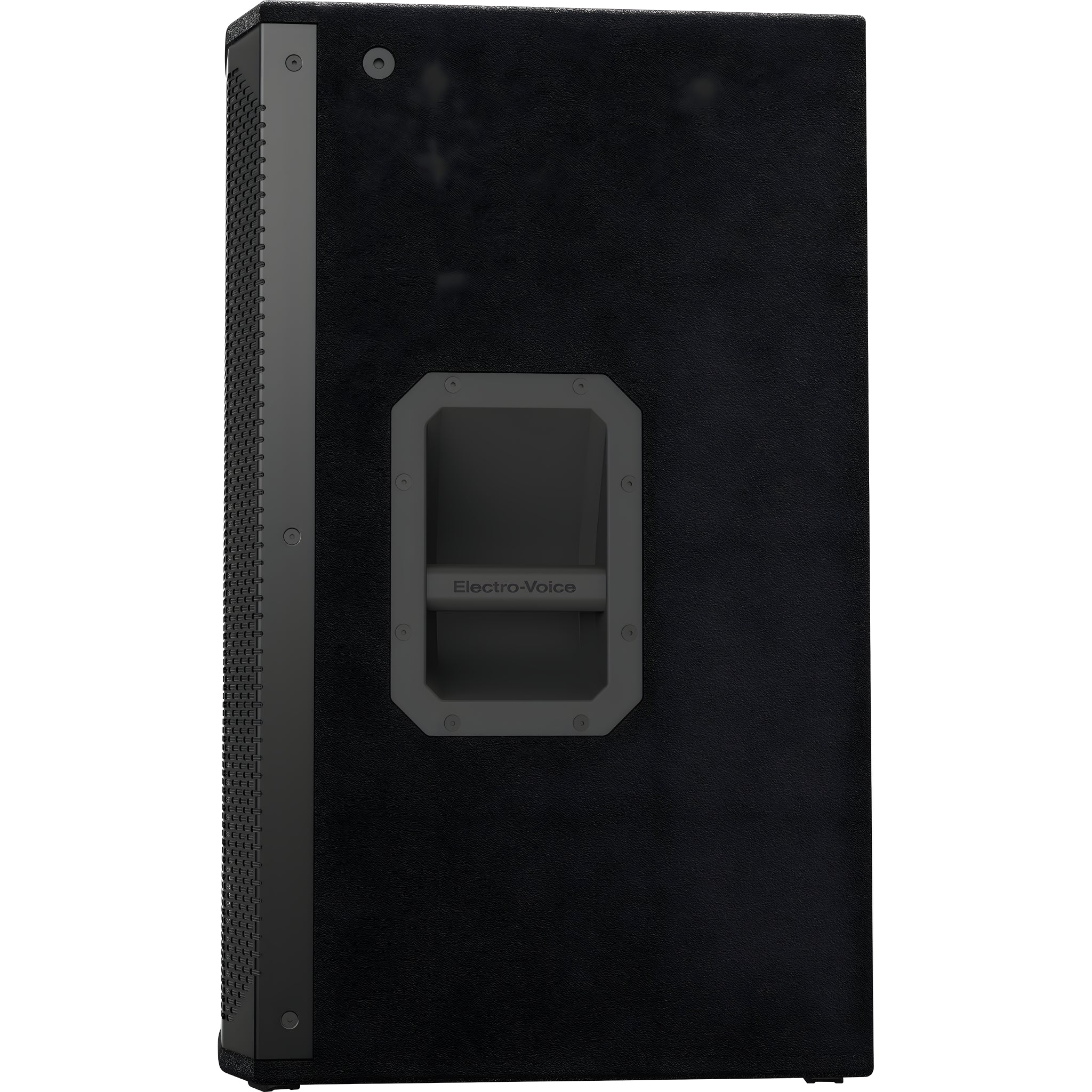

• Construction : 15mm plywood enclosure with EVCoat , 18 AWG grid and 2 metal handles .

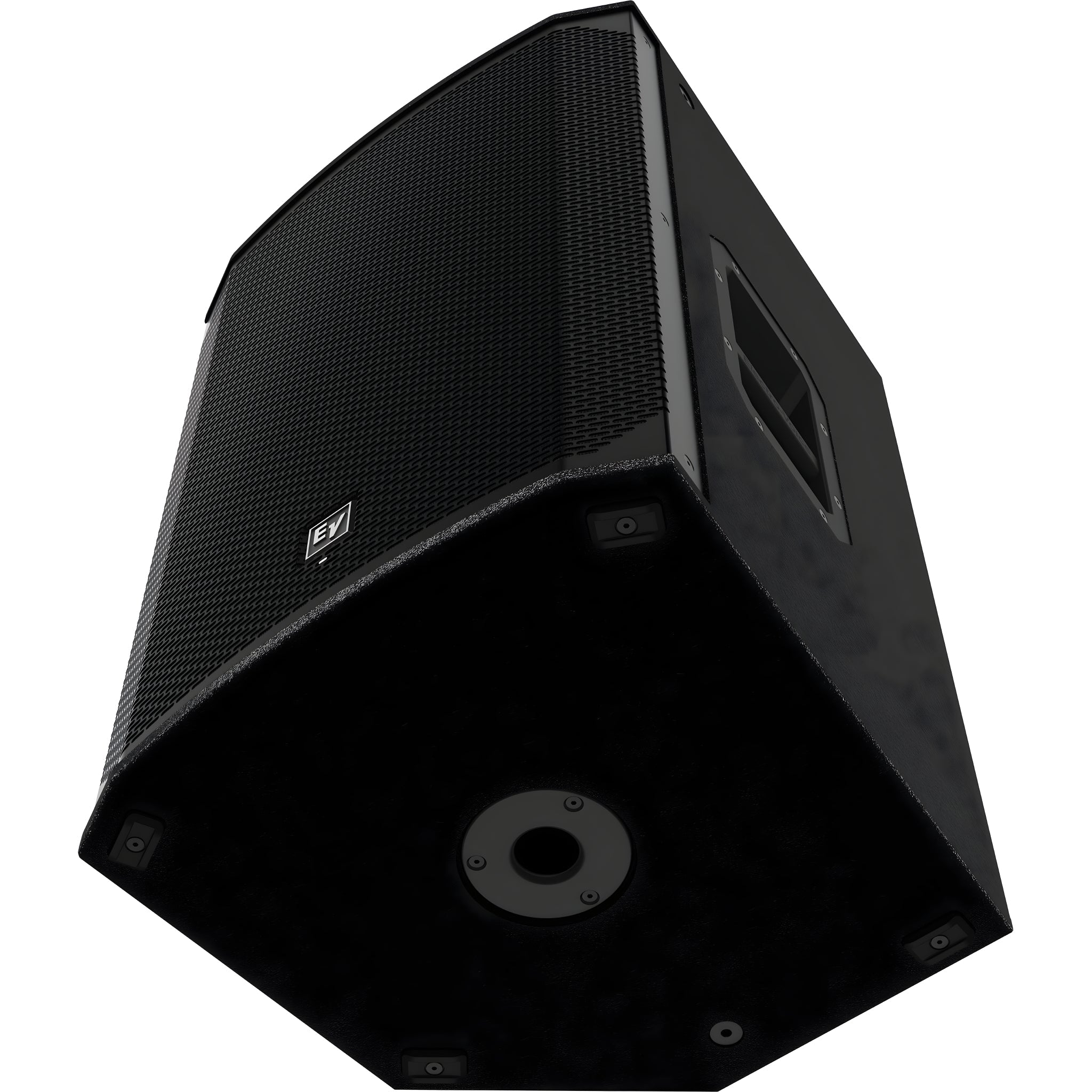

• Installation : 8 M10 threaded points and tripod/pole socket . Use as a floor monitor using its wedge base.
• Thermal management : Variable speed fan with internal sensors for maximum reliability.
• Dimensions and weight : 685 × 432 × 429 mm ; 24.4 kg .

Product benefits

• Powerful and defined sound : the combination of 1500 W, EV transducers and SST guide offers homogeneous coverage with high sound pressure.
• Quick Start : Navigate the DSP from the LCD to select application presets , location adjustments , 3-band EQ , and save up to 5 user memories .
• Connection versatility : integrated mix with 2 combo channels plus RCA input and XLR mix/link output for chaining.
• Professional reliability : wooden cabinet with EVCoat, steel grille and intelligent thermal management for intensive use.

Use cases

• Portable PA for live music, DJs, corporate events and voice reinforcement.
• Fixed installation in halls, auditoriums, cultural centers and leisure spaces.
• Operation as a top on a tripod or on a subwoofer using a mast.

Frequently Asked Questions

What presets does the DSP include? Application modes (e.g., Music, Live, Speech, Club), location settings, and five user memories for saving configurations.
Is the XLR output a mix output? Yes, the Mix Out sends the mix of the inputs and is unaffected by the master or DSP, making it easy to connect to another speaker.

Description for projects

Electro-Voice EKX-15P 2-way active loudspeaker (15") ; 1500 W Class D power; EVS-15M + DH-1M ; 90° × 60° coverage; 55–18 kHz (-3 dB) / 48–20 kHz (-10 dB) response; 134 dB SPL peak ; 1.7 kHz crossover ; QuickSmartDSP with LCD, 3-band EQ , presets and 5 memories ; 2 × XLR/TRS + RCA stereo inputs and XLR mix/link output ; 15 mm plywood enclosure with EVCoat , 8 × M10 , 18 AWG grille; 685 × 432 × 429 mm ; 24.4 kg .
