Electro-Voice EKX-15 - 2-Way Passive Loudspeaker System (15") with SST Waveguide and 90° × 60°

Electro-Voice EKX-15 - 2-Way Passive Loudspeaker System (15") with SST Waveguide and 90° × 60°

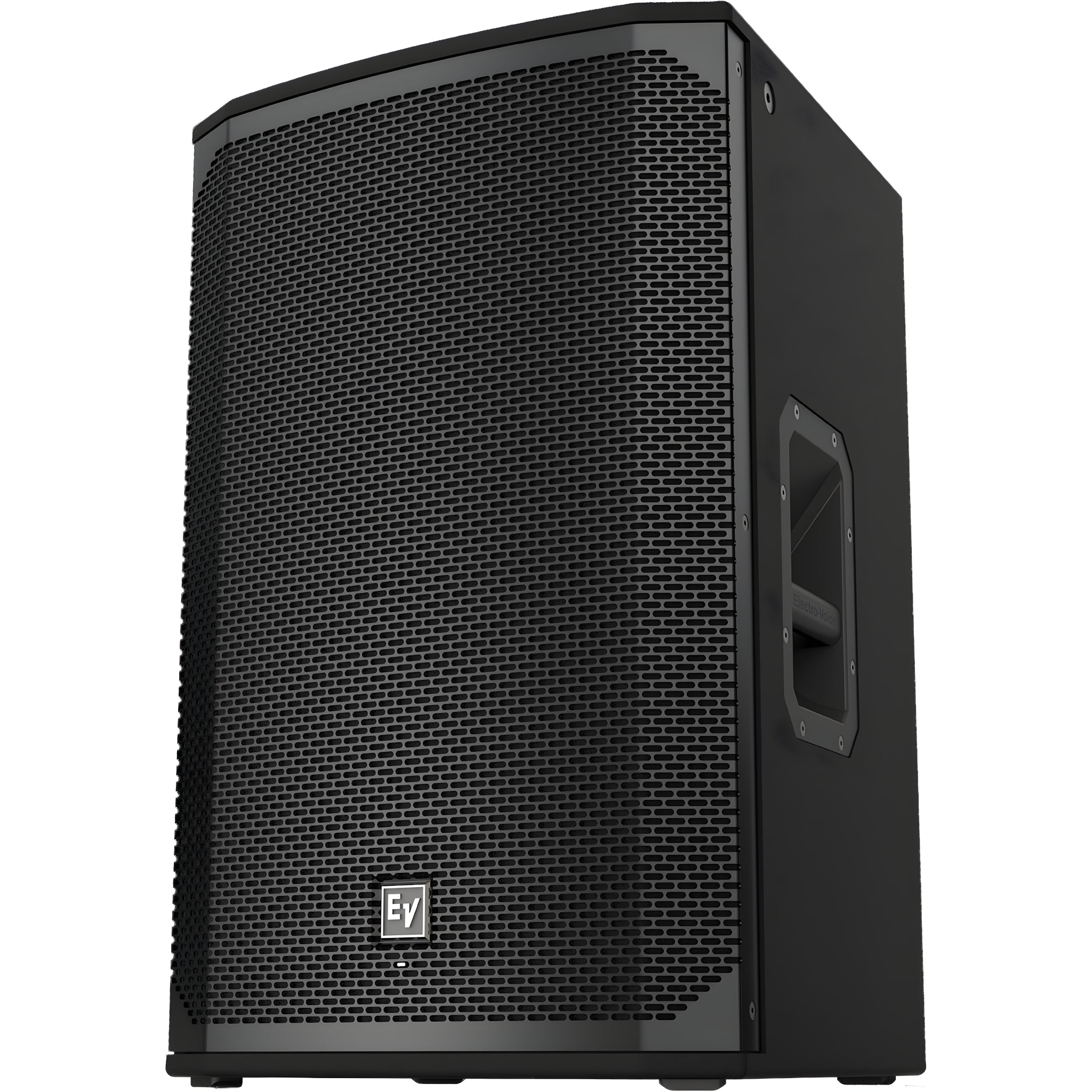

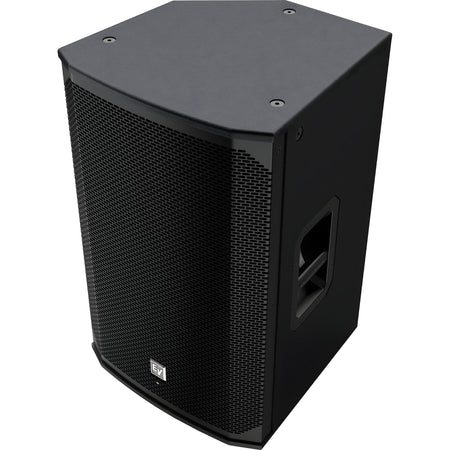

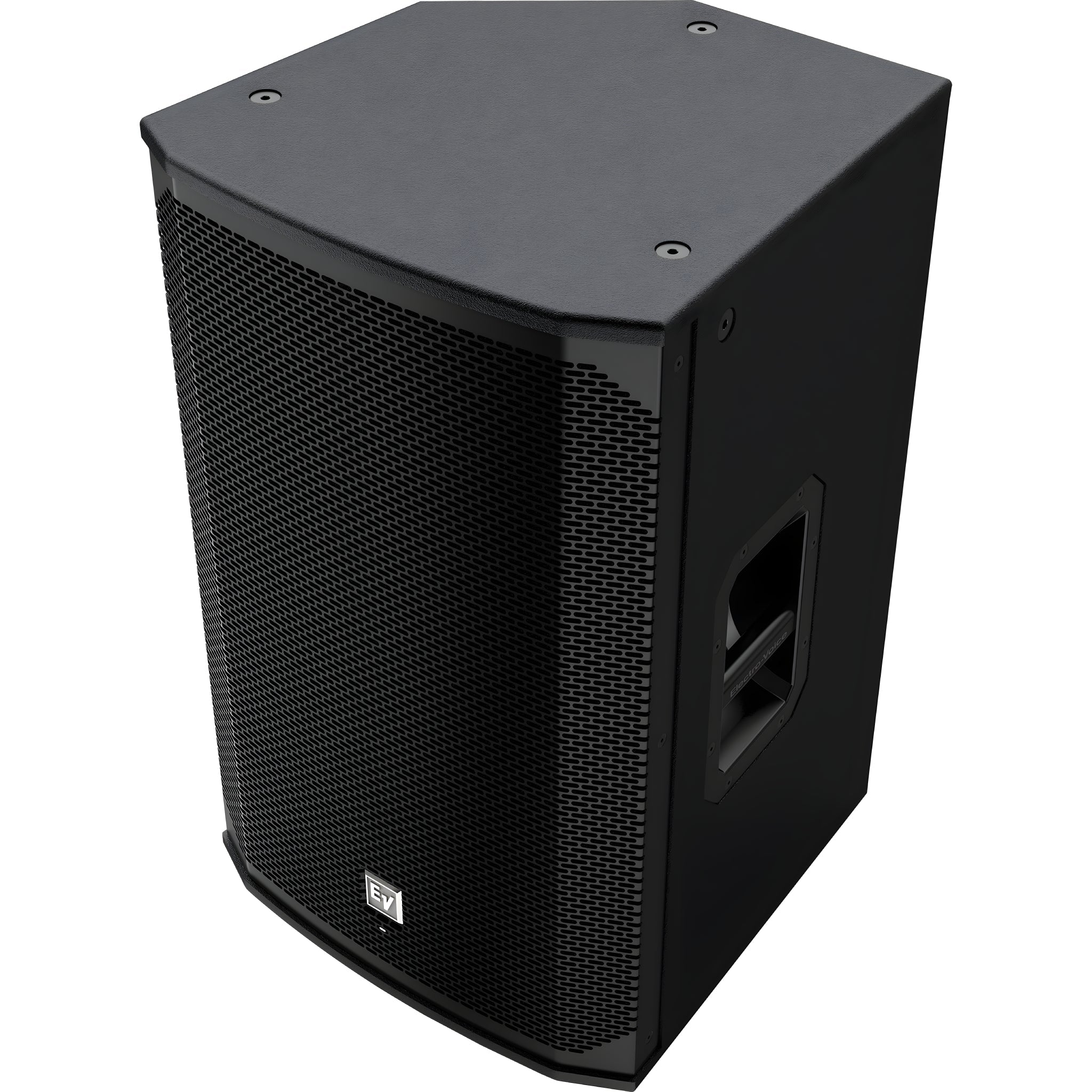

The Electro-Voice EKX-15 is a 2-way passive full-range loudspeaker featuring a 15" EVS-15M woofer and a 1" DH-1M titanium-diaphragm compression driver, loaded onto a 90° × 60° constant directivity waveguide featuring patented SST (Signal Synchronized Transducers) technology. Designed for portable PA and fixed installations, it employs a 15mm plywood enclosure with internal bracing and EVCoat finish, eight M10 rigging points , an aluminum pole socket , and metal handles for heavy-duty use. It delivers up to 132 dB SPL peak with 400 W continuous (1600 W peak) , 96 dB sensitivity (1 W/1 m), and a 50 Hz–20 kHz (-10 dB) / 75 Hz–18 kHz (-3 dB) response. It incorporates a double NL4 connector for easy wiring and can also be used as a stage monitor thanks to the integrated 40° angle .

Main features

• EV transducers : EVS-15M (15") for bass and DH-1M (1" titanium) for treble.
• Coverage : 90° × 60° pattern with SST waveguide for accurate and consistent dispersion.
• Power and output : 400 W continuous / 1600 W peak ; 132 dB peak SPL ; 96 dB sensitivity.
• Response : 50–20,000 Hz (-10 dB) / 75–18,000 Hz (-3 dB) ; crossover at 1.6 kHz .
• Impedance : 8 Ω nominal ( 7.2 Ω minimum).
• Enclosure : 15mm plywood with EVCoat , 18 AWG steel grille with powder coating.

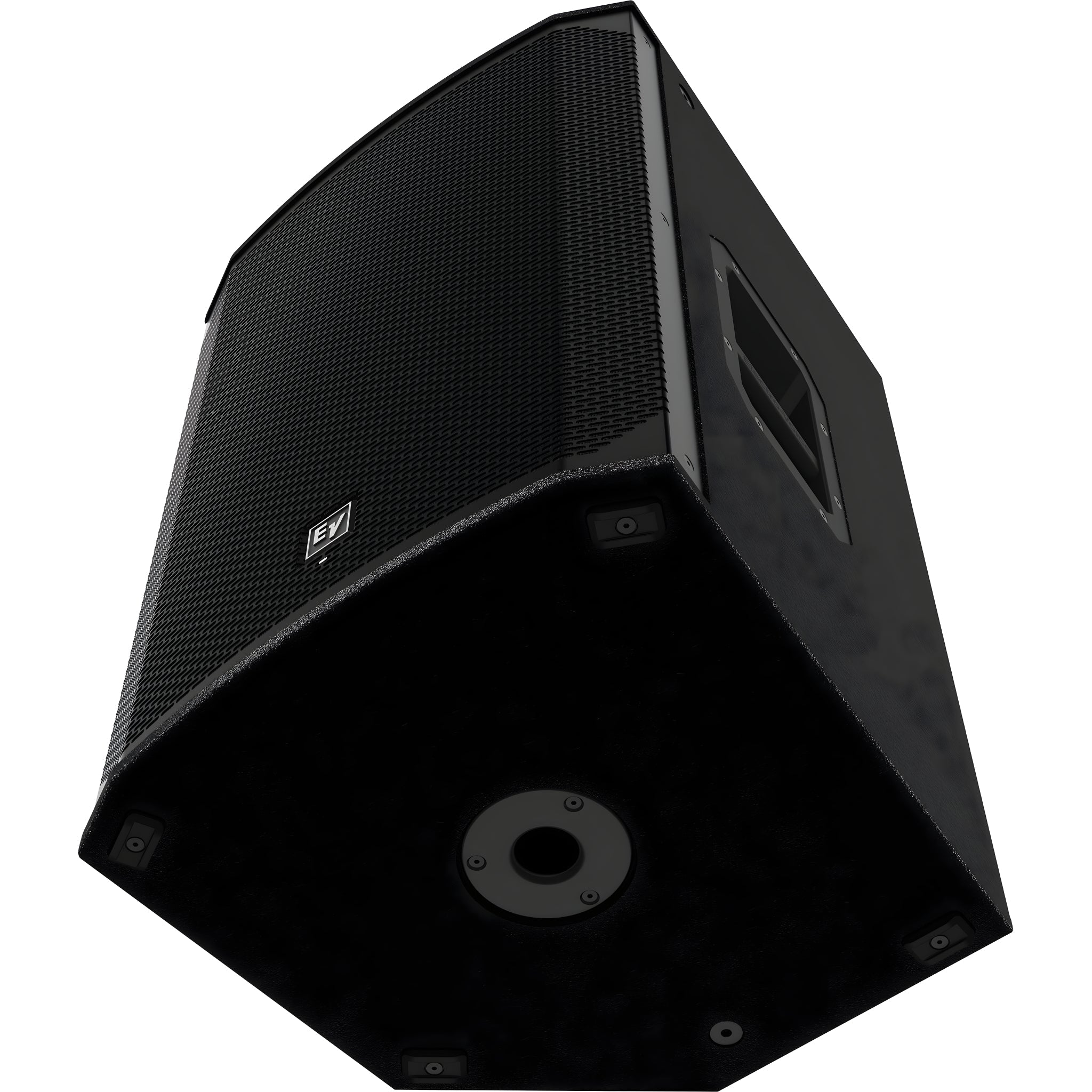

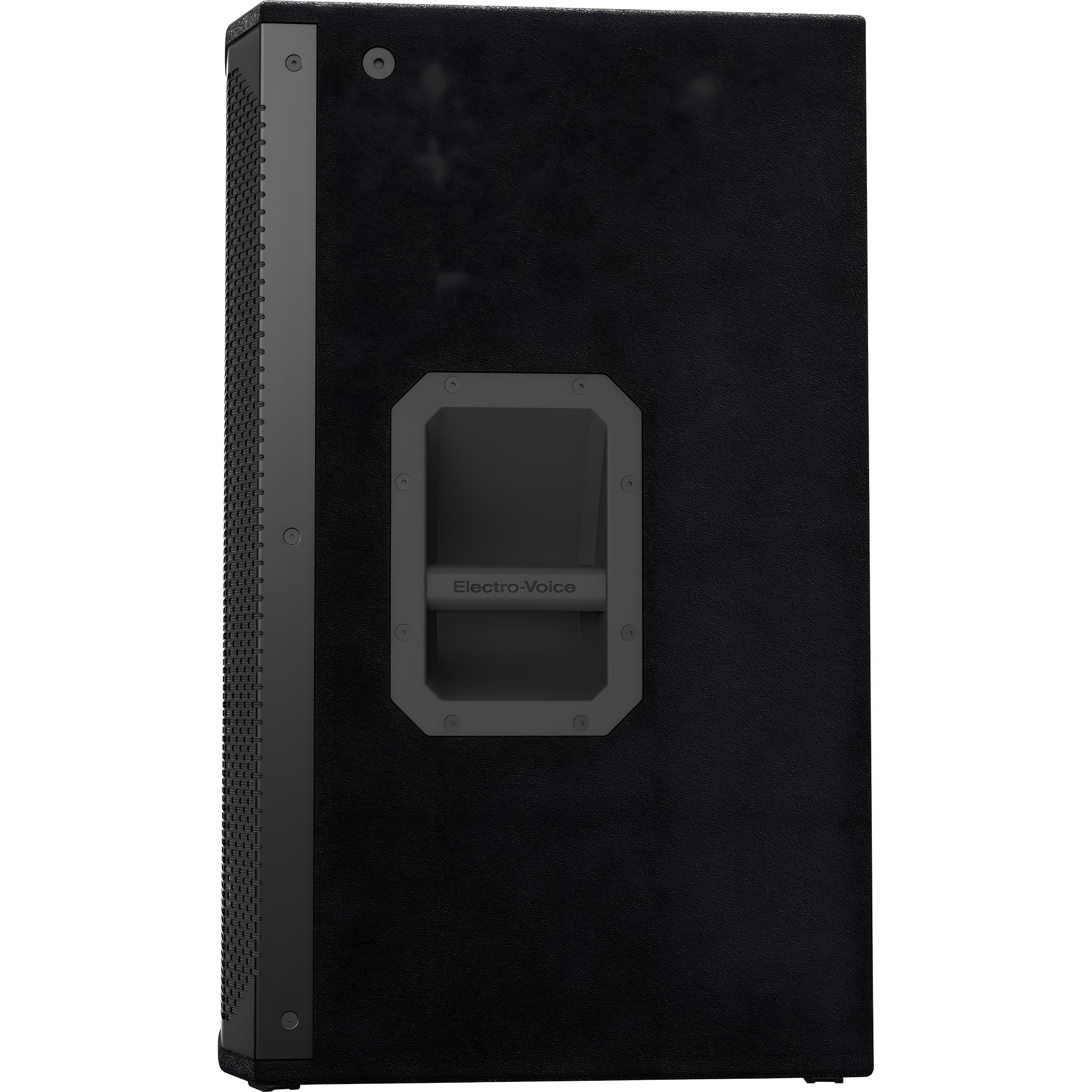

• Installation : 8× M10 for fittings, aluminum mast base and metal handles .
• Connections : 2 × NL4 (input/link).
• Format : use as a monitor thanks to the 40° angle and rubber pads.
• Dimensions and weight : 685 × 432 × 429 mm ; 23.2 kg .

Benefits for your project

• Controlled coverage in medium-sized scenarios with the 90° × 60° pattern and SST guide, which improves coherence and reduces unwanted reflections.
• Professional robustness : wooden enclosure with EVCoat , steel grille and metal fittings for intensive use on tours and installations.
• True versatility : it works as a top on a tripod or on a sub, and as a 40° floor monitor when logistics demand it.
• Easy integration : two NL4 connectors for linking, M10 points for flying and official accessories available.

Use cases

• PA systems for live music , DJs and corporate events .
• Fixed installations in halls, auditoriums, cultural centers, places of worship and leisure venues.
• Configurations as a stage monitor or as a top speaker over a subwoofer using a mast.

Compatible accessories (optional)

• EKX-15-CVR : padded case.
• EKX-BRKT15 : lyre type wall mount (U).
• EKX-TCA : truss adapter.
• EBK-M10-3PACK : Set of forged M10 eyebolts (x3) for suspension points.

Frequently Asked Questions

Which high-pass filter is recommended? The manufacturer specifies a 50 Hz HPF to protect the system in high-level applications.
What is the appropriate amplification power? We recommend a power amplifier that delivers approximately 2x the speaker's continuous power (around 800 W at 8 Ω) with adequate limiting to ensure dynamic headroom.

Description for projects

Electro-Voice EKX-15 2-way passive loudspeaker (15") ; EVS-15M + DH-1M ; 90° × 60° coverage ; 400 W continuous / 1600 W peak power ; 8 Ω (min. 7.2 Ω ); 96 dB sensitivity ; 132 dB SPL peak ; 75–18 kHz (-3 dB) / 50–20 kHz (-10 dB) response ; 1.6 kHz crossover ; recommended HPF 50 Hz ; 15 mm plywood enclosure with EVCoat , 18 AWG steel grille ; 8× M10 , pole socket , 2× NL4 ; 40° monitor ; 685 × 432 × 429 mm ; 23.2 kg .
