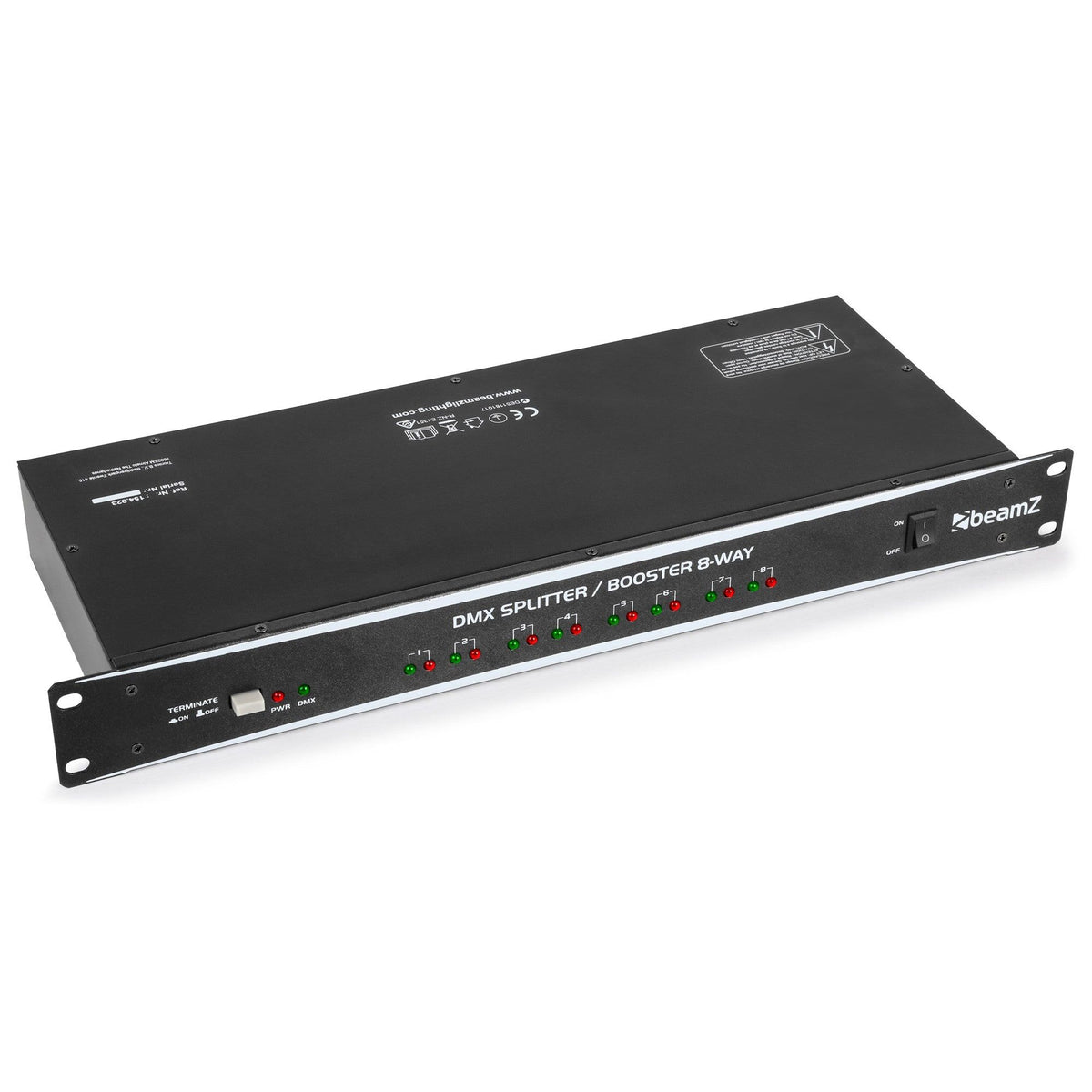

beamZ DMX Splitter Booster - 8-Way DMX Distributor with Isolated Input
The beamZ DMX Splitter Booster is a unit designed to enhance the DMX signal and efficiently distribute it across eight isolated outputs . This device processes the incoming DMX signal and distributes it to multiple devices without loss of quality or interference. Ideal for rack installations, the splitter is an essential tool for preventing common ground loop problems and improving the safety and reliability of DMX system connections in large lighting setups.

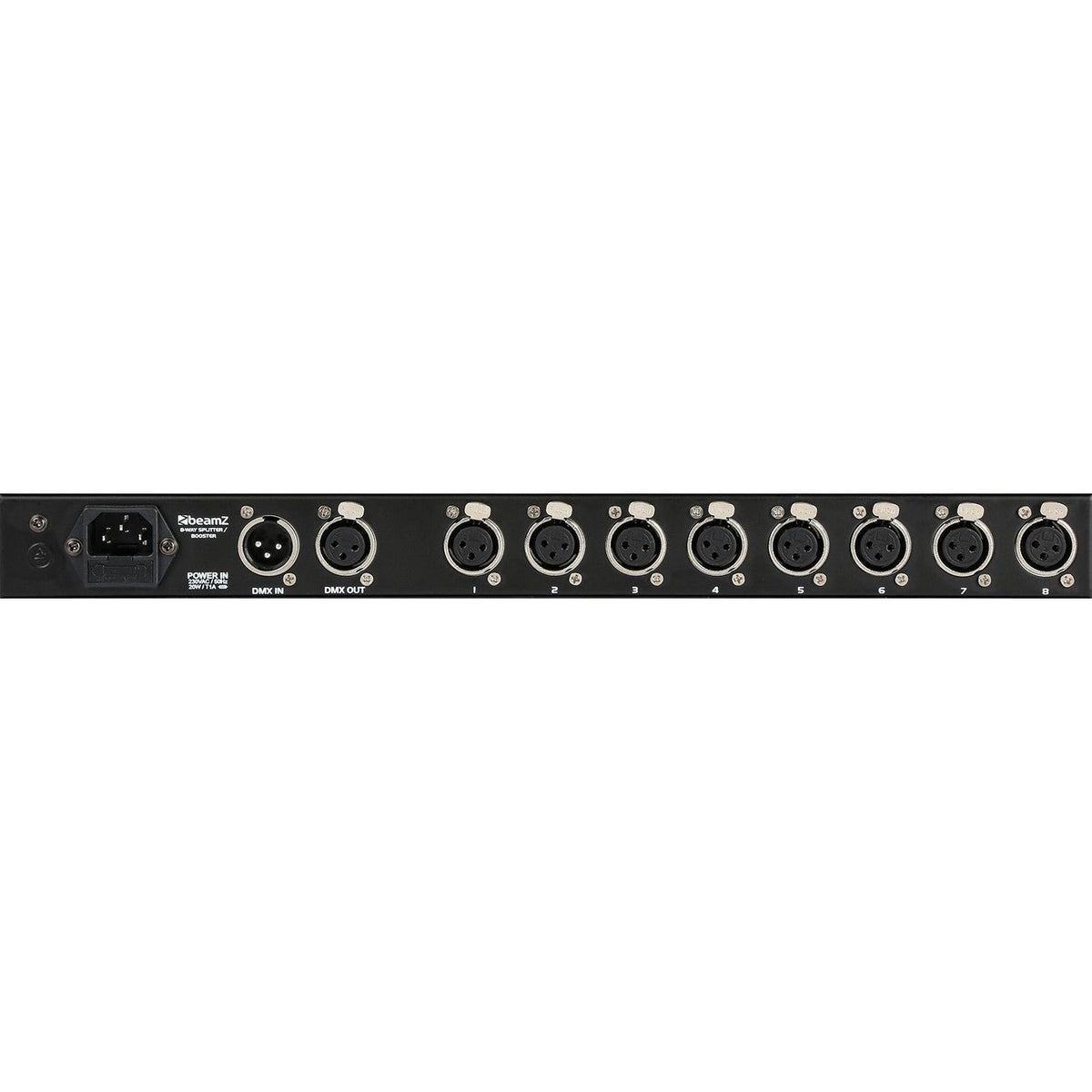

The unit features electronically isolated 3-pin XLR inputs and outputs, ensuring uninterrupted data transmission and preventing signal contamination. Furthermore, each output has its own drivers to amplify the input signal, guaranteeing a strong and clear signal to all connected devices.
Main features
-
DMX-512 Control: Compatible with the DMX-512 standard, used in most professional lighting systems.
-
Isolated XLR 3-pin input: Isolated DMX input connection to avoid interference and improve signal quality.
-
Passive XLR 3-pin output loop: Allows additional units to be daisy-chained without signal loss.
-
8 isolated XLR 3-pin outputs: 8 independent DMX outputs, electronically isolated to ensure clean data transmission.
-
Signal amplification: Each output has its own driver to amplify the input signal and ensure reliable transmission.
-
On/off switch: Easy control of turning the unit on and off.
-
Power supply: 220-240V AC 50Hz, compatible with most standard power supplies.
-
Dimensions: 185 x 482 x 55 mm; Weight: 2.3 kg, suitable for 19" rack mounting
Product benefits
-
Efficient signal distribution: The splitter distributes the DMX signal to 8 isolated outputs, improving reliability and avoiding interference in complex systems.
-
Ground loop protection: Signal isolation to prevent ground loop problems, common in large and complex DMX systems.
-
Easy to integrate: It can be easily rack-mounted in a 19" rack unit, making it perfect for professional installations and mobile systems.
-
Signal amplification: Buffers at each output ensure that the DMX signal is strong and clear, even in large-scale setups.
Use cases
-
Large lighting installations: Ideal for distributing the DMX signal to multiple devices in stages, theaters, nightclubs or large-scale lighting installations.
-
Live events: Perfect for use at concerts and festivals, where multiple DMX connections are required without compromising signal quality.
-
Theaters and recording studios: Used in environments where professional lighting is controlled and the signal needs to be distributed efficiently and without loss.
-
Fixed lighting installations: Suitable for permanent lighting systems, such as in museums, shopping centers or exhibition halls.
Frequently Asked Questions
-
How many DMX outputs does the Splitter Booster have? The Splitter Booster DMX has 8 isolated DMX outputs for efficient signal distribution.
-
How does it connect? The input is made via a 3-pin XLR connector, and the outputs are also available in 3-pin XLR .
-
Is it suitable for outdoor use? The device is primarily designed for indoor use , but it may be suitable for temperature-controlled events.
-
How does it amplify the signal? Each output has a dedicated driver that amplifies the signal to ensure reliable transmission over long distances.
Project description
DMX Splitter Booster, reference 153.617: Isolated XLR 3-pin DMX input, 8 isolated DMX outputs, signal amplification with drivers on each output, 220-240 V AC 50Hz, XLR 3-pin connection, 220-240 V AC 50Hz power supply, dimensions 185 x 482 x 55 mm, weight 2.3 kg.
