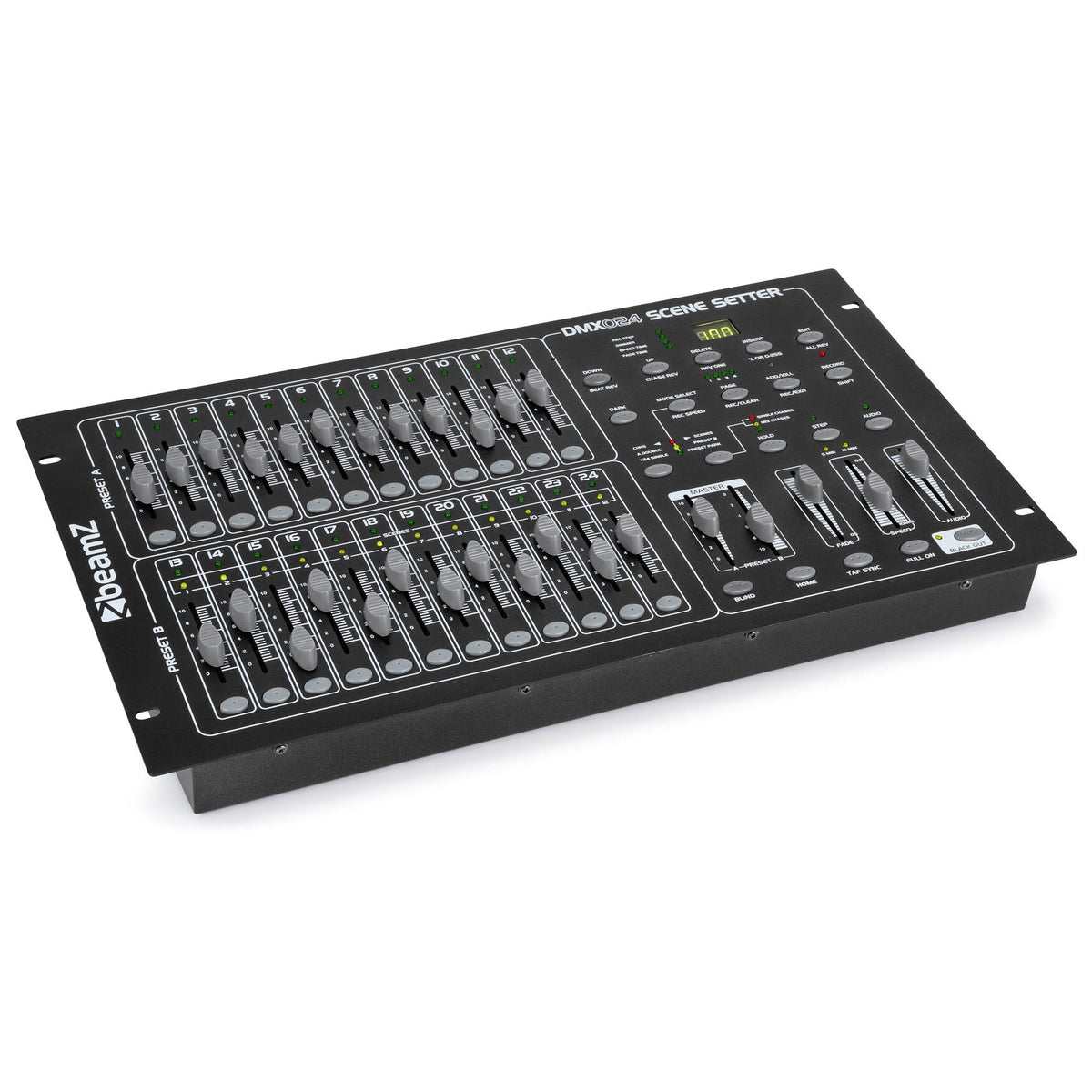

beamZ DMX-024 - Scene Control Panel
The beamZ DMX-024 is a 24-channel DMX lighting control panel specifically designed for controlling spotlights and lighting effects in live concert and event applications. With 48 programmable memories, this panel is ideal for managing lighting sequences, enabling the creation of dynamic and complex visual displays.
The DMX-024 allows control of up to 24 DMX-512 channels via individual switches, and each of the 48 programs can have up to 99 steps, providing great flexibility and the ability to design detailed lighting sequences. In addition, the panel includes several selectable functions, such as full on , blackout , fade , tap sync , and hold , allowing for more precise control of the lights according to the needs of the show.
The unit is designed for 19" rack mounting, facilitating integration into professional systems. An LED display shows program steps, dimmer settings, speed, and fade times, making panel operation intuitive and efficient. Additionally, the DMX-024 offers music control via a built-in microphone or line input, allowing for automatic synchronization of the lights to the music's rhythm.
Main features
-
24 DMX-512 channels: Individual control of up to 24 DMX channels, ideal for controlling spotlights and lighting effects.
-
48 programs: Stores up to 48 light programs, each with a maximum of 99 steps.
-
Selectable functions: Includes full on, blackout, fade, tap sync and hold for greater flexibility in lighting control.
-
LED Display: Shows information about program steps, dimmer, speed and fade time, making panel operation easier.
-
Music control: Automatic control of lights via built-in microphone or line input, synchronizing the lights with the music.
-
MIDI Interface: Enables connection and control via a MIDI device for more advanced integration.
-
19" Rack Mount": The panel is designed to be mounted in a standard 19" rack, suitable for professional environments.
-

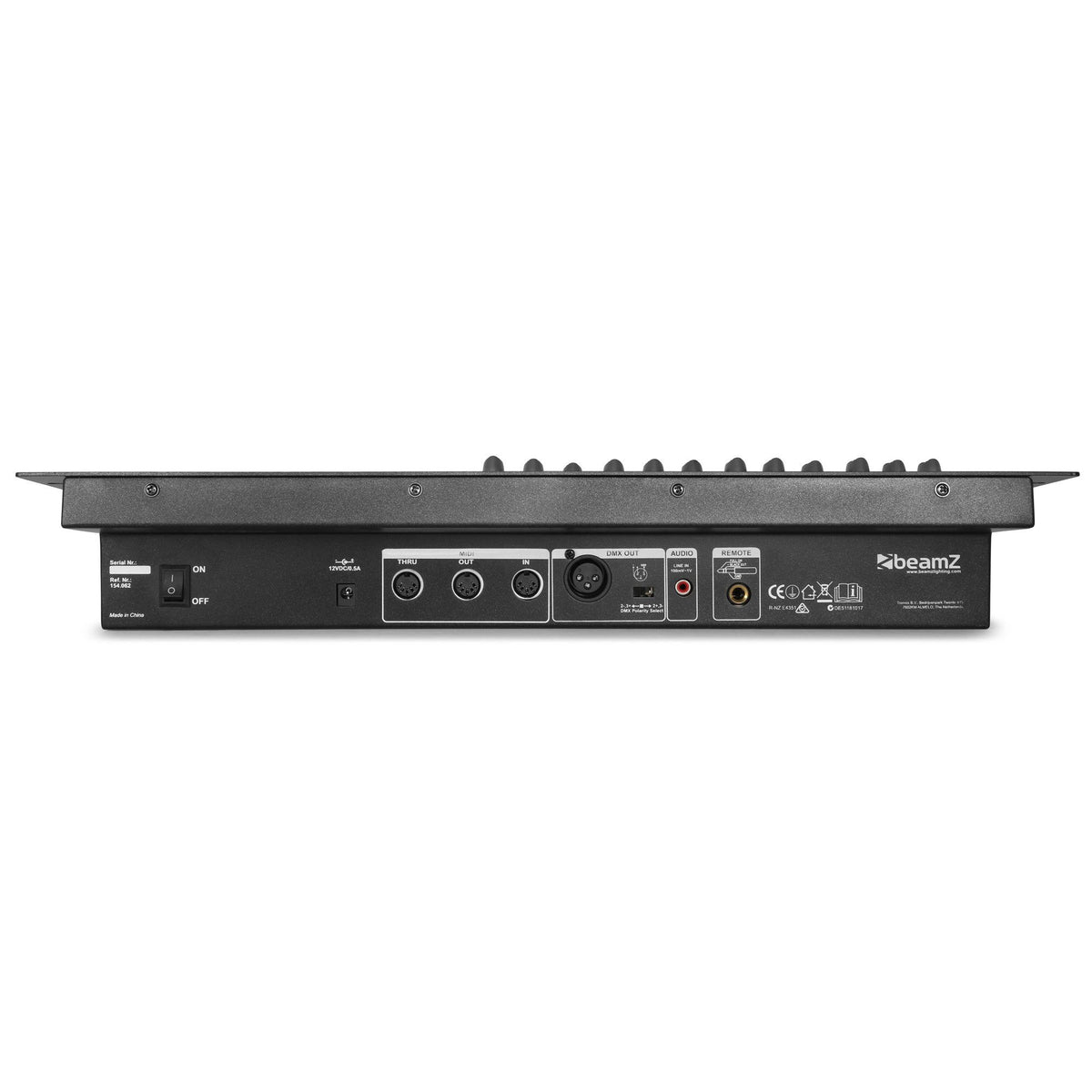

DMX Connection: DMX connection via 3-pin XLR for easy integration of the panel with other DMX equipment.
-
Power supply: 100-240 V AC 50/60Hz (12V adapter included).
-
Dimensions: 482 x 265 x 85 mm; Weight: 4.3 kg, robust and suitable for use on professional stages and racks.
Product benefits
-
Versatile control: With 24 DMX channels and 48 programs, you can control a wide variety of lights and effects, making it ideal for complex events.
-
Intuitive control: The LED screen makes it easy to view information, while functions like fade and blackout allow for precise and detailed control.
-
Music synchronization: Music control via microphone or line input allows the lights to automatically synchronize with the rhythm of the music, adding dynamism to events.
-
Easy integration: Its MIDI compatibility and 19" rack mounting capability make it perfect for integration into professional lighting systems.
-
Ideal for concerts and live events: With up to 99 steps per program and the ability to program complex sequences, this controller is perfect for live shows.
Use cases
-
Concerts and festivals: Control lighting for concerts, festivals and live shows, allowing precise and dynamic synchronization of the lights.
-
Corporate events: Use it to create stunning light shows at presentations, product launches, and conferences.
-
Theatres and stage productions: Perfect for controlling lighting effects in theatre stages and live productions.
-
Fixed installations: Ideal for lighting systems in fixed installations such as clubs, bars and entertainment centers.
Frequently Asked Questions
-
How many DMX channels does the DMX-024 have? The DMX-024 has 24 DMX-512 channels , ideal for controlling a wide variety of spotlights and lighting effects.
-
How many programs can be stored? You can store up to 48 programs , each with a maximum of 99 steps.
-
Can I sync the lights to the music? Yes, the DMX-024 has a built-in microphone and line input to automatically sync the lights to the beat of the music.
-
Can it be rack-mounted? Yes, the DMX-024 is designed to be mounted in a standard 19" rack, making it easy to integrate into professional systems.
Project description
DMX-512 lighting control panel, reference 153.621: 24 DMX channels, 48 programs with up to 99 steps, music control, MIDI, auto, manual, and advanced functions such as full on, blackout, fade, tap sync, and hold. LED display for real-time monitoring, rack-mountable in a 19" rack, 100-240V AC 50/60Hz power supply (12V adapter included). Dimensions: 482 x 265 x 85 mm, weight: 4.3 kg.
