sE Electronics DM2 TNT - Active inline preamp with switchable gain
Couldn't load pickup availability
If you have any questions about this product, we can assist you by filling out the contact form
Ask an expert

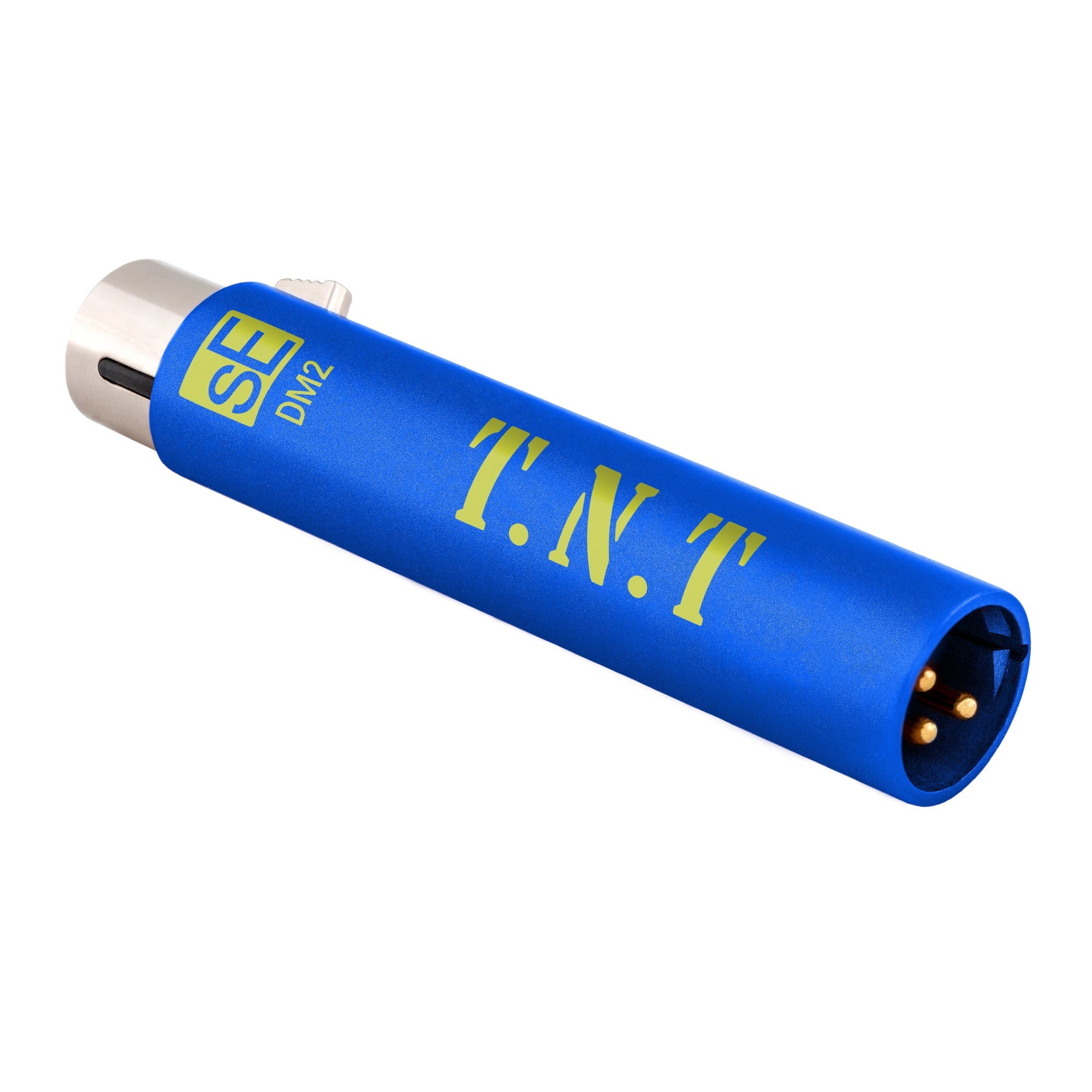

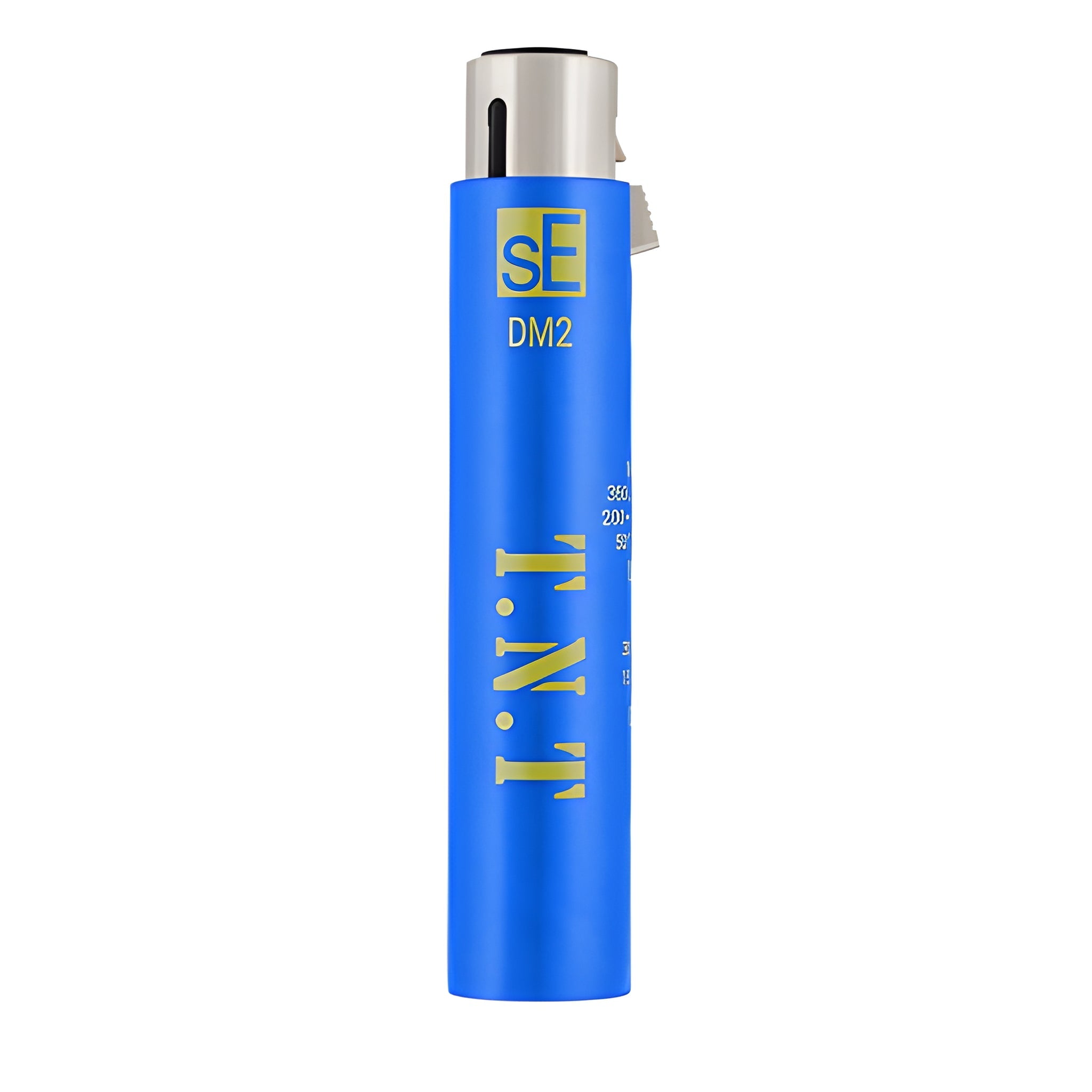

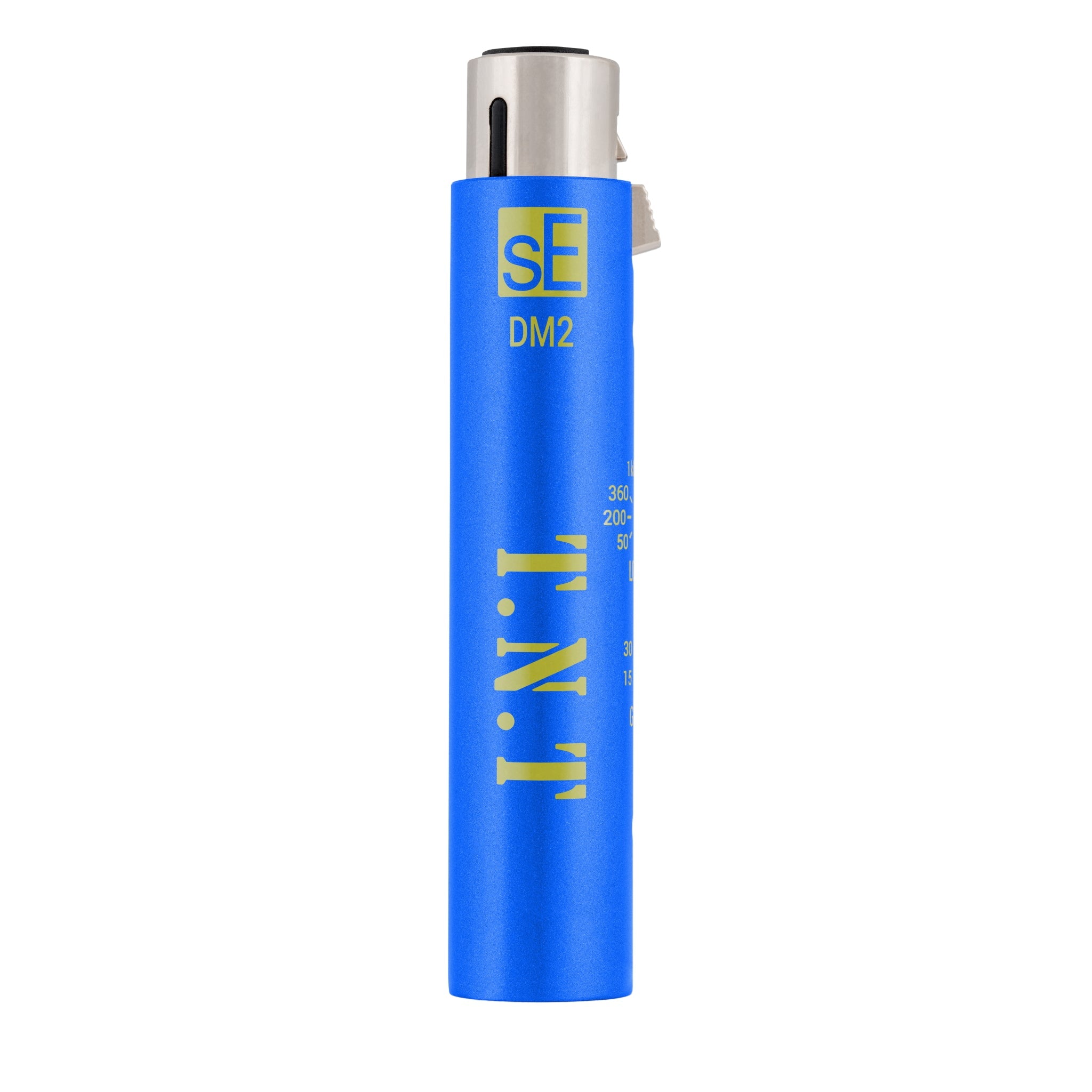

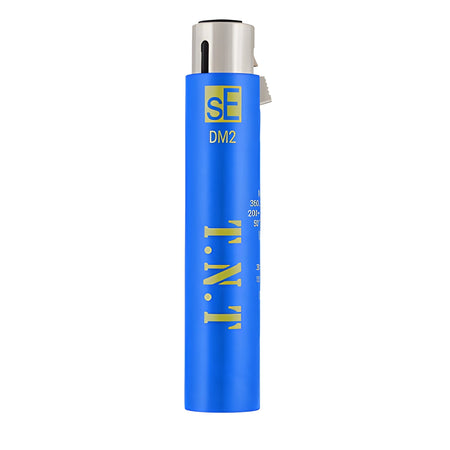

sE Electronics DM2 TNT – Active inline preamp with switchable gain
The DM2 TNT is an ultra-compact inline preamp that boosts dynamic and passive ribbon microphones with either +15 dB or +30 dB of clean gain via an integrated switch. Based on the DYNAMITE technology of the DM1, it offers a frequency range of 10 Hz–120 kHz and eight impedance settings (50 Ω–10 MΩ) to perfectly match any capsule without overloading the signal. It operates on 48 V phantom power and features a steel inline design that allows it to be placed directly between the microphone and cabling, eliminating the need for bulky external preamps.
Main features
- Switchable gain: +15 dB or +30 dB for boost as needed.
- Adjustable Impedance: 8 positions from 50 Ω to 10 MΩ to optimize any microphone.
- Frequency range: 10 Hz – 120 kHz (–0.3 dB) for maximum fidelity.
- Phantom power: Requires 48V to power the electronics; not compatible with microphones that also require phantom power.
- Dimensions: Ø 19 × 95.5 mm; weight: 80 g.
- Connectivity: Lockable ¼″ TRS input; low-impedance male XLR output.
Product benefits
- Powerful Signal: Up to +30 dB of clean gain without distortion.
- Extreme Flexibility: Impedance and gain adjustments for any dynamic or passive ribbon microphone.

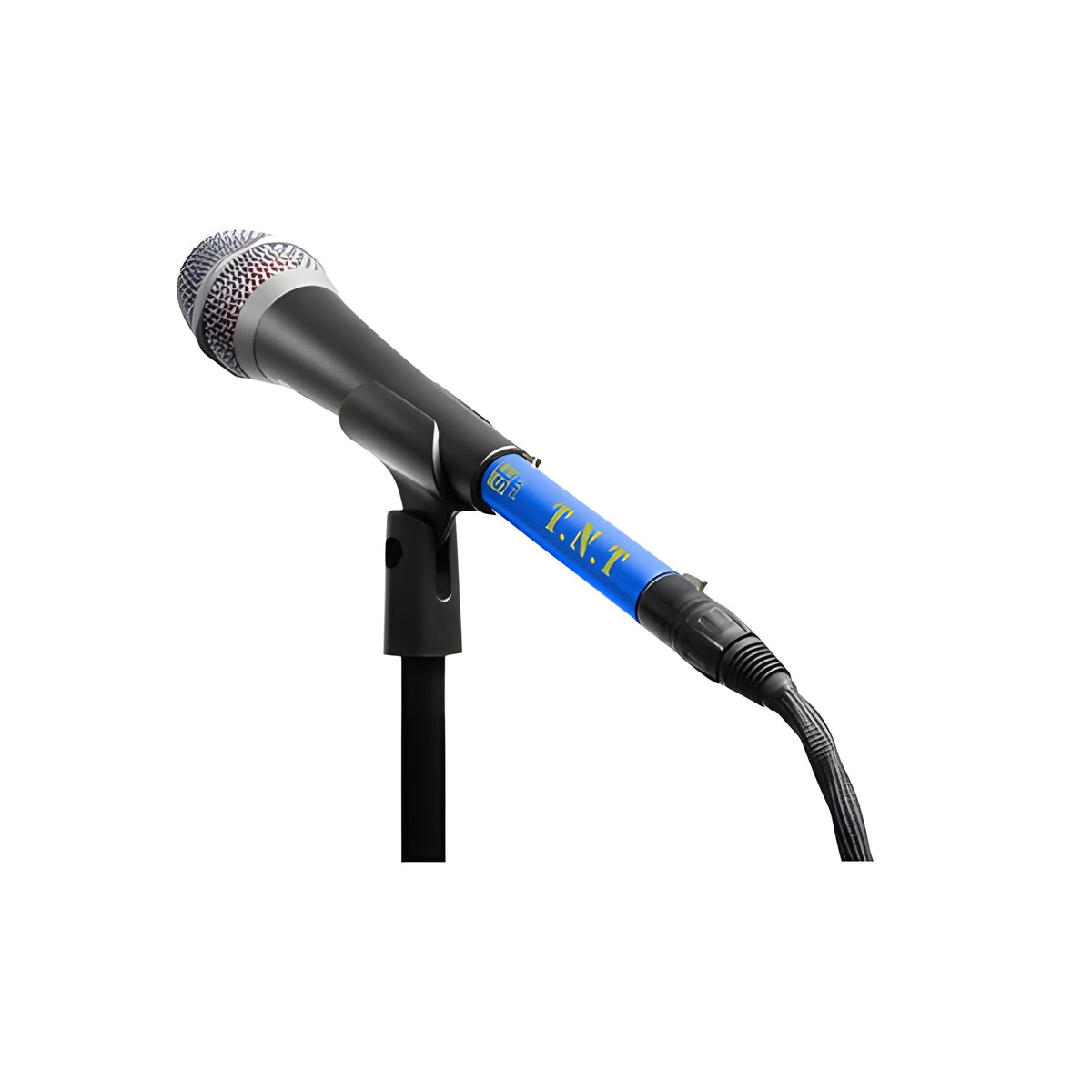

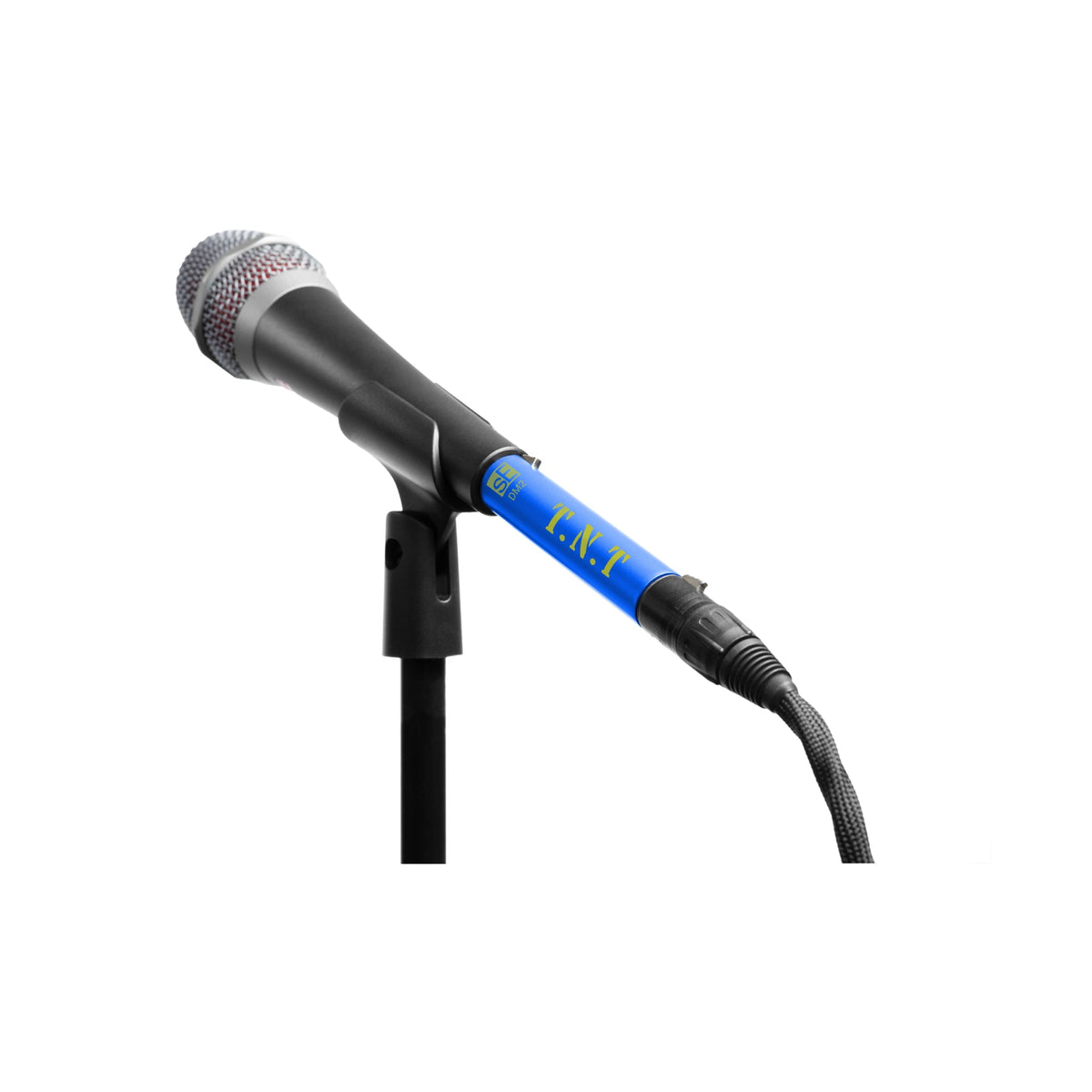

- Pocket design: Inline, fits in your pocket and mounts next to the microphone.
- Minimal Noise: DYNAMITE technology with Class A circuitry for ultra low noise.
Use cases
- Reinforcement of dynamic microphones for live and studio performances.
- Use with passive ribbon microphones without loss of detail.
- Mobile recordings and minimalist setups.
- Streaming and podcasting with a simplified signal chain.
Frequently Asked Questions
- Does it require phantom power? Yes, 48V to power the internal preamp.
- Is it compatible with condenser microphones? No; it's optimized for dynamic and passive ribbon microphones.

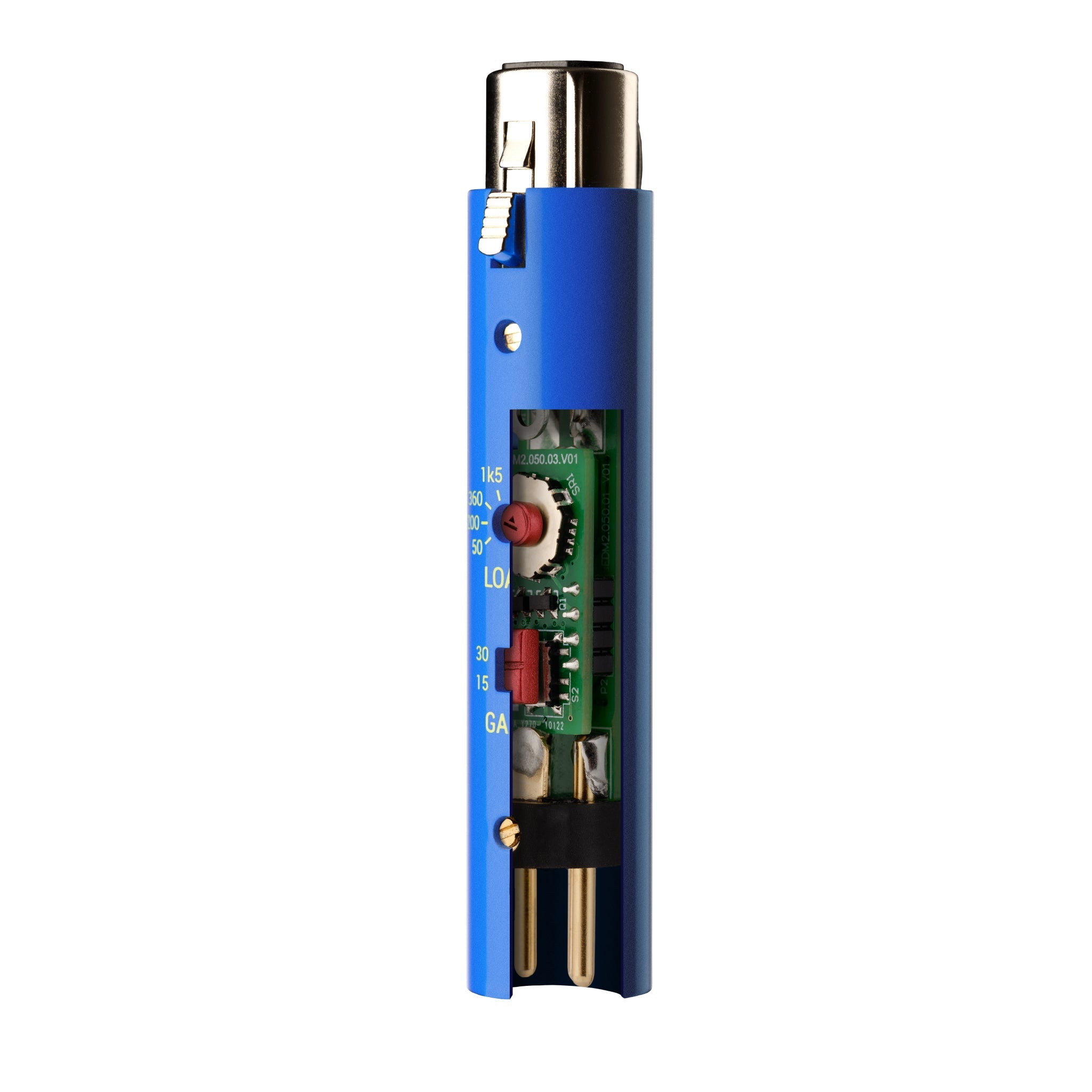

- How do I change the gain? Use the recessed switch to select +15 dB or +30 dB.
- Can I adjust the impedance while in use? Yes, using the eight-position selector.
Description for projects
sE Electronics DM2 TNT active inline preamp, +15/+30 dB switch, impedance 50 Ω–10 MΩ, 10 Hz–120 kHz, 48 V phantom, ¼″ TRS lockable to XLR, Ø 19×95.5 mm, 80 g.
- Type Accessories, cables and connections
- Vendor SE ELECTRONICS
- SKU DM2-TNT-PREVIO-INLINE-MICRÓFONO-CONMUTABLE-662116
Buy sE Electronics DM2 TNT - Active inline preamp with switchable gain
