beamZ DJ Bank 244 - LED Bank 4 capsules (24×4 W RGBW) with DMX 4/7/16/19, IR and IEC in/out

beamZ DJ Bank 244 - LED Bank 4 capsules (24×4 W RGBW) with DMX 4/7/16/19, IR and IEC in/out

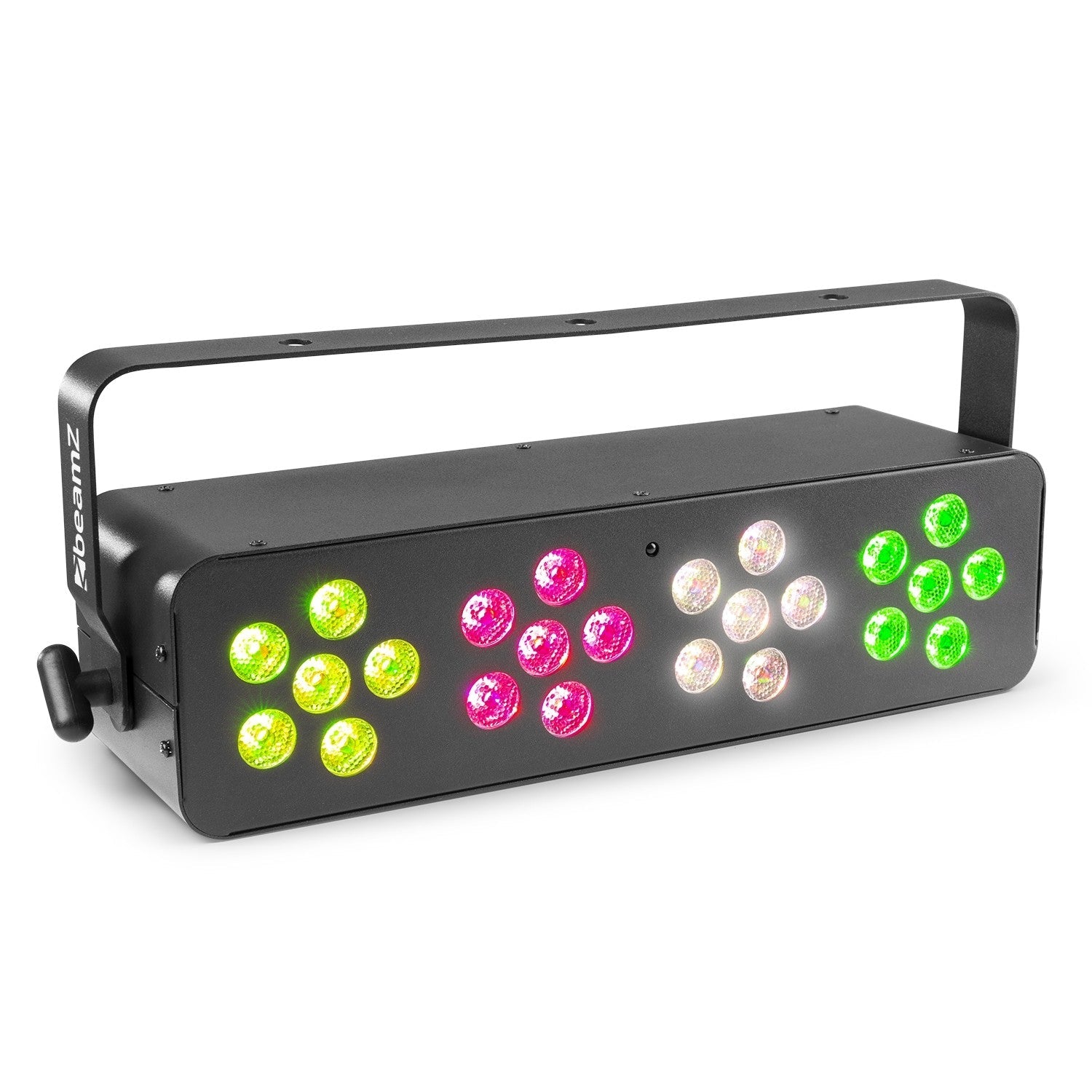

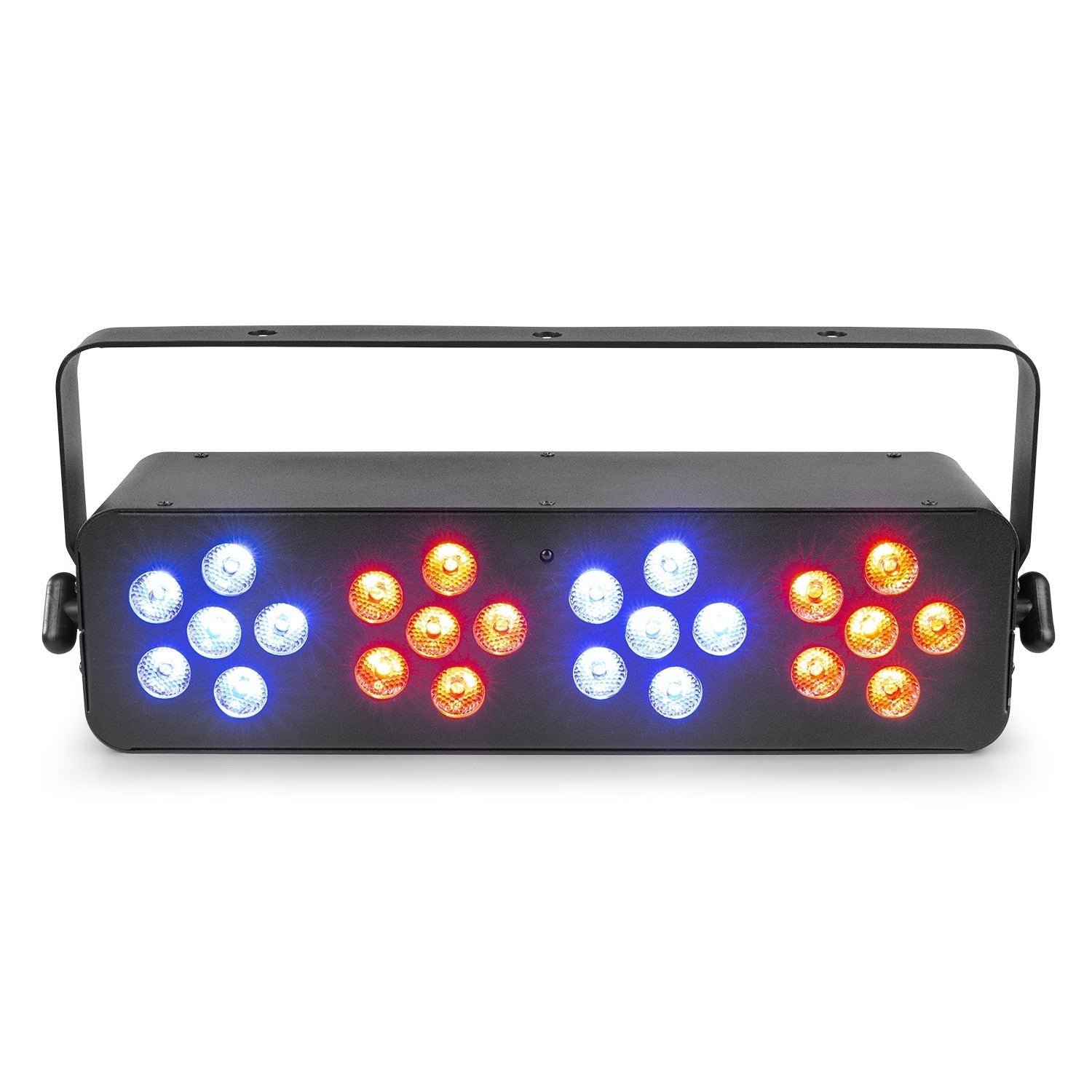

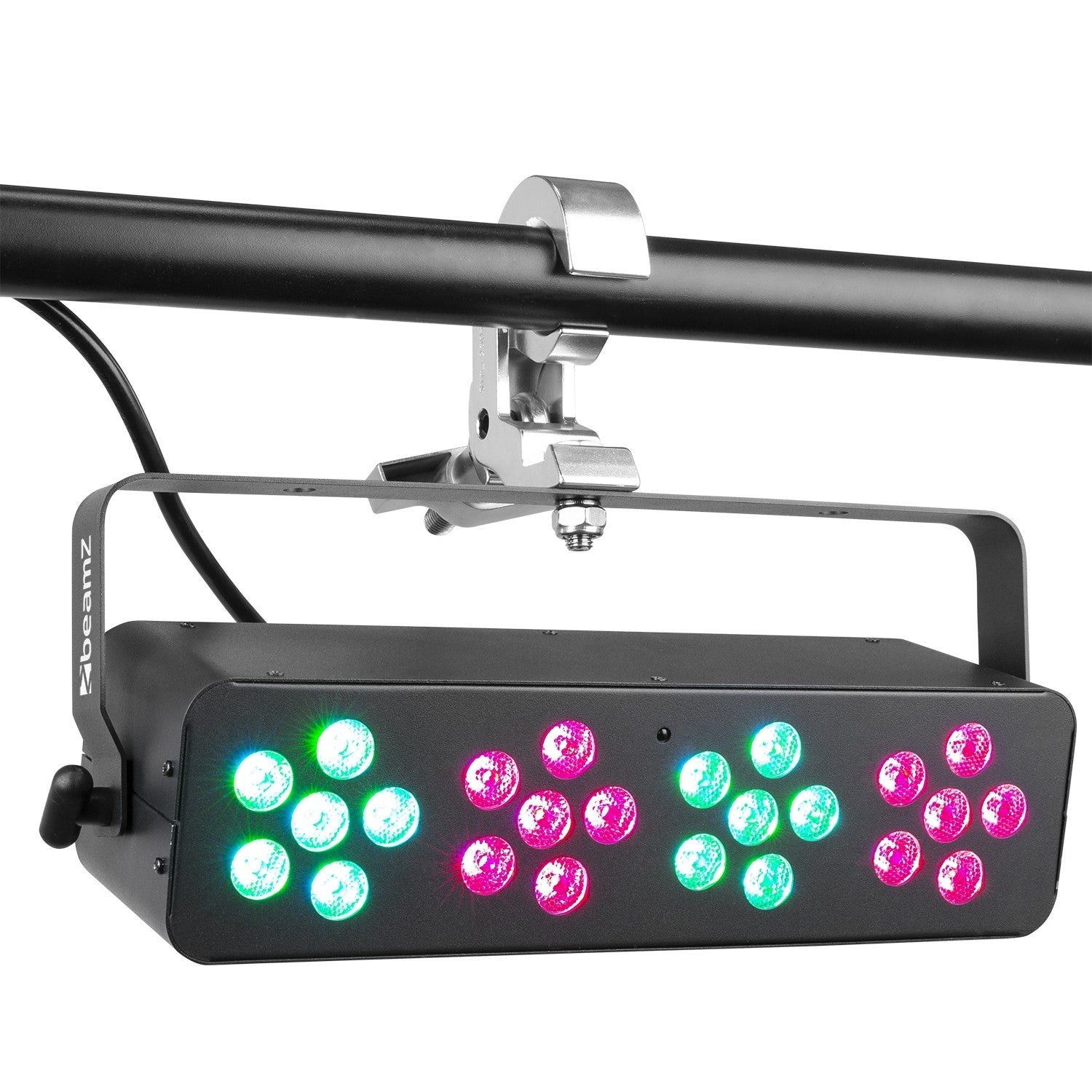

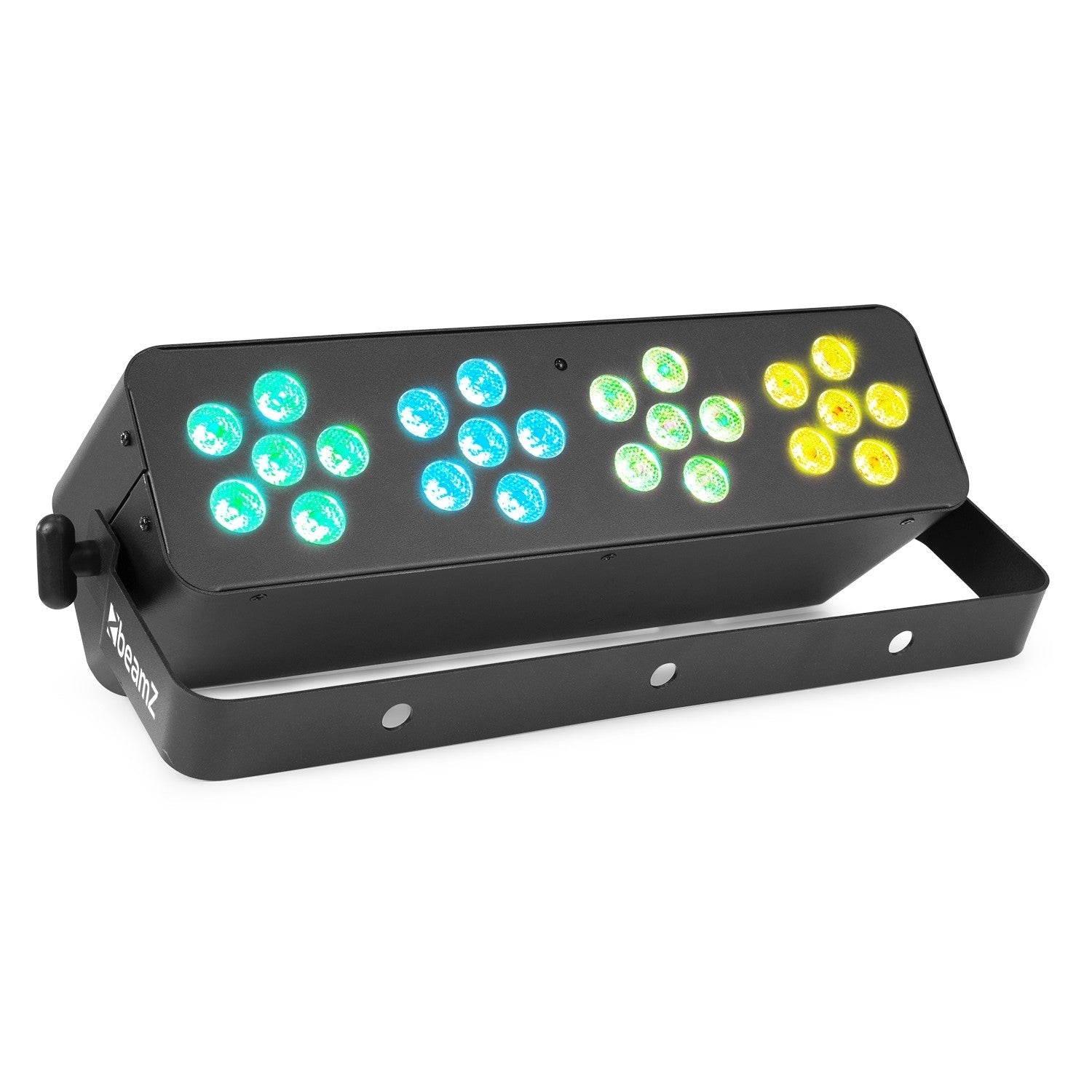

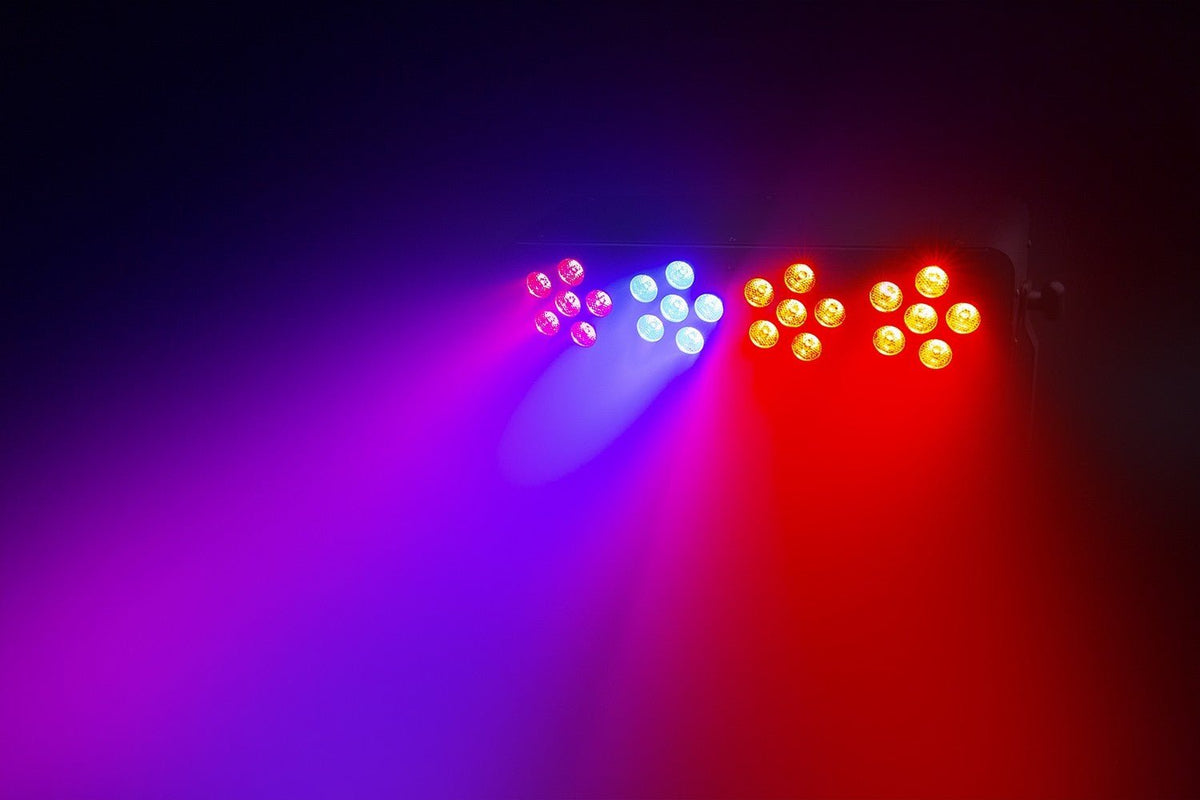

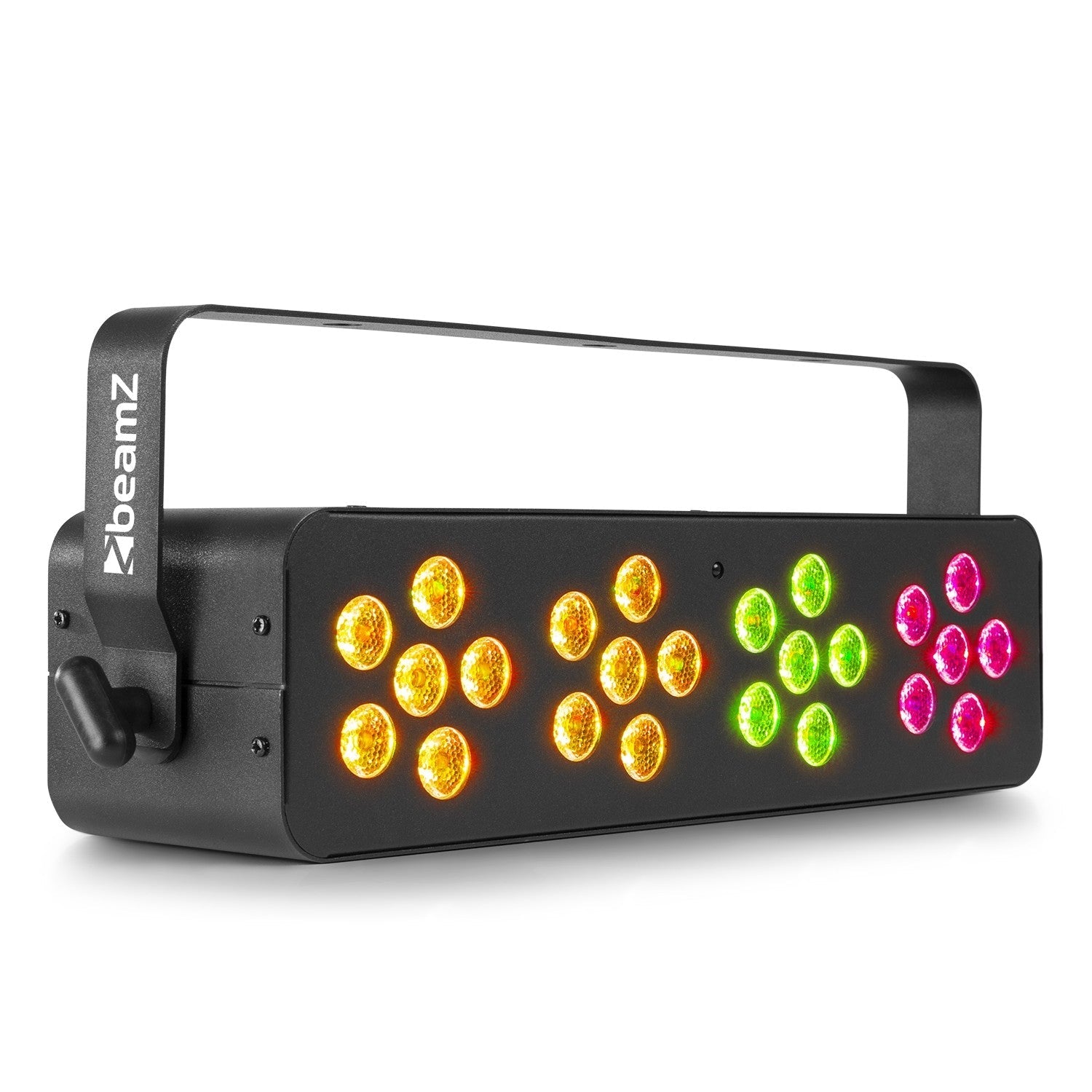

The beamZ DJ Bank 244 is a compact yet powerful effect unit with four capsules , each equipped with six 4W 4-in-1 LEDs (RGBW) , perfect for DJ booths, mobile stages, and events. It offers RGBW color mixing , auto and beat-to-the-music modes with adjustable sensitivity, plus 4/7/16/19-channel DMX control for versatile programming. You can control each capsule independently (from the panel, via IR, or via DMX) or activate all four simultaneously for a wash effect . The lightweight housing makes it easy to transport, while the 3-pin DMX in/out and IEC power in/out connectors simplify daisy-chaining. With a 25° beam angle and 0–20 Hz strobe , the DJ Bank 244 integrates seamlessly into any rig with maximum performance and minimal setup.

Main features

• 4 capsules with 6 × 4 W RGBW each (24 LEDs total) and integrated color mixing .
• Modes: Automatic (pre-programmed shows), Sound (adjustable sensitivity), Master/Slave and DMX ( 4/7/16/19 channels ).

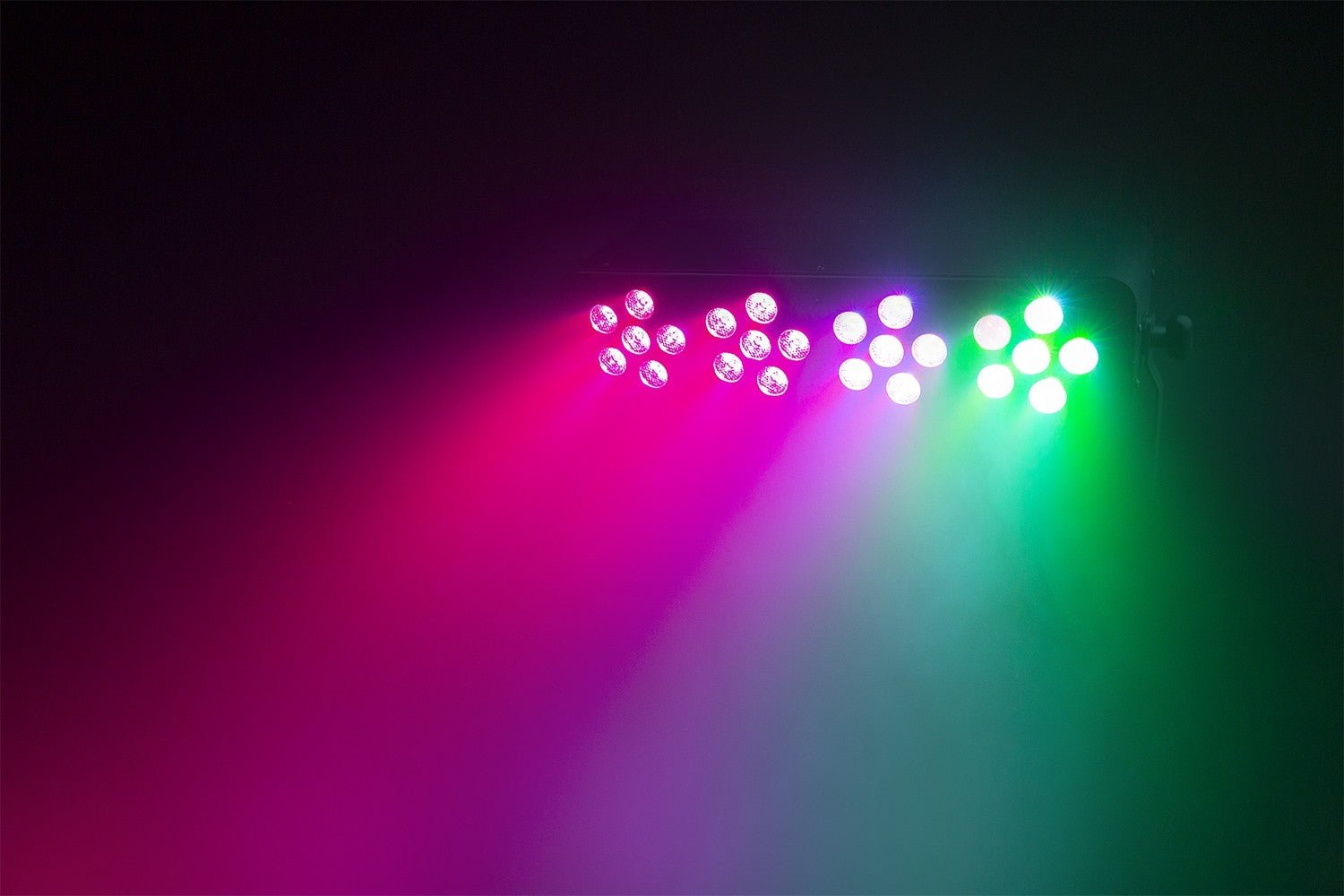

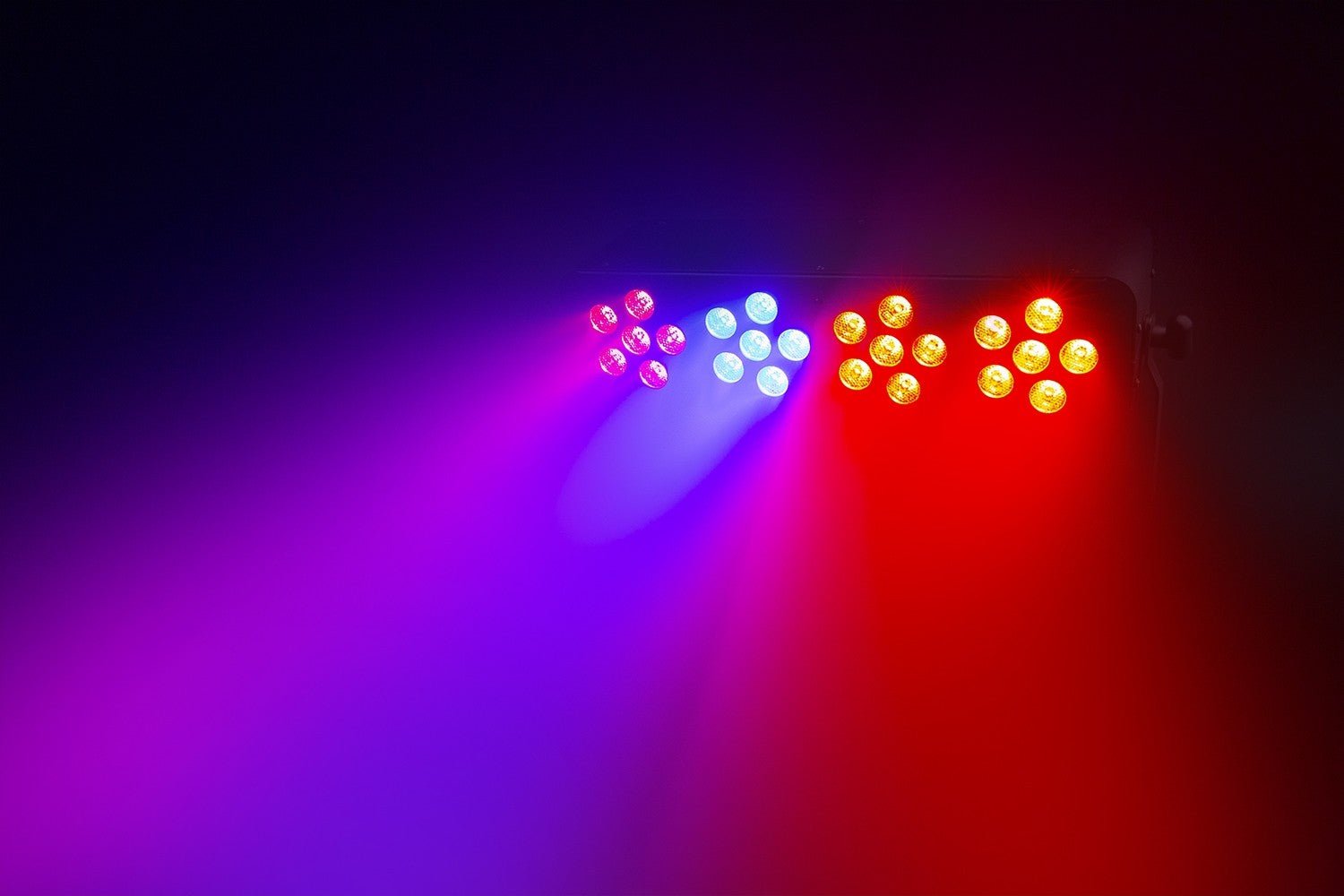

• Capsule control and simultaneous activation of all 4 for wash function.
• Strobe: 0–20 Hz; beam angle: 25°.

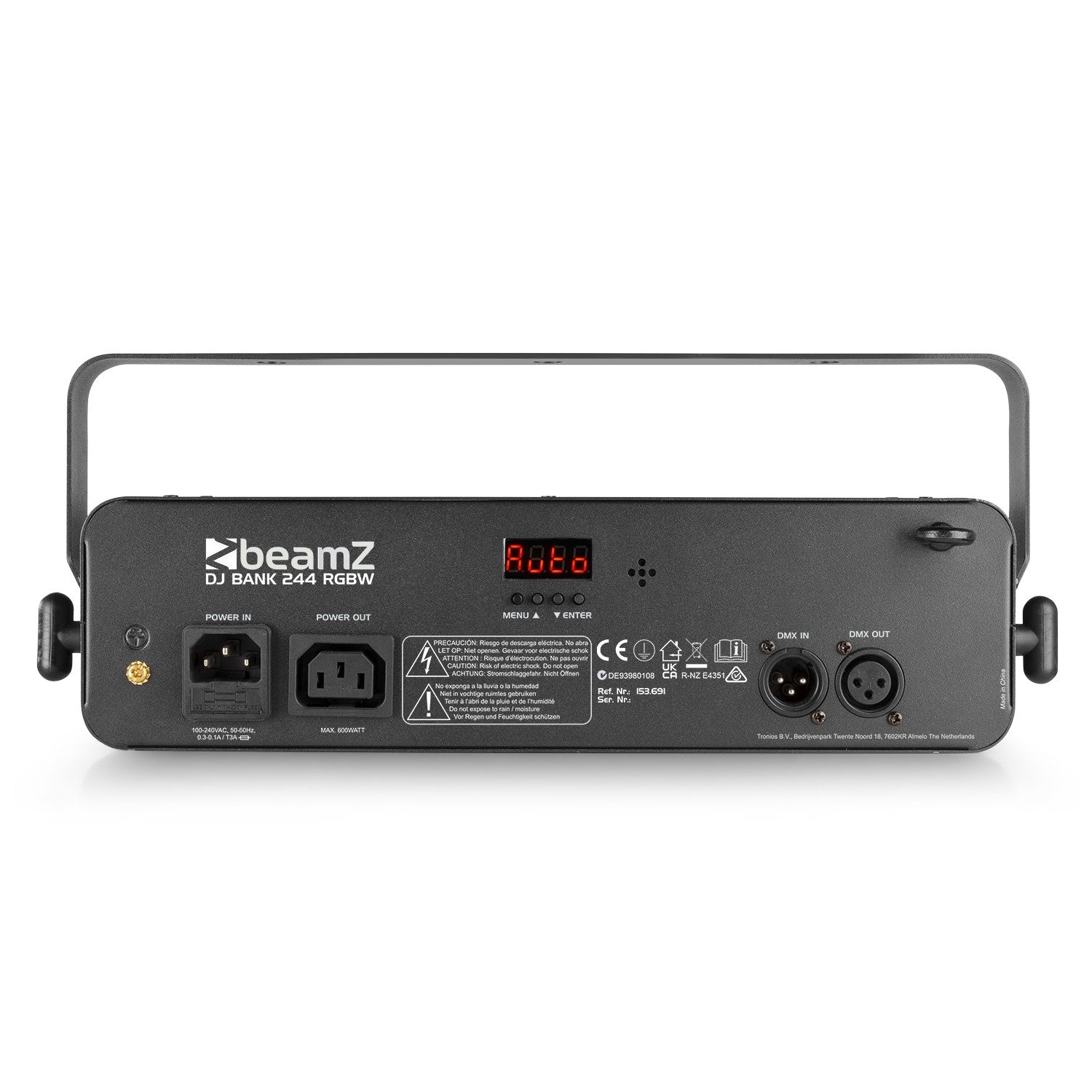

• Connectivity: DMX 3-pin XLR in/out and IEC power in/out for daisy chain .

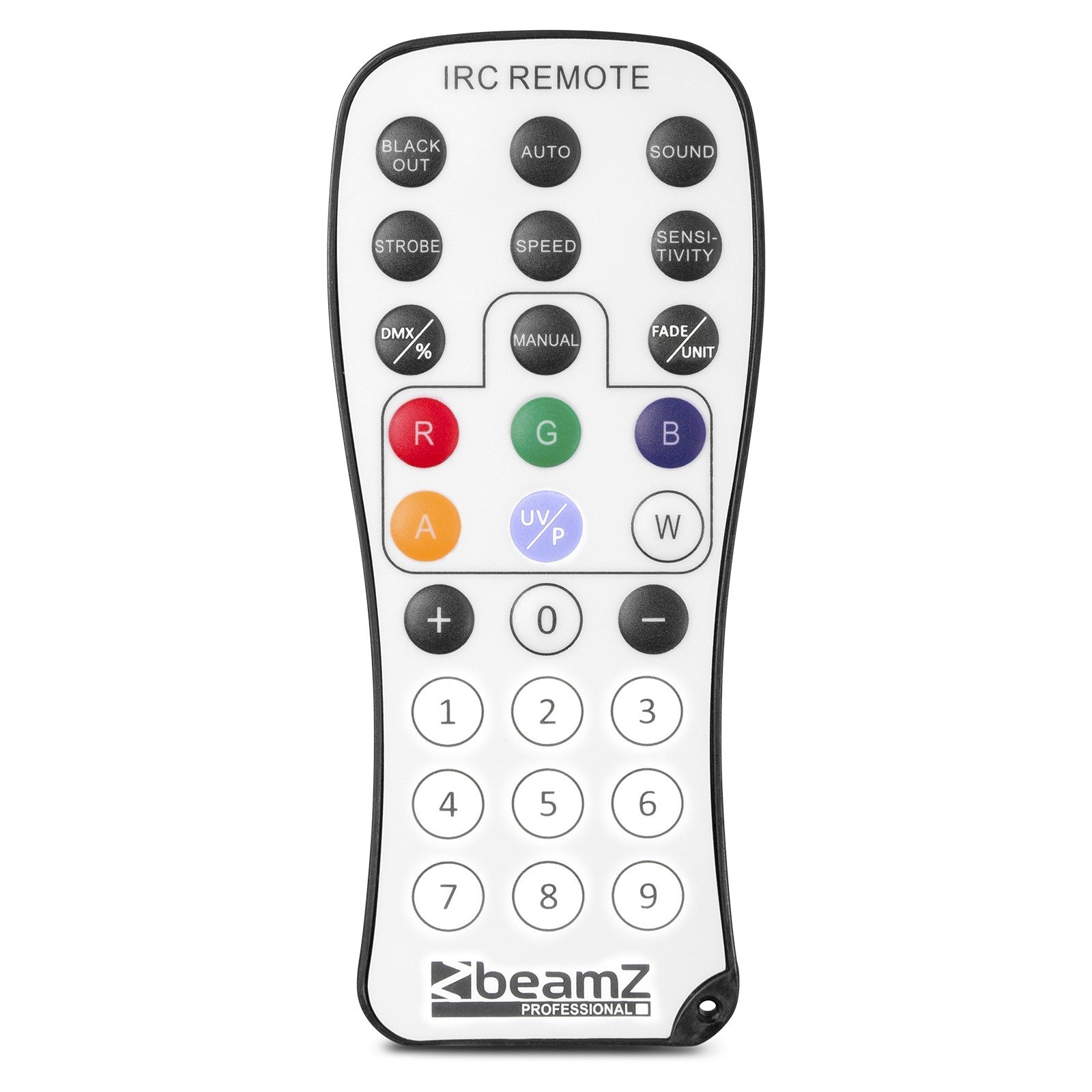

• IR remote control included; intelligent cooling system .
• Lightweight and compact format: 370 × 155 × 90 mm; 1.65 kg .

Product benefits

• Express assembly: lightweight housing, included bracket and DMX/IEC link for quick installations.
• Total versatility: from plug&play (Auto/Sound/IR) to detailed DMX control (4/7/16/19 ch).
• Greater coverage with fewer units: wash function when activating all 4 capsules simultaneously.
• Dynamic shows: adjustable strobe and chases per capsule without complex programming.

Use cases

• Mobile DJ and entertainment: rhythmic effects and color wash in the booth and on the dance floor.
• Corporate and social events: quick setting with remote control and predefined scenes.
• Clubs and bars: truss integration with IEC/DMX daisy-chaining for future expansion.

Frequently Asked Questions

• Do I need a DMX console? Not necessarily: you can work with Auto , Sound , or IR . With DMX, you'll get fine control per capsule and color.
• Can I daisy-chain the power supply? Yes, via IEC in/out ; for signal, use DMX 3-pin .
• Is each capsule controlled separately? Yes, with control per unit (IR/DMX) or as a whole ( wash ).
• Does it make a lot of noise? No; it incorporates intelligent cooling for discreet operation.

Assembly recommendations

• In the booth, he directs two capsules to the audience and two to the dance floor to combine chases and washes .
• Manage IEC and DMX daisy chain on the same side of the truss for clean wiring.
• If you're working without a table, use Sound mode and adjust the sensitivity to the venue's music level.

Project description

LED beamZ DJ Bank 244 effect: 4 capsules with 6 × 4 W RGBW (24 LEDs); DMX 4/7/16/19 channels ; Auto/Sound/Master-Slave modes; per-capsule control and wash function ; 0–20 Hz strobe ; 25° beam ; DMX 3-pin in/out ; IEC in/out ; 100–240 VAC 50/60 Hz ; consumption 0.18–0.32 A ; dimensions 370 × 155 × 90 mm ; 1.65 kg ; includes stand , power cable and IR remote .
