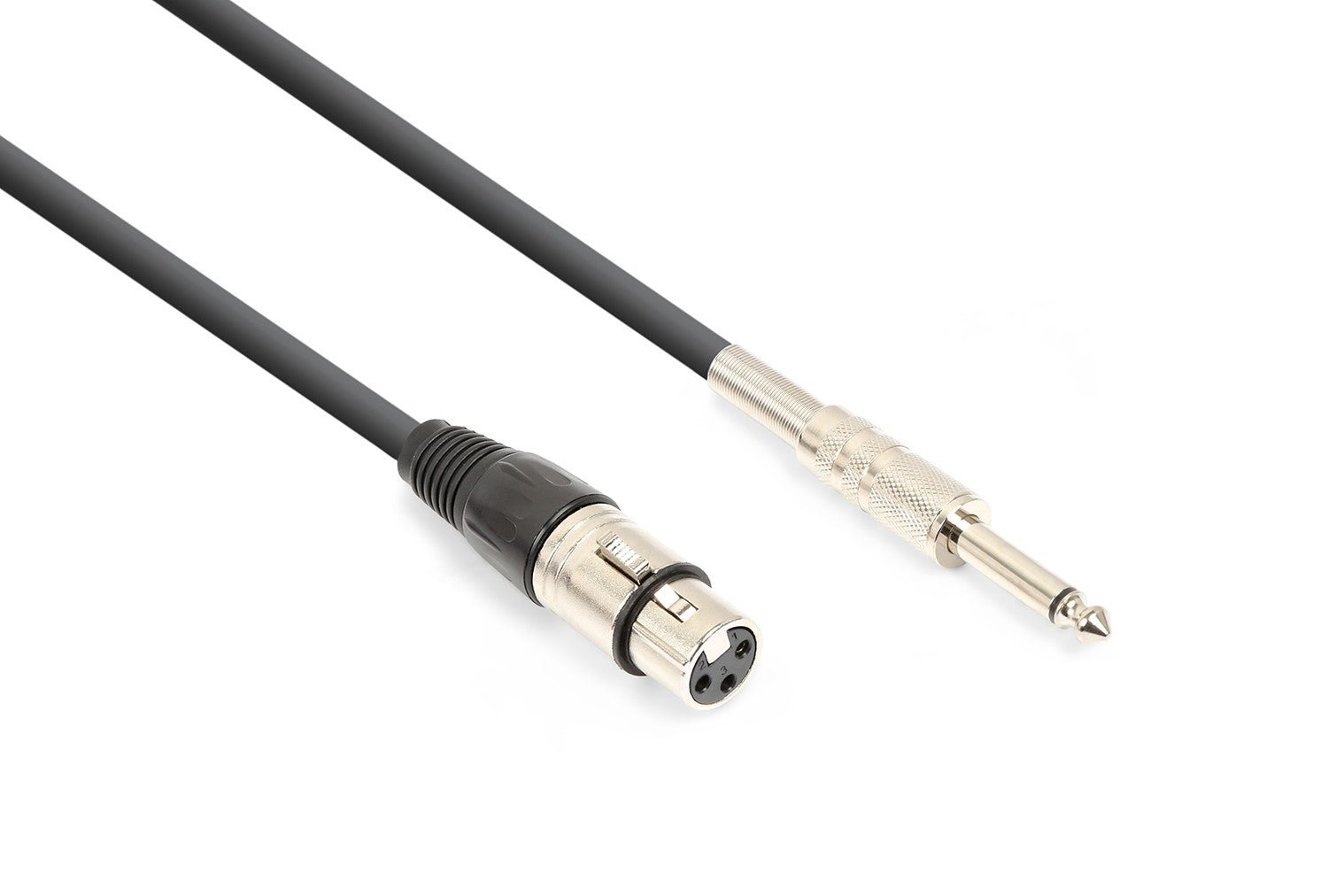

Vonyx CX314-3 - Professional Audio Cable XLR Female to 6.3mm Jack Mono 3 meters

Vonyx CX314-3 - Professional Audio Cable XLR Female to 6.3mm Jack Mono 3 meters

The Vonyx CX314-3 is a 3-meter audio signal cable designed to provide a reliable, high-quality connection between equipment with different connector types. This cable features a 3-pin female XLR connector on one end and a male 6.3 mm mono jack connector on the other. Its flexible and robust construction, along with its durable metal connectors, ensures clean, stable, and noise-free signal transmission, making it an indispensable tool for musicians, sound engineers, and audio enthusiasts.

Thanks to its excellent shielding and the quality of its internal copper conductors, the CX314-3 protects the audio signal against electromagnetic interference (EMI) and radio frequency interference (RFI), ensuring that the sound is transmitted with maximum fidelity and clarity. Its 3-meter length provides the necessary flexibility for most applications in home studios, small stages, or rehearsal rooms, without creating excess cabling.

Main features

• Versatile Connectivity: Equipped with a 3-pin female XLR connector and a 6.3mm mono male jack (TS), ideal for interconnecting a wide range of audio devices.
• Optimal Length: Its 3 meters in length offer a perfect balance between reach and handling, suitable for connecting equipment in racks, pedalboards or DJ booths.
• Durable Construction: Robust metal connectors are designed to withstand continuous use and ensure a secure physical connection at all times.
• Superior Signal Transmission: The 20x0.12mm copper inner conductor ensures minimal signal loss, while the 64x0.12mm shielding effectively protects against external interference.
• Flexible Design: Despite its robustness, the cable is very flexible, facilitating its installation and organization in any environment.

Product benefits

The Vonyx CX314-3 cable has been designed with reliability and sound purity in mind. For musicians and technicians, this translates into a dependable connection, eliminating common problems such as hum, pops, and signal loss. The quality of its materials ensures a long lifespan, even under demanding conditions like touring or live events. Its versatility makes it a practical and cost-effective solution for a wide range of connection needs in any audio setup.

Use cases

This cable is the perfect solution for a variety of common situations in the audio world:

• Connect the output of a dynamic microphone to an unbalanced line input of a mixing console or audio interface.
• Send the audio signal from the output of a mixer to the input of an active speaker or stage monitor.
• Connect instruments such as synthesizers, keyboards or drum machines with XLR outputs to amplifiers or pedalboards with 6.3 mm jack inputs.
• Use it in DJ setups to connect the mixer output to an amplification system.

Frequently Asked Questions

Is this cable balanced or unbalanced?

This is an unbalanced cable. Although the XLR connector can carry balanced signals, the 6.3mm jack connector is mono (TS, Tip-Sleeve), making the entire connection unbalanced. It is ideal for line-level signals over short distances.

Can I use it to connect a condenser microphone that needs phantom power (+48V)?

It is not recommended. Phantom power requires a balanced XLR to XLR connection to function correctly and prevent potential damage to both the microphone and the equipment it is connected to. For condenser microphones, always use a standard male-to-female XLR cable.

Is it suitable for connecting an electric guitar to a mixing console?

Although it is technically possible if the mixer has a line input jack, the most common and recommended thing for a guitar is to use a standard instrument cable (Jack to Jack) and, if necessary, a direct injection box (DI box) to balance the signal and adapt it to a microphone input (XLR) on the mixer.

Project description

This 3-meter unbalanced audio signal cable features a 3-pin female XLR connector on one end and a male 6.3 mm mono jack (TS) connector on the other. The cable has a 6 mm outer diameter, with a 20 x 0.12 mm copper conductor and 64 x 0.12 mm helical shielding for optimal interference protection. The connectors are made of metal for durability.
