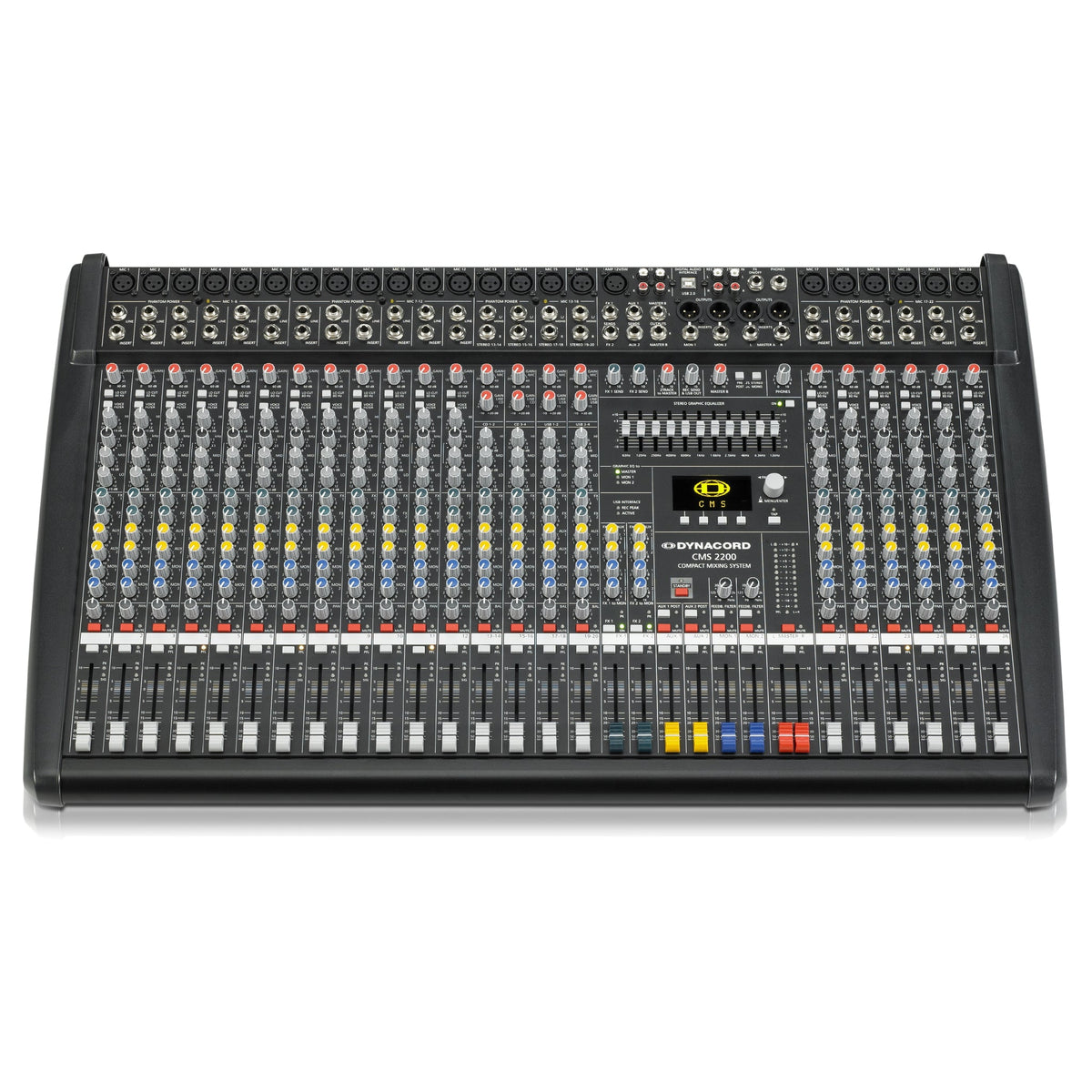

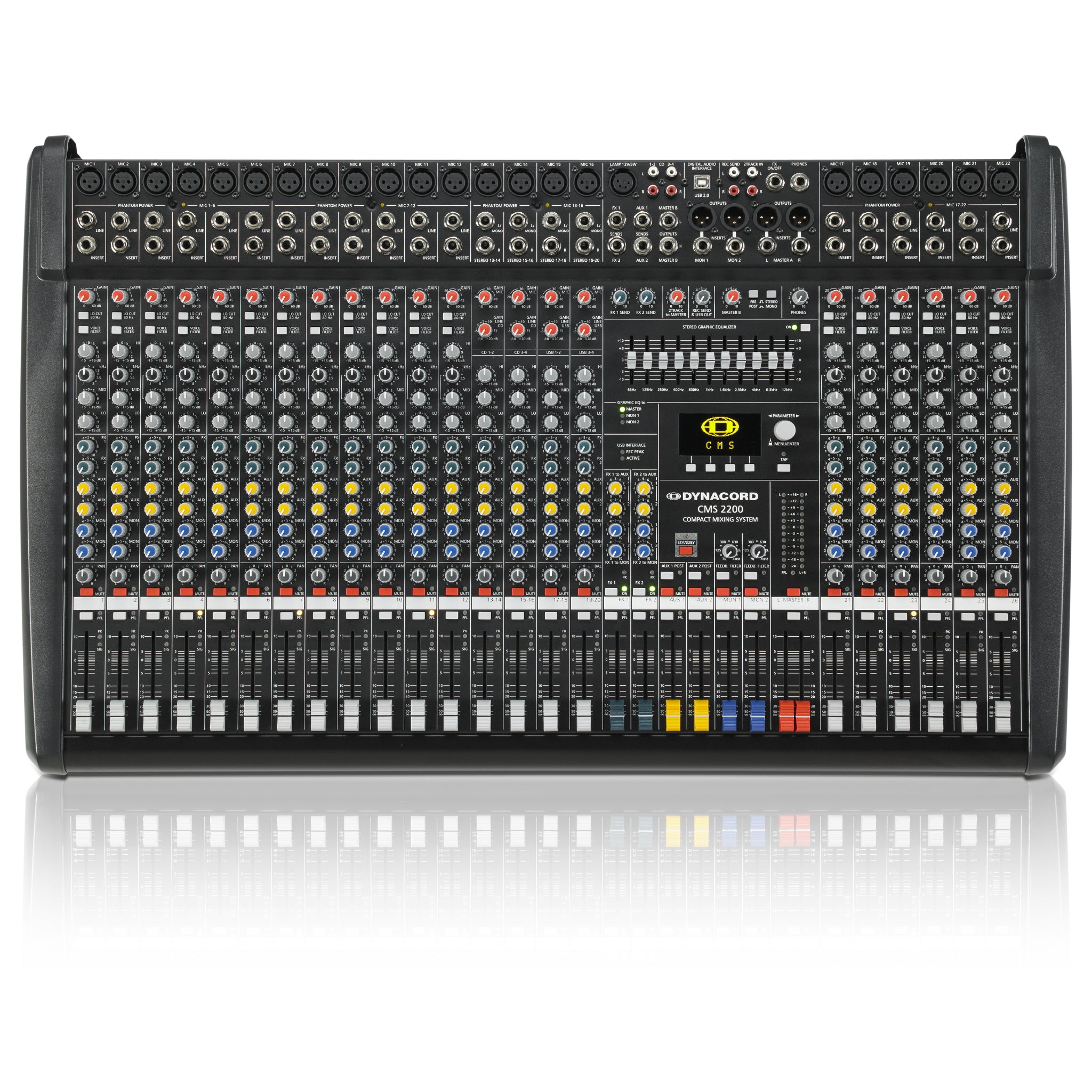

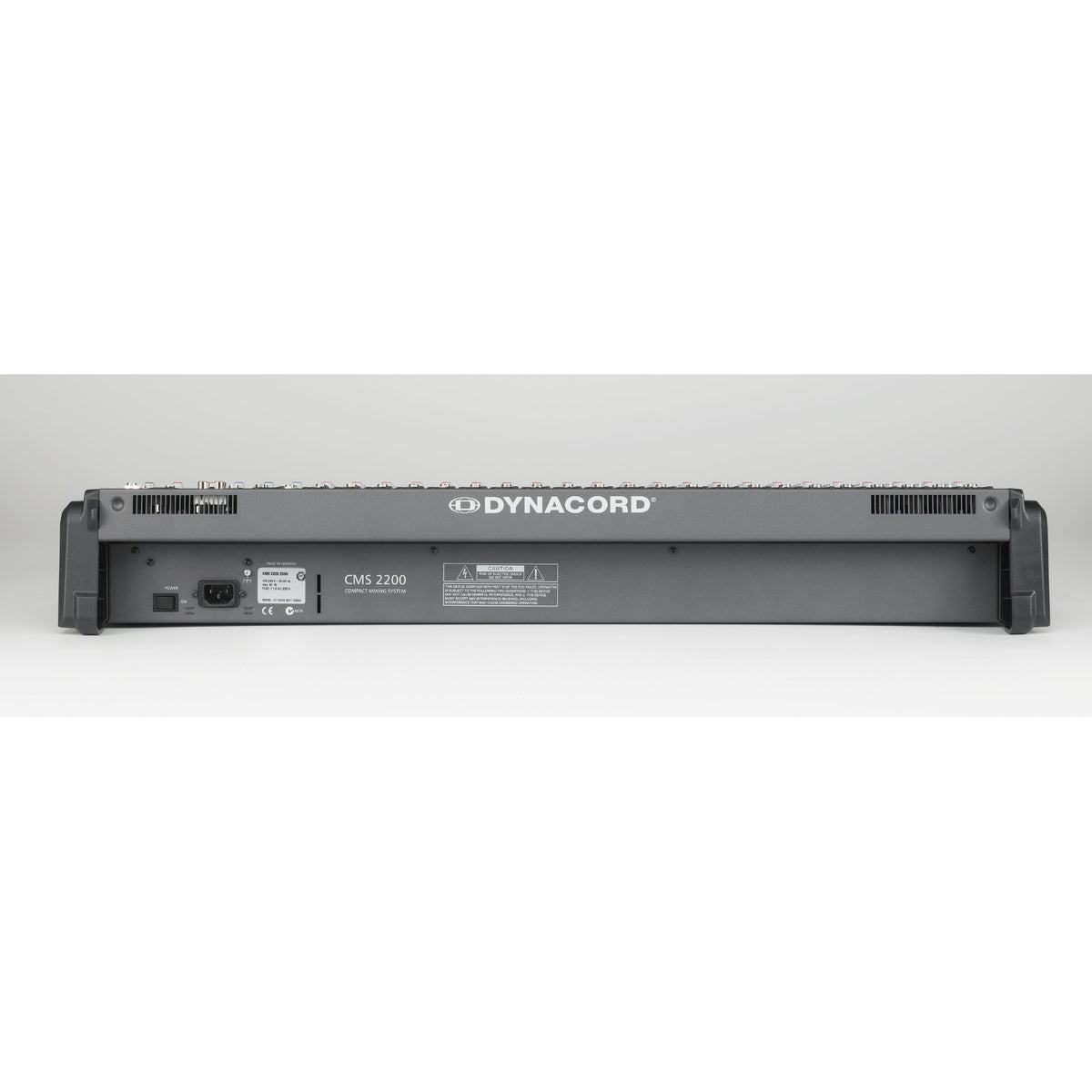

Dynacord CMS 2200-3 - 22-Channel Mixer

Dynacord CMS 2200-3 – 22-Channel Mixer

The Dynacord CMS 2200-3 is a compact, large-format mixer that combines versatility and professional quality. It features 18 mono channels with XLR inputs with phantom power and 4 stereo channels with 1/4″ TRS connectors, plus 2 pairs of RCA lines and 4 channels of 24-bit/96 kHz digital audio, providing a total of 22 input tracks for managing everything from microphones to digital sources. It features 6 aux sends—2 MON pre-fader, 2 EFX post-fader, and 2 configurable AUX pre/post—, a 3-band EQ with parametric mid-range filter per channel, mute, and individual PFL, and a stereo effects processor with 100 presets and TAP functionality for setting delays.

Main features

• Inputs: 18 mono MIC/LINE XLR with phantom + 18 mono LINE TRS ¼″ + 4 stereo LINE TRS ¼″ + 2 stereo RCA + 4 digital channels 24 bit/96 kHz.
• Auxiliary Sends: 2 MON pre-fader, 2 EFX post-fader, 2 AUX pre/post switchable.
• EQ per channel: 3 bands (bass shelving, parametric midrange, treble shelving) with voice filter.
• Effects processor: Stereo DSP with 100 presets and TAP control.
• Outputs: MASTER TO XLR balanced; MASTER B TRS ¼″ balanced; 2 MONITOR (XLR, TRS); 2 AUX TRS; REC RCA; XLR4 lamp output.
• USB Interface: Direct playback and recording at 24 bit/96 kHz.
• Display: High contrast OLED (128 × 64 px).
• Power supply: 100–240 VAC, 50–60 Hz; consumption ≈ 60 W with lamp.
• Dimensions: 498.5 × 818.5 × 155 mm (H × W × D); net weight 14.5 kg.

Product benefits

• Large mixing capacity: 22 channels and 6 auxiliary sends for complex configurations.
• Full connectivity: Analog, digital and RCA inputs, plus integrated USB interface.
• Precise Control: 3-band EQ with parametric filter and PFL/mute per channel for fine tuning.
• Professional effects: Stereo DSP with 100 editable presets and TAP sync.
• Compact design: Optional rack mounting and rugged housing with internal insulation.

Use cases

• Live mixing for concerts, tours and festivals.
• Fixed installations in auditoriums, theaters and corporate centers.
• Recording and streaming via the integrated USB interface.
• AV systems for multipurpose conference and event rooms.

Frequently Asked Questions

• Can I record directly to a computer? Yes, the CMS 2200-3 acts as a 24-bit/96 kHz USB interface.
• How do I assign the AUX sends? Two sends are pre-fader (MON), two post-fader (EFX), and two are switchable pre/post (AUX).
• Does it have phantom power? All XLR MIC inputs offer selectable +48 V phantom power.
• Can it be rack-mounted? Replace the plastic sides with 19" rack lugs.

Description for projects

Compact 22-channel mixer with 18 mono XLR/TRS, 4 stereo TRS/RCA, 4 24-bit/96 kHz digital channels, 6 aux sends, 3-band EQ, effects DSP with 100 presets, USB interface, OLED, 100–240 VAC power supply, 498.5 × 818.5 × 155 mm, 14.5 kg.
