Vonyx CCD16 - 6.5 inch Hybrid Coaxial Compression Driver

Vonyx CCD16 - 6.5 inch Hybrid Coaxial Compression Driver

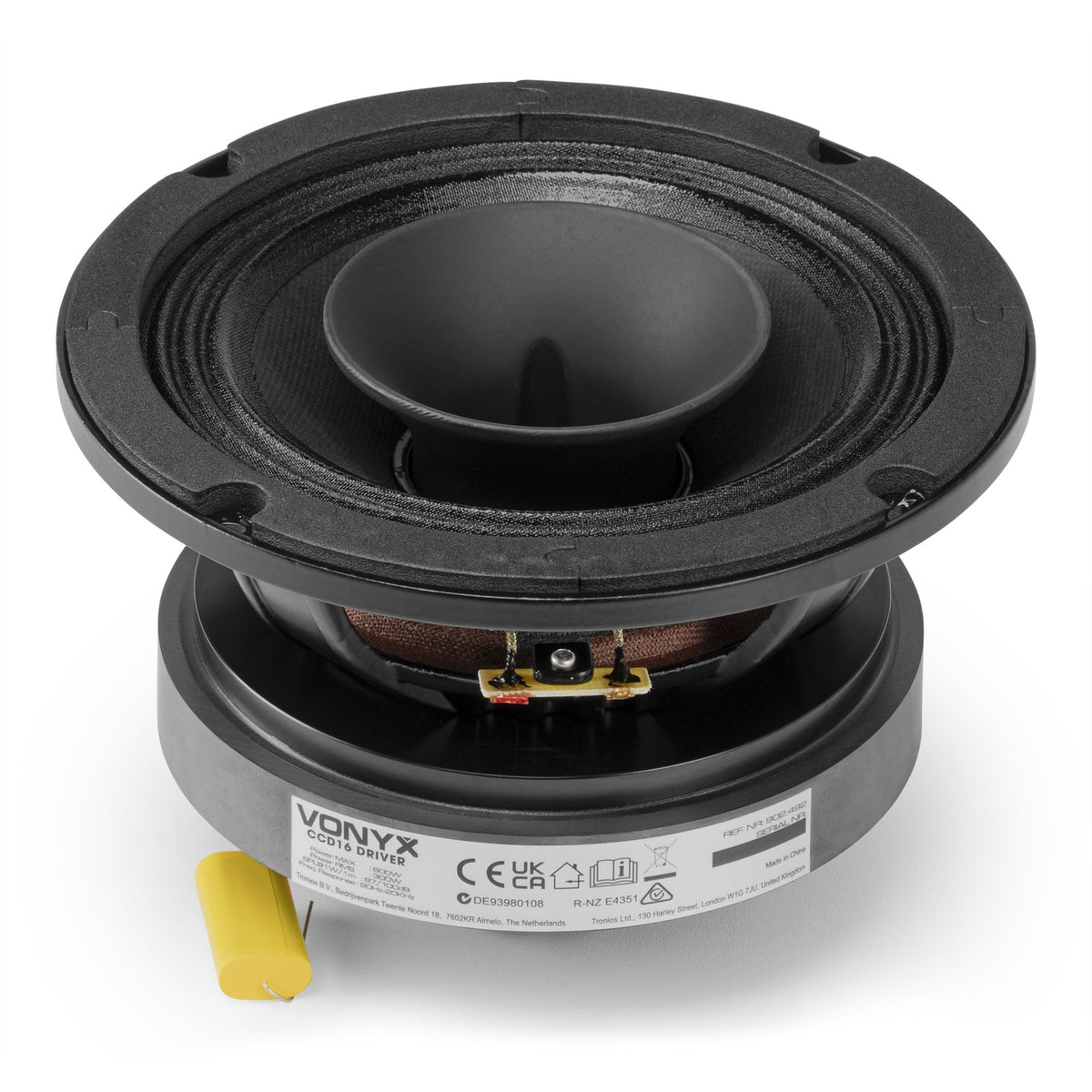

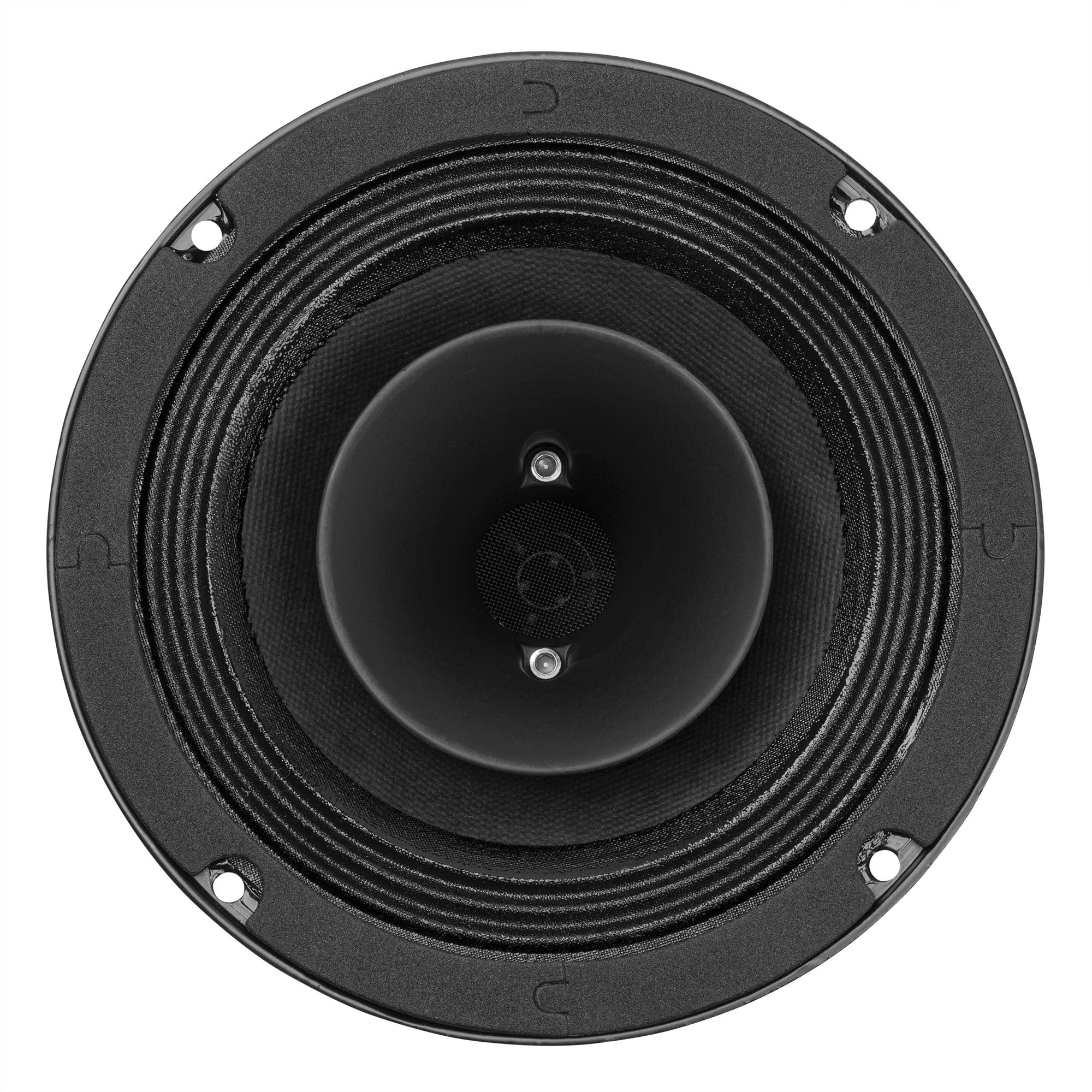

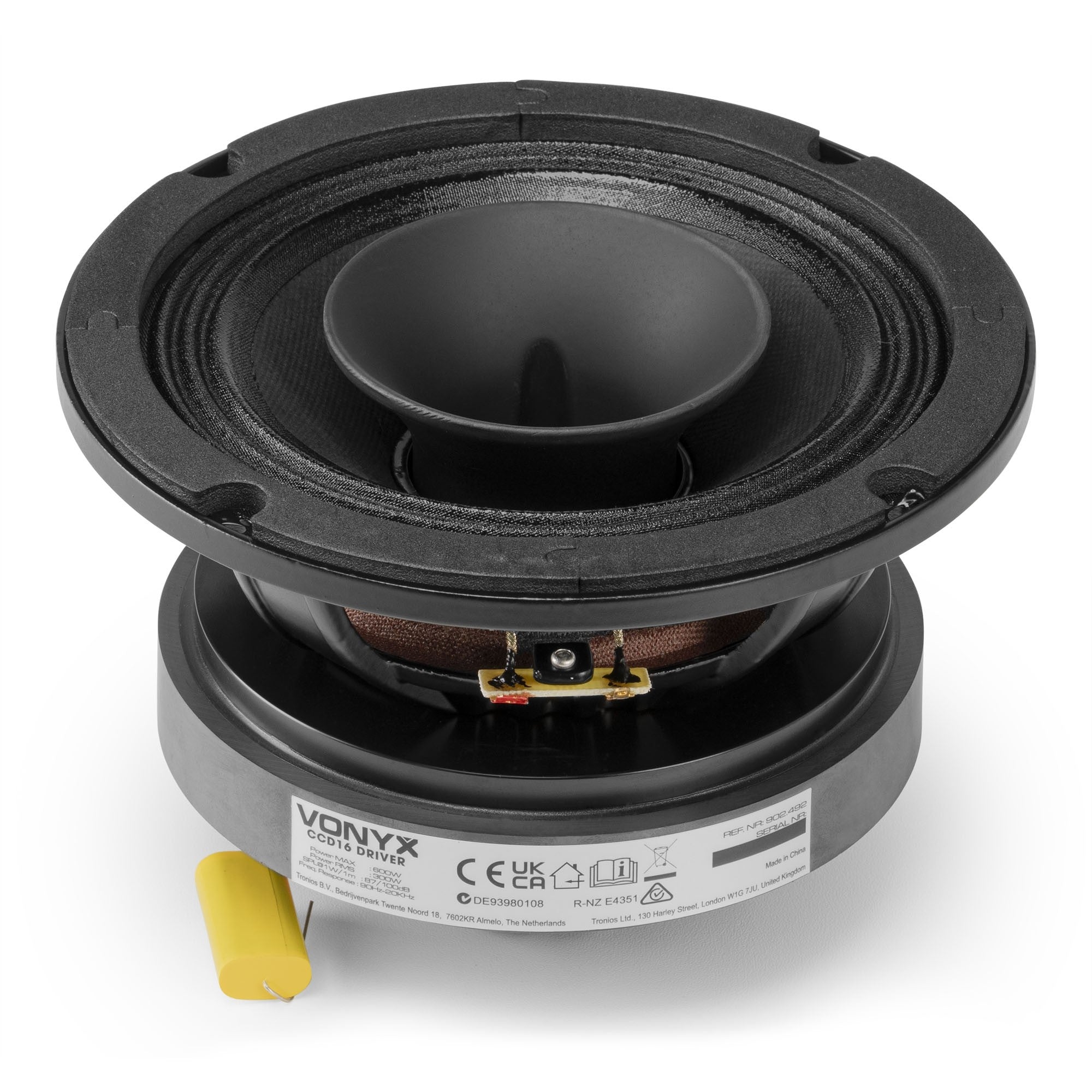

The Vonyx CCD16 is a professional audio loudspeaker that redefines clarity and power in a compact form factor. This innovative 6.5-inch hybrid component integrates a high-performance midrange driver with a compression driver for high frequencies, all within a single coaxial unit. This advanced design not only saves space but also creates a point source of sound, resulting in superior coherence and stereo imaging, emitting the entire frequency spectrum from a single point for an incredibly precise listening experience.

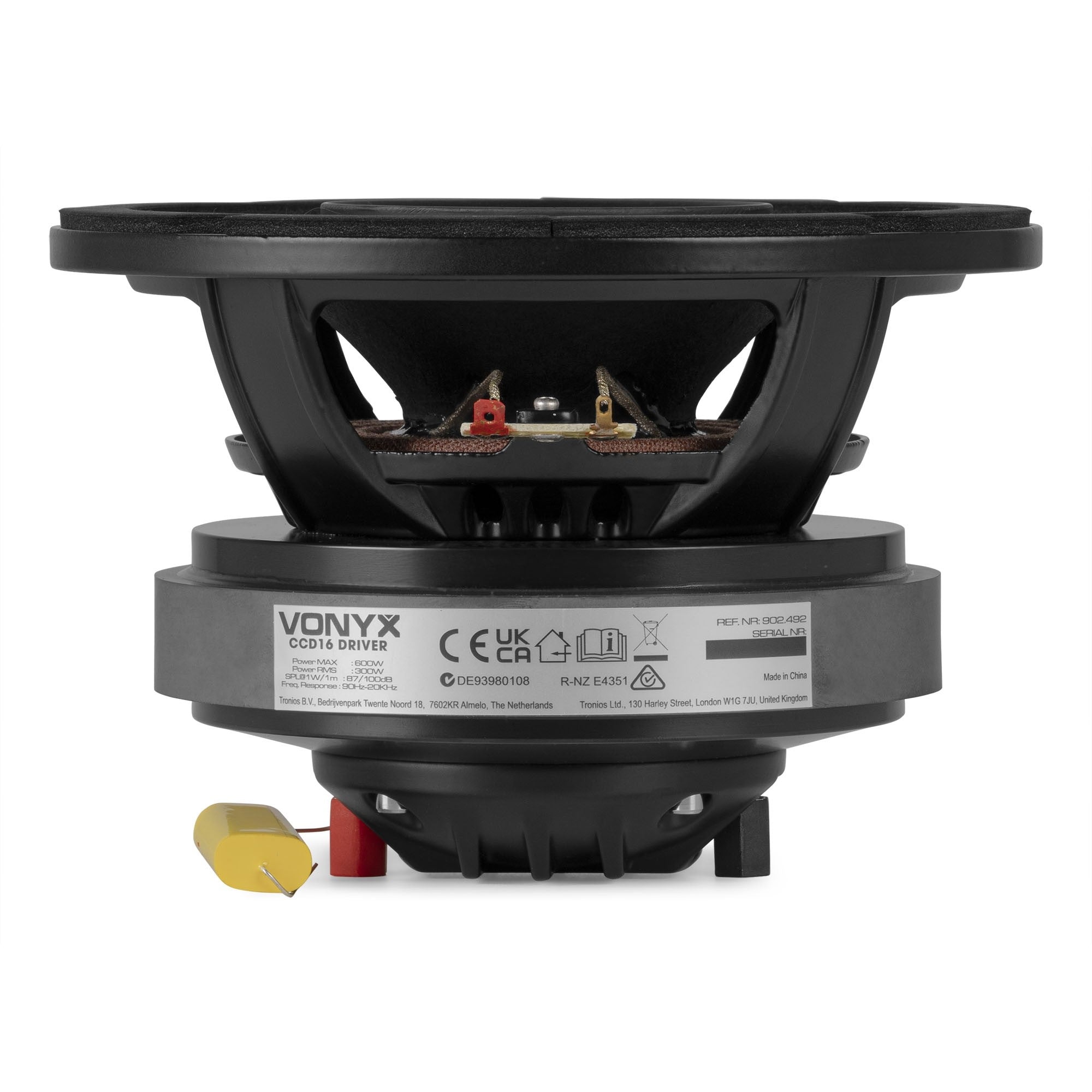

Built on a solid die-cast aluminum basket, the CCD16 is designed to eliminate unwanted resonances and vibrations, ensuring you hear only pure, uncolored sound. With an impressive 300W RMS power handling and peak power up to 600W, this driver is capable of reaching extreme volume levels while maintaining minimal distortion. Its optimized cooling system guarantees reliability and consistent performance, even during extended periods of heavy use.

Main Features

The Vonyx CCD16 stands out for its high-quality engineering and intelligent design. Its most important features are detailed below:

• Hybrid Coaxial Design: Combines a 6.5-inch midrange woofer with a 1-inch compression driver in a single chassis, delivering a full frequency range from 90Hz to 20,000Hz.
• High Sustained Power: Capable of handling 300W RMS power and 600W peak power, ideal for systems requiring a high sound pressure level (SPL).
• Robust Construction: The die-cast aluminum basket provides a rigid, resonance-free base, improving sound accuracy and component durability.
• High-Performance Voice Coils: Equipped with a 2-inch voice coil for the woofer and a 1.4-inch CCAW coil for the compression driver, ensuring excellent heat dissipation and fast response.
• Powerful Ferrite Magnet: A 45-ounce ferrite magnet provides the magnetic flux needed for precise cone control and high efficiency.
• Advanced Cooling System: Designed to maintain an optimal operating temperature, preventing power compression and extending the speaker's lifespan.

Benefits of the Vonyx CCD16

Integrating the CCD16 coaxial driver into an audio project offers significant advantages. By combining mid and high frequencies into a single source, it eliminates the time lag that can occur with separate speakers, resulting in a more natural and coherent sound. Its compact and slim design facilitates installation in custom enclosures or replacement in existing systems, making it a perfect solution for achieving powerful, high-fidelity sound without taking up excessive space.

Use Cases

Thanks to its robustness, power, and wide frequency range, the Vonyx CCD16 is an excellent choice for a variety of professional audio applications. It's ideal for building custom speaker cabinets (DIY projects), upgrading PA systems, stage monitors, or sound systems in fixed installations such as bars or concert halls. It's also a popular choice in the high-end car audio world for those seeking competition-level performance and superior sound quality.

Frequently Asked Questions

What does it mean that the impedance is "8 Ohm / 8 Ohm"?
This means the speaker has separate connection terminals for the midrange woofer and the tweeter compression driver. Each has an independent impedance of 8 ohms, allowing the use of a passive crossover or bi-amplification with an active crossover.

Do I need a crossover for this speaker?
Yes, it's essential to use a crossover to direct the correct frequencies to each component. Without a crossover, the compression driver could be damaged by receiving low frequencies. A crossover that separates frequencies is recommended to protect the driver and optimize the overall performance.

What is the advantage of the cast aluminum basket?
The cast aluminum basket is much more rigid and dense than stamped steel baskets. This prevents flexing and resonances, resulting in more accurate bass and clearer mids. Additionally, the aluminum helps dissipate heat from the voice coil more efficiently.

Can I connect it directly to my car radio?
Not recommended. With a power rating of 300W RMS, this speaker requires a powerful external amplifier to function properly and deliver its maximum performance. Connecting it to a low-power source will not provide the necessary power, resulting in poor sound quality.

Project description

6.5-inch coaxial compression driver with a power output of 300W RMS and 600W peak. Frequency response of 90Hz to 20,000Hz. SPL sensitivity of 87dB for the woofer and 100dB for the compression driver. Dual impedance of 8 ohms (woofer/driver). The 6.5-inch woofer has a 2-inch voice coil, and the HF compression driver has a 1.4-inch voice coil. It incorporates a 45-ounce ferrite magnet and a non-resonant cast aluminum basket. Overall dimensions are Ø175 x 120mm, with a mounting depth of 110mm and a mounting diameter of 151mm.
