TEMPO Beam Mini 230 7R - Mini Beam 230W 7R Moving Head

TEMPO Beam Mini 230 7R – Mini Beam 230W 7R Moving Head

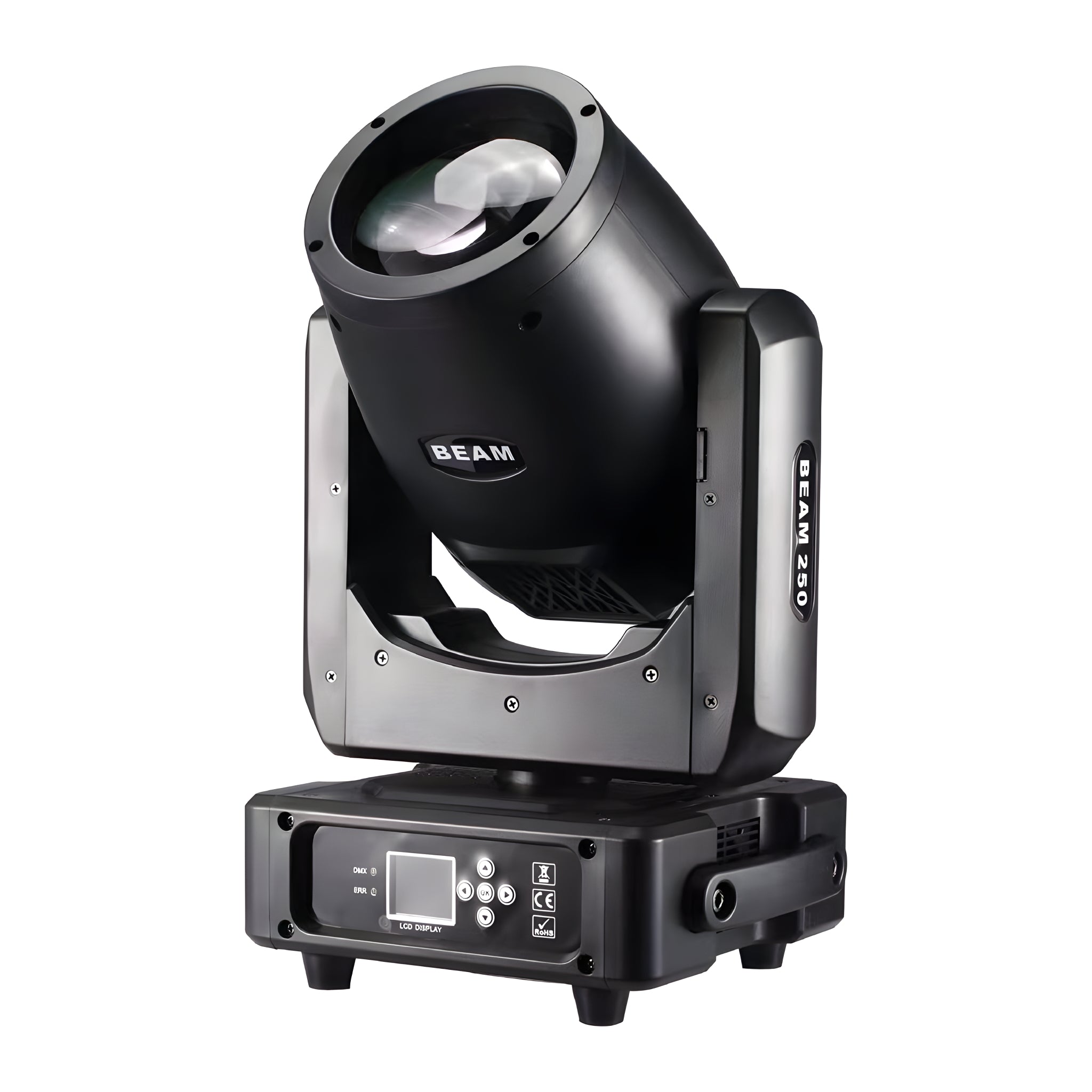

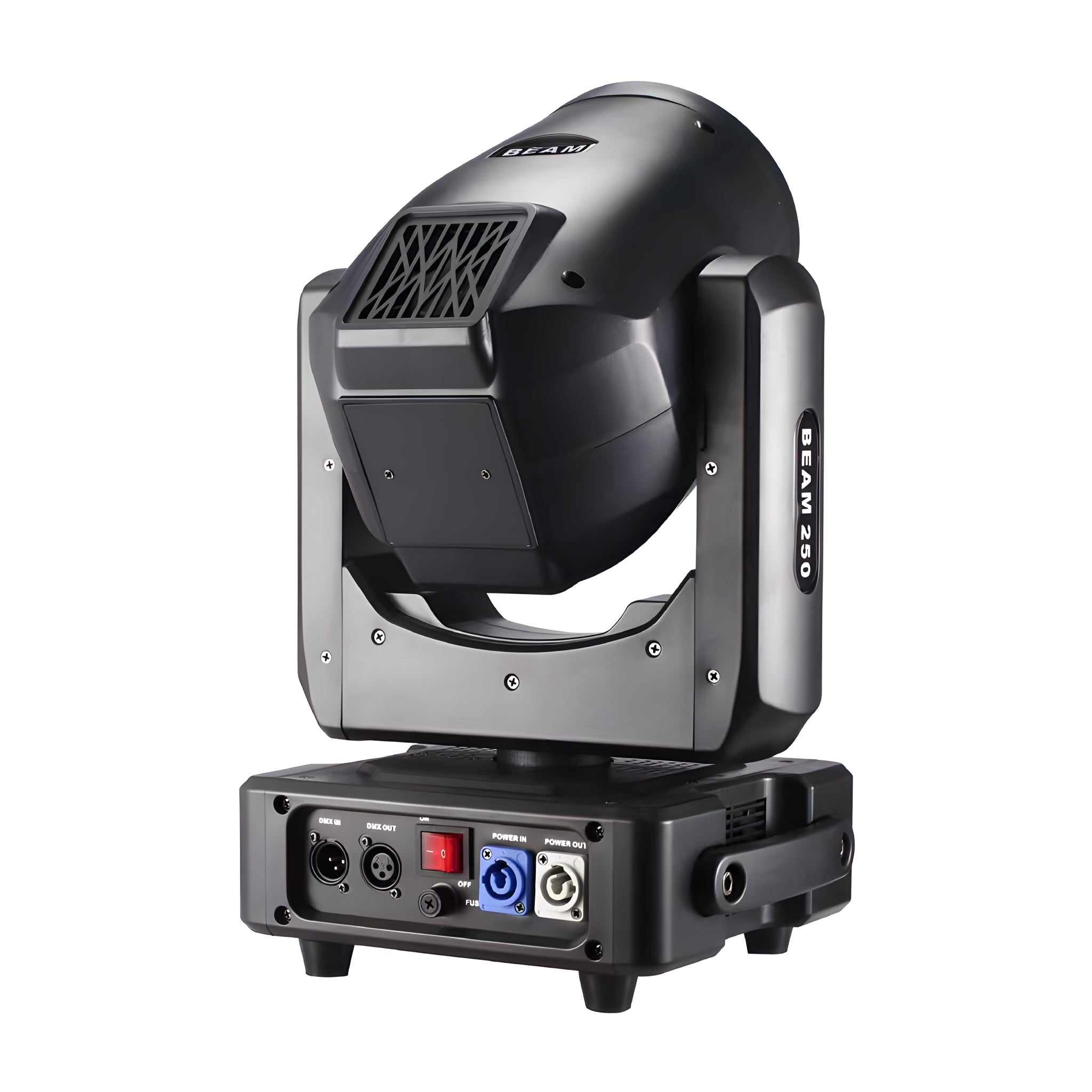

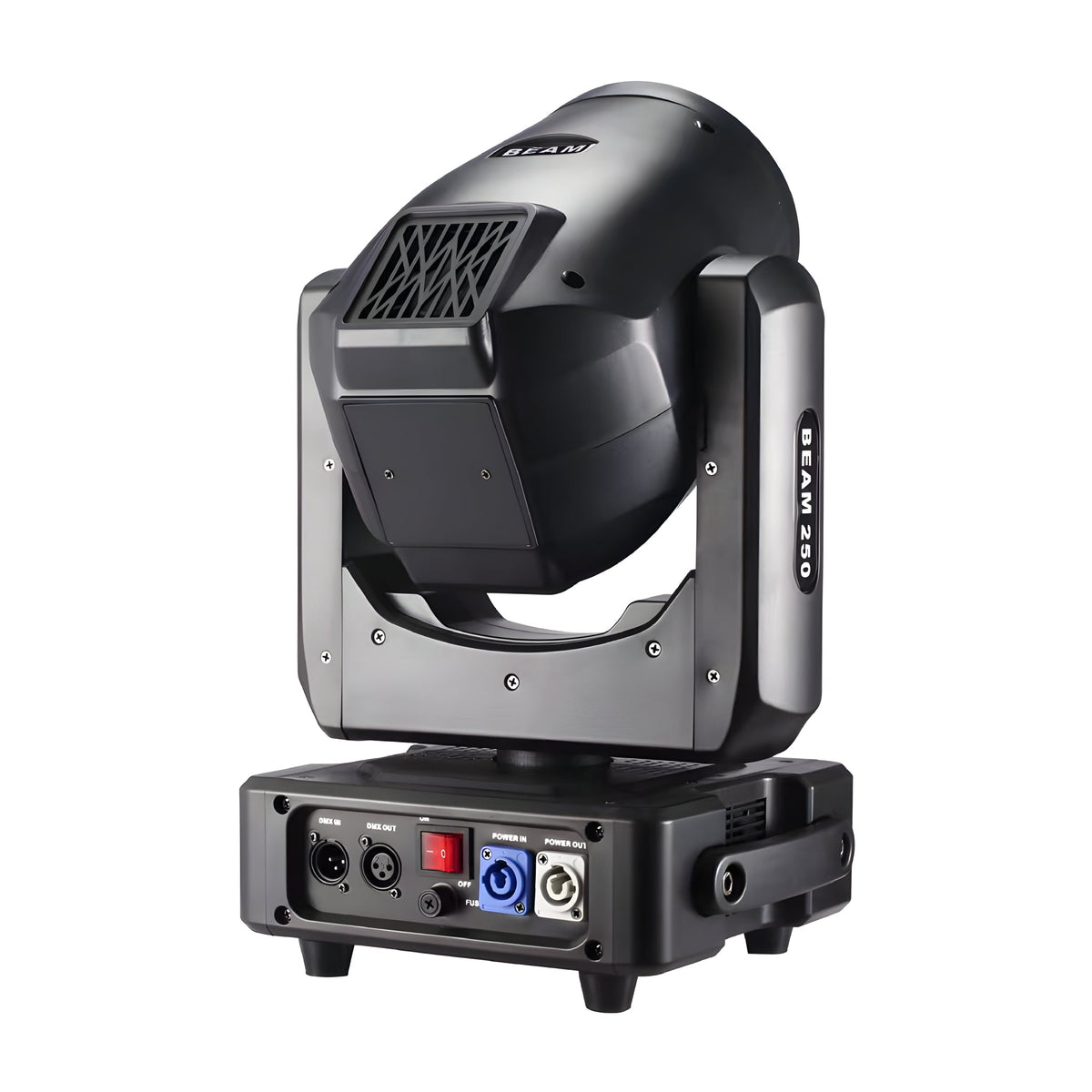

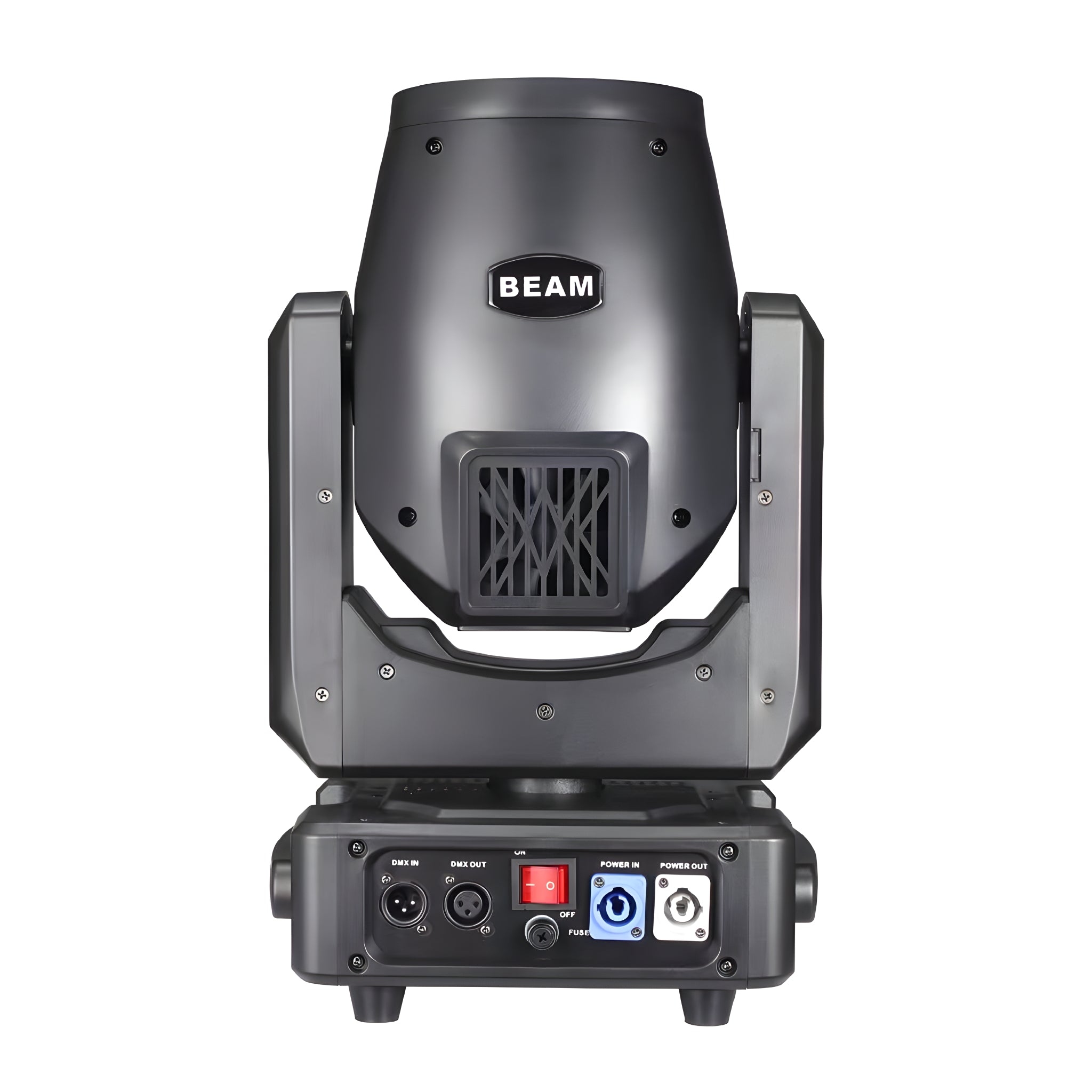

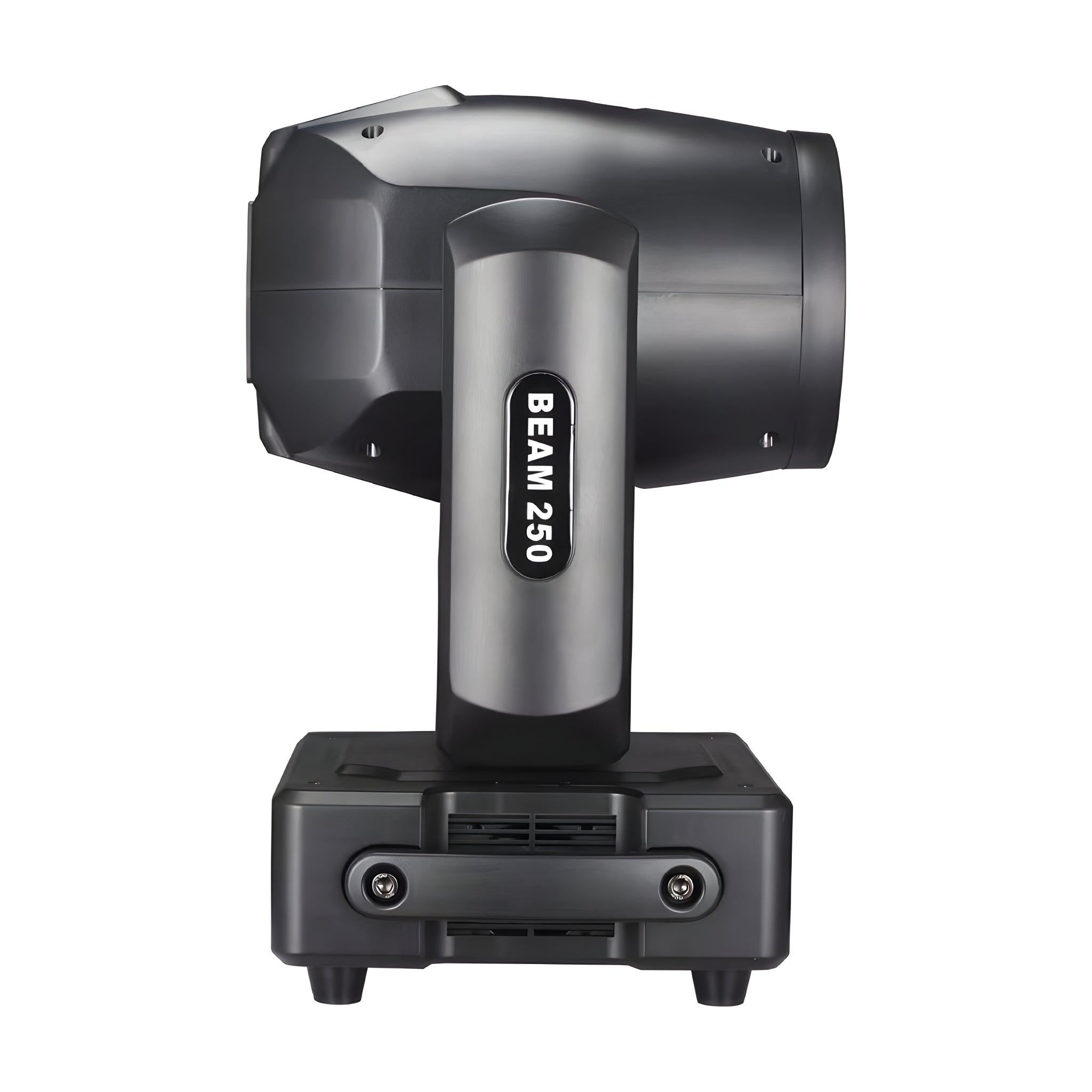

The TEMPO Mini Beam 230W 7R moving head is a professional lighting solution that combines a powerful 250W 8R HRI lamp with high-precision optics, generating ultra-thin 0–5° beams and reaching an intensity of 50,000 LUX at 20 meters. Its compact (41 × 26 × 27 cm) and robust (13 kg) design incorporates an efficient cooling system and advanced electronics for continuous operation on the road, in clubs, and in live shows.

Equipped with two rotating prisms (8-facet and 8+16+24-facet) with positioning, a 15-color wheel with frost and rainbow effects, and a gobo wheel with one fixed gobo and 17 interchangeable gobos, a shaker, and a flow effect, it offers an unlimited range of effects. The motorized electronic focus facilitates quick adjustments to sharpness and beam definition.

Its 16-channel DMX512 compatibility, along with master-slave, auto and sound modes, adjustable strobe from 1–13 flashes/s and smooth 0–100% mechanical dimming, guarantees precise programming and total synchronization with your show.

Main features

• Lamp: HRI 230 W 8R professional.
• Optics: 3 high quality glass lenses.
• Beam angle: 0–5° for defined cuts.
• Prisms: 8 faces and 8+16+24 faces, bidirectional rotation.
• Colors: 15 color wheel + color adjustment + rainbow + frost.
• Gobos: fixed + 17 interchangeable + open + shaker + flow + frost.
• Strobe: 1–13 flashes/second.
• Pan/Tilt: 540°/270°, 8 or 16 bit resolution.
• Electronic focus: up to 20 m (50,000 LUX).
• Control: DMX512 (16 CH), master-slave, auto, sound.
• Dimmer: 0–100% smooth mechanical.
• Consumption: ~300 W (AC 100–240 V, 50–60 Hz).
• Dimensions/weight: 41 × 26 × 27 cm / 13 kg.
• Protections: forced ventilation, temperature control, overcurrent, signal isolation.
• Lamp life: > 2000 h / color temperature 8500 K.
• Display: English display.

Product benefits

• Ultra-thin high-definition beam for impactful shows.
• Advanced effects with interchangeable prisms and gobos.
• Professional DMX512 control and synchronized automatic modes.
• Motorized focus for quick live adjustments.
• Robust design and efficient cooling for continuous use.

Use cases

• Concerts and tours: precise lighting for large stages.
• Discos and clubs: dynamic environments with strobe and color.
• Theaters and productions: gobo projection and atmospheric effects.
• Corporate events: professionally synchronized presentations.

Frequently Asked Questions

• How to adjust focus? Via DMX control or a display menu, with motorized movement.
• Does it work with wireless consoles? Yes, it's compatible with standard DMX transmitters/receivers.
• What is its lifespan? The HRI lamp lasts for over 2,000 hours.
• Can it be used outdoors? No; IP20 protection rating (indoor only).

Description for projects

Mini Beam 230W HRI 7R moving head, 3-lens optics, 8/8+16+24-facet prisms, 15-color wheel+rainbow+frost, 17 interchangeable gobos+shaker+flow+frost, beam 0–5°, pan 540°/tilt 270°, DMX512 16 CH, strobe 1–13 Hz, dimmer 0–100%, electronic focus 20 m (50,000 LUX), power consumption 300 W, AC 100–240 V, dimensions 41×26×27 cm, weight 13 kg, IP20.
