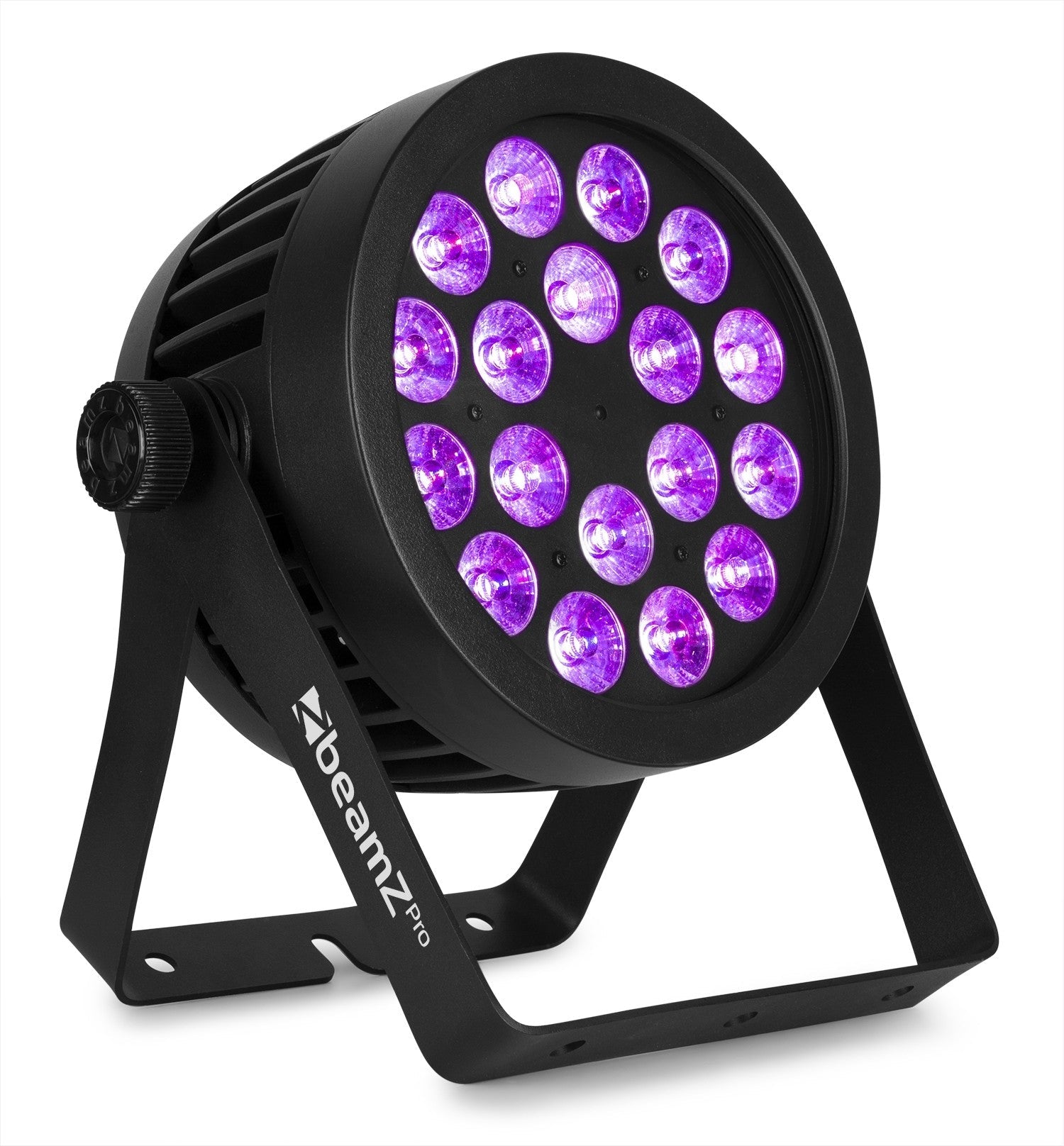

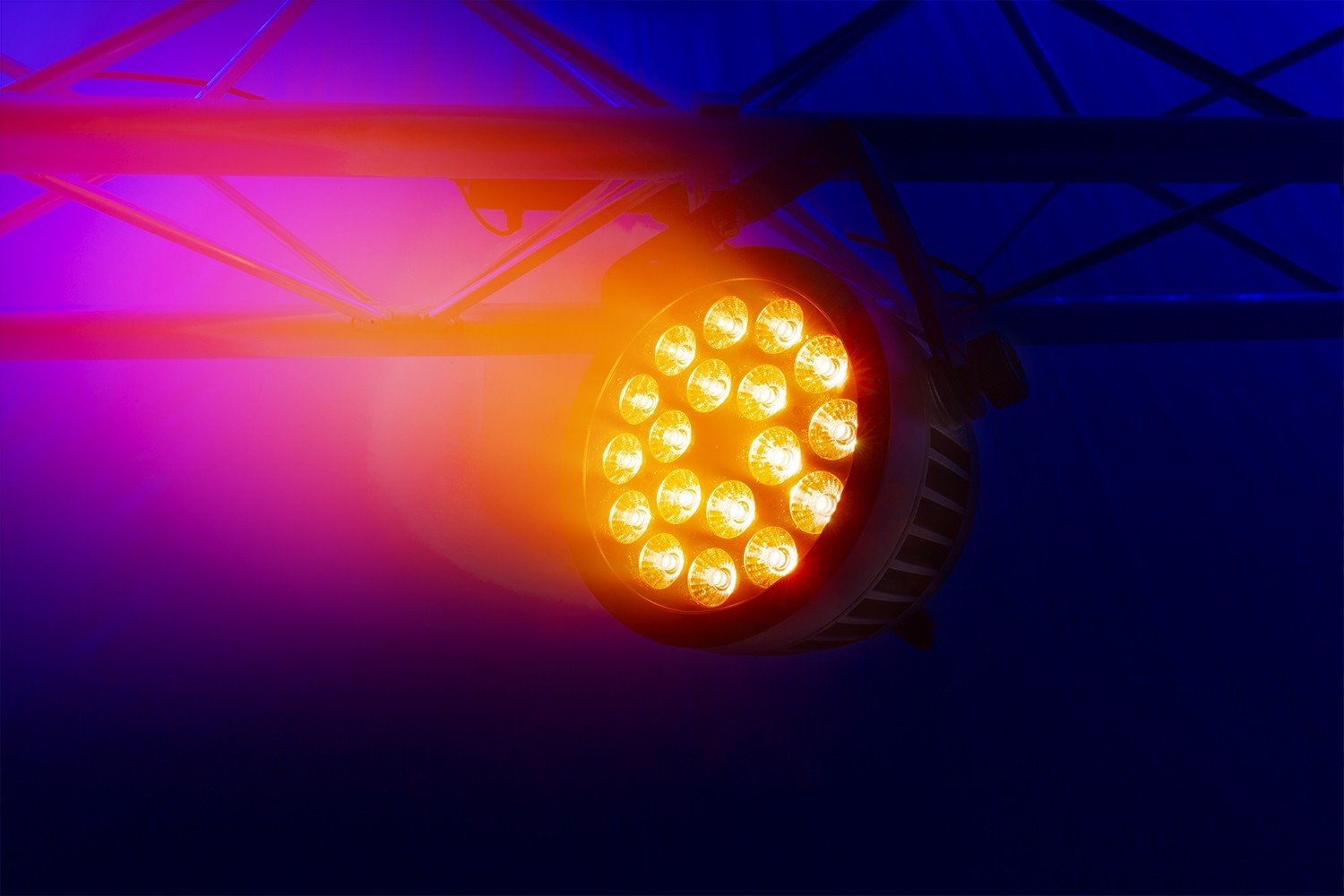

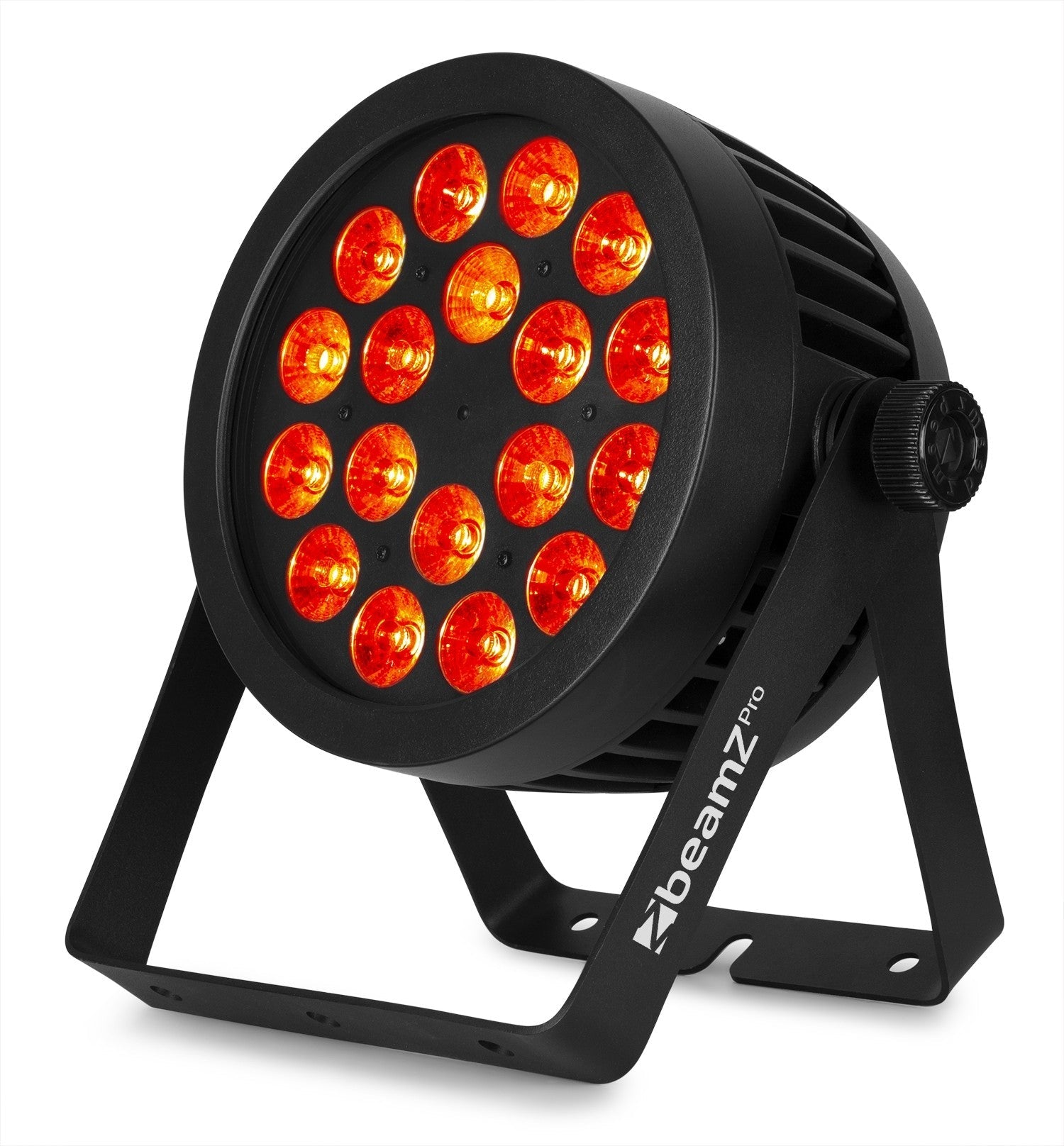

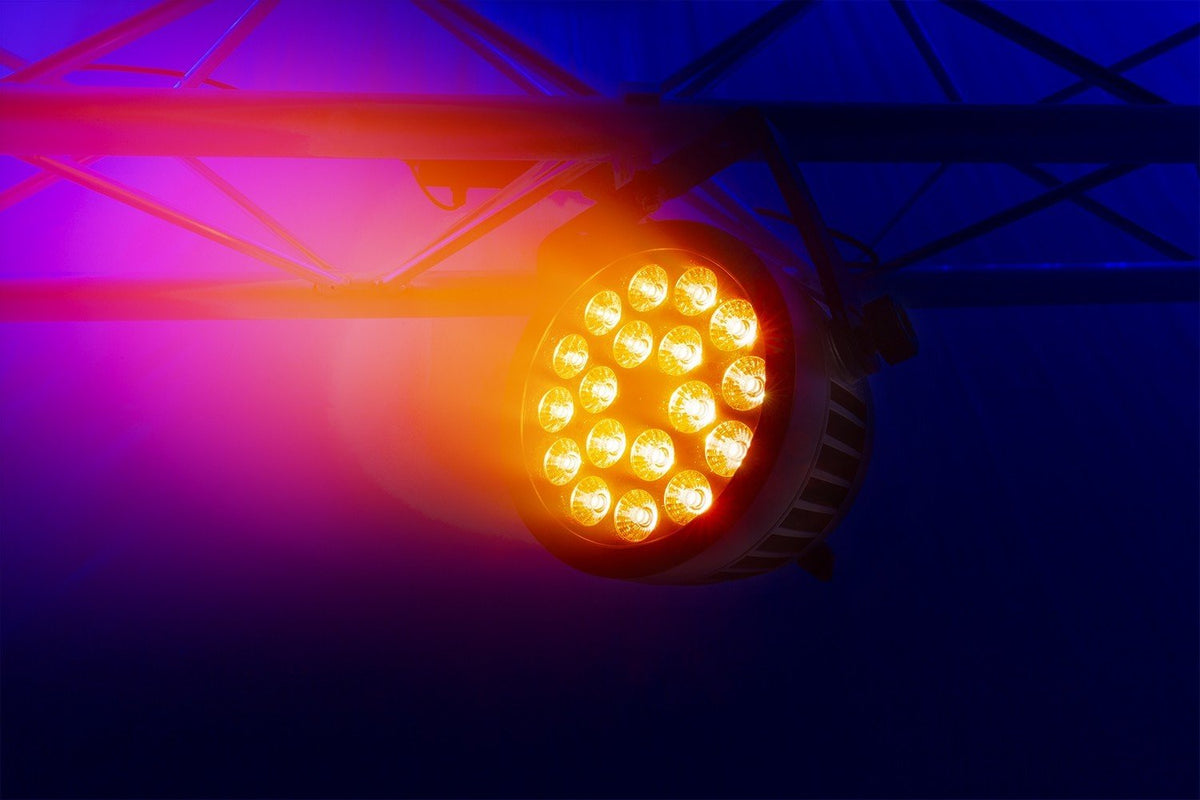

beamZ Pro BWA536 - IP65 Outdoor LED PAR Spotlight with 18x12W RGBW

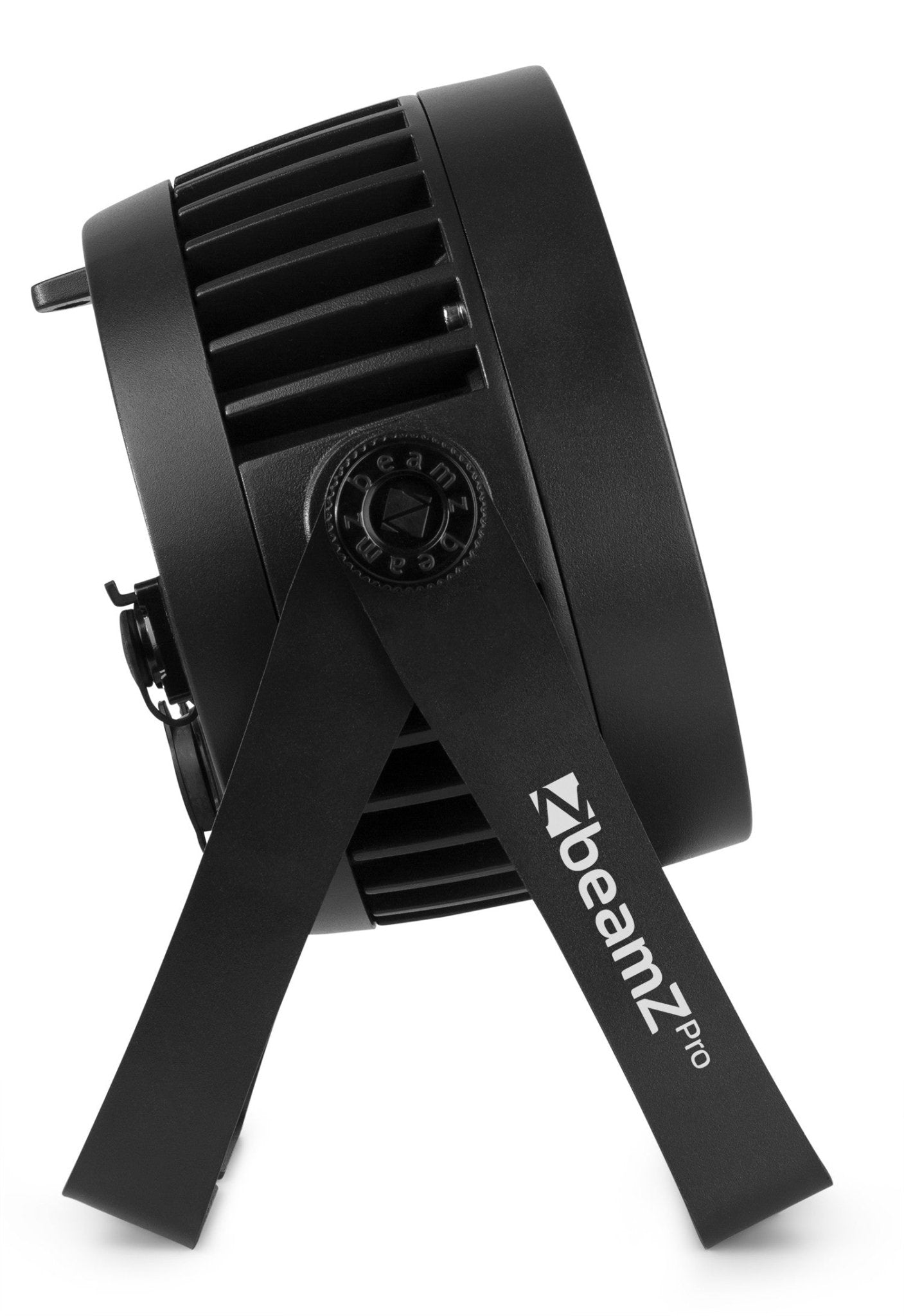

The beamZ Pro BWA536 is a high-performance professional PAR light, specifically designed to withstand the most demanding conditions in outdoor applications. Its robust die-cast aluminum housing not only provides exceptional durability but also acts as a convective heat sink, enabling completely silent operation without the need for fans. With an IP65 protection rating, this light is fully sealed against dust and water jets, making it the ideal solution for architectural lighting, festival stages, outdoor events, and any installation where reliability is paramount.

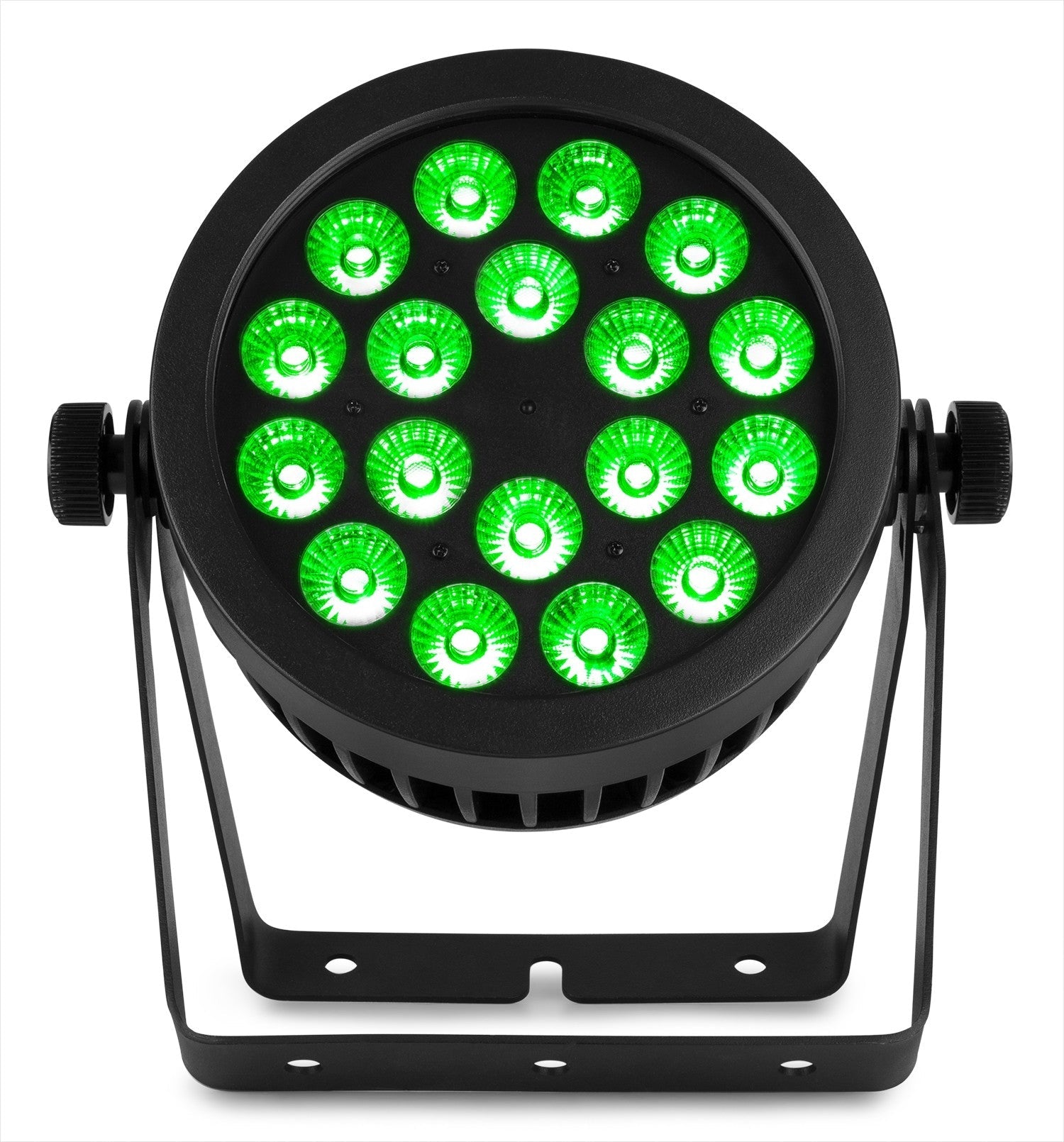

At its core, the BWA536 features 18 powerful 12W LEDs, based on 4-in-1 technology. Each LED integrates red, green, blue, and white (RGBW) colors, allowing for smooth, uniform, and virtually limitless color mixing. From saturated and vibrant colors to subtle pastel shades and pure whites with adjustable color temperature (from 2700K to 8000K), this spotlight offers exceptional color versatility for any lighting design. Its advanced lenses project a defined beam with a 22-degree angle, perfect for controlled color washes and long-range effects.
Main Features
-
Professional Light Source: Equipped with 18 x 12W LEDs and 4-in-1 RGBW technology, guaranteeing high light output (12,000 lx @ 1m) and a homogeneous, shadow-free color mix.
-
Outdoor Construction: Its IP65-rated aluminum chassis ensures complete protection against the elements, making it suitable for permanent installations or outdoor tours.
-
Silent Operation: The passive convection cooling design eliminates the need for fans, making it ideal for noise-sensitive environments such as theaters or television studios.
-
Total and Flexible Control: Offers multiple operating modes, including DMX (3, 4, 5 or 10 channels), standalone mode with 9 pre-programmed shows, 25 color presets and master/slave control to synchronize multiple units.
-
Advanced User Interface: Incorporates a touch control panel with LED screen, which also has a password lock function to prevent unauthorized access or changes to the settings.
-

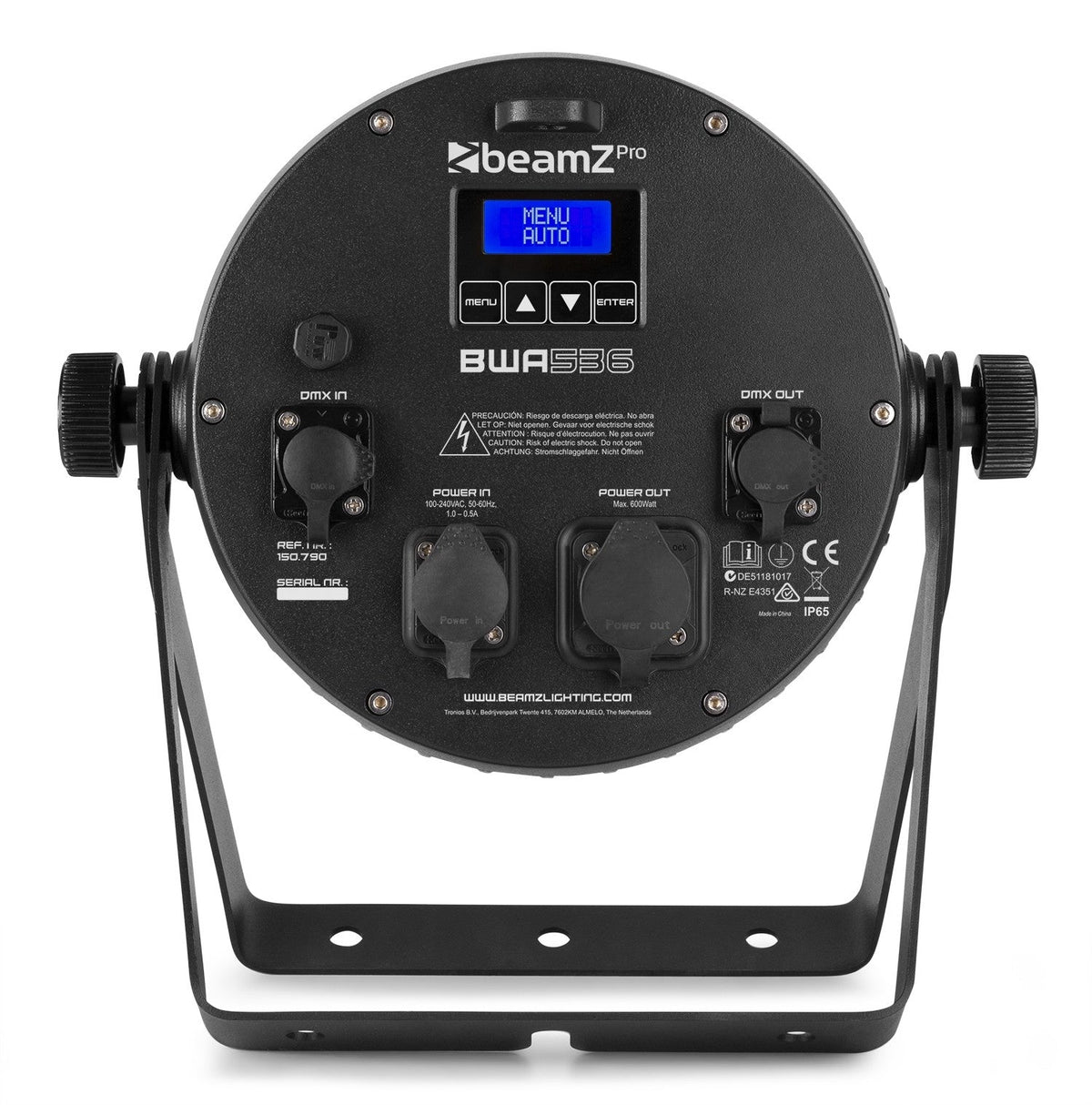

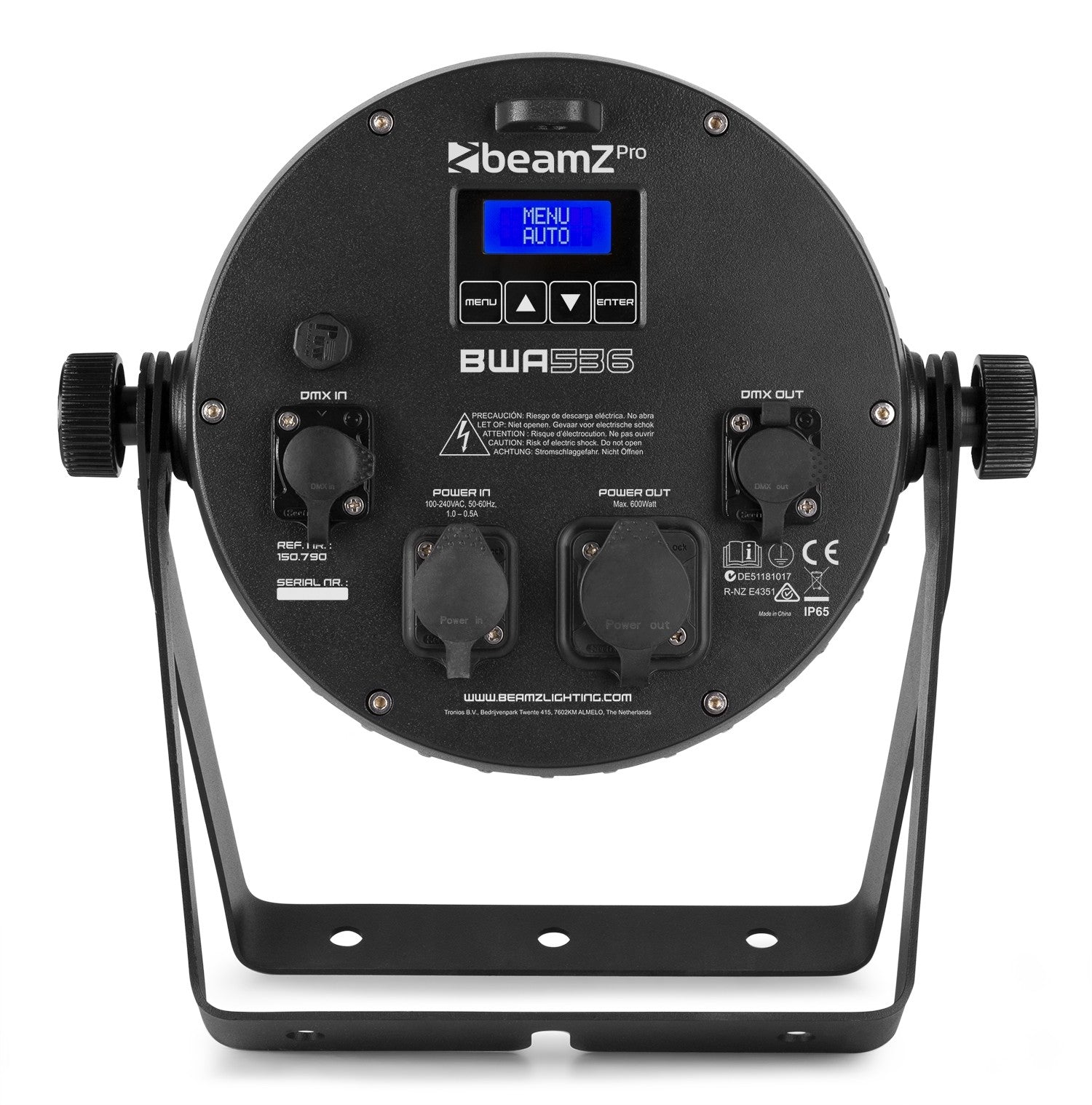

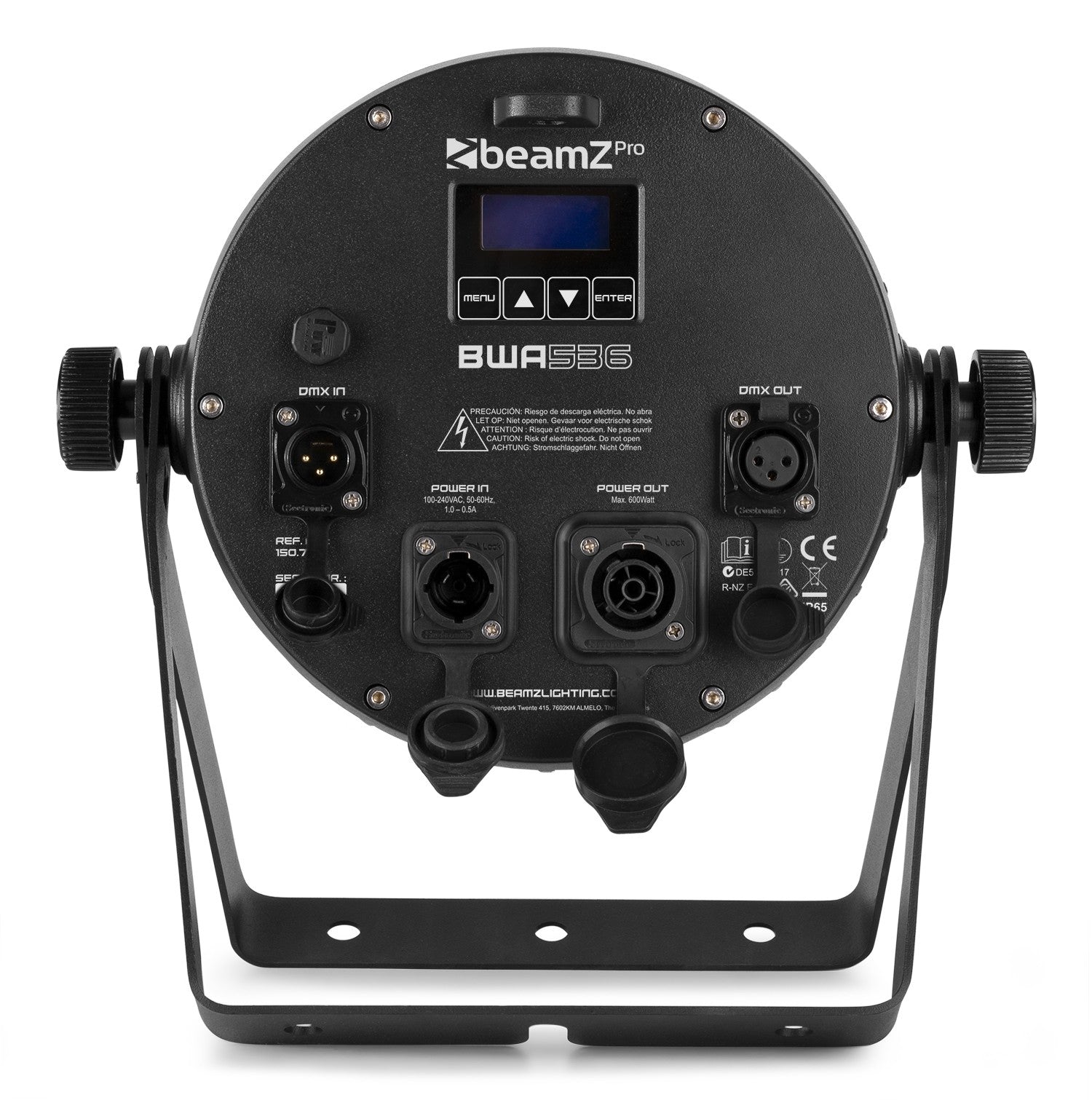

Professional Connectivity: It has fully waterproof DMX input and output connections (3-pin XLR) and power connections (Powercon TR type), allowing multiple spotlights to be linked safely and efficiently.
Product Benefits
The beamZ Pro BWA536 is designed for professionals seeking reliability, power, and versatility. Its ability to produce such a wide color gamut makes it a top-tier creative tool for lighting designers. The rugged construction and IP65 rating provide peace of mind, eliminating concerns about adverse weather conditions. Furthermore, ease of installation, thanks to the included mounting bracket and the ability to daisy-chain power and DMX, optimizes setup and teardown times for any production.
Use Cases
This LED PAR spotlight is exceptionally versatile and suitable for a wide variety of professional applications:
-
Architectural Lighting: Highlights building facades, monuments, bridges and gardens with static or dynamic colors.
-

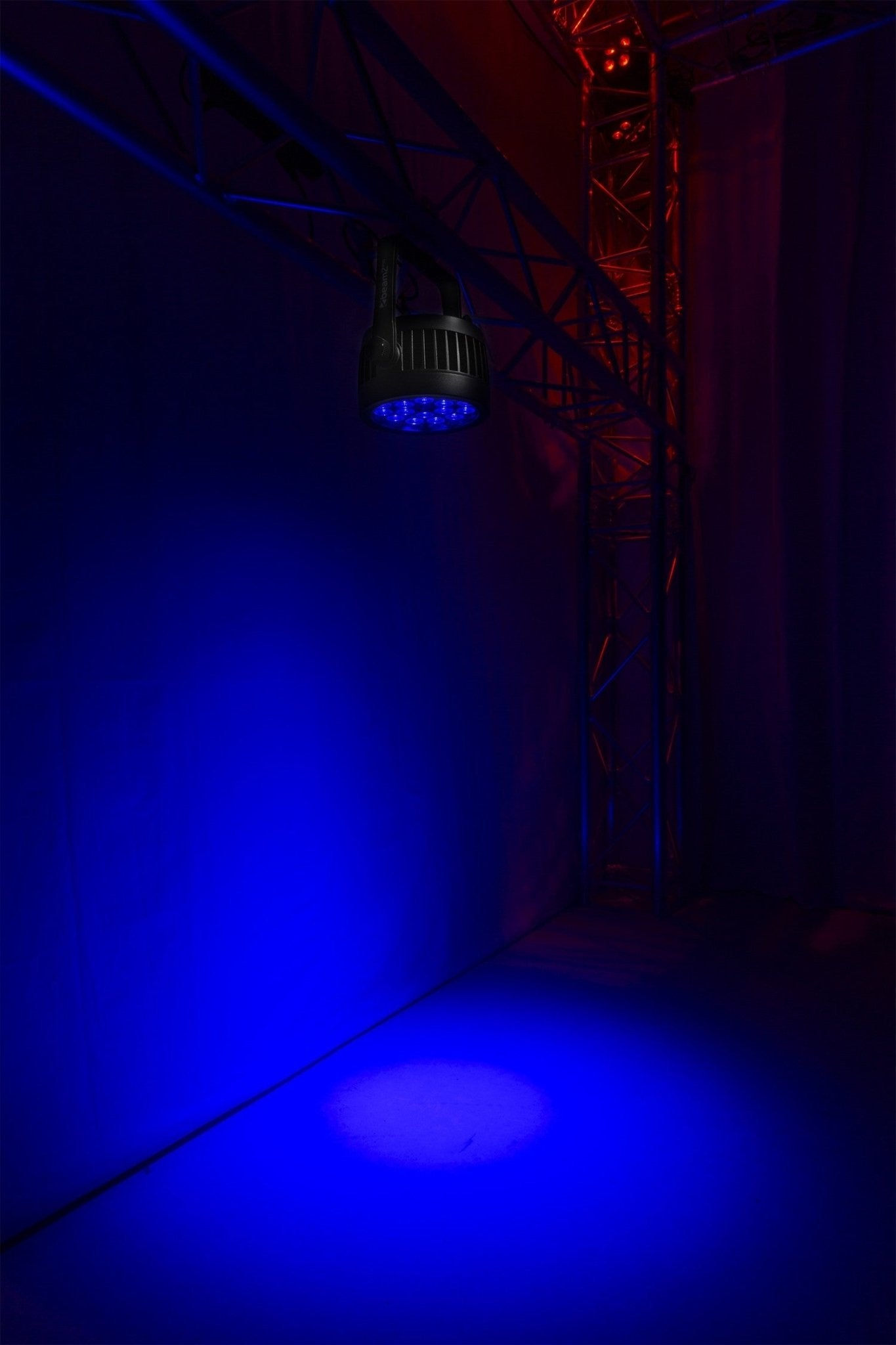

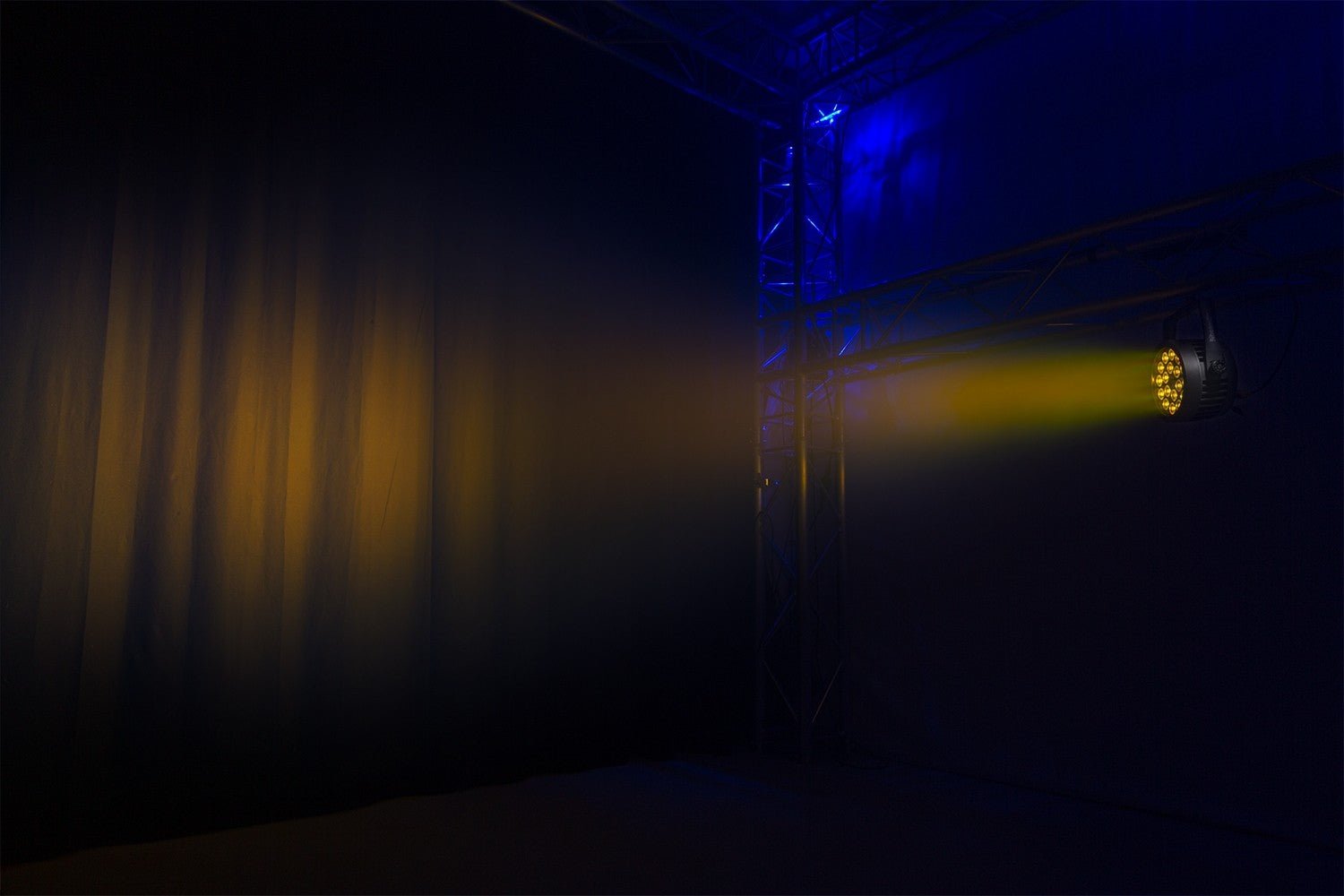

Live Events and Shows: Ideal as a wash light or effect light on stages for concerts, festivals and outdoor theaters.
-
Rental and Production Companies: A profitable and long-lasting investment thanks to its robust construction and adaptability to different types of events.
-
Fixed Installations: Perfect for theme parks, clubs, terraces and other venues that require a permanent, low-maintenance lighting solution.
Frequently Asked Questions
- Can this light bulb be used safely in the rain?
- Yes. Its IP65 rating guarantees that it is protected against water jets from any direction, so it is perfectly suitable for outdoor use in the rain.
- Do I need a DMX control console to use it?

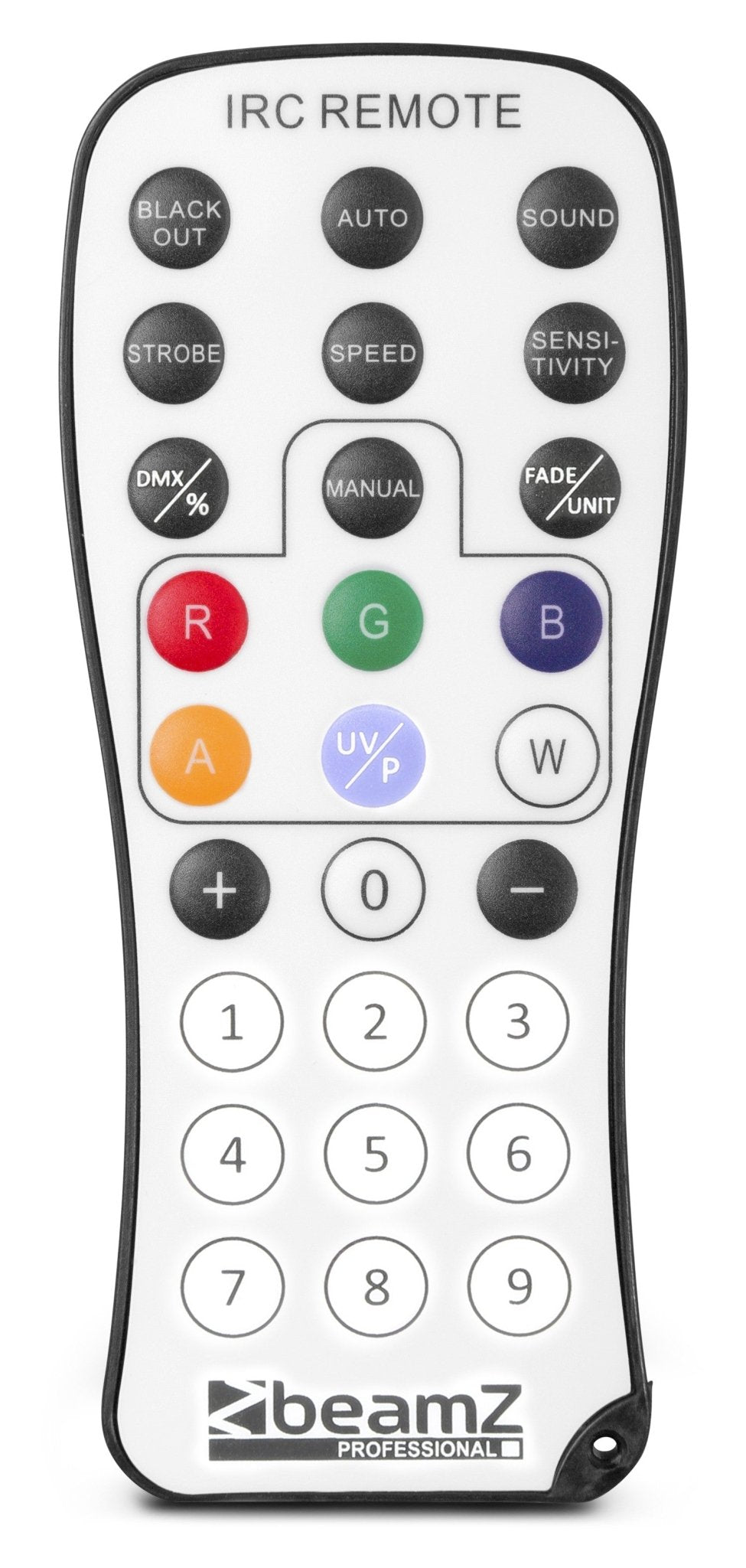

- It's not strictly necessary. The spotlight includes standalone operating modes with 9 automatic programs and 25 preset colors that can be activated directly from its control panel or with the included remote control.
- What does it mean that the LEDs are 4 in 1?
- This means that each of the 18 LEDs contains four individual colored diodes (Red, Green, Blue, and White) in a single package. This allows for a much more precise and uniform color mix directly at the light source, eliminating the color shadows that older LEDs could produce.
- Is it possible to connect multiple units in a chain?
- Yes. The BWA536 is equipped with input and output connectors for both DMX signal and power supply, allowing multiple units to be linked easily and efficiently using a single power point and a single data line.
Project description
PAR spotlight for outdoor use with an aluminum housing and IP65 protection rating. The light source consists of 18 x 12W LEDs with 4-in-1 RGBW technology. It features optics with a 22° beam angle and a 38° field of view, providing 12,000 lx of illumination at 1 meter. Control is via DMX in 3, 4, 5, or 10-channel modes, or in standalone and master/slave modes. It includes an electronic dimmer (0-100%) and a strobe effect (1-20 Hz). Connections include DMX input/output via 3-pin XLR and power input/output via waterproof TR1 P-Con connectors. Compatible with 100-240VAC 50/60Hz power supplies. Dimensions are 310 x 300 x 155 mm and it weighs 5.2 kg.
