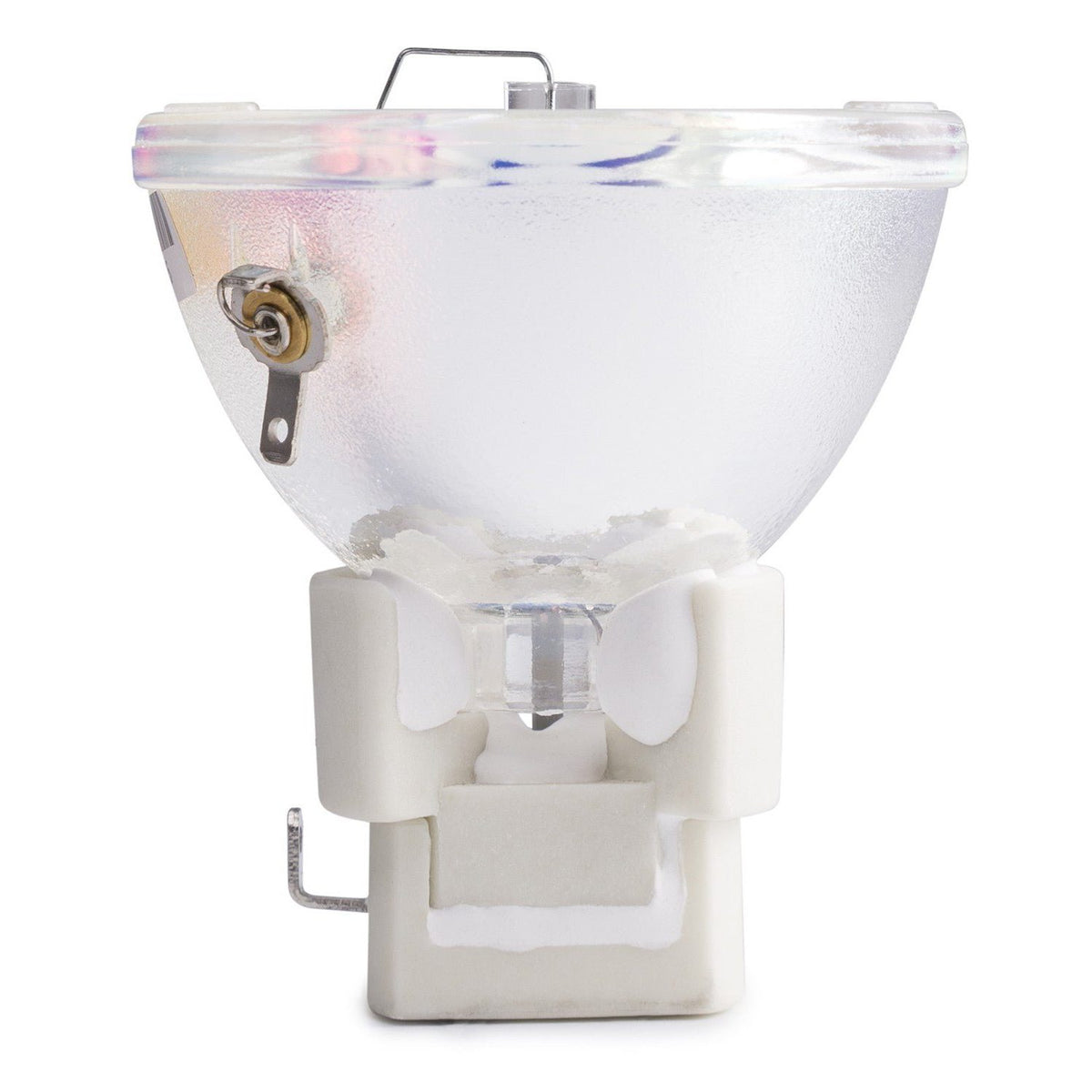

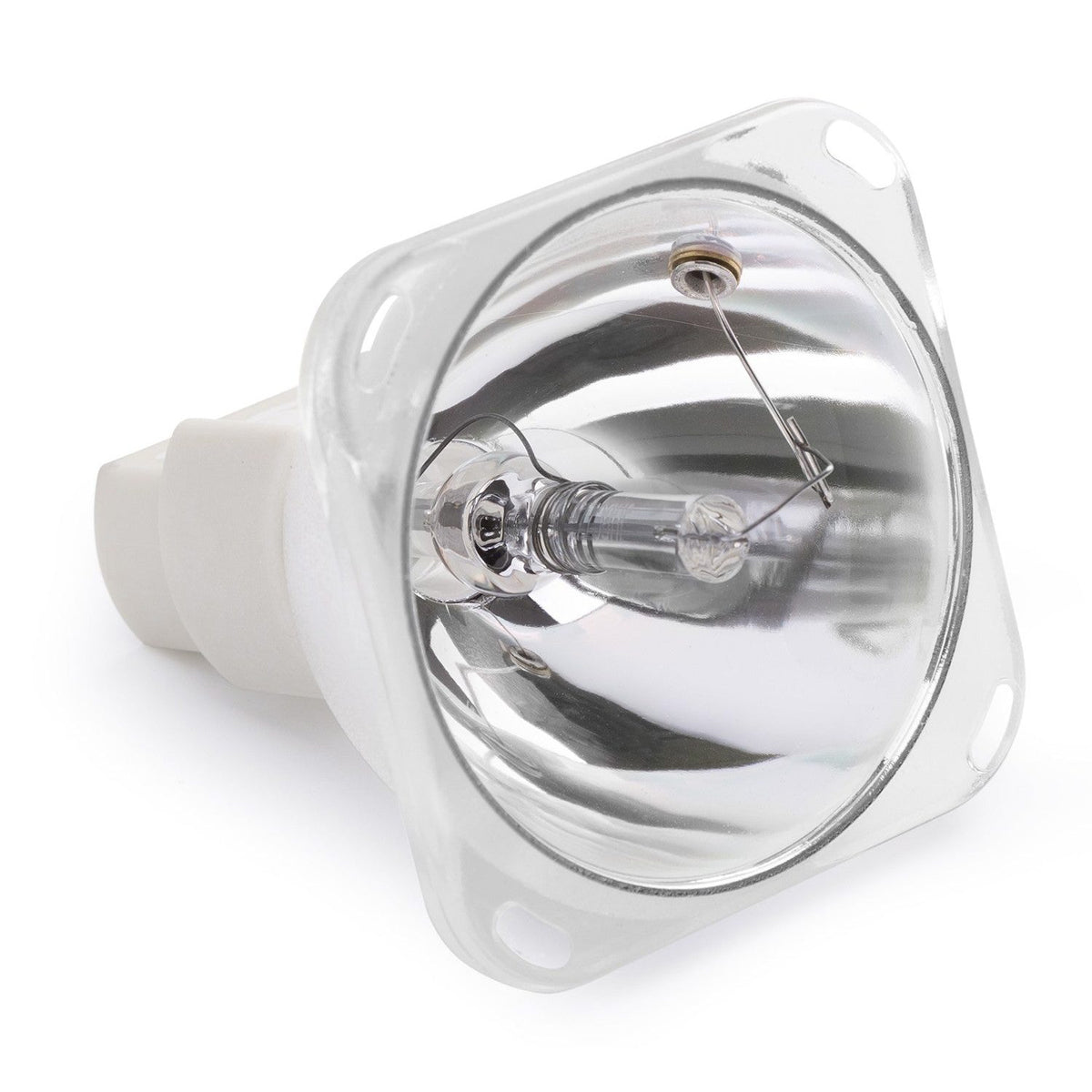

beamZ MSD230 TIGER E 7R - 7R Lamp 230 W, 8,000 K, 10,000 lm and 1.3 mm arc
The beamZ MSD230 TIGER E 7R is a 230W 7R discharge lamp designed as a professional replacement for compatible moving heads and beam spotlights. Its short 1.3mm arc focuses the light into a defined beam, with a luminous flux of 10,000 lm and a color temperature of 8,000 K for crisp color rendering and high contrast. With a lifespan of over 1,500 hours and the ability to operate in any position , it is a reliable solution for rentals, tours, and events that demand sustained brightness and clean colors.
Its compact dimensions ( 52 × 52 × 55 mm ) and 7R format facilitate replacement in compatible equipment. Thanks to its optimized design, it offers stable start-up and a powerful beam that cuts through smoke and stage fog, maintaining consistent quality throughout its lifespan.
Main features
-
Source : 7R 230W lamp (MSD 7R 230W).
-
Arc : 1.3 mm for concentrated beam and high punch .
-
Luminous flux : 10,000 lm .
-
Color temperature : 8,000 K (cool white, vivid colors).
-
Average lifespan : > 1,500 hours .
-
Job position : any .
-
Dimensions : 52 × 52 × 55 mm ; weight : 0.085 kg .
Product benefits
-
Powerful and defined beam : the 1.3 mm arc produces a narrow beam with great range.
-
Clean colors : 8,000 K for bright whites and gobo/color wheel with high saturation.
-
Optimized cost per hour : average life > 1,500 h which reduces downtime and replacements.
-
Real compatibility : 7R 230W format widely used in 230W beam heads.
Use cases
-
Rental companies : preventive maintenance of 7R parks with approved spare parts.
-
Tours and festivals : quick replacement in 230W beam head rigs .
-
Corporate events and clubs : bright and stable beam for smoke/fog shows.
Frequently Asked Questions
Is it compatible with my 7R bulb?
If your device specifies MSD 7R 230W as the lamp, this reference is correct. Always check the manufacturer's manual.
Can I install it in any orientation?
Yes. The working position is "any" , which facilitates assembly in different configurations.
Usage recommendations?
Avoid touching the quartz bulb with your hands; wear gloves. Allow it to cool before handling and respect the power-on cycles.
Installation and maintenance tips
- Clean the bulb holder and optics during replacement to maintain performance.
- Do not exceed the on/off cycles recommended by the light bulb manufacturer.
- Replace the lamp when you notice a clear loss of brightness or changes in color.
Project description
beamZ MSD230 TIGER E 7R lamp, MSD 7R 230 W. Arc 1.3 mm , 10,000 lm , 8,000 K. Average life > 1,500 h . Working position : any. Dimensions : 52 × 52 × 55 mm. Weight : 0.085 kg.
