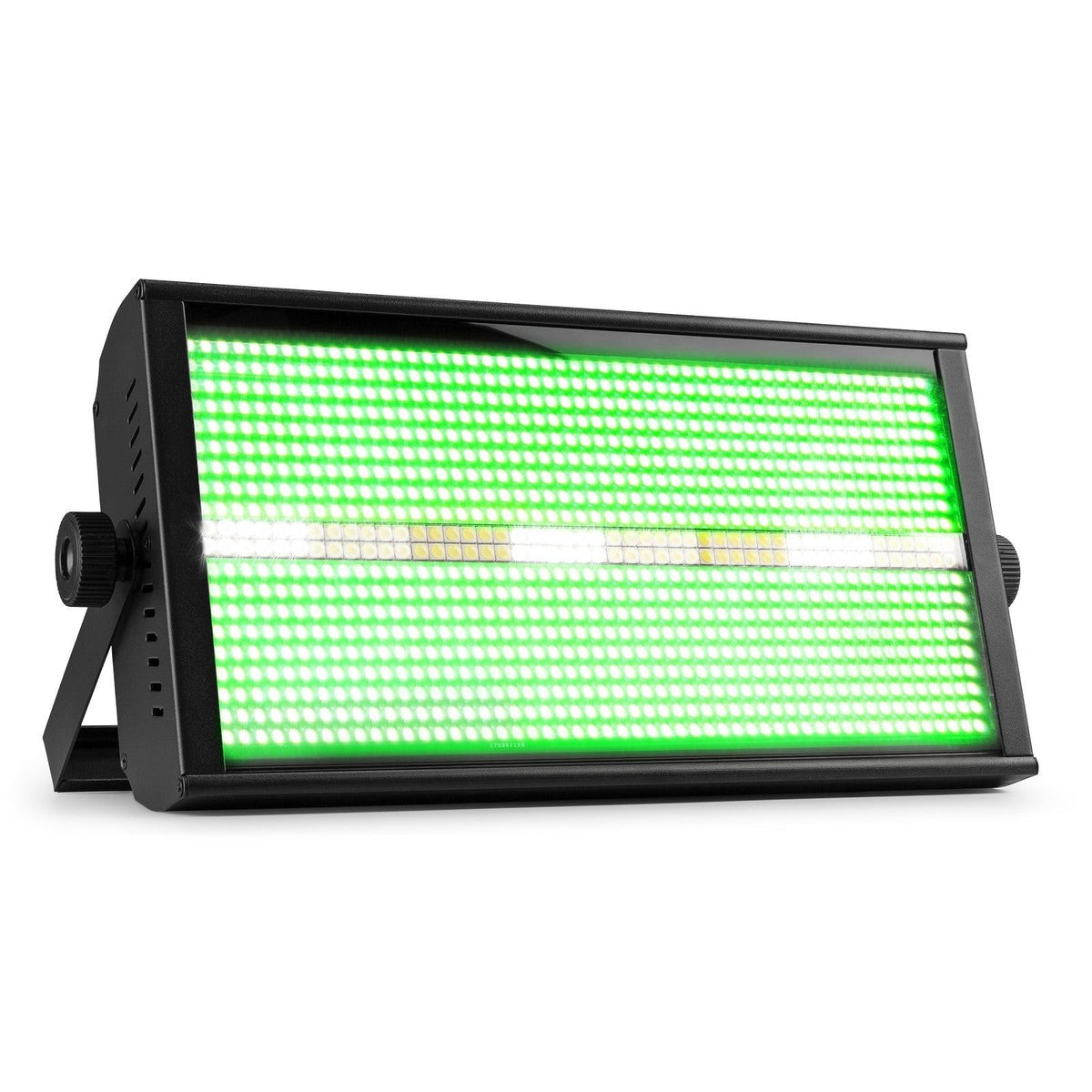

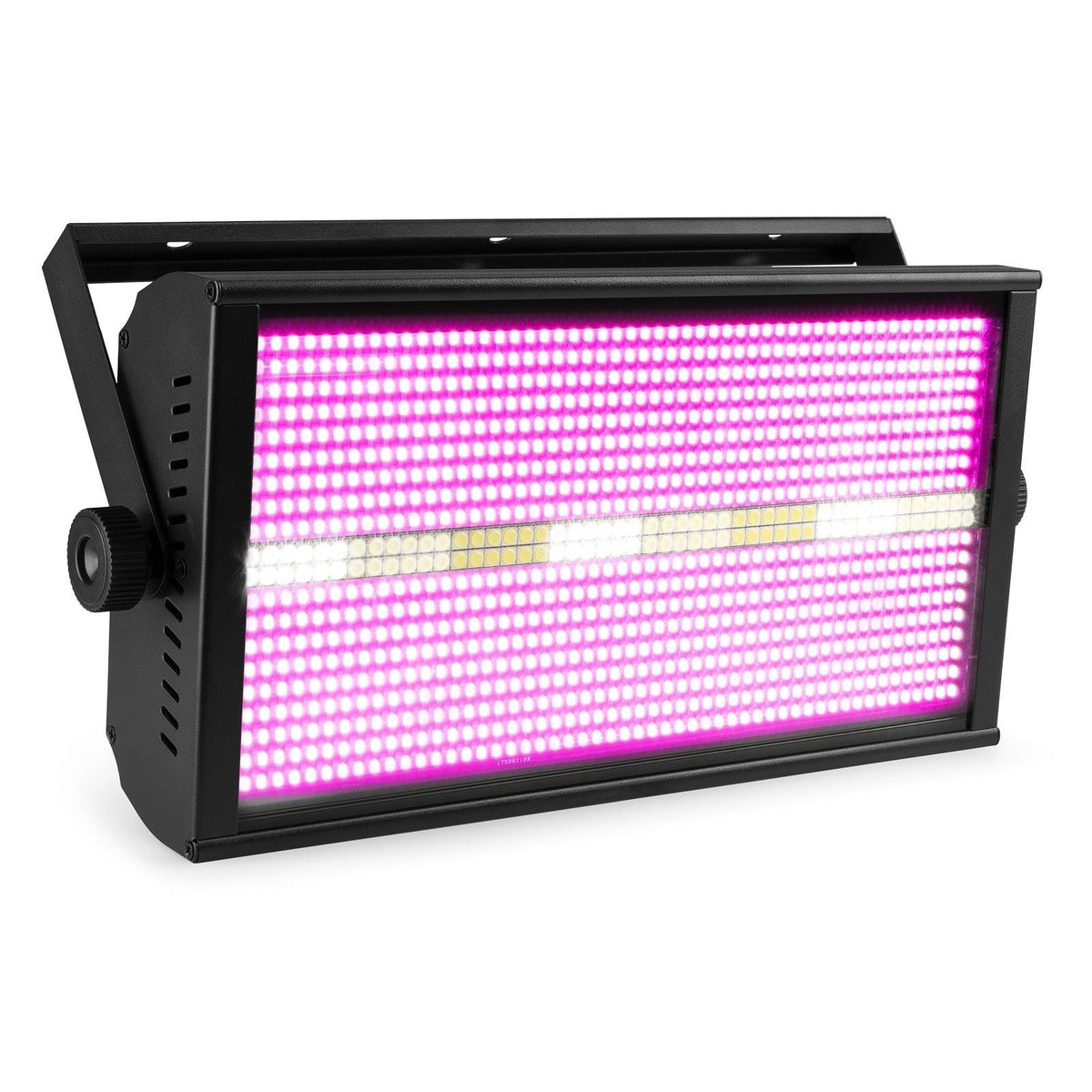

beamZ BS960 - 3-in-1 RGBW Strobe, Blinder and Wash with 960 SMD LEDs and 16-segment control
The beamZ BS960 is a 3-in-1 luminaire that combines strobe , blinder , and wash functions in a single unit, designed for touring, rental, and events where power and versatility are essential. It features 864 RGB SMD LEDs for color and a central strip of 96 white SMD LEDs that replicates the classic look of a strobe. The panel is divided into 16 segments (8 color and 8 white) to create clicks, sweeps, and advanced patterns . It is controlled via DMX512 with 4/11/32/39 channels depending on the mode, and can operate in standalone or Master/Slave configurations with automatic programs and adjustable speed. Its metal housing with fan cooling ensures reliability under heavy use; the power input/output connectors allow for daisy-chaining for quick installations. With a beam angle of 44° × 61° , a field angle of 102° × 108° and an illuminance of 21,182 lx at 1 m , the BS960 covers everything from spot flashes to uniform washes with RGB + cool white mixing.
Main features
-
3-in-1: strobe, blinder and wash in one unit.
-
LED source: 864 × SMD RGB + 96 × SMD white (total 960 LEDs).
-

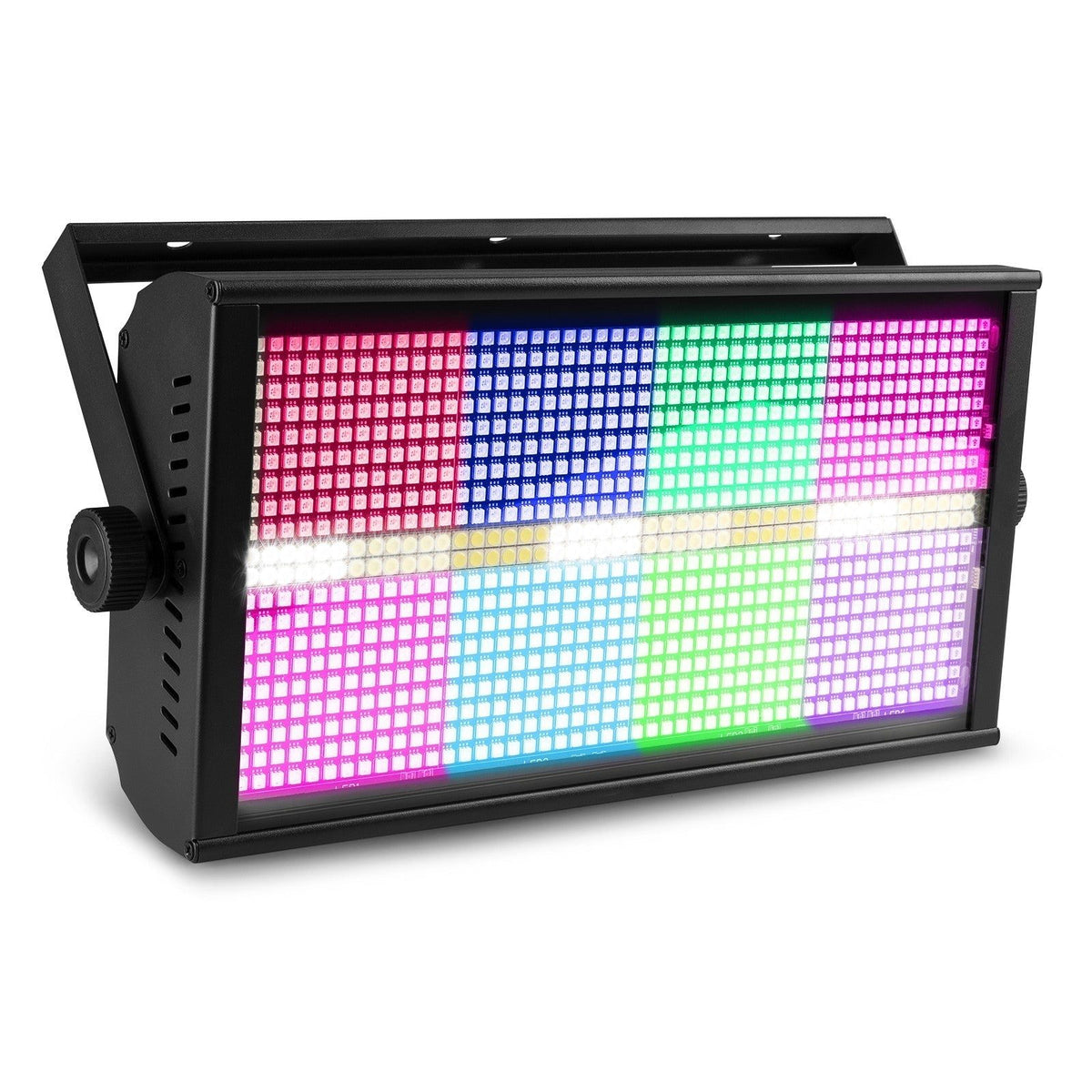

Segment control: 16 zones (8 RGB + 8 white) for dynamic effects.
-
Control modes: DMX512 (4/11/32/39 ch), stand-alone and Master/Slave.
-
Programs and macros: automatic and pre-shows with adjustable speed 1–100 .
-
Optics: beam 44° × 61°; field 102° × 108°; 21,182 lx @ 1 m .
-
Professional construction: metal chassis, fan cooling , IP20 .
-
Connectivity: DMX XLR 3 pin ; power in/out for daisy-chaining.
-
Included accessories: mounting bracket and power cable.
-
Compact format: 450 × 75 × 240 mm; 3.7 kg .
Product benefits
-
Maximum versatility: a single fixture covers strobe hits , blinders and color washes.
-
Creative zone design: 16 segments for chasers, partial strobes, and section transitions.
-
Quick integration: Low/high resolution DMX (4/11/32/39 ch) and power daisy chain for clean wiring.
-
Agile workflow: internal programs for quick shows without a console; multiple dimmer curves for a more natural fade .
-
Live robustness: metal casing and active ventilation for long days.
Use cases
-
Festivals and clubs: strobe and blinding bursts synchronized by segments.
-
Corporate events: homogeneous color washes and impactful accents.
-
Rental companies: 3-in-1 fixture that reduces inventory and assembly times.
Frequently Asked Questions
-
What DMX modes does it offer? 4, 11, 32 and 39 channels to choose from for basic or advanced zone control.
-
What is the flash frequency? From 1 to 30 Hz depending on the setting.
-
Can the power supply be daisy-chained? Yes, it has power in/out to pass current between units.
-
What accessories are included? Mounting bracket and power cable .
Usage recommendations
- In crowd lighting setups, it uses responsible strobe levels and complies with venue regulations.
- Ensures ventilation around the grilles and prevents obstructions.
- For fine control of color and zones, use the 32/39 channel DMX modes.
Project description
Strobe/blinding/wash light with 864 × RGB SMD LEDs + 96 × white SMD LEDs , 16 segments (8 RGB + 8 white), DMX512 4/11/32/39 ch , beam 44° × 61° , field 102° × 108° , 21,182 lx @ 1 m , IP20 , power in/out , 450 × 75 × 240 mm , 3.7 kg ; includes bracket and cable.
