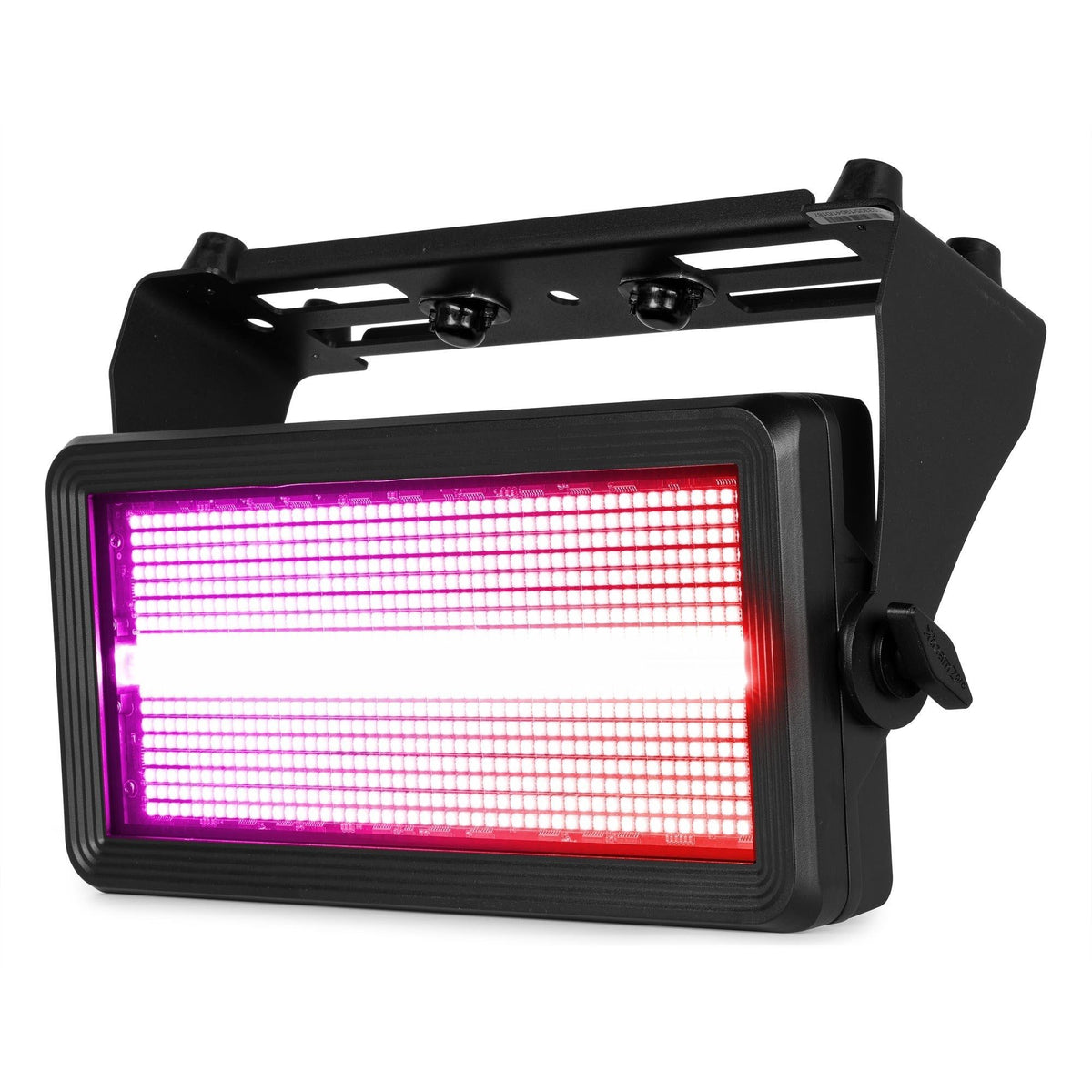

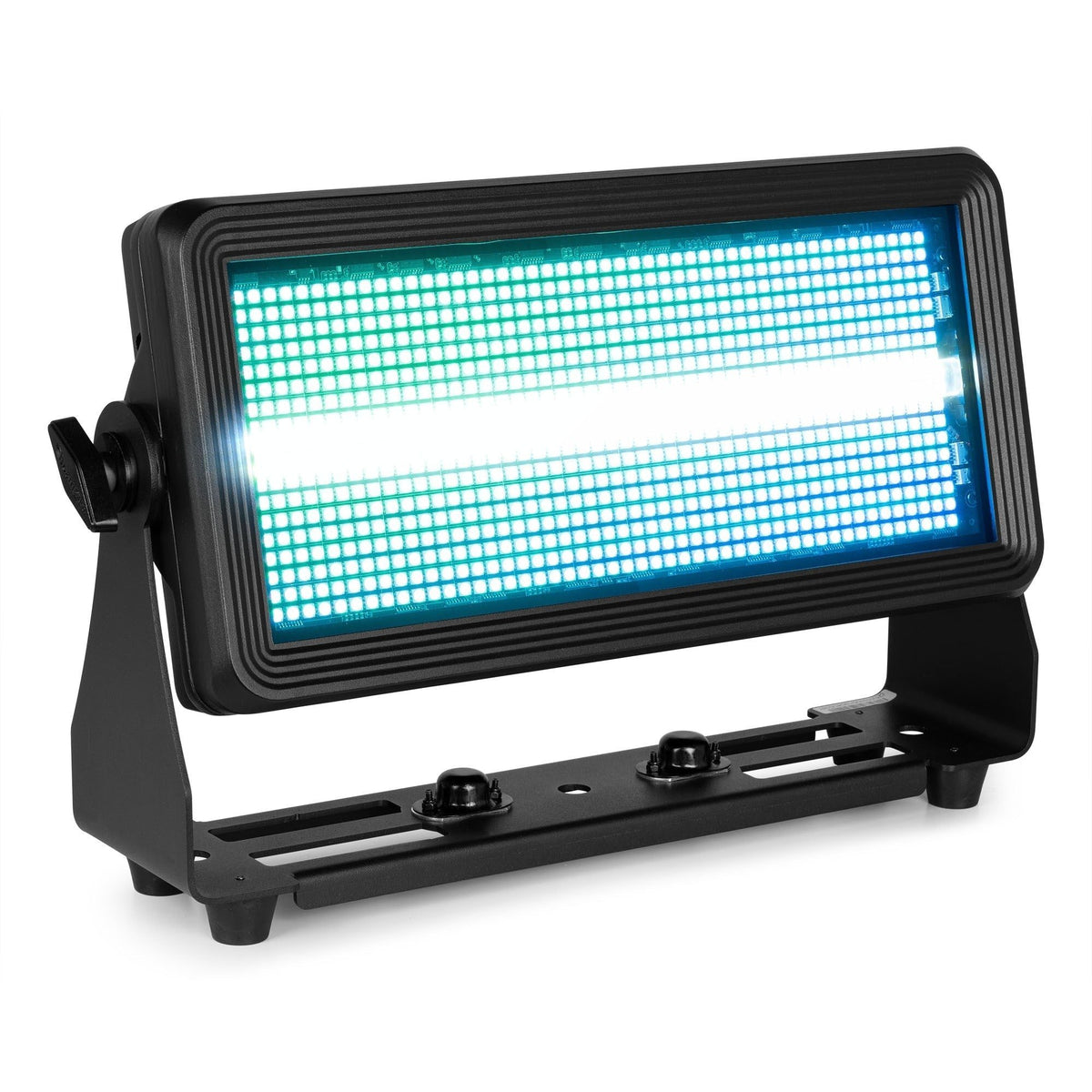

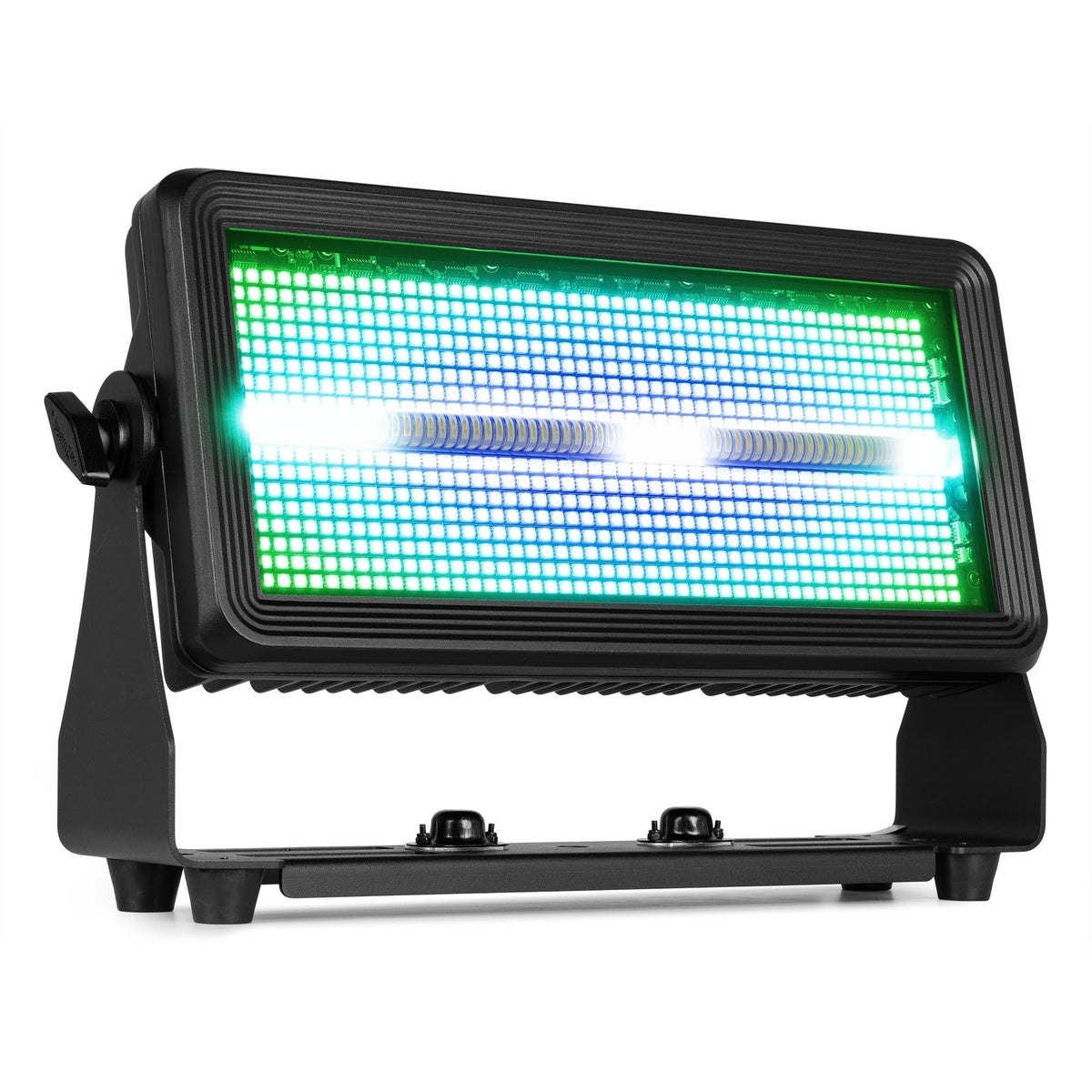

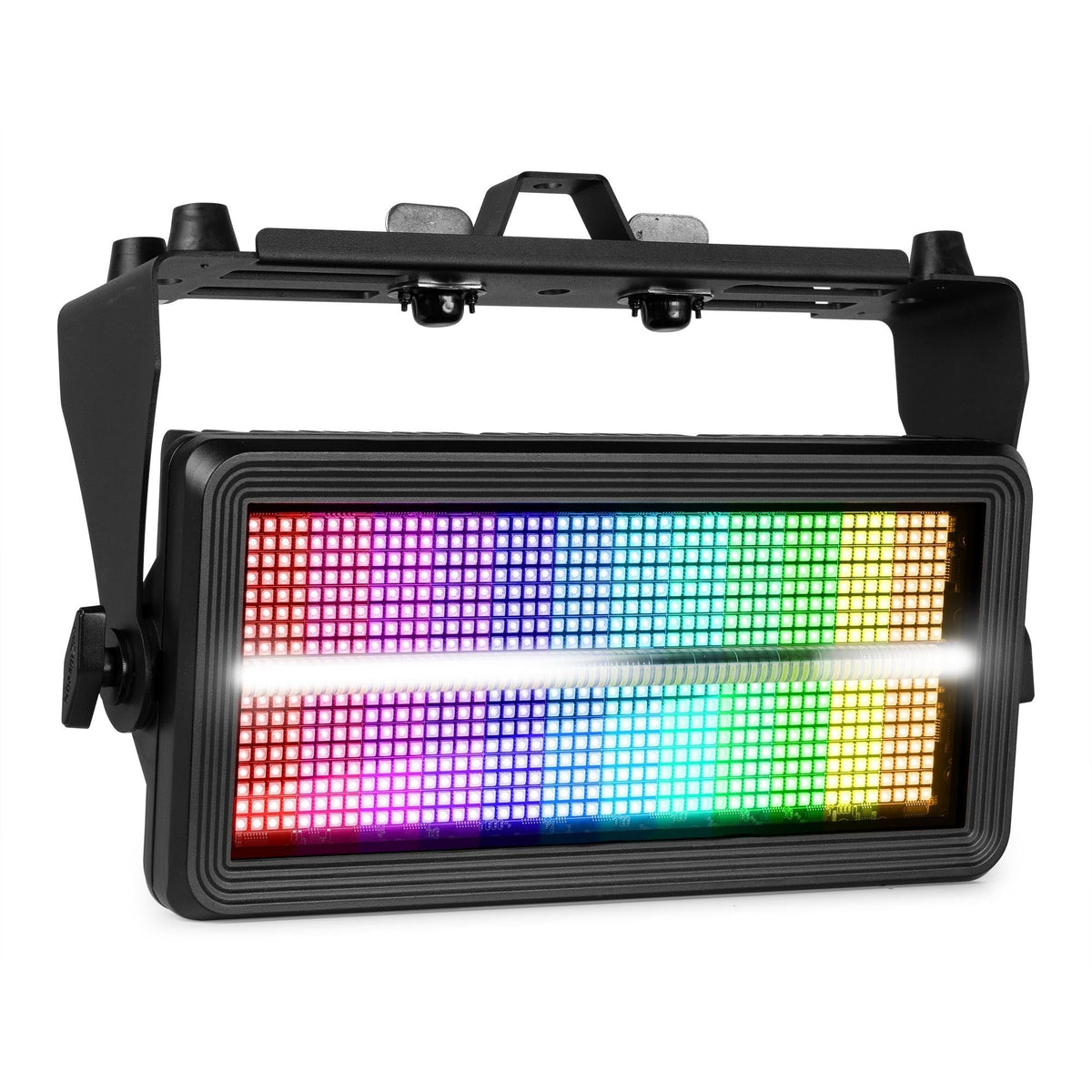

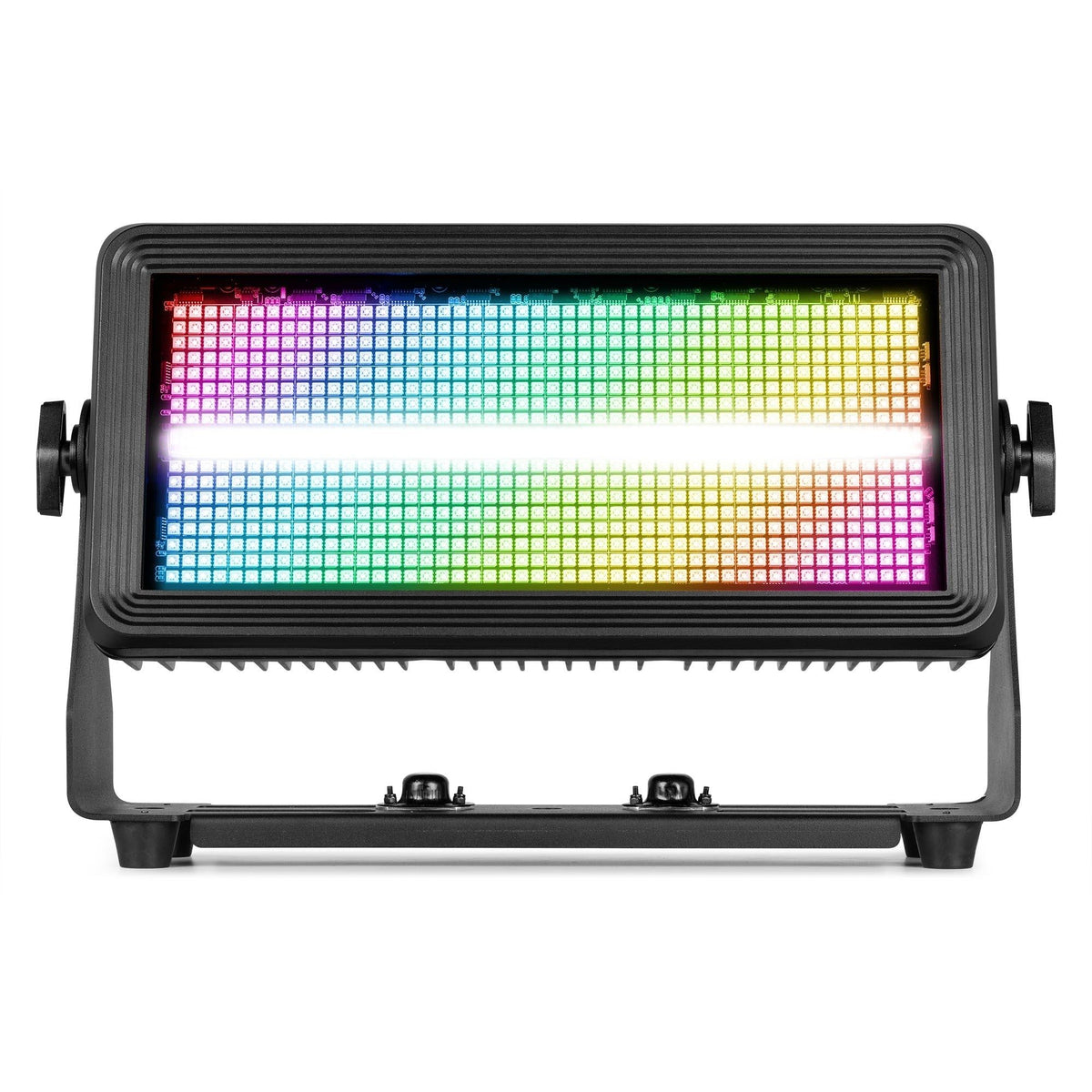

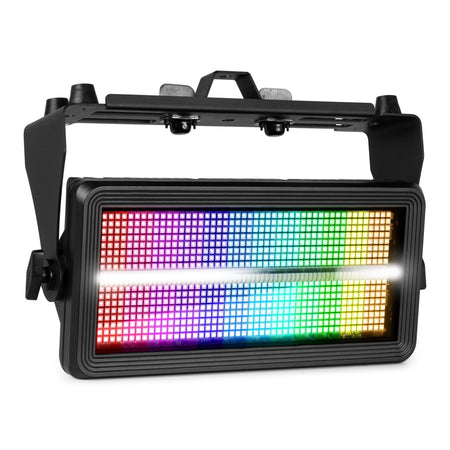

beamZ Pro BS1100IP - Powerful RGB/CW LED Strobe and Blinder for Outdoor Use
The beamZ Pro BS1100IP is a multifunctional professional lighting fixture designed to deliver exceptional performance as a strobe, blinder, or visual effects light. Its rugged, IP65-rated construction makes it perfectly suited for the rigors of touring, festivals, and events, both indoors and outdoors, ensuring reliable operation in any weather conditions.
At the heart of the BS1100IP lies an advanced dual LED system. On one hand, a main panel composed of 768 RGB SMD LEDs enables the creation of vibrant strobe effects and color washes, with smooth yet powerful color blending. This panel is segmented into 96 individually controllable sections, opening up a wide range of possibilities for creating complex pixel-mapping effects and dynamic animations. Complementing the color panel, a central strip of 128 high-power Cool White SMD LEDs, divided into 16 sections, provides the classic, impactful, high-intensity strobe effect demanded by the most energetic productions. The combination of both LED systems allows not only the use of the effects separately but also their blending for unique and spectacular visual results.
Built on a rugged aluminum housing, the BS1100IP utilizes a convection cooling system. This means it has no fans, ensuring completely silent operation—a crucial factor for applications in theater, television, or corporate events where ambient noise is a concern. Its LCD control panel facilitates manual setup and access to its multiple operating modes, including automatic programs, manual control, master/slave mode, and, of course, full DMX integration.
Main features
-
Hybrid Lighting System: Combines 768 RGB SMD LEDs for color effects and 128 cool white SMD LEDs for a powerful traditional strobe effect, functioning as a strobe, blinder and effects luminaire in a single unit.
-
Creative Zone Control: Offers comprehensive control over 96 RGB pixel zones and 16 white pixel zones, ideal for creating smooth animations, patterns, and video-mapping effects.
-
Rugged Outdoor Design: Its IP65 rating guarantees complete protection against dust ingress and low-pressure water jets, making it a reliable solution for outdoor festivals, concerts, and all kinds of outdoor events.
-
Completely Silent Operation: The aluminum casing is designed for passive convection cooling, eliminating the need for fans and ensuring noise-free operation.
-
Professional Control Flexibility: Equipped with multiple DMX modes (4, 17, and 129 channels) to accommodate varying levels of programming complexity. It also includes standalone modes with automatic programs and master/slave functionality.
-
Advanced Dimmer Functions: Incorporates several adjustable dimming curves to achieve smooth transitions and fades, adapting to the demands of any production.
Benefits for the lighting professional
The BS1100IP was designed with versatility and reliability in mind. For lighting designers and technicians, this fixture reduces the need for multiple types of luminaires in a single setup, optimizing space and installation time. Its ability to function as a powerful strobe, a high-impact blinder, and a dynamic color effects luminaire makes it an invaluable creative tool. The peace of mind provided by its IP65 rating allows for worry-free use in any environment, while its quiet operation makes it suitable for even the most sound-sensitive stages.
Use cases
Thanks to its power, flexibility and robustness, the beamZ Pro BS1100IP is the perfect choice for a wide range of applications:
-
Festivals and outdoor concerts: Providing massive strobe and blinding effects that cover large areas.
-
Touring productions: Their durable construction withstands the demands of the road.
-
Clubs and discos: Creating an energetic atmosphere with dynamic and powerful lighting effects.
-
Architectural lighting: Highlighting facades and structures with color washes and stroboscopic effects.
-
Television and theatre studios: Offering a versatile and silent light source for special effects.
Frequently Asked Questions
- Can I use the BS1100IP in the rain?
- Yes. Its IP65 rating ensures it is protected against water jets from any direction, making it safe for use in rainy conditions.
- Do I need a DMX control console to use it?
- Not necessarily. The BS1100IP includes pre-configured automatic programs and a master/slave mode that allows multiple units to be synchronized without an external controller. However, for complete creative control over colors and pixel zones, the use of a DMX controller is recommended.
- Does the equipment generate a lot of noise?
- No. This device uses a passive convection cooling system, which means it has no internal fans. It operates completely silently.
- What type of connectors does it use?
- It uses 3-pin XLR connectors for DMX signal input and output and dedicated power connectors with protection for outdoor use.
Project description
Multifunctional outdoor strobe/blinder luminaire with IP65 rating. Hybrid light source composed of 768 x 0.5W RGB SMD LEDs and 128 x 3W cool white SMD LEDs. Sectional controllable: 96 RGB zones and 16 white zones. Beam angle of 54° x 65° and field angle of 115° x 116°. Adjustable flash rate from 1 to 20 Hz. Control modes: DMX512 (4/17/129 channels), standalone, manual, and master/slave. Aluminum housing with passive convection cooling for quiet operation. Control panel with LCD display. 3-pin DMX connectors and power input/output connectors. Power supply: 100-240VAC 50/60Hz.
