beamZ Pro Pendant 250W RGBAL LED House Light - Professional pendant lamp for lighting rooms and theaters

beamZ Pro Pendant 250W RGBAL LED House Light - Professional pendant lamp for lighting rooms and theaters

The beamZ Pro Pendant 250W RGBAL LED House Light is a professional pendant lamp designed to provide uniform, powerful, and high-quality lighting in theaters, auditoriums, studios, event spaces, places of worship, galleries, and all types of interior architectural installations. Its 250W RGBAL COB LED engine (red, green, blue, amber, and lime) offers precise color mixing and an expanded spectrum, allowing for both intensely saturated colors and extremely nuanced white and pastel tones.

It comes standard with an 80° diffusing lens , ideal for general room lighting with wide and even coverage. It also includes three interchangeable lenses ( 35°, 45°, and 60°) , allowing you to adjust the beam angle according to ceiling height, distance to the area to be illuminated, or the desired effect. With an illuminance of 52,185 lx at 1 m , this luminaire guarantees more than enough light for demanding professional applications.

Its compact and lightweight aluminum body, finished in black, blends discreetly into any room design or fixed installation. The fanless convection cooling system and intelligent temperature control ensure quiet operation, ideal for theaters, television studios, recording studios, or spaces where background noise must be kept to a minimum.

The internal controller offers automatic modes, internal programs, color macros, chase, and DMX operation with various channel maps, as well as master/slave mode for multi-unit installations. Configuration is handled via a clear OLED display with a 4-button menu, while professional connectivity is provided by a 5-pin DMX connector and a P-Con TR1 power connector . All of this makes the Pendant 250W RGBAL a complete , high-power LED room lighting solution for intensive use in audiovisual installations and integration projects.

Main features

• Professional indoor pendant lamp designed as a house light for theaters, auditoriums, churches, event centers and architectural spaces.
• 250W RGBAL COB light source with 5-in-1 LED (red, green, blue, amber, lime) that offers an expanded color spectrum and very fine blends.
• Pre-installed 80° diffusing lens for wide and uniform coverage in large rooms and surfaces.
• Three additional interchangeable lenses of 35°, 45° and 60° to adapt the beam angle to different heights and lighting needs.
• Illuminance of 52,185 lx at 1 m , suitable for applications where a high and controlled light level is required.
• Adjustable LED refresh rates between 1200 Hz and 20 kHz , ideal for avoiding flickering in video recording and broadcast environments.
• Built-in color macros and chase sequences to generate dynamic effects without the need for complex programming.
• Automated programs and master/slave mode operation to synchronize multiple units.
• Compact, lightweight and robust aluminum body with a discreet black finish and professional appearance.
• OLED display with 4-button menu for clear and quick configuration directly on the luminaire body.
• Operating modes : automatic programs, static mode, DMX control and master/slave.
• Intelligent temperature control and convection cooling for quiet, fanless operation.

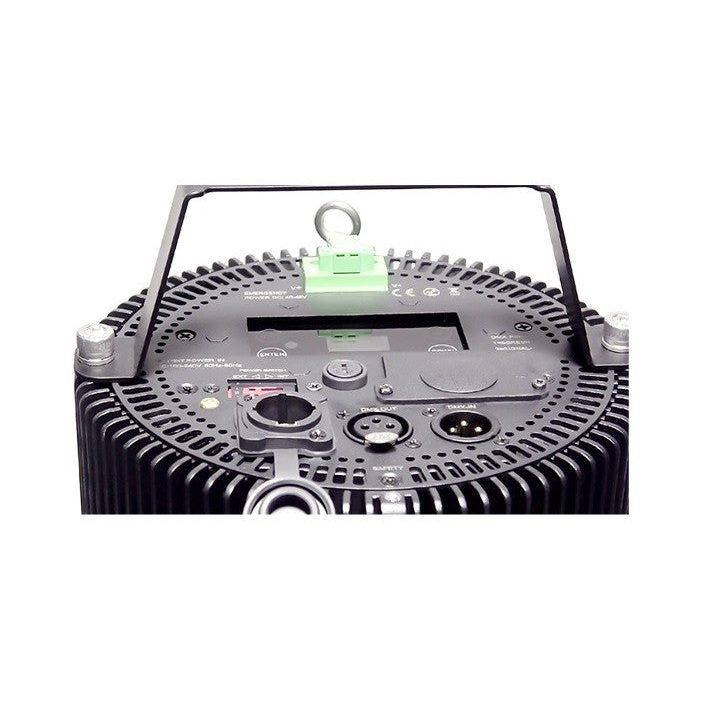

• 5-pin DMX input/output for integration into professional control networks.
• P-Con TR1 power connector or standard AC power connection.

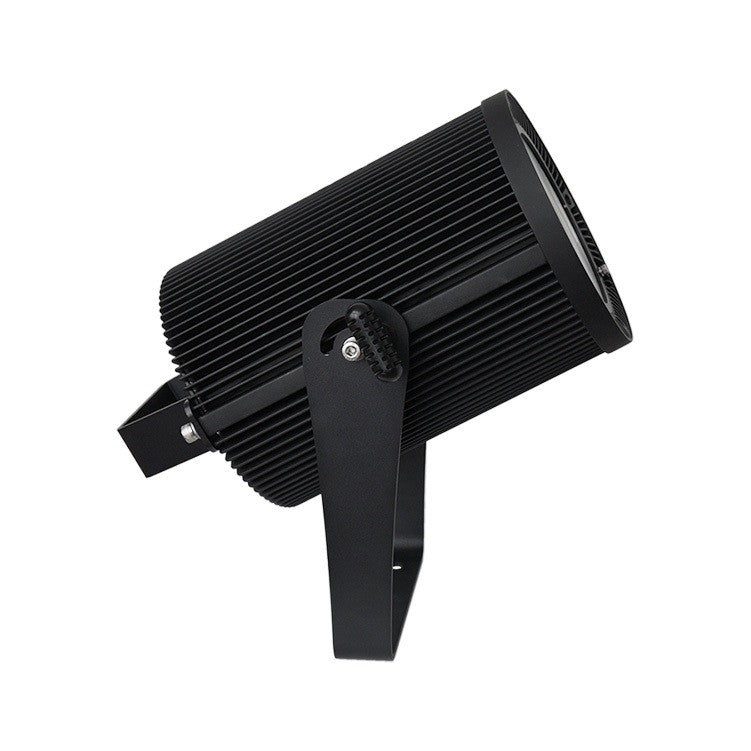

• Dual mounting brackets included for easy hanging installation and tilt adjustment.
• IP20 protection rating , suitable for indoor installations.
• Approximate dimensions of 395 x 265 x 330 mm (length x width x height).
• Weighing approximately 7.2 kg , it is robust yet manageable for installation.
• Includes mounting bracket and power cable, ready to install.

Product benefits

• Homogeneous and professional room lighting : the wide 80° beam with the possibility of narrowing the angle using optional lenses allows covering everything from large surfaces to more specific areas with a single family of luminaires.
• Great chromatic versatility : the RGBAL combination offers warm, cool, pastel whites and saturated colors with smooth transitions, ideal for both functional lighting and scenic and decorative environments.
• Quiet environments : Passive convection cooling and intelligent thermal control avoid the use of fans, eliminating operating noise in theaters, concert halls, recording studios or film sets.
• Energy saving and long lifespan : the 250W LED technology replaces traditional, higher-consumption luminaires, reducing electricity demand and maintenance, while maintaining a very high light level.
• Easy integration into professional systems : 5-pin DMX control with multiple channel maps (including HSV channels) allows for direct integration into existing consoles and control systems.
• Programming flexibility : Automatic programs, color macros, and master/slave mode allow for quick solutions for fixed installations where complex programming is not required, while maintaining the option of advanced DMX control when needed.
• Video and broadcast compatibility : Configurable refresh rates between 1200 Hz and 20 kHz reduce the risk of visible flickering on cameras, ideal for installations in studios, hybrid rooms or auditoriums with broadcasting.
• Discreet and modern design : the black aluminum casing integrates easily into ceilings, truss structures or architectural designs, without altering the aesthetics of the space.

Use cases

• Theaters and auditoriums : general hall lighting, foyers, corridors and access areas, combining functional light with the ability to create atmospheres and scenes of color.
• Cultural centers and multipurpose halls : a unique solution for lighting corporate events, shows, chamber concerts or conferences.
• Churches and places of worship : discreet lighting of the nave and altar with the possibility of adapting color temperature and atmosphere according to the event.
• Spaces for events and conferences : hotels, convention centers, university auditoriums or assembly halls that require flexible, programmable and centrally controlled lighting.
• Art galleries and exhibition spaces : creation of distinct atmospheres, highlighting of works with controlled color and smooth changes depending on exhibitions or special events.
• Recording studios and television sets : background, audience or studio lighting with camera compatibility thanks to the high refresh rate of the LEDs.
• Interior architectural installations : lighting of large interior spaces with the possibility of adjusting colors and time scenes.

Control and operating modes

The beamZ Pro Pendant 250W RGBAL LED is designed to be integrated into professional control systems and, at the same time, offer standalone solutions for simple installations:

• DMX control via 5-pin XLR connectors, with multiple channel configurations ( 1, 3, 5, 7, 10, 12, 13 and 16 channels plus HSV modes) to adjust the required level of control.
• Automatic modes with internal programs that generate color changes and effects without the need for an external console.
• Static mode to set a specific color, level or environment that remains stable.
• Master/slave mode that allows synchronizing multiple units with each other without additional programming, ideal for lighting lines in large rooms.
• LED refresh rate adjustment between 1200 Hz and 20 kHz , preventing flickering in front of the camera and adapting to different technical environments.
• User interface via OLED screen and 4-button menu , which facilitates access to all configuration parameters even in permanent installations.

Installation and assembly

• Hanging mounting using double mounting brackets , which allow precise adjustment of the angle and position of the light fixture.
• Power connection via P-Con TR1 connector or standard AC power 100-240 V~ 50/60 Hz , suitable for different environments and installations.
• DMX wiring with professional 5-pin connectors for direct integration into control networks.
• Suitable for indoor use thanks to its IP20 rating, recommended for spaces protected from the elements.
• Compact dimensions of 395 x 265 x 330 mm , which facilitate its integration into ceilings, truss structures or technical walkways.
• Weighing 7.2 kg , it is suitable for fixed mounting with the anchor points and safety elements recommended in professional installations.

Frequently Asked Questions

• Is the Pendant 250W RGBAL suitable for general room lighting?
  Yes. Thanks to its pre-installed 80° lens and high power of 250W COB, the luminaire is designed precisely as a house light, providing homogeneous illumination in auditoriums, theaters and similar spaces.
• Can the beam angles be changed?
  The unit includes three additional diffusing lenses of 35°, 45° and 60° , which allow you to adjust the beam angle according to the ceiling height, distance and type of application.
• Does it generate fan noise?
  It does not use active fans. Cooling is by convection and is managed by intelligent temperature control, resulting in quiet operation.
• How is the light fixture controlled?
  It can be controlled via 5-pin DMX using different channel modes, or in automatic, static, or master/slave mode using the internal programs. All configuration is done via the OLED screen with its 4 buttons.
• Is it suitable for outdoor use?
  No. The IP20 rating indicates that it is designed for indoor use . For outdoor use, a model with greater protection against moisture and dust would be necessary.
• What accessories are included?
  It comes with a mounting bracket and power cable , so it can be installed directly in most standard applications.

Project description

beamZ Pro Pendant 250W RGBAL LED House Light with 250W RGBAL COB light source (5-in-1 LED: red, green, blue, amber, lime), pre-installed 80° diffuser lens, and three interchangeable lenses (35°, 45°, and 60°). Illuminance of 52,185 lx at 1 m, adjustable LED refresh rate between 1200 Hz and 20 kHz, operating modes: auto, static, DMX, and master/slave. Control via OLED display with 4-button menu, 5-pin XLR DMX input/output, P-Con TR1 power connector, IP20 rating, convection cooling, 100-240 V~ 50/60 Hz power supply. Dimensions: 395 x 265 x 330 mm (L x W x H), weight: approximately 7.2 kg. Includes mounting bracket and power cable.
