beamZ BBB612 - 6×12W RGBAW+UV Wireless LED Bar with Battery, Pixel-by-Pixel Control and DMX (RJ45/Eazylink)

beamZ BBB612 - 6×12W RGBAW+UV Wireless LED Bar with Battery, Pixel-by-Pixel Control and DMX (RJ45/Eazylink)

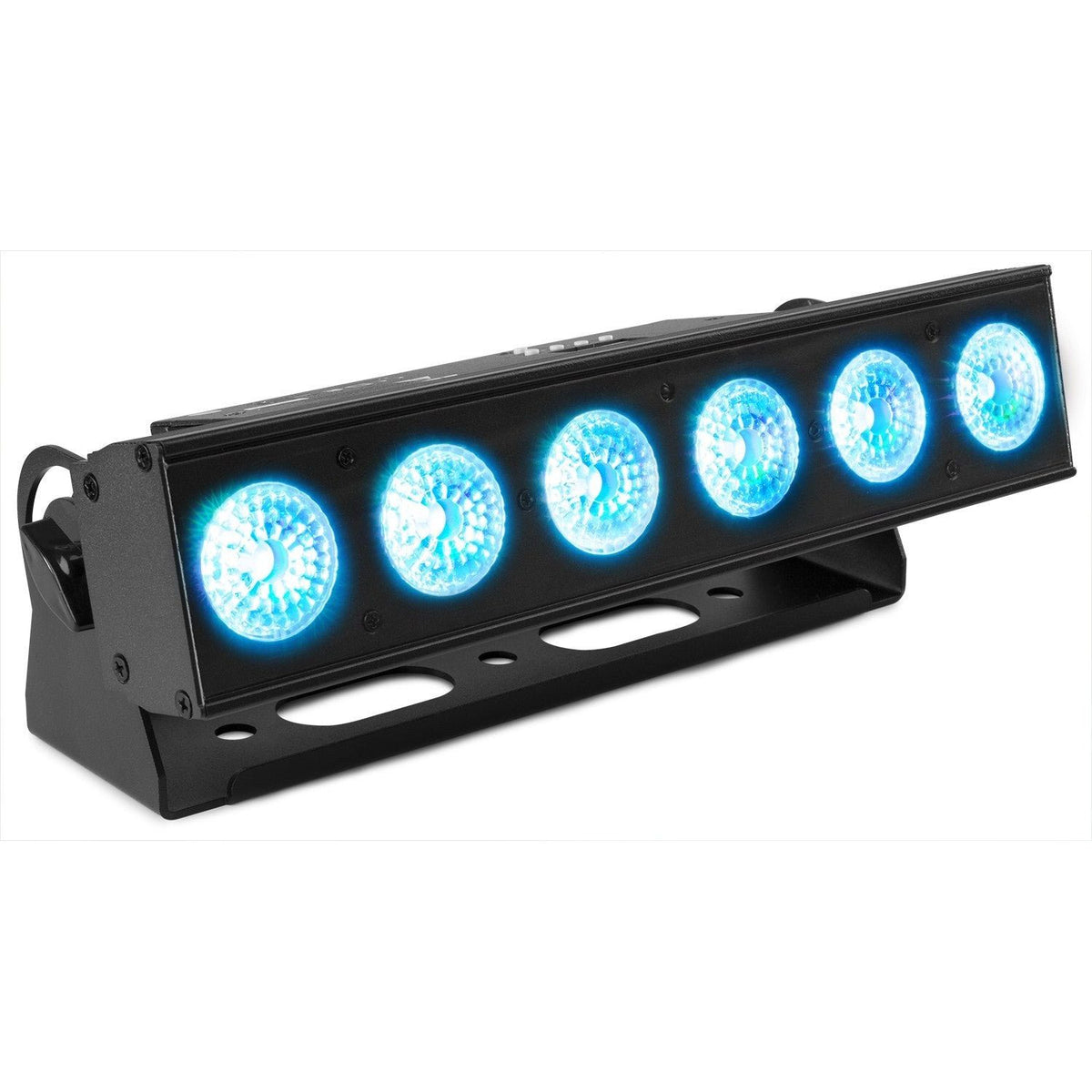

The beamZ BBB612 is a battery-powered LED bar designed to efficiently handle uplighting, wash, and dynamic accent lighting without the need for power or signal cables. It features six 12W 6-in-1 LEDs (RGBAW+UV) in a convection-cooled metal housing , offering precise color mixing—including amber and UV —and flashes up to 20Hz . Control is flexible: DMX via RJ45 , integrated wireless DMX via Eazylink (typical range 15m indoors / 25m outdoors ), standalone operation , master/slave configuration , and IR remote control . It also offers pixel-level control for creating chases and sectional effects. Its 12.6V · 10.4Ah battery provides up to 20 hours of runtime (depending on intensity) and recharges in approximately 5 hours . All this in a compact format ( 330 × 80 × 160 mm , 3.3 kg ) ready for agile events and clean setups.

Main features

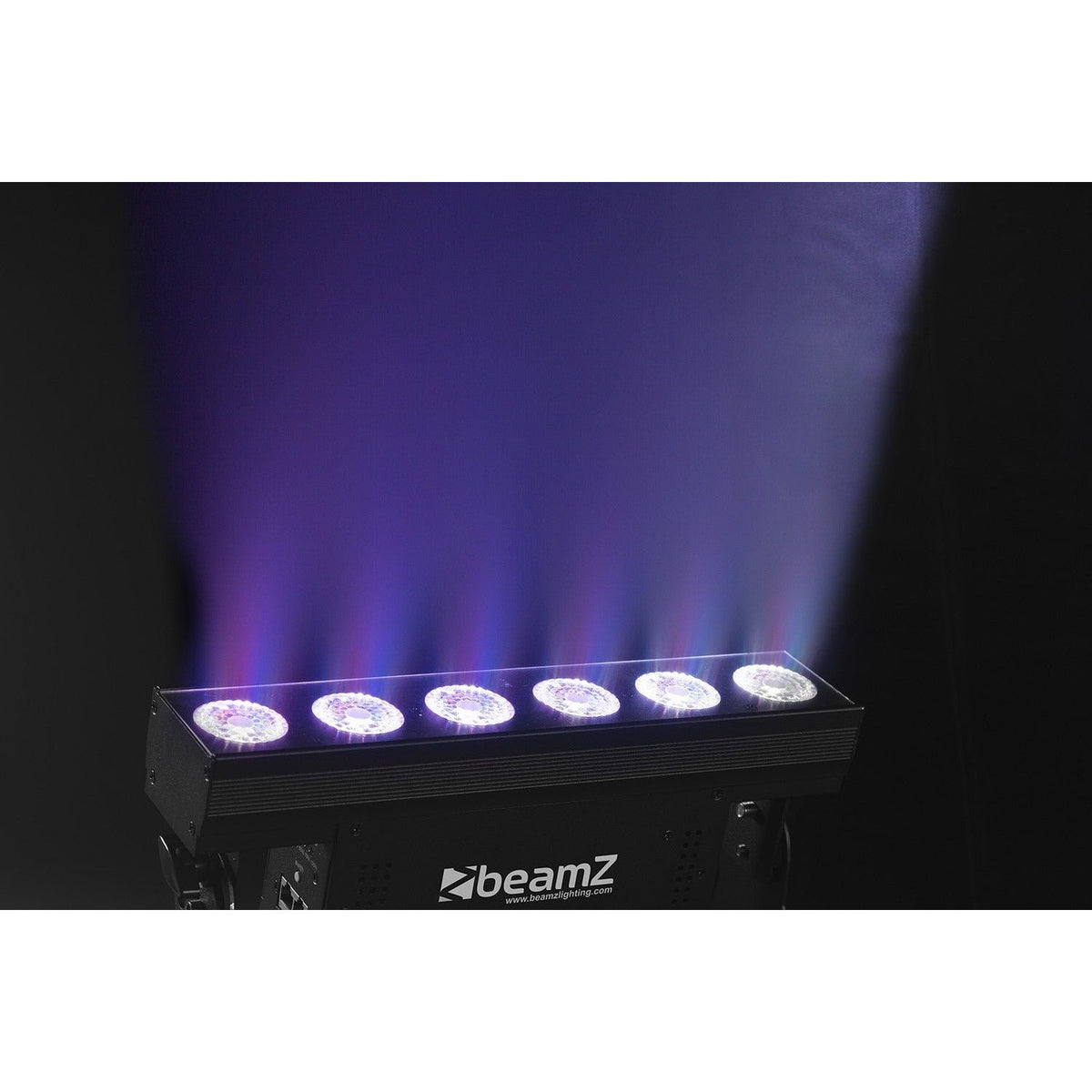

• Light source : 6 × 12 W RGBAW+UV (6-in-1 LED) with individual pixel control .
• Battery life : up to 20 hours per charge (depending on usage) and fast charging ~5 hours ; LED battery status indicator.

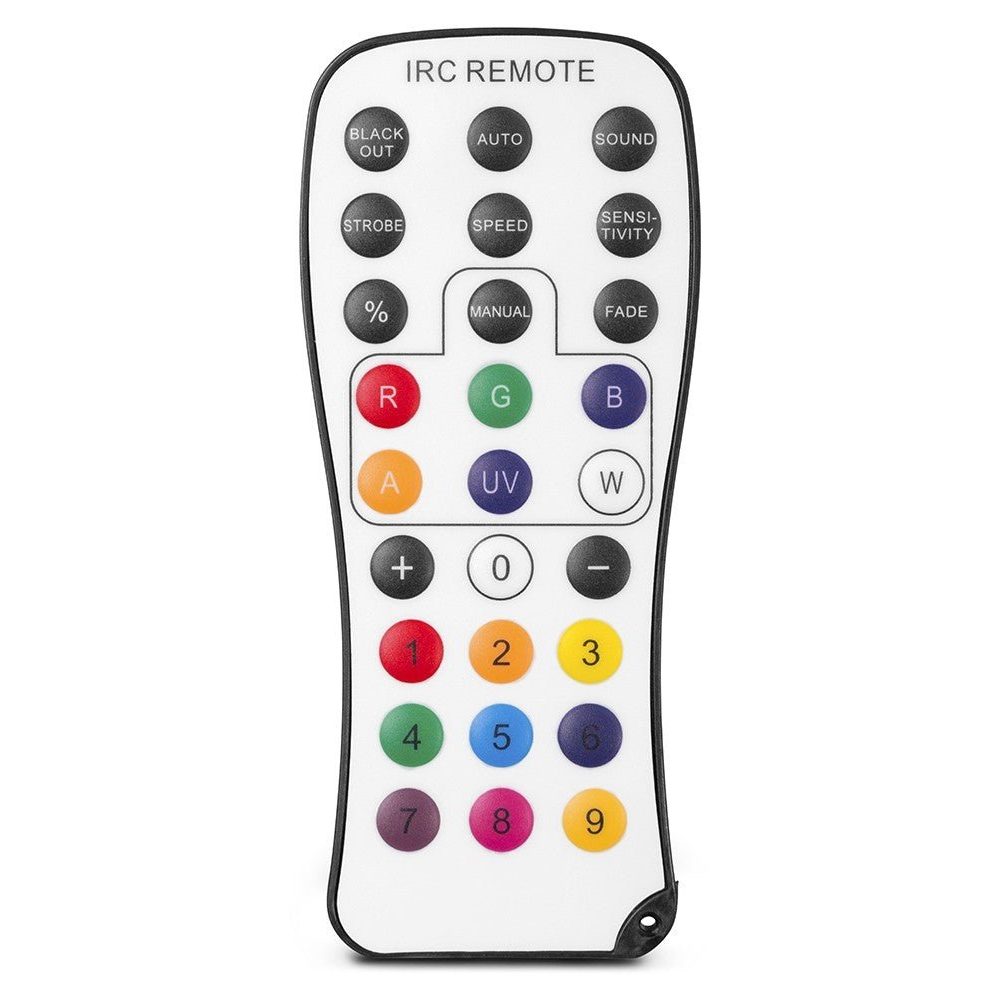

• Control modes : DMX (2/6/8/11/36/38 channels), standalone , master/slave , sound-reactive with adjustable sensitivity and remote IR .

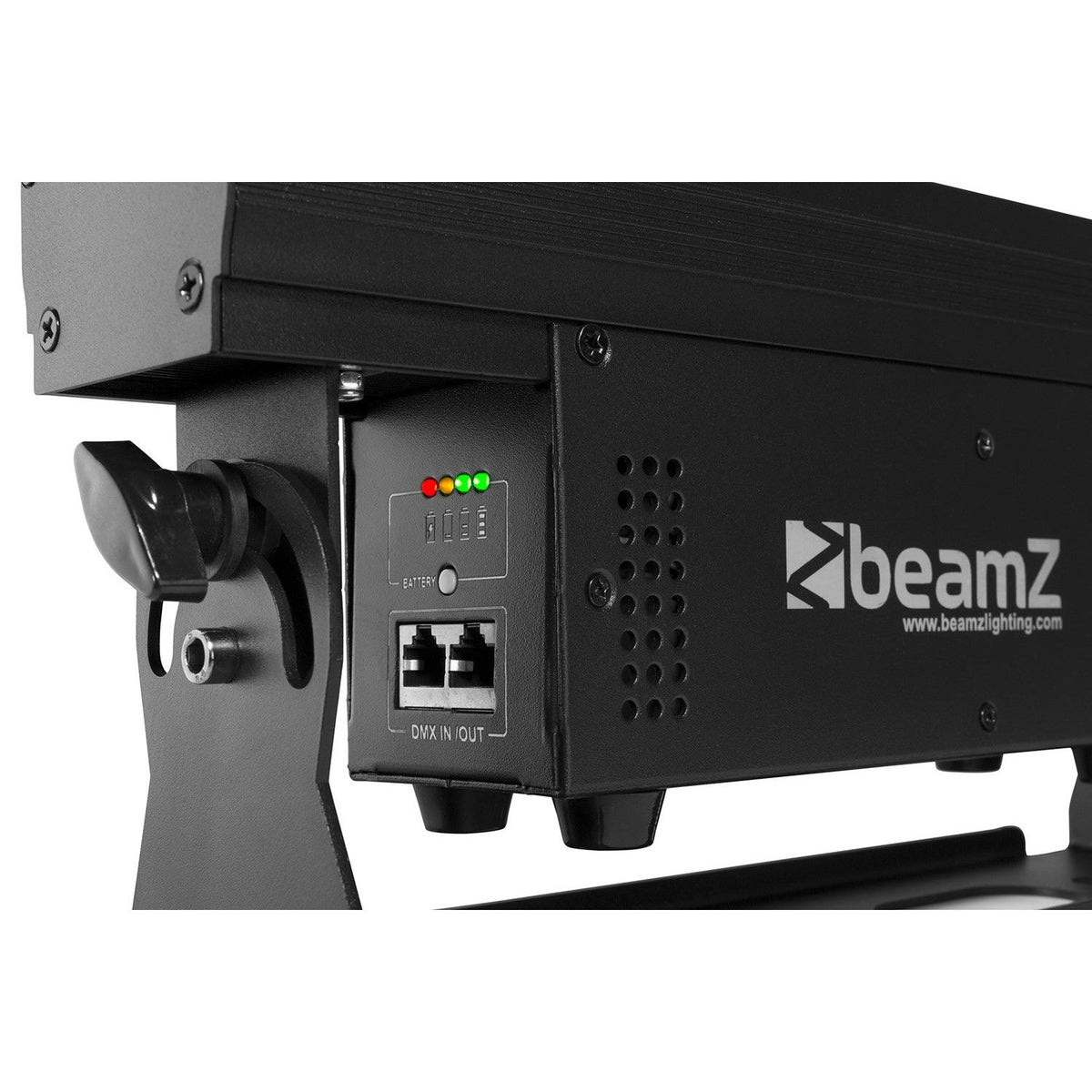

• Connectivity : DMX RJ45 and integrated Eazylink wireless DMX (≈15 m indoors / 25 m outdoors).
• Optics : 23° beam , 43° field ; 0–20 Hz strobe; 0–100% electronic dimmer .

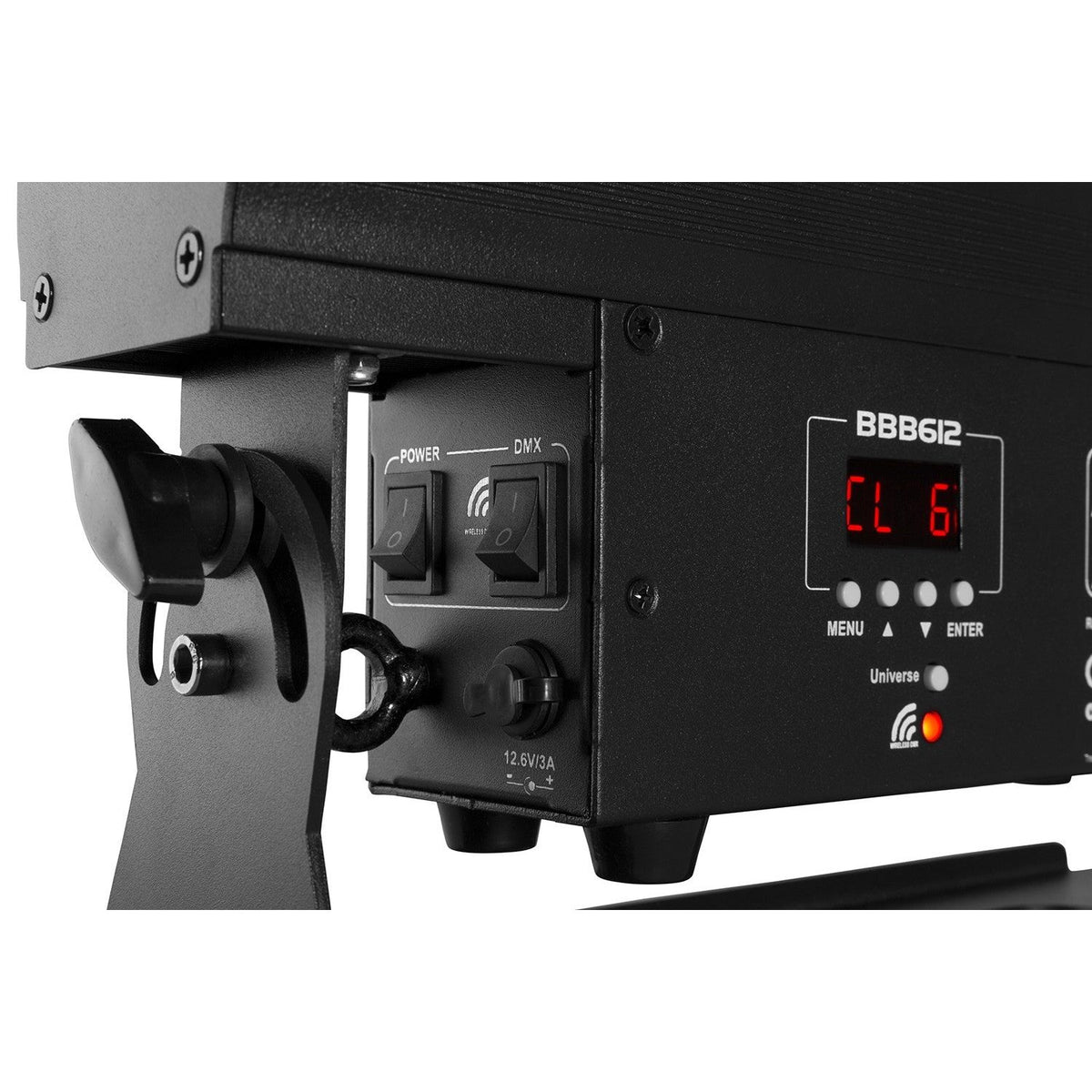

• Construction : IP20 chassis, convection cooling, powered by 12V adapter .
• Format : 330 × 80 × 160 mm; 3.3kg ; consumption 55 W.

Product benefits

• No wires, no mess : built-in battery and wireless DMX for quick and clean installations.

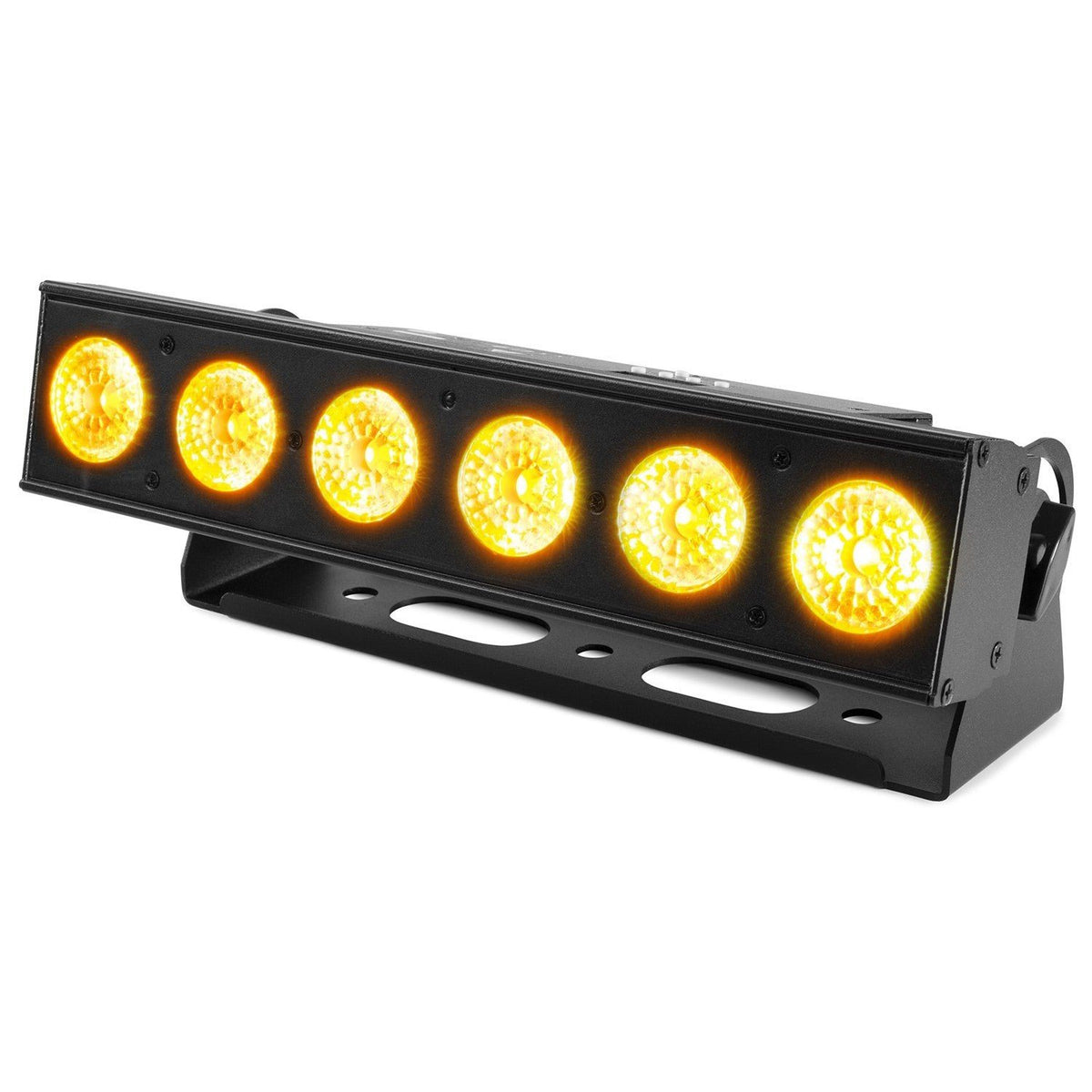

• Top color : RGBAW+UV mix that covers everything from natural warm tones (amber) to UV effects.
• Pixel-level creativity : precise chases and patterns by controlling each LED independently.
• Total versatility : multiple DMX profiles to integrate from simple shows to advanced programming.

Use cases

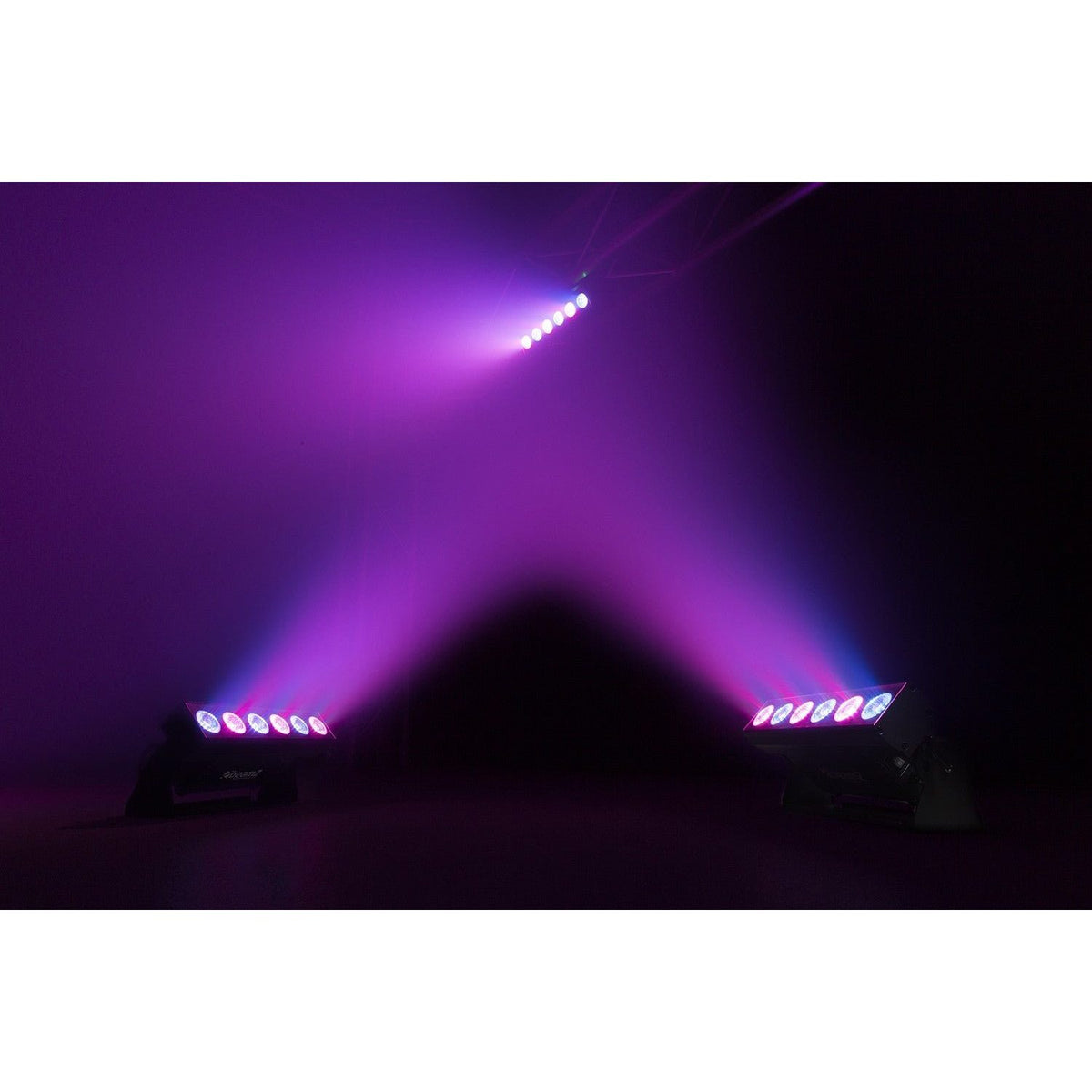

• Corporate events and weddings : wireless uplighting on columns, backdrops and interior facades.

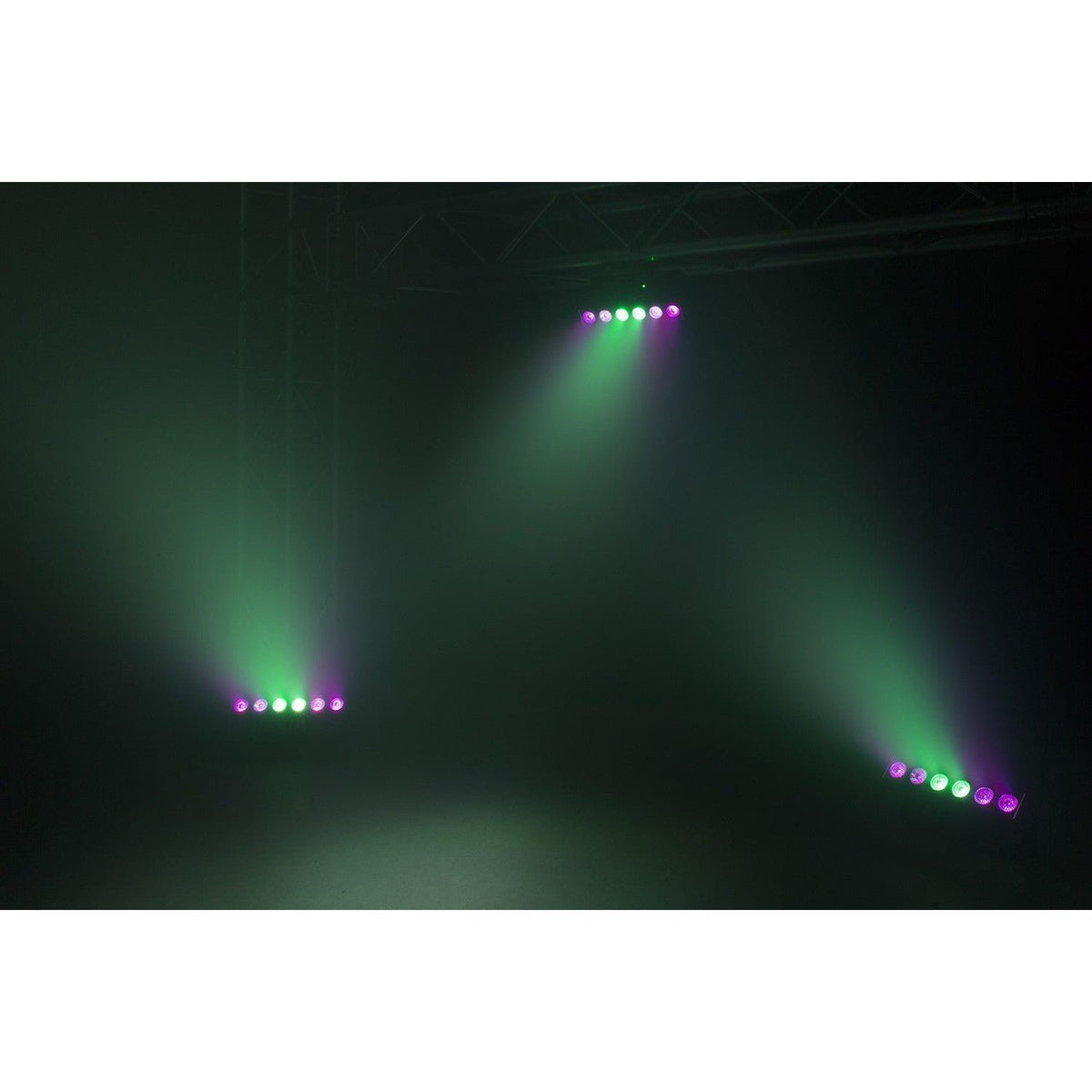

• Clubs and shows : dynamic accents with strobe and UV looks combined.
• Rental and touring : portable sets with express deployment/collection and minimal cabling.

Frequently Asked Questions

• What DMX profiles are available? 2, 6, 8, 11, 36 or 38 channels, depending on the level of detail you need.
• How do I connect the DMX? Via RJ45 or through the integrated Eazylink wireless DMX .
• What is the actual battery life? Up to 20 hours at low intensity; at high levels, the duration decreases proportionally.
• How do I recharge it? With a 12V adapter ; the full cycle takes approximately 5 hours .

Usage recommendations

• To synchronize multiple units, use master/slave mode or higher resolution DMX profiles.
• Outdoors, always keep the luminaire in protected environments (IP20) and within the recommended Eazylink range.
• Optimize battery life with smooth dimmer curves and moderate strobe settings.

Project description

Battery-powered LED bar with 6 × 12 W RGBAW+UV ; pixel-by-pixel control; DMX 2/6/8/11/36/38 ch via RJ45 and Eazylink wireless DMX (≈15 m indoors / 25 m outdoors); 0–100% dimmer ; 0–20 Hz strobe; 23° beam , 43° field ; 12.6 V – 10.4 Ah battery ( ≈20 h max., ~ 5 h recharge); IP20 ; 55 W ; 330 × 80 × 160 mm ; 3.3 kg .
