Audibax Pro M88 WP22IODN - 2x2 Dante control panel with combo inputs, XLR outputs and PoE

Audibax Pro M88 WP22IODN - 2x2 Dante control panel with combo inputs, XLR outputs and PoE

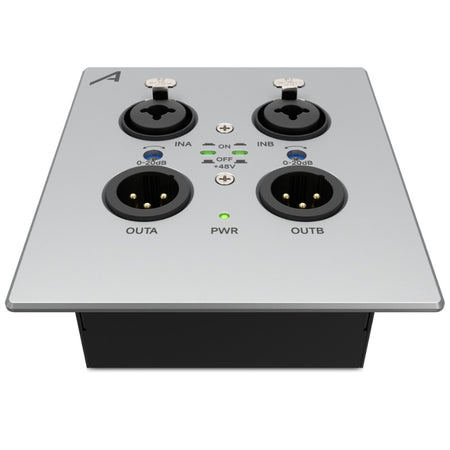

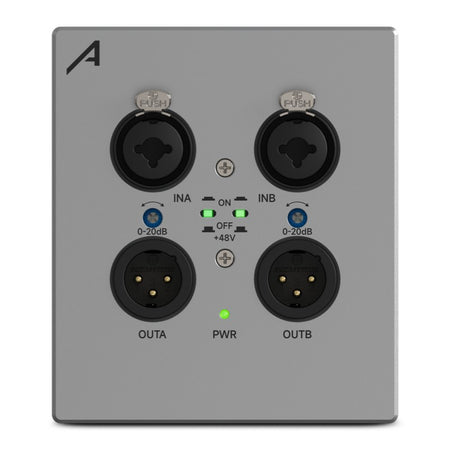

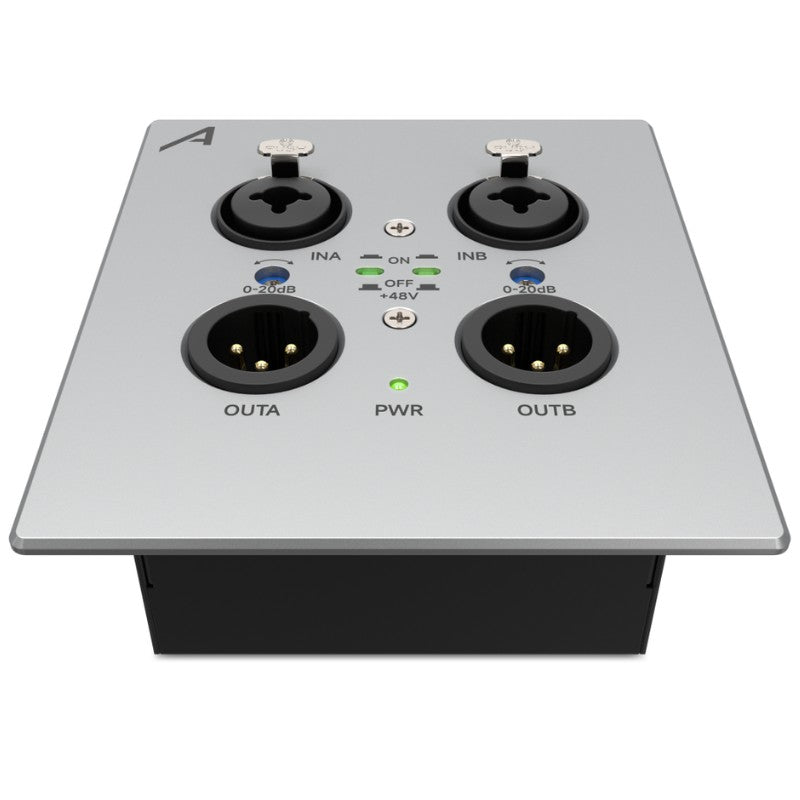

The Audibax Pro M88 WP22IODN is a compact Dante wall panel designed to carry local microphone and line signals to an audio over IP network with maximum reliability. It integrates 2 combo XLR/6.3 mm jack inputs with switchable 48 V phantom power and 2 XLR line outputs , plus 2×2 Dante conversion (2 input channels and 2 networked output channels) . It is powered by PoE (802.3af/802.3at) , so a single Ethernet cable is required for data and power, and its configuration and routing are done with Dante Controller , Audinate's standard software. Its aluminum chassis offers durability in demanding fixed installations, with a sober silver finish. With dimensions of 11 × 9.6 × 4.8 cm and a weight of 0.8 kg , it integrates easily into meeting rooms, education, hospitality, retail and corporate spaces where professional analog connections with network distribution are required.

Main features

• Dante 2×2 interface : 2 Dante input channels + 2 Dante output channels to integrate the panel into the network.
• Analog inputs : 2 × combo XLR/Jack 6.3 mm switchable mic/line and 48 V phantom .
• Analog outputs : 2 × XLR line on the front.
• Power : PoE (802.3af/802.3at standards) via a single CAT5/6 cable.
• Control and Routing : Supports Dante Controller for device and channel naming, routing, and monitoring.
• Construction : Heavy-duty aluminum body; wall mount ; silver color.

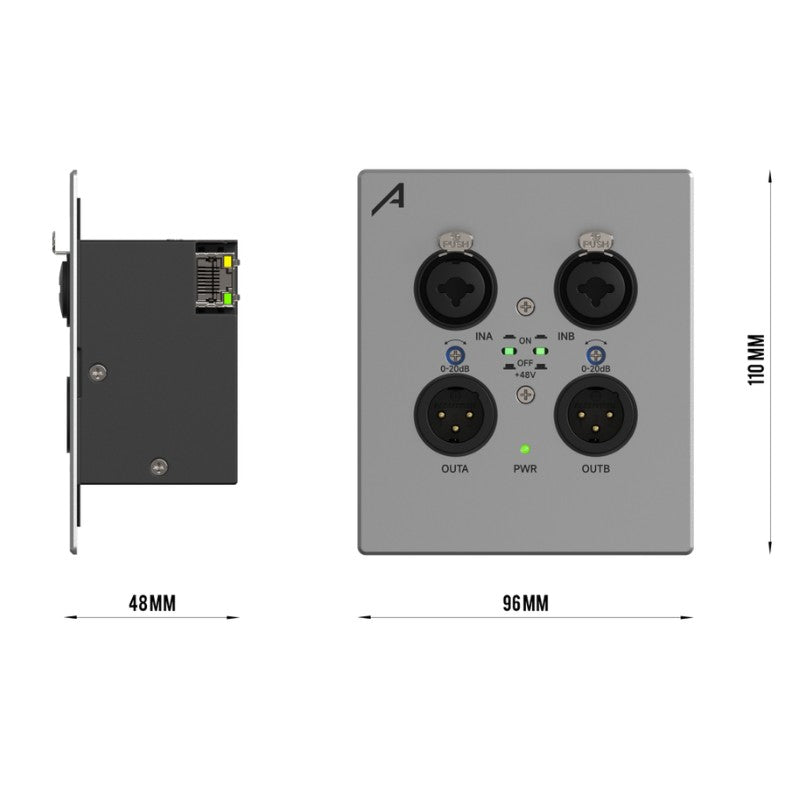

• Compact format : 11 × 9.6 × 4.8 cm; weight 0.8 kg .
• Accessories included : screws, screwdriver and user manual.

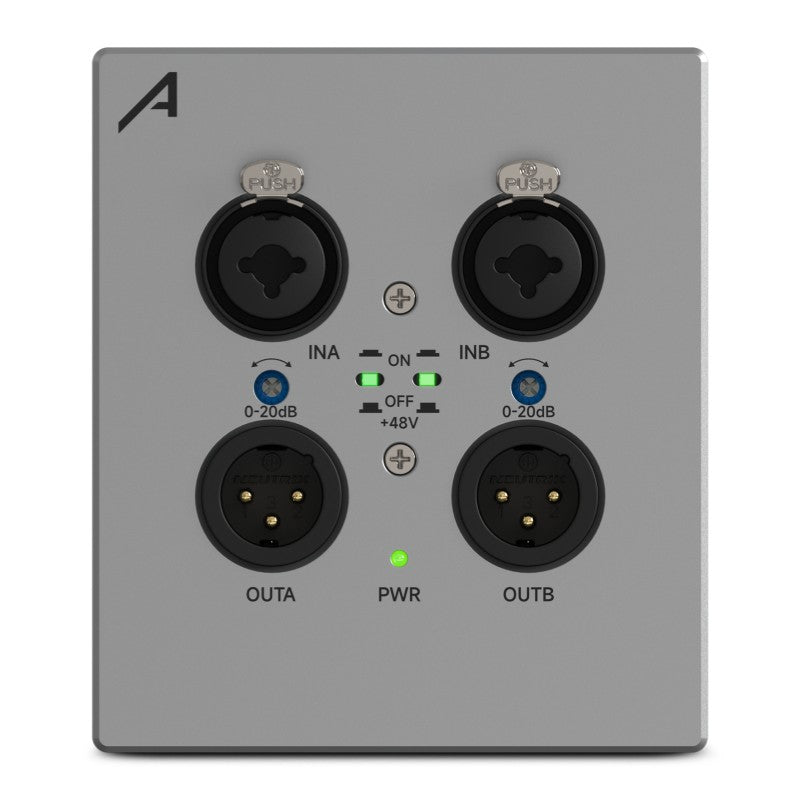

• Integrated controls : accessible analog gain adjustment and 48V phantom power switch with indicator light.

Product benefits

• Less analog cabling : Local conversion to Dante reduces long runs of analog audio and potential interference.
• Fast start-up : PoE power and routing with Dante Controller simplify installation and daily management.
• Professional versatility : mic/line inputs with 48V phantom power for condenser microphones or line signals from players, mixers or DI boxes.
• Scalability : IP distribution to send/receive audio from any Dante device in the system.
• Reliability in demanding environments : electronics with low noise and distortion figures and aluminum chassis for continuous use.

Use cases

• Meeting and conference rooms : local connection point for speaker microphones and return to monitors/amplification.
• Education and auditoriums : capture from lectern/classroom microphones and distribute to the AV network.
• Hotels, retail and hospitality : injection of program sources and local reinforcement with network return to stages or DSPs.
• Cultural and corporate centers : a fixed and discreet interface for events, press conferences, or presentations.

Frequently Asked Questions

• How do I configure audio routing? Use Dante Controller on Windows or macOS to create connections between Dante devices and monitor network status.
• Does it need external power? No, the panel is powered via PoE (802.3af/802.3at) through the Ethernet cable.

Description for projects

Dante 2×2 wall panel with 2 combo XLR/6.3 mm jack mic/line inputs with 48 V phantom power , 2 XLR line outputs , Dante 2 In / 2 Out conversion, PoE 802.3af/802.3at power supply, control and routing via Dante Controller , aluminum chassis, silver color, dimensions 11 × 9.6 × 4.8 cm , weight 0.8 kg ; includes screws, screwdriver and manual.
