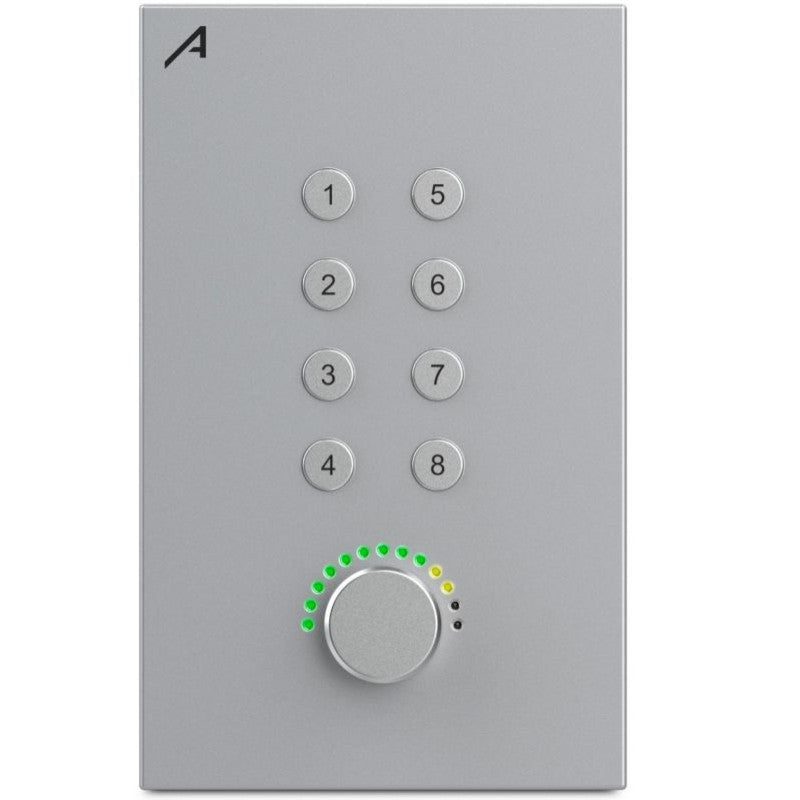

Audibax Pro M88 WP2 - PoE wall panel with 8 programmable buttons for matrix control (UDP/TCP-IP)

Audibax Pro M88 WP2 - PoE wall panel with 8 programmable buttons for matrix control (UDP/TCP-IP)

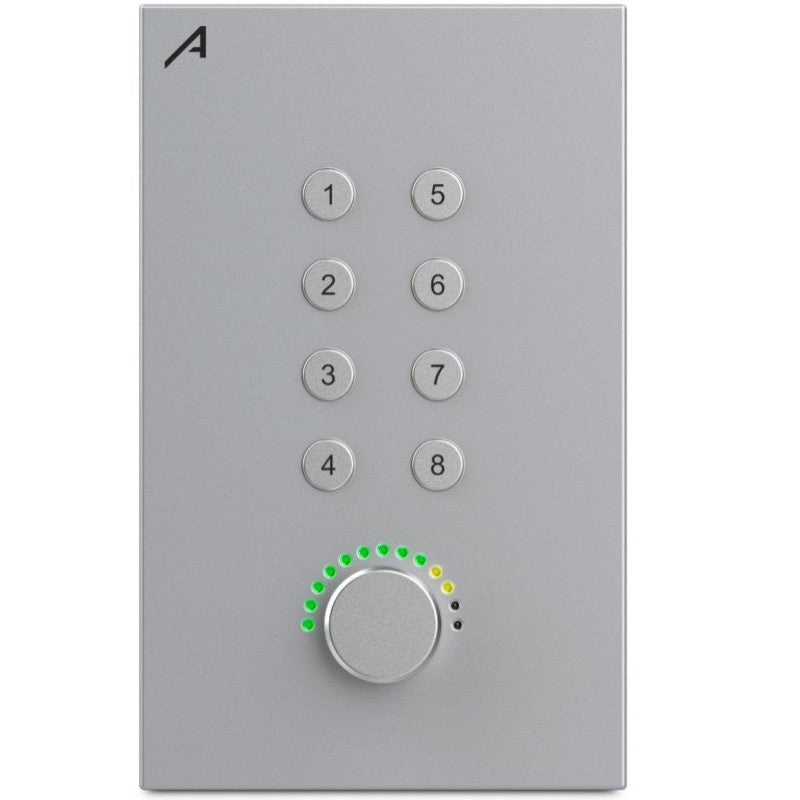

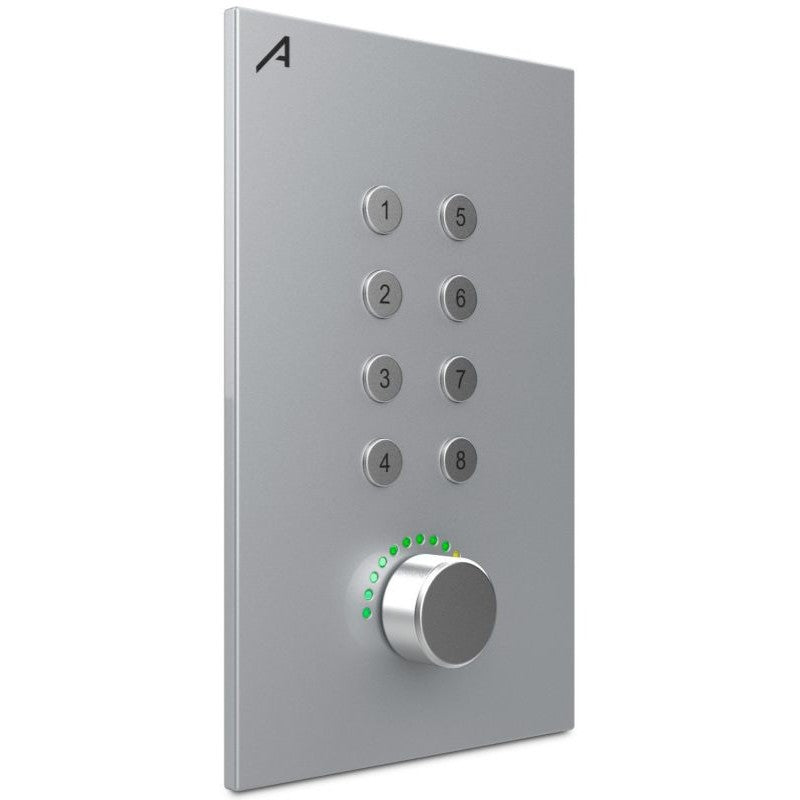

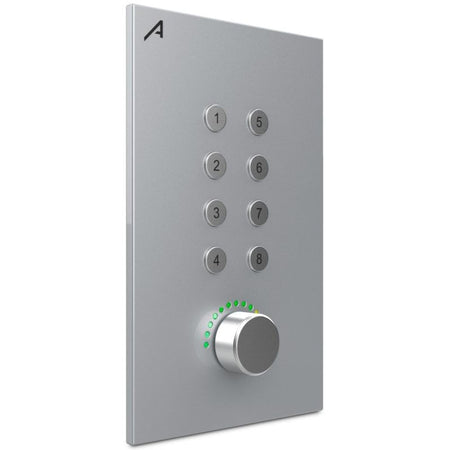

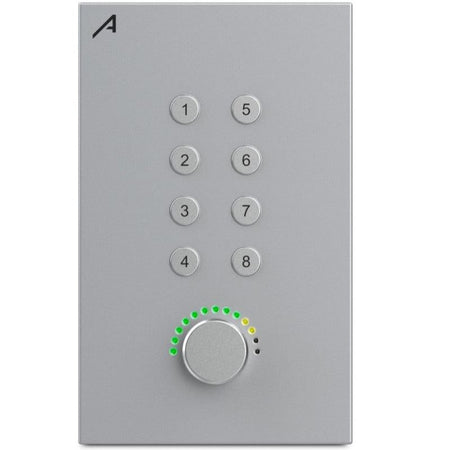

The Audibax Pro M88 WP2 is a wall-mounted control panel for networked audio systems designed to manage matrix and zone functions simply and reliably. Powered by PoE and connected via RJ-45 , it integrates 8 programmable buttons and a rotary knob for common tasks such as volume adjustment, muting, or preset recall (depending on the integrator's programming). Its UDP communication and TCP/IP addressing allow it to be integrated into professional installations with cabling of up to 100 m . The aluminum alloy chassis with a sandblasted finish provides durability and a discreet aesthetic for corporate, educational, hospitality, or religious environments.

Main features

• Dedicated interface: 8 programmable buttons + 1 rotary control knob.
• Network connectivity: UDP control with TCP/IP address configuration.
• PoE (Power over Ethernet): power and data over a single cable.

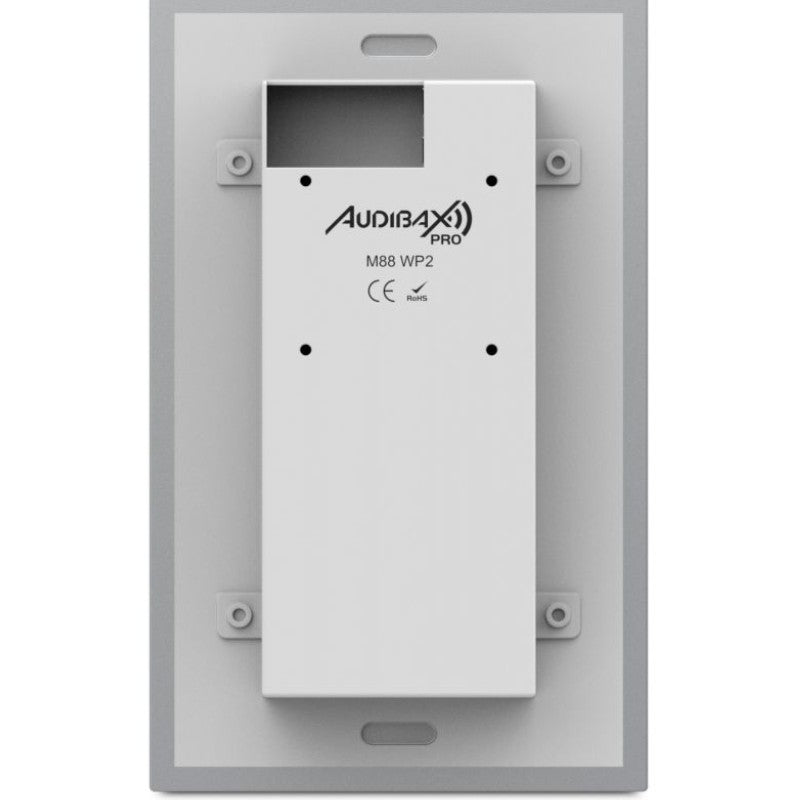

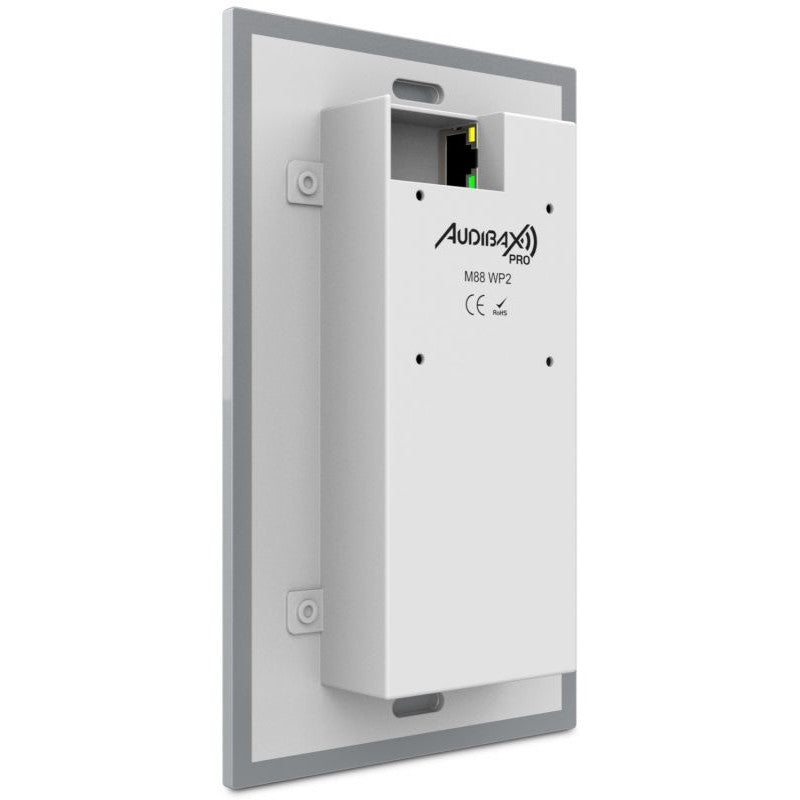

• Port: RJ-45 (Ethernet) with typical range of 100 m .

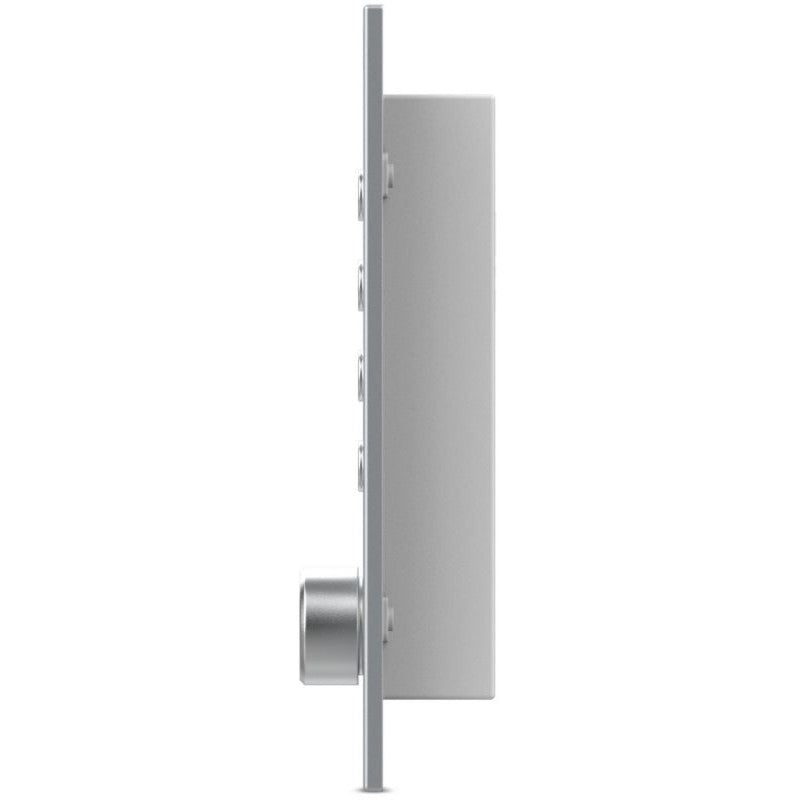

• Construction: Aluminum body with sandblasting finish.
• Very low consumption: < 100 mW (according to the manufacturer's data sheet).
• Colour: silver/aluminium, discreet wall integration.
• Integration: Designed for the Audibax M88 digital matrix ecosystem (DSP / Dante) and its control software.

Product benefits

• Clean installation: a single Ethernet cable for power and control thanks to PoE.
• Intuitive use: dedicated buttons and rotary control for quick adjustments by the end user.
• Scalable and stable: network communication (UDP/TCP-IP) suitable for multi-zone and 24/7 projects.
• Robust and elegant: sandblasted aluminum front that withstands intensive use and maintains a professional aesthetic.

Use cases

• Retail and hospitality: Local volume/scene control by zone in stores, restaurants, and hotels.
• Education and corporate: auditoriums, classrooms, and meeting rooms with easy wall-mounted control.
• Religious and cultural centers: non-technical operators can adjust levels without accessing the rack.

Frequently Asked Questions

• Does it support Dante audio? No. The M88 WP2 is a PoE control panel that communicates over UDP/TCP-IP; it is not an audio I/O device. For Dante wall I/O, there are dedicated panels within the range (e.g., the M88 WP22IODN).
• How is it powered? Via PoE (Power over Ethernet) using the same network cable.
• What is the maximum distance supported by the cable? Up to 100 meters over standard Ethernet cabling, according to the manufacturer's specifications.

Description for projects

PoE wall-mounted control panel with 8 programmable buttons and 1 rotary knob ; UDP control protocol and TCP/IP addressing ; RJ-45 (Ethernet), 100 m cable length ; power consumption < 100 mW ; sandblasted aluminum alloy material; silver color. Use as a controller for Audibax M88 matrices/systems (DSP/Dante).
