Audibax Pro DSP12M - 12" Active Coaxial Stage Monitor with DSP (400W RMS)

Audibax Pro DSP12M - 12" Active Coaxial Stage Monitor with DSP (400W RMS)

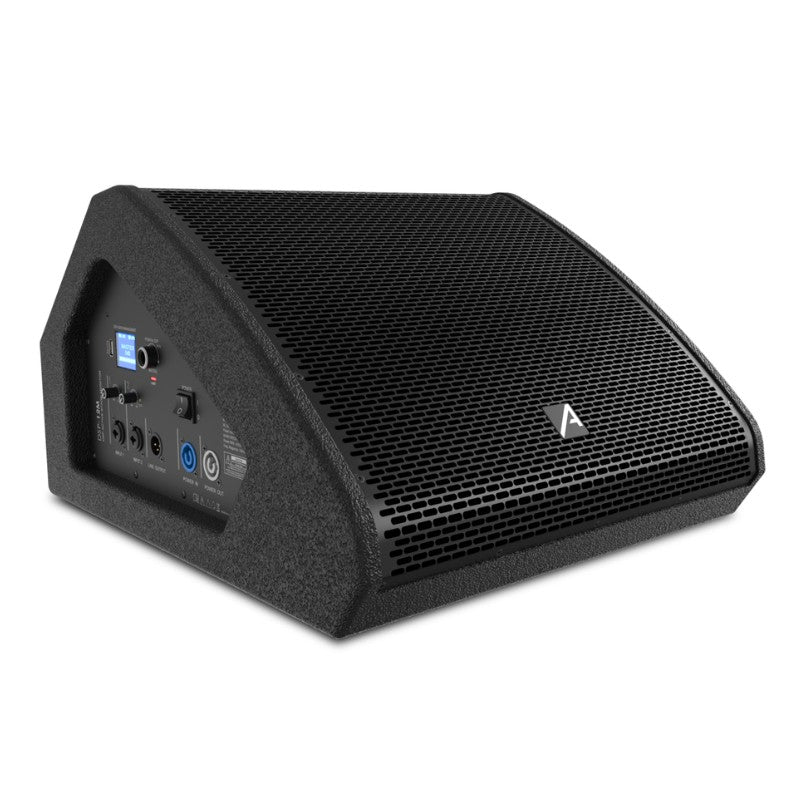

The Audibax Pro DSP12M is a 2-way active coaxial stage monitor designed to deliver clear and powerful live reference, featuring Class D bi-amplification and a DSP module for quick setup on tour and in installations. Its 12" coaxial + titanium tweeter (VC 1.75") configuration maintains phase coherence and improves intelligibility close to the mic, helping to reduce feedback . It delivers 400 W RMS (800 W peak) with a maximum level of up to 124 dB , 60° × 90° (H × V) coverage and a 55 Hz – 20 kHz (-10 dB) response, enough for lead vocals, instruments and frontfill reinforcement.

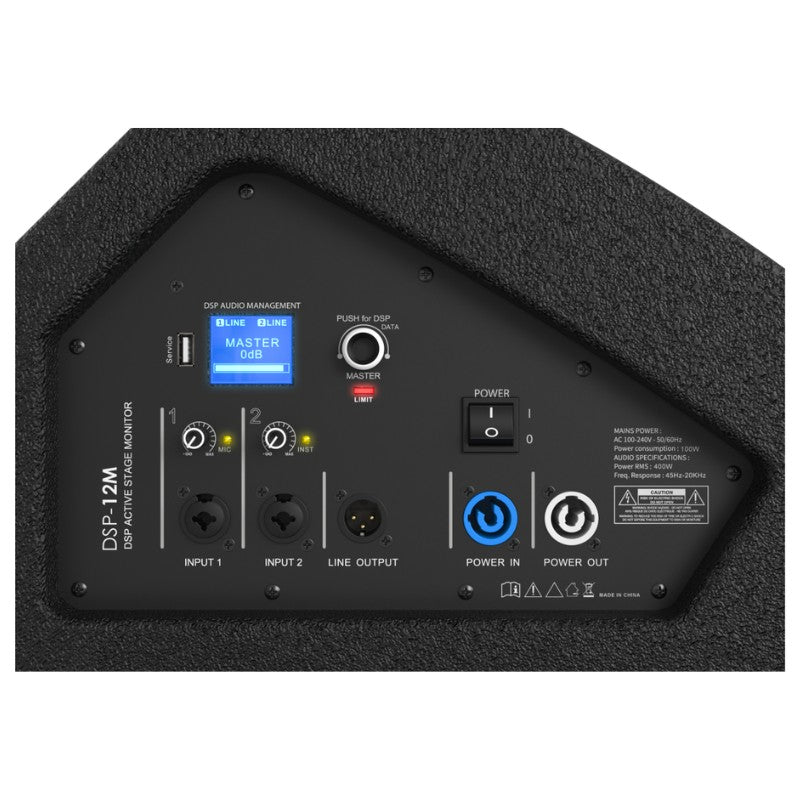

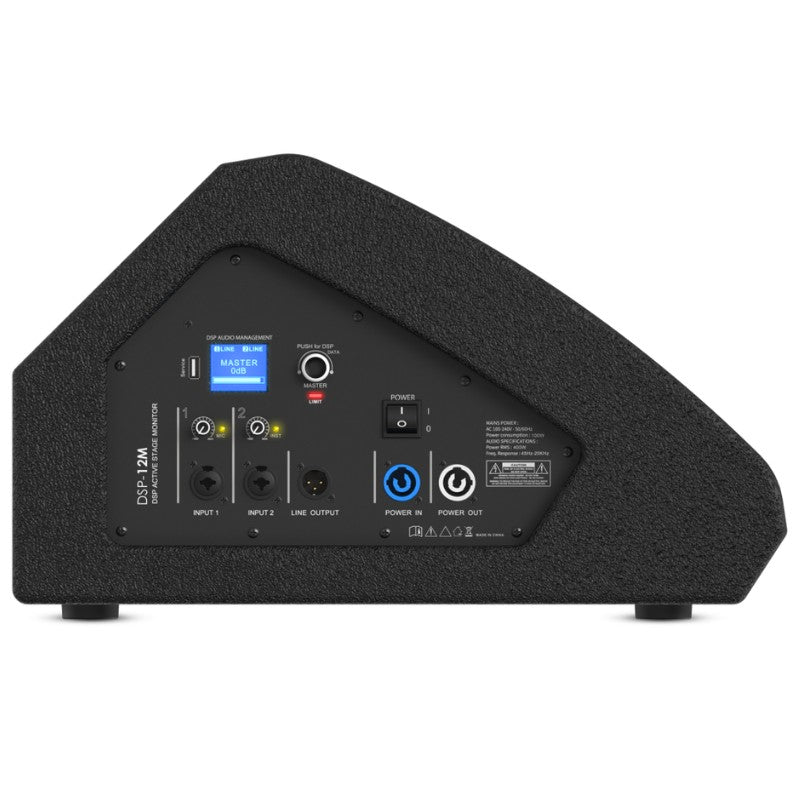

The control panel integrates an LCD and encoder to navigate through presets and parameters: FLAT , FULL RANGE , MONITOR and MONITOR HPF modes, selectable high-pass filter (80/100/120 Hz), 3-band EQ (high shelving 10 kHz, mid 2.5 kHz, low shelving 100 Hz, ±6 dB) and adjustable delay (0–10 ms). Connectivity includes two switchable MIC/LINE/INST channels with XLR and/or 6.35 mm jack depending on the input, as well as an XLR output with THRU or Mix function from the DSP. It includes AC 100–240 V power supply with PowerCON input and network loop, and is supplied with EU and UK cables.

Main features

• System : 2-way active coaxial monitor (12" + titanium tweeter, VC 1.75").
• Power : 400 W RMS (800 W peak), max SPL 121 dB continuous / 124 dB peak.
• Dispersion : 60° × 90° (H × V) for uniform foreground coverage.
• Frequency response (-10 dB) : 55 Hz – 20 kHz.
• DSP processing : presets (Flat, Full Range, Monitor, HPF Monitor), HPF 80/100/120 Hz, 3-band EQ, delay 0–10 ms, switchable front LED.
• Connectivity : switchable MIC/LINE/INST inputs (XLR or 6.35 mm jack depending on the channel) and XLR output with Thru or Mix mode from the DSP.
• Amplification : Class D Bi-AMP .

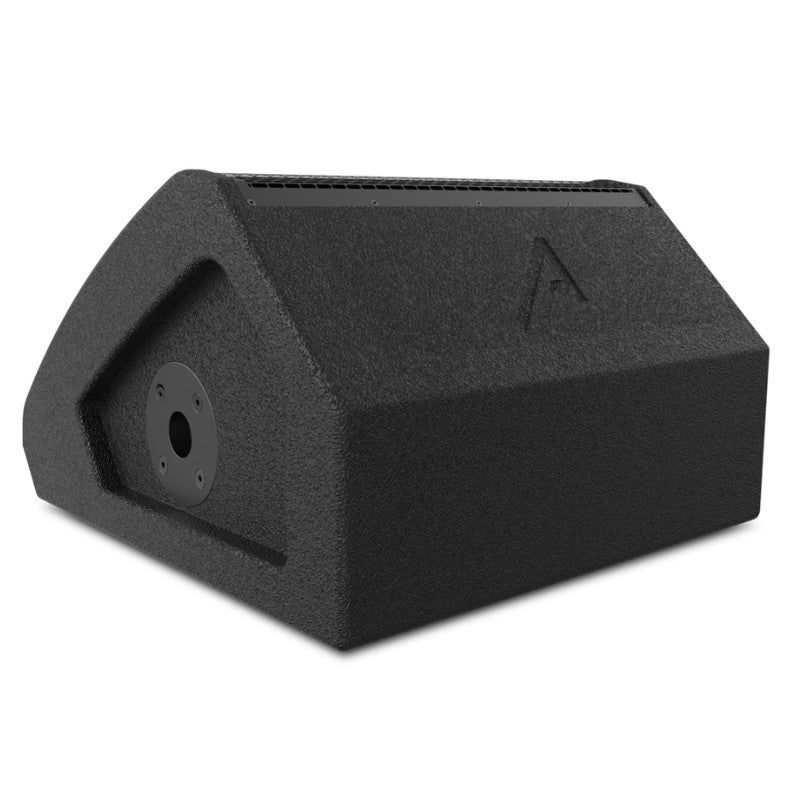

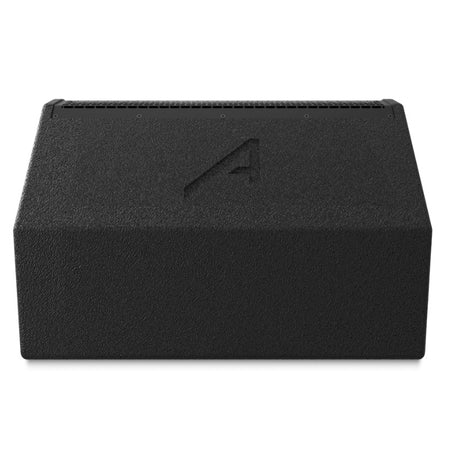

• Mounting : 35mm pole socket and wedge format for use as a floor monitor.
• Construction and finish : robust black enclosure designed for intensive use.

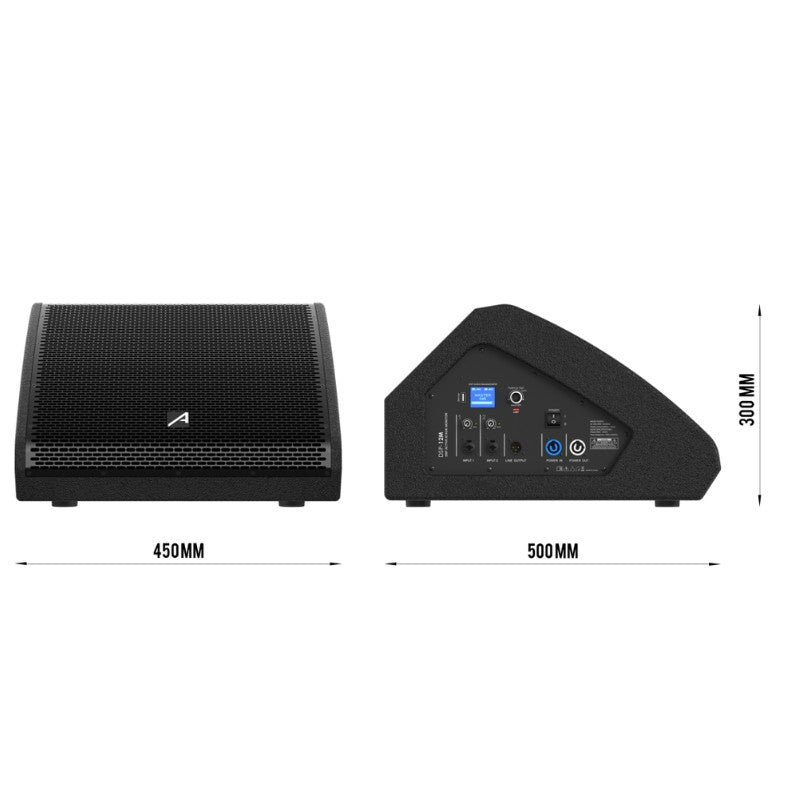

• Dimensions and weight : 45 × 50 × 30 cm (L × W × H), 14.5 kg .

Product benefits

• Clarity and intelligibility : coaxial design maintains temporal coherence and improves focus in the interpreter's area.
• Instant control : Built-in presets, HPF, EQ, and delay let you tailor your monitor to your room, stage, or instrumentation without additional hardware.
• True versatility : switchable MIC/LINE/INST inputs and XLR Thru/Mix output to integrate into any stage flow.
• Usable power : 400 W RMS with up to 124 dB peak to cover everything from lead vocals to backline returns.

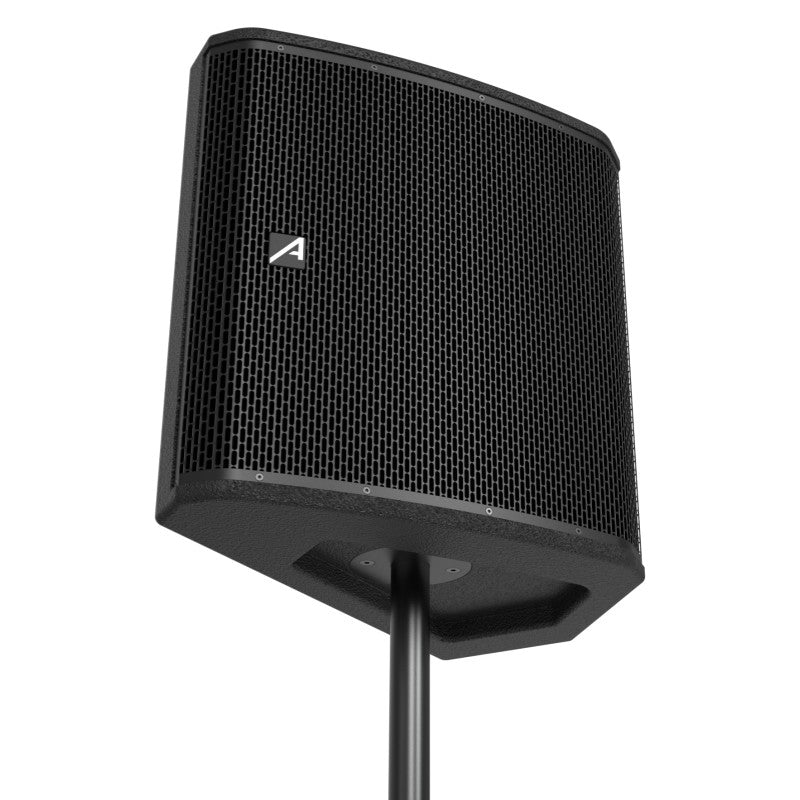

• Professional operation : universal power supply, PowerCON and 35 mm socket for use also as a spot PA box.

Use cases

• Lead vocals and backing vocals on small and medium-sized stages.
• Dedicated monitors for guitars, keys or leads with HPF and delay control.
• Frontfill in low scenarios taking advantage of 60 × 90 coverage.
• Rental and permanent installation in multipurpose rooms, auditoriums, and corporate venues.

DSP module and controls

• Presets : Flat, Full Range, Monitor, HPF Monitor.
• High pass filter : Off / 80 / 100 / 120 Hz.
• EQ : High shelf 10 kHz ±6 dB; Mid 2.5 kHz ±6 dB (PEQ); Low shelf 100 Hz ±6 dB.
• Delay : 0–10 ms.
• Output : Thru mode or CH1+CH2 mix selectable on the DSP.

Description for projects

Audibax Pro DSP12M active 2-way coaxial monitor with 12" woofer (VC 2.5") and titanium tweeters (VC 1.75"), bi-amp Class D amplification , 400 W RMS (800 W peak), max. SPL 121 dB / 124 dB (peak) , dispersion 60° × 90° , response 55 Hz–20 kHz (-10 dB) , DSP with presets/HPF/EQ/delay, switchable MIC/LINE/INST inputs (XLR/Jack 6.35 mm), XLR Thru/Mix output , AC 100–240 V with PowerCON, 35 mm socket ; dimensions 45 × 50 × 30 cm , weight 14.5 kg .
