Algam Lighting BARWASH 36 UV - 1 Meter Ultraviolet Professional LED Bar

Algam Lighting BARWASH 36 UV - 1 Meter Ultraviolet Professional LED Bar

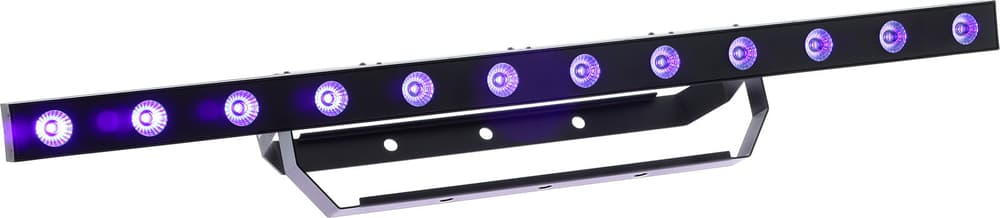

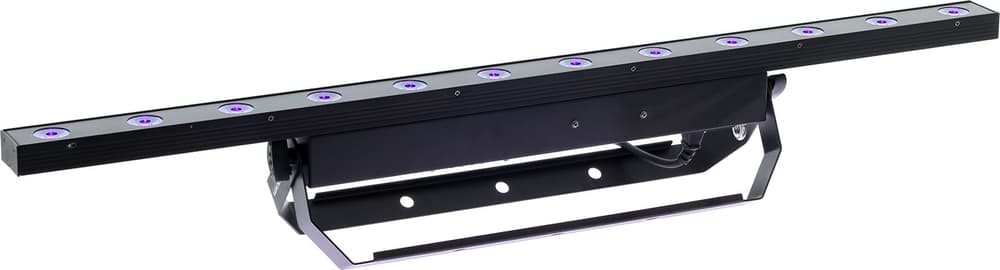

The Algam Lighting Barwash 36 UV redefines the standard for blacklight lighting with a robust, powerful solution designed specifically for professional environments. Unlike conventional home options, this 1-meter-long bar is built on a sturdy steel chassis housing 12 three-watt UV LEDs , ensuring intense and reliable projection.

Its design is intended to cover large areas thanks to its 40-degree beam angle, allowing it to bathe walls, dance floors, or entire stages in uniform, immersive ultraviolet light. It's the perfect tool for highlighting fluorescent colors in fabrics, body paint, and UV-reactive decorations, creating an instant immersive atmosphere.

Versatility is key to the Barwash 36 UV. Its operation is completely silent thanks to its passive cooling system (no noisy fans), making it ideal for installations in theaters or museums where silence is paramount. Furthermore, its daisy-chain capability, for both DMX signal and power supply, greatly simplifies the setup of multiple units, reducing cabling requirements and speeding up installation for temporary or permanent events.

Main features

• High-performance UV power: Equipped with 12 x 3W LEDs, it offers a total power of 36W dedicated exclusively to the ultraviolet spectrum, achieving a deep and bright black light effect.
• Wide and uniform coverage: The 40° beam angle eliminates hot spots and ensures a homogeneous wash of light over surfaces or the public.
• Professional construction: Durable metal chassis designed to withstand the demands of transport and continuous stage use.
• Silent operation: By dispensing with fans, the passive heat dissipation system ensures zero noise operation.

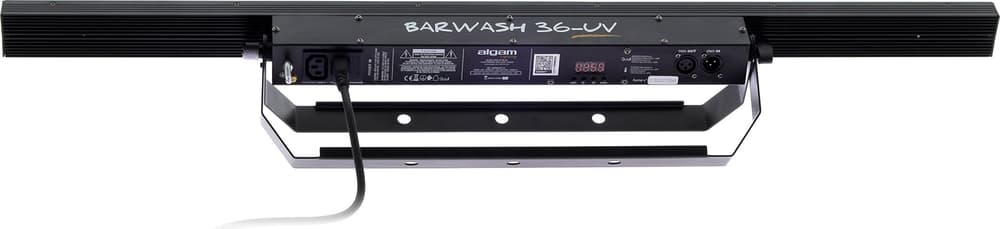

• Intelligent connectivity: IEC and XLR inputs and outputs that allow seamless daisy-chaining of power and data signals between multiple busbars.

Benefits for the user

For lighting technicians and event organizers, the Barwash 36 UV offers complete peace of mind. Its setup is immediate: it can operate in automatic mode for quick "plug-and-play" commissioning or be integrated into a lighting console via DMX (1 channel) for precise dimming and strobe control from the lighting board. Its slim and lightweight design allows for discreet integration into trusses, ceilings, or floors without obstructing the view.

Ideal use cases

• Nightlife and Festivals: Essential in nightclubs and bars to highlight white clothing and fluorescent decorative elements.
• Escape Rooms and Laser Tag: Create mysterious environments and reveal hidden clues written with invisible UV-reactive ink.
• Artistic Events and Galleries: Perfect for art exhibitions using fluorescent paints or immersive installations that require visual darkness with UV reactivity.
• Bowling Alleys and Leisure Centers: It provides the classic "glow" effect that transforms the atmosphere during night sessions.

Frequently Asked Questions

• Can multiple bars be connected together?
  Yes, the unit has IEC power input and output, allowing multiple units to be powered in series from a single power outlet, as well as DMX signal chaining.
• Does it make noise during operation?
  No, the cooling is entirely passive by convection through the metal chassis, so it does not emit any noise, making it ideal for theater.
• Do I need a control panel to use it?
  It's not strictly necessary. The light bar has automatic standalone modes, although for professional intensity control or synchronized strobe effects, using DMX mode is recommended.
• Is it suitable for outdoor use?
  No, this model has IP20 certification, so its use is restricted to indoors or covered and dry spaces.

Project description

One-meter linear LED light bar dedicated to ultraviolet (UV) projection. Equipped with twelve 3W LEDs for a total power of 36W. Features a 40° beam angle for uniform illumination. Fanless, passive convection cooling system. Controlled via DMX512 protocol (1 channel) with integrated automatic modes accessible through a four-button digital display. DMX signal input and output connections are via 3-pin XLR connectors, and power is supplied via IEC Link connectors for serial connection. Steel chassis with a black finish. Dimensions: 1000 x 51 x 157 mm. Weight: 2.8 kg. IP20 rating.
