AKG CK80 - Hypercardioid Shotgun Microphone for GN/HM Module

AKG CK80 - Hypercardioid Shotgun Capsule for GN/HM1000 Modules (includes W80 Windscreen)

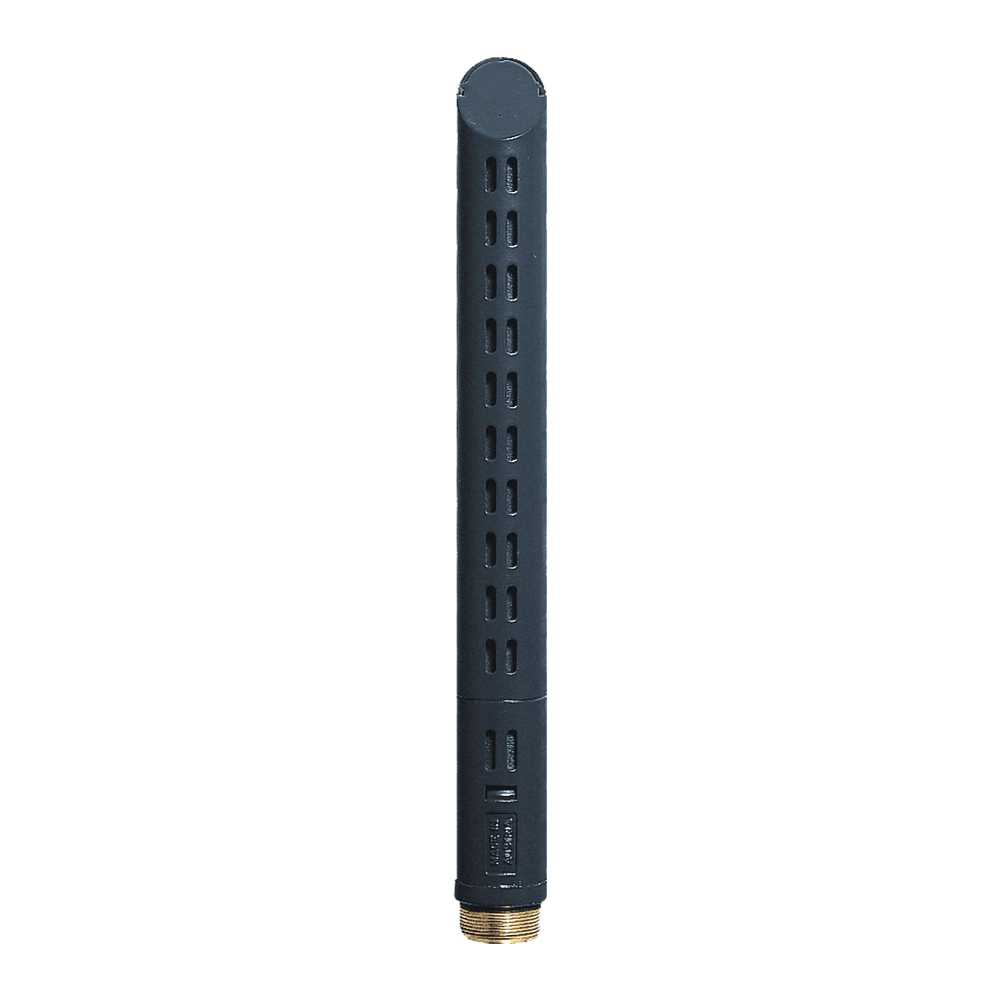

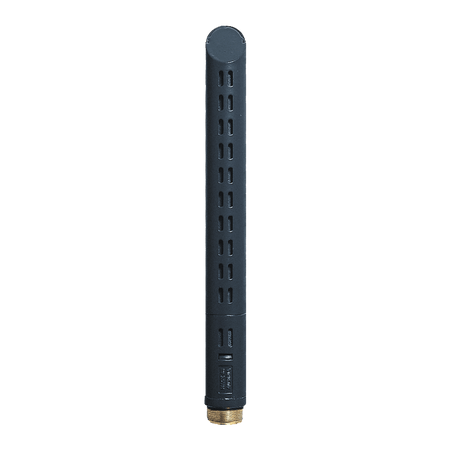

The AKG CK80 is a hypercardioid/lobar condenser capsule from the Discreet Acoustics Modular (DAM) series, optimized for vocals and voice-overs in demanding environments. It offers an 80° pickup angle and a response tailored for maximum intelligibility, with excellent side sound rejection. It screws directly onto GN modules (gooseneck: GN15E/GN30E/GN50E, etc.) or the HM1000 (pendant module), allowing you to configure conference stations, lecterns, or ceiling suspension with the same timbre and directivity. The capsule features self-cleaning gold-plated contacts and deep threads for reliable and long-lasting coupling, and is supplied with a W80 windscreen to reduce plosives and drafts.

Main features

• Hypercardioid/lobar pattern with 80° coverage, designed for voice and speech applications.
• Optimized for speech : Frequency response geared toward intelligibility in conference, worship, and corporate settings.
• Compatible with DAM modules : screws into GN15E/GN30E/GN50E (gooseneck) and HM1000 (ceiling suspension).
• Self-cleaning gold-plated contacts and deep threads prevent misalignment and ensure long-term reliability.
• Includes professional foam W80 windscreen .
• Typical specifications : 60 Hz–15 kHz; sensitivity 30 mV/Pa (−30 dBV); self-noise < 17 dB(A); max. SPL 125 dB (1 % THD); impedance < 600 Ω.
• Power : Requires 9–52 V phantom power via the GN/HM module (capsule is modular, pre-polarized).
• Finish : discreet matte dark grey for installations.

Product benefits

• Maximum voice clarity thanks to its narrow directivity and optimized speech response.
• High side rejection : reduces leakage from room, monitors and adjacent participants.
• Modular architecture : reuses the same GN/HM bases and changes only the capsule according to the scenario.
• Installation reliability : Self-cleaning gold-plated contacts and deep threads minimize contact noise and false couplings.

Use cases

• Lecterns and conference rooms with multiple speaking positions and turns.
• Temples and auditoriums where greater rejection and environmental control are required.
• Ceiling suspension with HM1000 over meeting or choir tables.

Frequently Asked Questions

• Does it require phantom power? Yes, via the GN/HM module (9–52 V). The capsule itself does not have a separate preamplifier.
• What windscreen is included? It comes with W80 .
• Is it compatible with all DAM modules? Yes, with the DAM series mounting modules (GN and HM1000).

Description for projects

AKG CK80 hypercardioid shotgun modular capsule for DAM modules ( GN15E/GN30E/GN50E , HM1000 ). 80° coverage; 60 Hz–15 kHz response; 30 mV/Pa (−30 dBV) sensitivity; noise <17 dB(A) ; 125 dB max SPL (1 % THD); impedance < 600 Ω; requires 9–52 V phantom power via module. Includes W80 windscreen ; self-cleaning gold-plated contacts; matte dark gray finish.
