Adjustable, valid for trusses with external measurements from 20 to 30 cm
Ref. TQ-AD1
Adapter for lifting and suspending trusses. TQ-AD1
Regular price
113,74 €
inc. VAT
Couldn't load pickup availability
If you have any questions about this product, we can assist you by filling out the contact form
Ask an expert

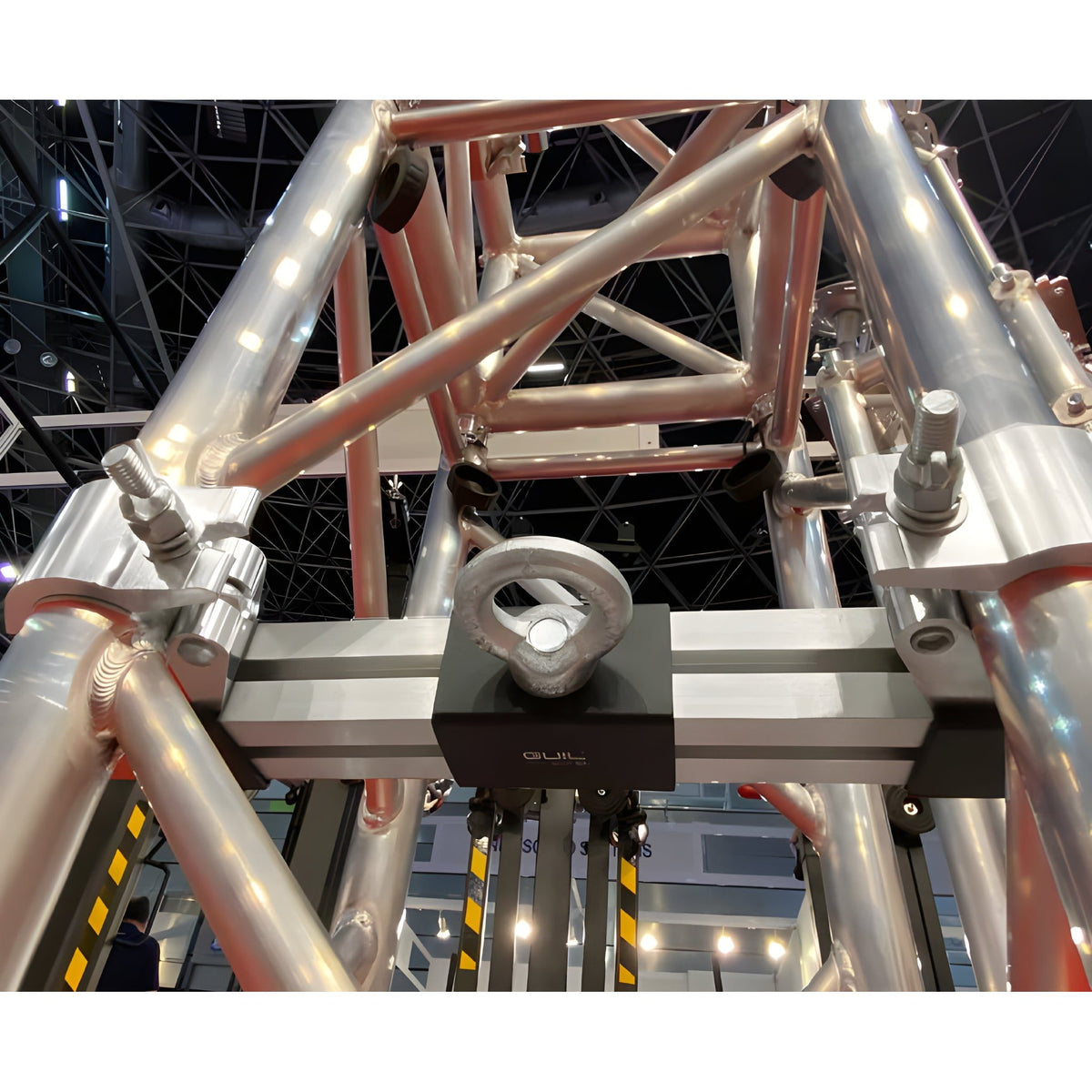

High load capacity adapter, for lifting and suspending trusses using hoists, winches, etc.
The TQ-AD1 adapters are provided with two ABZ-24 aluminum clamps (for trusses with tubes with diameters from 45 to 52 mm) and a removable M20 ring, for anchoring and later lifting the trusses.
Our truss adapter allows you to create a temporary or permanent attachment point for lifting trusses. Its design allows for easy and quick adjustment, assembly and disassembly.
Its reversible design allows us to place it in two different working positions.
The TQ-AD1 adapter can be used for trusses with external measurements from 20 cm to 30 cm.
| SPECIFICATIONS | TQ-AD1 |
| Maximum load: | 1000kg |
| Dimmable: | Yeah |
| Ring: | M20 |
| For tubes with diameters: | from 45 to 52mm |
| Material: | Aluminum |
| For Trusses: | with external measurement from 20 to 30 cm |
| Net weight: | 3.30kg |
