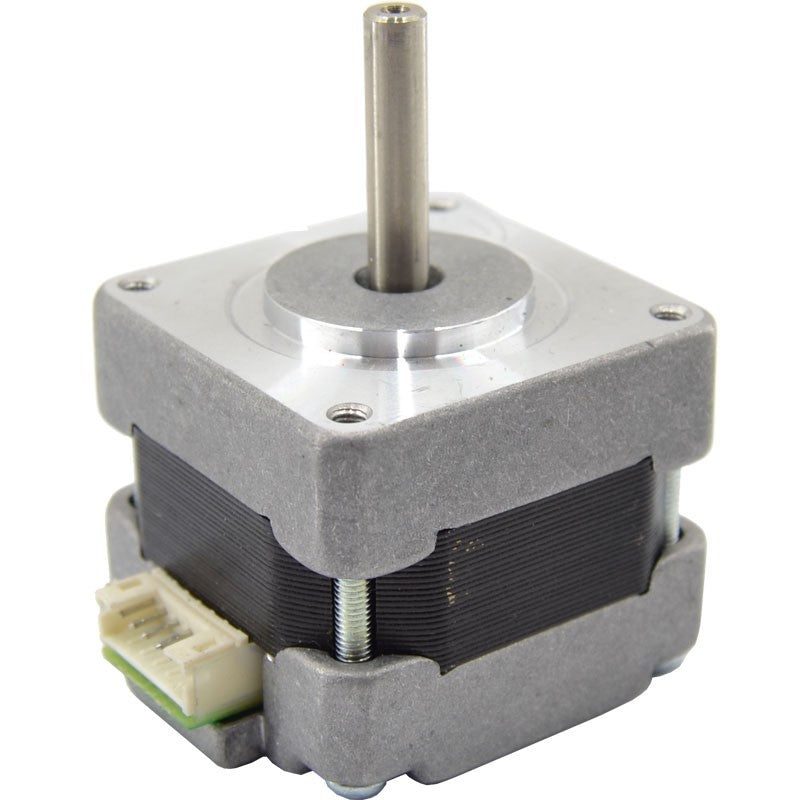

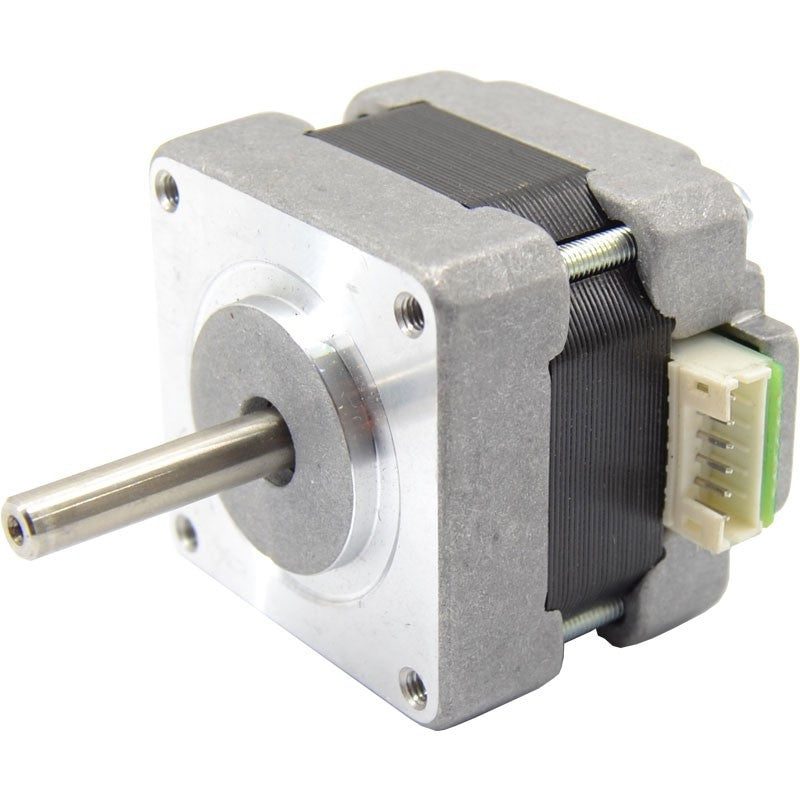

MOONS' 16HY0002-02 - NEMA 16 Stepper Motor for Professional Lighting

MOONS' 16HY0002-02 - NEMA 16 Stepper Motor for Professional Lighting

The MOONS' 16HY0002-02 stepper motor is a high-precision, high-reliability component designed to provide accurate and repeatable motion control across a wide range of applications. Manufactured by MOONS', a global leader in motion control solutions, this motor is the original replacement part used by Triton Blue , ensuring perfect compatibility and factory-identical performance for their professional lighting equipment.

This motor is not only essential for repairing and maintaining moving head lighting fixtures, but its standardized design also makes it an excellent choice for integrators, engineers, and DIY enthusiasts. Its robust construction ensures a long lifespan, even in demanding work environments such as touring, live events, or industrial production lines.

Main Features

• Certified Original Replacement Part: This is the genuine part used in Triton Blue equipment, ensuring trouble-free installation and full restoration of the equipment's original functionality.
• High Precision and Torque: Thanks to its hybrid motor design and a 1.8° step angle, it offers smooth movements and accurate positioning, crucial for lighting effects and precision machinery.
• Wide Compatibility: In addition to being the standard motor in Triton Blue moving heads, it is compatible and used by other renowned brands in the entertainment industry such as Elation, ADJ, Terbly and Ayrton.
• Durable Construction: Made with high-quality materials by MOONS', it is designed to withstand continuous and prolonged use, ensuring a long-lasting and reliable investment.
• Standard NEMA 16 Format: Its size and mounting correspond to the NEMA 16 industrial standard, which facilitates its integration not only in lighting equipment, but also in 3D printers, CNC machines and robotics projects.

Product Benefits

Choosing the MOONS' 16HY0002-02 motor means choosing peace of mind and efficiency. As an original replacement part, it eliminates any uncertainty about compatibility or performance. It will restore smooth panning and tilting motion to your moving heads, eliminating vibrations or positioning errors caused by a worn motor. Its versatility makes it a valuable component to have in stock, capable of troubleshooting a wide variety of equipment and minimizing downtime.

Use Cases

• Lighting Technicians: It is the essential spare part for the repair of Pan (horizontal rotation) or Tilt (vertical tilt) motors in a wide range of moving heads on the market.
• Equipment Rental Companies: A key component for the preventive and corrective maintenance of your lighting inventory, ensuring that the equipment always operates in optimal condition.
• Automation Projects: Perfect for integration into industrial machinery, positioning systems, linear actuators, or any application requiring precise motion control.
• Enthusiasts and Makers: Ideal for building or upgrading 3D printers, desktop CNC routers, and robotics projects that need a reliable, compact motor.

Frequently Asked Questions

Is this motor compatible with my moving head from another brand?
While this is the original replacement part for Triton Blue, model 16HY0002-02 is used by many other manufacturers such as Elation, ADJ, and Terbly. It is recommended to verify your equipment's specifications or motor code to confirm 100% compatibility.

What does it mean for it to be a NEMA 16 motor?
NEMA 16 is a standard from the National Electrical Manufacturers Association (NEMA) that defines the dimensions of the motor's faceplate, which in this case is 1.6 x 1.6 inches (approximately 42 x 42 mm). This ensures mechanical interchangeability between motors of the same standard.

Does the installation require advanced technical knowledge?
Replacing the motor requires basic electronics and mechanical knowledge, such as soldering wires and disassembling equipment components. If you are not comfortable performing the task, it is recommended that you contact a qualified technician.

Project description

This MOONS' 16HY0002-02 bipolar hybrid stepper motor features a standard NEMA 16 form factor with a 42 x 42 mm faceplate. It offers a step angle of 1.8 degrees per step (200 steps per revolution). Designed to operate with a current of 0.8 amps per phase, it achieves a holding torque of 0.16 N·m. The shaft has a diameter of 5 mm and a length of 24 mm. It weighs approximately 200 grams.
