The Triton Blue 5P Signal PCB for DM620 is a printed circuit board specifically designed as an original replacement for the Triton Blue DM620 professional dimmer. This board is the essential component that manages all DMX control signal input and output connections, allowing the dimmer to communicate reliably with lighting consoles and other DMX devices. As an official Triton Blue replacement part, it guarantees perfect compatibility and performance identical to the factory part, restoring full functionality to your equipment without compromising quality or safety.

Manufactured with high-quality components, this PCB is designed to withstand the demands of professional use in touring, theaters, television studios, and live events. Its simple installation allows maintenance technicians to quickly and efficiently replace damaged boards, minimizing equipment downtime. The board features industry-standard connectors to ensure seamless integration into any professional lighting system.

Main Features

• Original Triton Blue Replacement Part: Designed and manufactured by Triton Blue, this plate ensures 100% compatibility and performance with the DM620 dimmer model.
• Full DMX Connectivity: Equipped with a 5-pin male XLR connector for signal input (DMX IN) and a 5-pin female XLR connector for signal output (DMX OUT), allowing daisy-chaining of multiple devices.
• Integrated RJ45 Connection: Includes an RJ45 connector that offers a modern alternative for transmitting the DMX signal through standard network cable (Cat5e/Cat6), providing greater flexibility in fixed or complex installations.
• Robust Construction: Mounted on a durable printed circuit board with high-quality soldering to ensure a stable electrical connection and a long service life.
• Easy Installation: Designed for direct replacement, it connects to the main dimmer board via internal connectors, facilitating a quick and safe repair.

Benefits for the Technician and the User

For lighting technicians and rental companies, having this genuine replacement part is essential. It allows for reliable and quick repairs, ensuring the DM620 dimmer is back in working order and fully functional. The inclusion of 5-pin XLR and RJ45 connectors on a single board offers unparalleled versatility, making the repaired dimmer compatible with both traditional DMX wiring systems and the increasingly common network-based infrastructures found in permanent installations.

Use Cases

The primary use of this PCB is for repairing Triton Blue DM620 dimmers whose DMX signal ports have suffered physical damage (broken connectors, bent pins) or electronic failures. It is the ideal solution for restoring lost or intermittent DMX communication, a critical issue in any professional lighting production. It is also useful for technicians who want to keep essential spare parts on hand for preventative maintenance of their lighting equipment inventory.

Frequently Asked Questions

Is this plate compatible with a dimmer model other than the DM620?
No, this board is designed exclusively for the Triton Blue DM620 model. Its form factor, internal connections, and mounting are specific to this device.

What type of signal do the connectors transmit?
All connectors (XLR male, XLR female and RJ45) are designed for input and output of the standard DMX-512 digital lighting control signal.

Does the installation require welding?
No, these types of replacement boards are usually connected to the main dimmer board via internal cables and connectors, so no soldering is required for replacement.

Why is there a 5-pin XLR connector instead of a 3-pin one?
The 5-pin XLR connector is the official standard for DMX-512. Although most applications only use 3 pins, using the 5-pin connector ensures compatibility with high-end equipment and meets the professional specifications of the protocol.

Project description

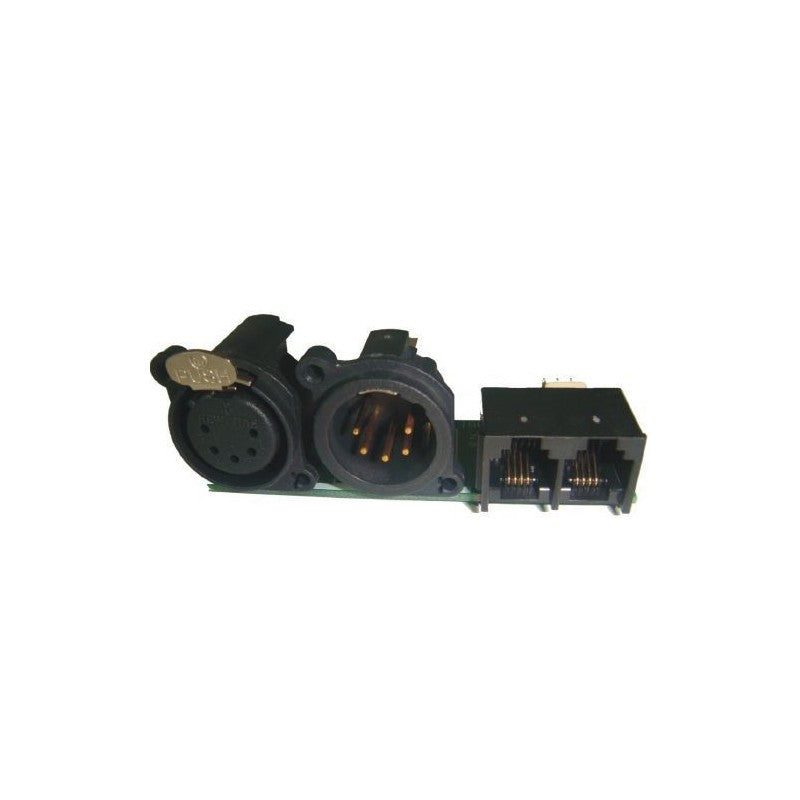

Printed circuit board (PCB) for DMX signal management, designed as a replacement for the Triton Blue DM620 dimmer. The board includes a 5-pin male XLR DMX signal input connector, a 5-pin female XLR DMX signal output connector, and an alternative RJ45 DMX signal connector. Original component from the manufacturer.
