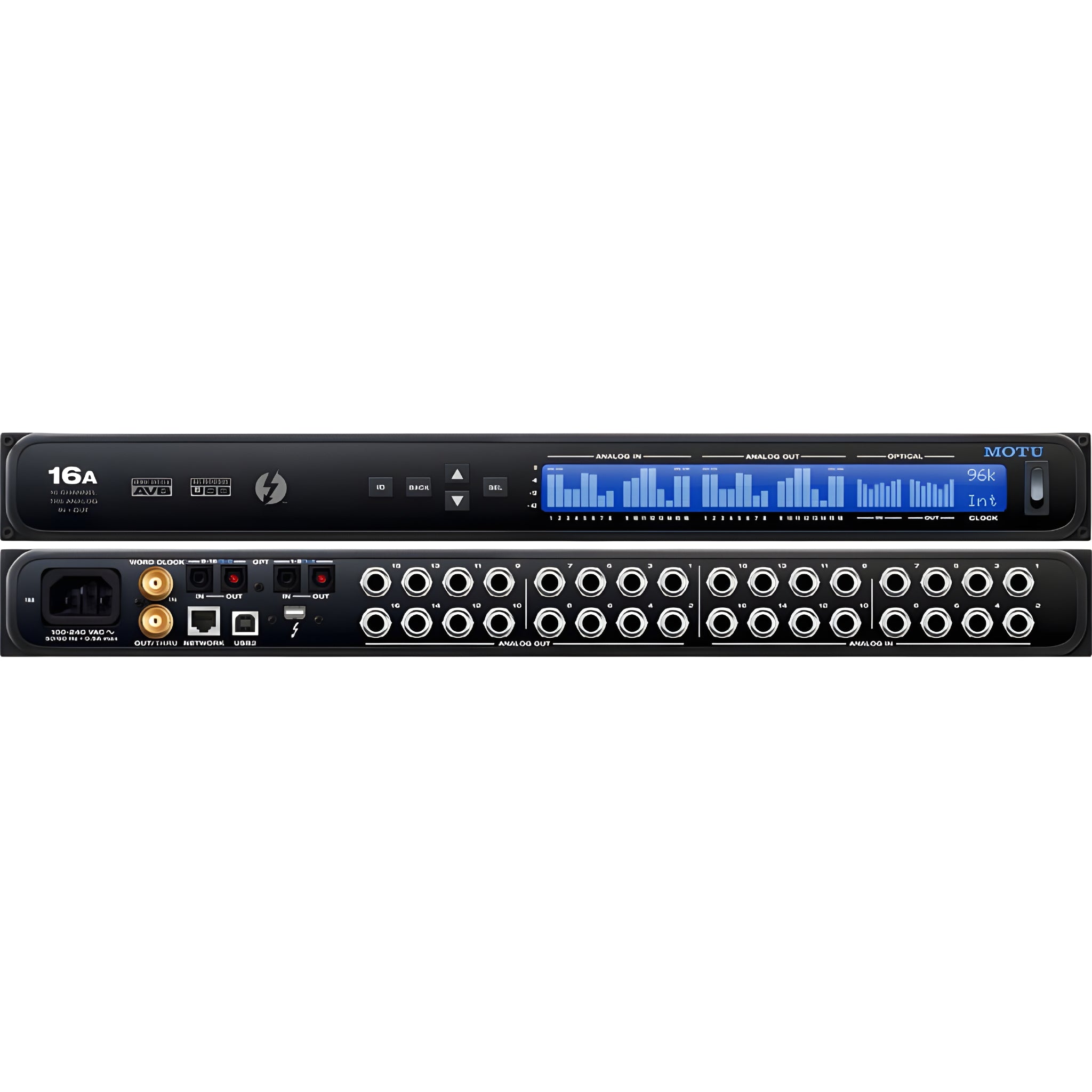

MOTU 16A AVB - Hybrid Audio Interface

Out of stock
SKU: 16A-AVB-026996 EAN13: 0839128005921
Regular price 1.499,00 € inc. VAT
Regular price -4% 1.560,00 € Sale price 1.499,00 € inc. VAT

If you have any questions about this product, we can assist you by filling out the contact form

HYBRID AUDIO INTERFACE (VARIOUS SYSTEMS) The 16A Thunderbolt audio interface provides the industry's widest dynamic range and massive mixing capability in the style of a true 48-channel, 12-bus stereo mixer. With 16 analog inputs and 16 outputs on balanced TRS jacks on the rear panel plus an additional 16 channels of digital audio I / O in optical ADAT format, we have a total of 32 inputs and 32 outputs to use as an input/output expansion converter for another audio interface or as a flexible and capable standalone audio mixer and control absolutely everything from the innovative 16A web application that will run on our iPad, iPhone, Android tablet or smartphone, and also on any laptop. You only need to have a web browser and there is no need to download any application. The 16A is also compatible and can be connected via USB 2.0 and USB 3.0. Featuring a powerful 32-bit floating-point mixing and effects DSP, it includes analog modeled EQ, simulated vintage gear compression, and classic reverb. It features extensive patch routing, allowing the unit to patch any input to any output or split inputs to multiple destinations. A second interface in the series can be connected via an Ethernet cable to add more inputs and outputs to the system. This can be done using the AVB Series switch (sold separately). This allows the 16A to build an entire audio network following the AVB standard, with multiple switches acting as network nodes and one or more interfaces connected to them in any combination, all with overall latency of a few milliseconds, even over very long cables in different rooms. Hundreds of input or output channels can be routed between all the devices and equipment connected to the network, keeping cabling and installation costs extremely low. From initial recording to final mastering, the 16A provides excellent sound quality, the world's highest configurability and controllability, and extremely reliable performance.

  • Marca: MOTU
  • Modelo: 16A
  • Canales de E/S totales: 32 entradas / 32 salidas (64 en total) a 1x frecuencias de muestreo
  • Conectividad al ordenador: 1 x Thunderbolt 1 (compatible con 2 y 3), 1 x USB 3.0 (compatible con 2.0)
  • Conectividad de red: 1 x AVB Ethernet
  • Entradas Analógicas: 16 x Jack TRS de 6.3 mm (balanceado/no balanceado, nivel de línea)
  • Salidas Analógicas: 16 x Jack TRS de 6.3 mm (balanceado, acoplado a CC)
  • Rango Dinámico Salidas Analógicas: 123 dB (ponderado A, 20 Hz - 20 kHz)
  • Rango Dinámico Entradas Analógicas: 117 dB (ponderado A, 20 Hz - 20 kHz)
  • THD+N Salidas Analógicas: -110 dB (0.0003%)
  • THD+N Entradas Analógicas: -110 dB (0.0003%)
  • E/S Digital: 2 x ADAT óptico (16 canales a 48 kHz, 8 a 96 kHz), 1 x Word Clock In, 1 x Word Clock Out
  • Frecuencias de Muestreo: 44.1, 48, 88.2, 96, 176.4, 192 kHz
  • Procesamiento DSP: Mezclador digital de 48 canales, 12 buses estéreo y procesamiento a 32-bit punto flotante
  • Efectos DSP: Classic Reverb, Compresor modelado (LA-2A), Ecualizador modelado (British analog console)
  • Latencia (ida y vuelta): Thunderbolt: 1.6 ms (a 96 kHz con buffer de 32 muestras); USB: 1.9 ms (a 96 kHz con buffer de 32 muestras)
  • Panel Frontal: Pantalla LCD de 324 x 24 píxeles para medición y menús, controles de navegación
  • Control Remoto: Aplicación web MOTU Pro Audio Control (funciona en cualquier navegador)
  • Alimentación: Fuente de alimentación interna 100-240V CA, 50/60 Hz
  • Formato: Chasis de rack 1U
  • Material del chasis: Aleación de aluminio
  • Dimensiones: 48.3 x 17.75 x 4.5 cm
  • Peso: 1.9 kg
  • Type Studio & computer recording
  • Vendor MOTU
  • SKU 16A-AVB-026996
  • Bar-code 0839128005921

Buy MOTU 16A AVB - Hybrid Audio Interface
