Triton Blue Python W19 (PHYTON 1140) - IP65 19x60W RGBW wash moving head with 4°–57° zoom and ArtNet/sACN/KlingNet control

Triton Blue Python W19 (PHYTON 1140) - IP65 19x60W RGBW wash moving head with 4°–57° zoom and ArtNet/sACN/KlingNet control

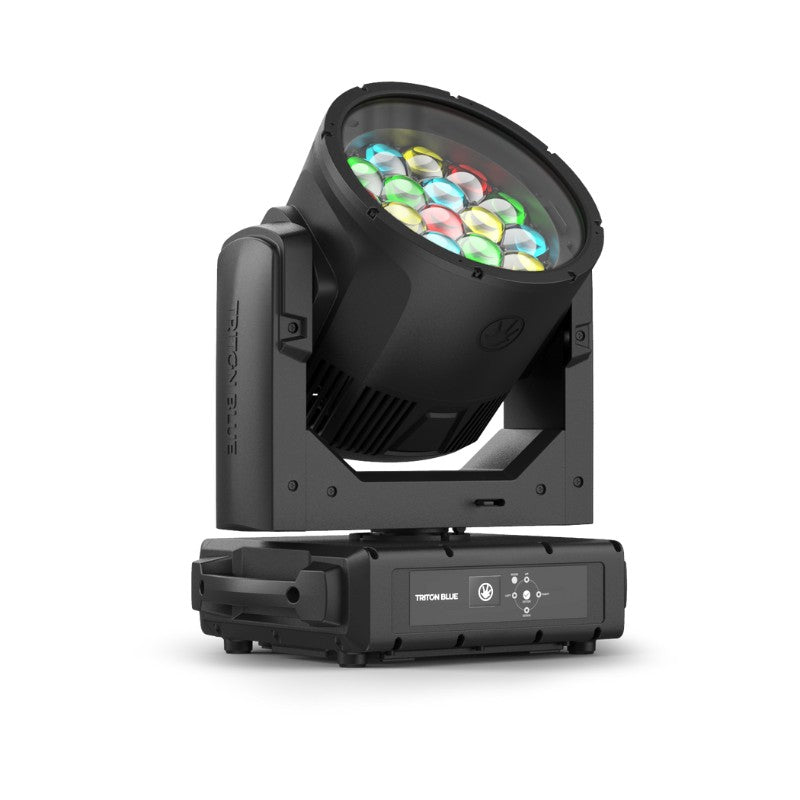

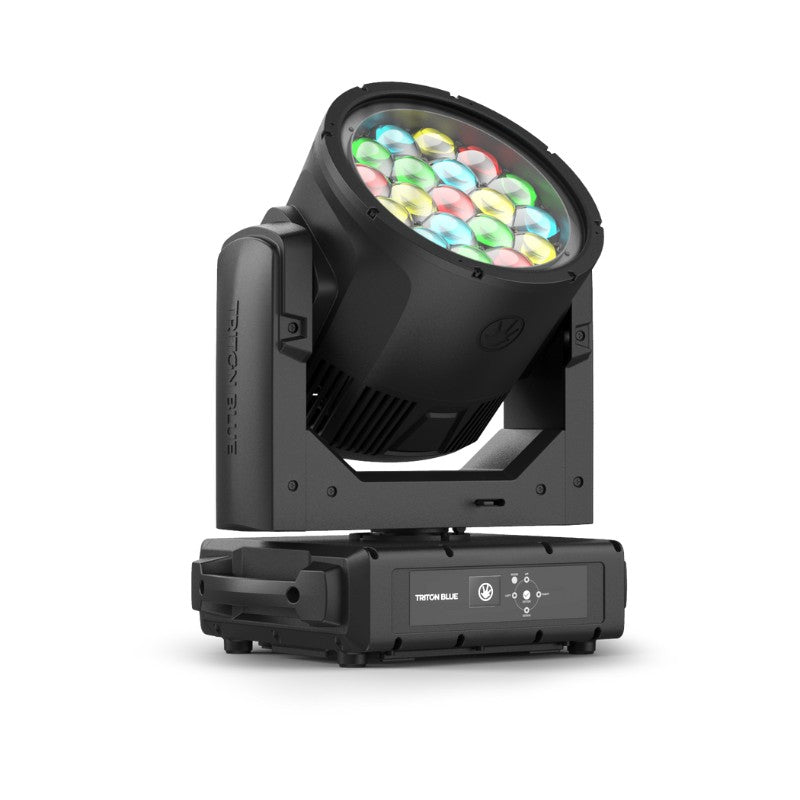

The Triton Blue Python W19 (also known as the PHYTON 1140 ) is an IP65 wash moving head designed for touring, outdoor events and theatres that demand power, reliability and advanced control. It features 19 x 60W RGBW LEDs with 20,000 lumens and up to 64,300 lux at 5m , a motorized zoom covering from a narrow 4° beam to a 57° field of view , and CCT calibration from 2,700K to 10,000K . Pixel mapping, professional dimmer curves and DMX/RDM, ArtNet, sACN and KlingNet protocols allow the luminaire to be integrated into creative setups and modern lighting control networks.

Main features

• Light source: 19 × 60 W RGBW (life approx. 30,000 h), flux 20,000 lm, 64,300 lux @ 5 m.
• Optics and zoom: Ø237 mm lens (PMMA), zoom 4°–57° (beam approx. 4°–39° / field 6°–57°).
• Color & CCT: RGBW mixing with adjustable color temperature 2,700–10,000K to match tungsten, daylight, or creative looks.
• Control: DMX 512 ( 17/21/93 channel modes), RDM , ArtNet , sACN , KlingNet ; per pixel or array control.
• Interface and firmware: Touchscreen (flip-up), display battery and firmware update .
• Professional dimmer: 0–100% with Linear, Square, Inverse Square and S-Curve curves; pulse and random strobe .
• Movement: Pan 540°/630° and Tilt 270° with fine resolution and feedback ; mechanical Pan/Tilt locks.
• Quiet & Temperature: Auto/SLN/Theater/Constant fan modes, down to ≤40–50 dB; operation from −20°C to +45°C .
• True IP65 with aluminum alloy chassis; 5-pin DMX connectors and Seetronic SAC3MPX-LY power supply .

Benefits for the professional

• Total outdoor/indoor versatility: IP65 protection and wide zoom to cover everything from defined beams to even baths.
• Integration into modern networks: ArtNet/sACN/KlingNet for pixel mapping and synchronization with video/media servers.
• Camera Consistency: CCT calibrated, selectable PWM and flicker-free smooth dimmer.
• High flux with precision: 20,000 lm and 64,300 lux @ 5 m with stable colorimetry for large stages.
• Efficient operation: optimized ventilation modes and remote diagnostics via RDM.

Use cases

• Outdoor festivals and concerts with IP65 requirements and powerful wash coverage.
• Theatre and television when specific CCT and operational silence are required.
• Corporate events and ephemeral architecture with pixel mapping and high-impact looks.

Frequently Asked Questions

• Can it be used in light rain? Yes. The luminaire is IP65 rated ; always ensure connectivity and mounting according to good practices.
• Does it have pixel mapping? Yes, pixel-by-pixel or aggregate control.
• What network protocols does it support? ArtNet, sACN, and KlingNet , as well as DMX/RDM .

Description for projects

IP65 wash moving head with 19×60 W RGBW , flux 20,000 lm , 64,300 lux @ 5 m , zoom 4°–57° , lens Ø237 mm (PMMA), CCT 2,700–10,000 K ; DMX/RDM control ( 17/21/93 ch modes), ArtNet , sACN , KlingNet ; dimmer 0–100% with 4 curves and strobe; Pan 540°/630°, Tilt 270°; 5-pin DMX and SAC3MPX-LY connectors; operation −20 °C to +45 °C ; IP65 ; max. consumption 1,230 W. Projector dimensions (regular version) 433 × 310 × 517 mm (with integrated bracket: 433 × 310 × 545 mm ). Included accessories: EU cable, 2 omegas, safety cable.
