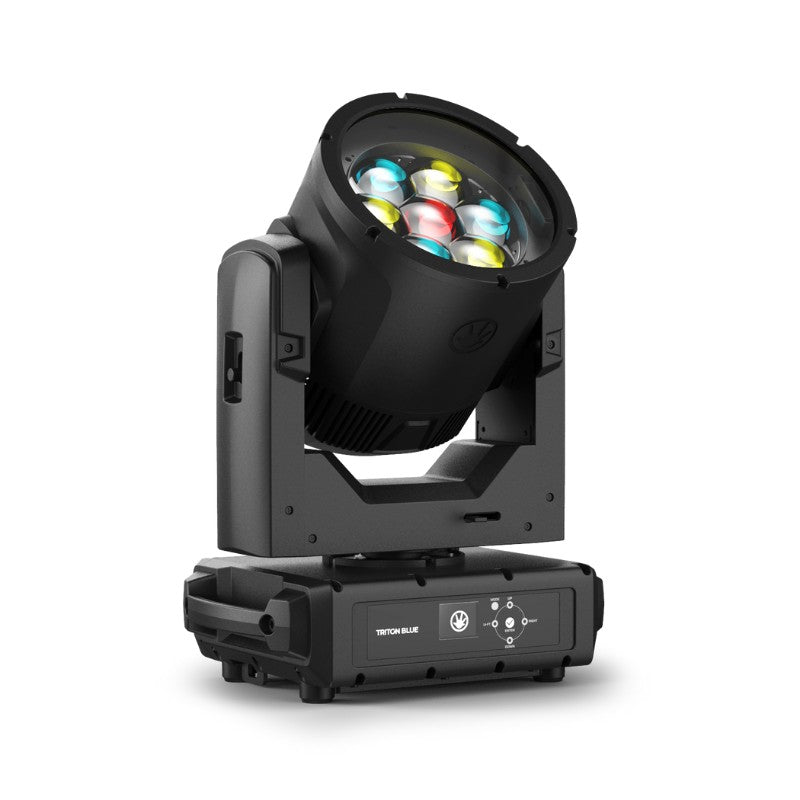

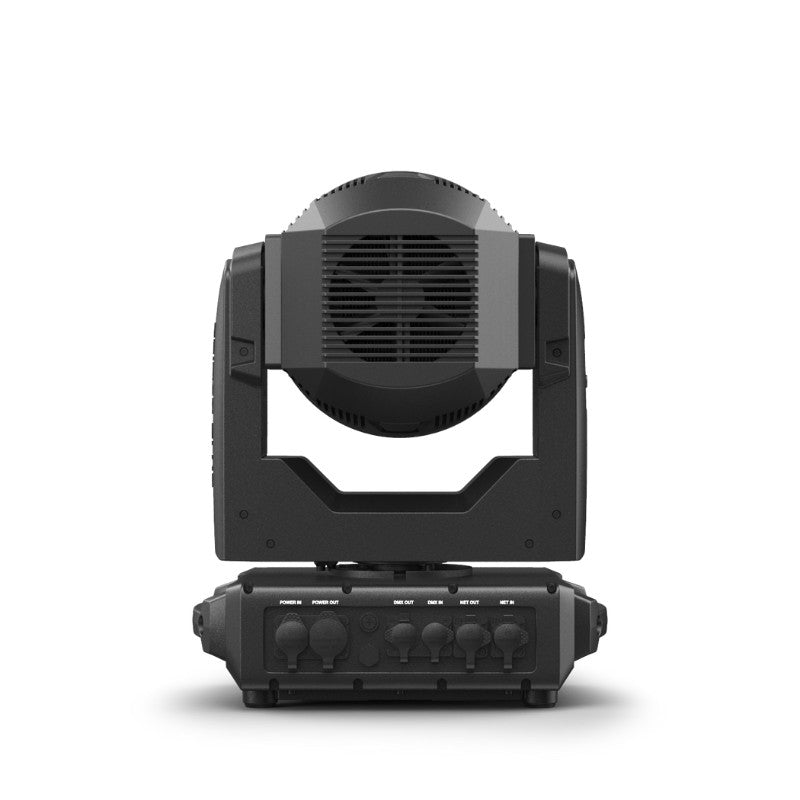

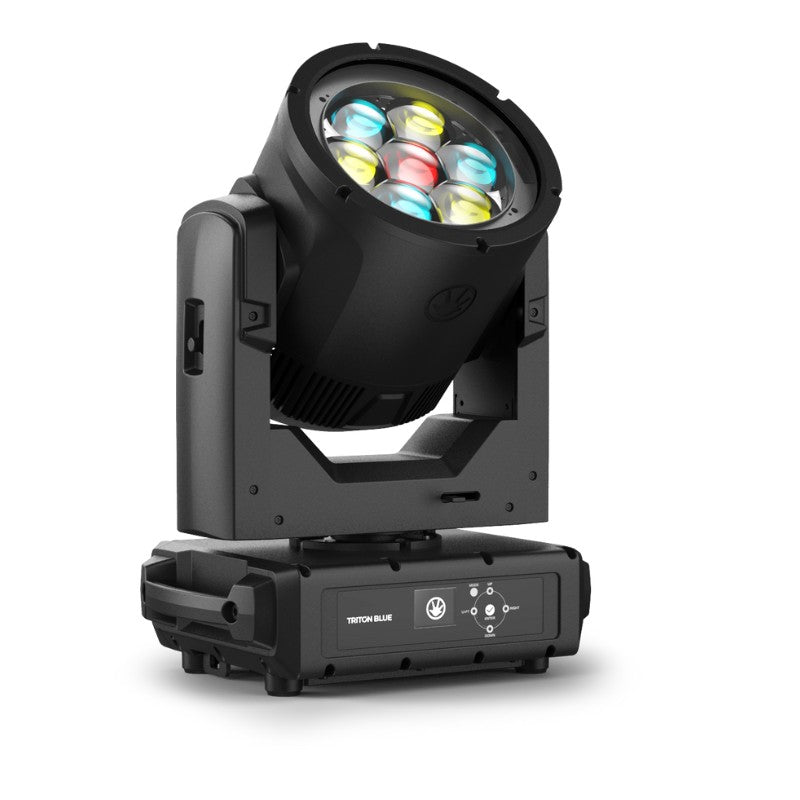

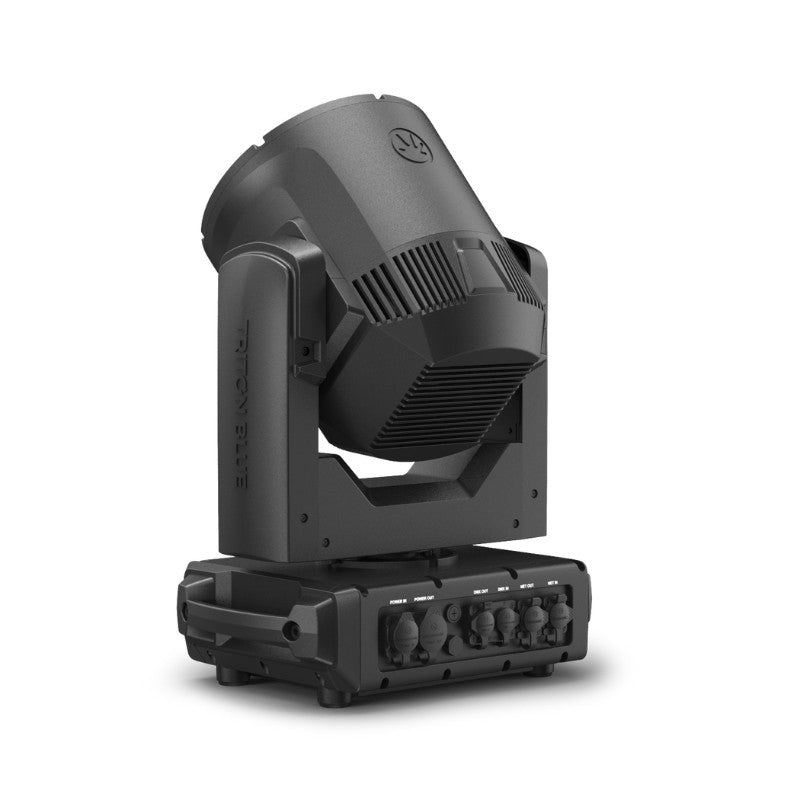

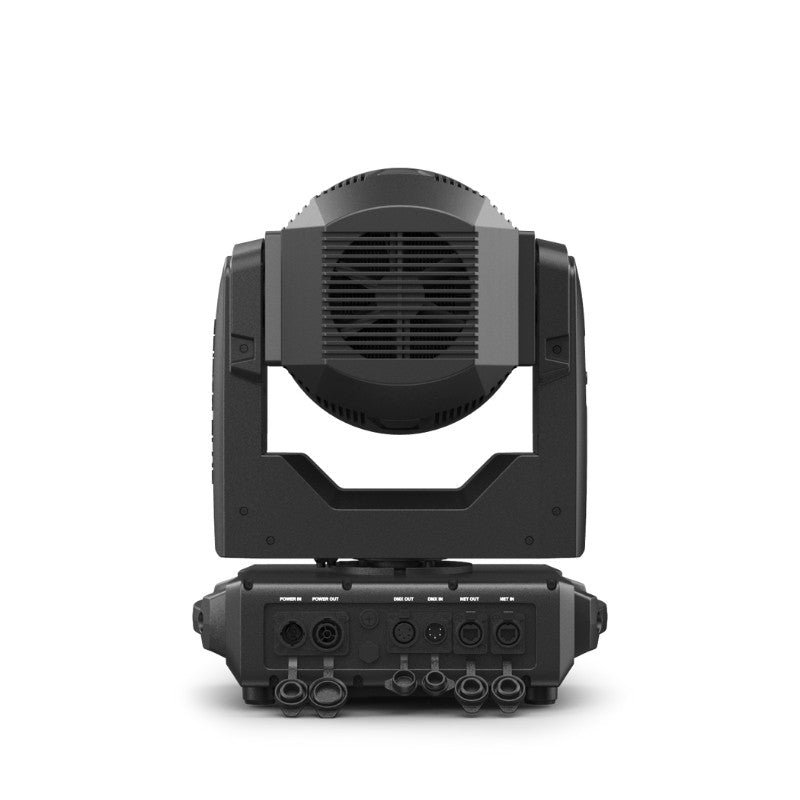

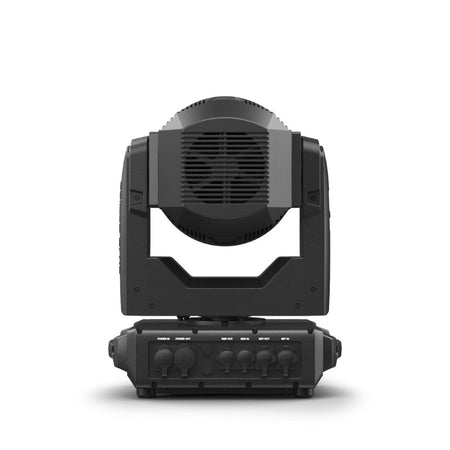

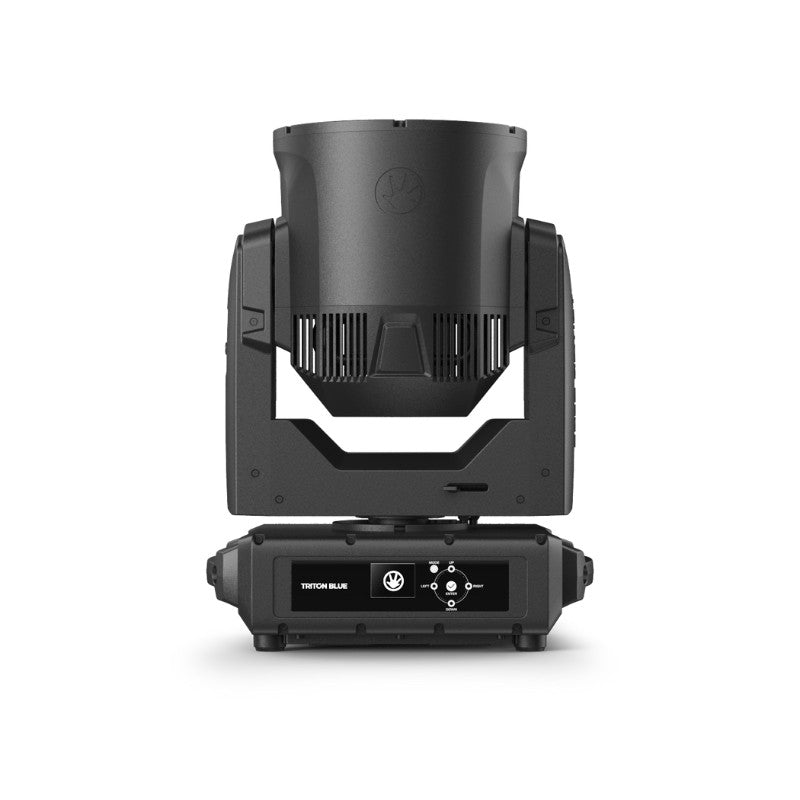

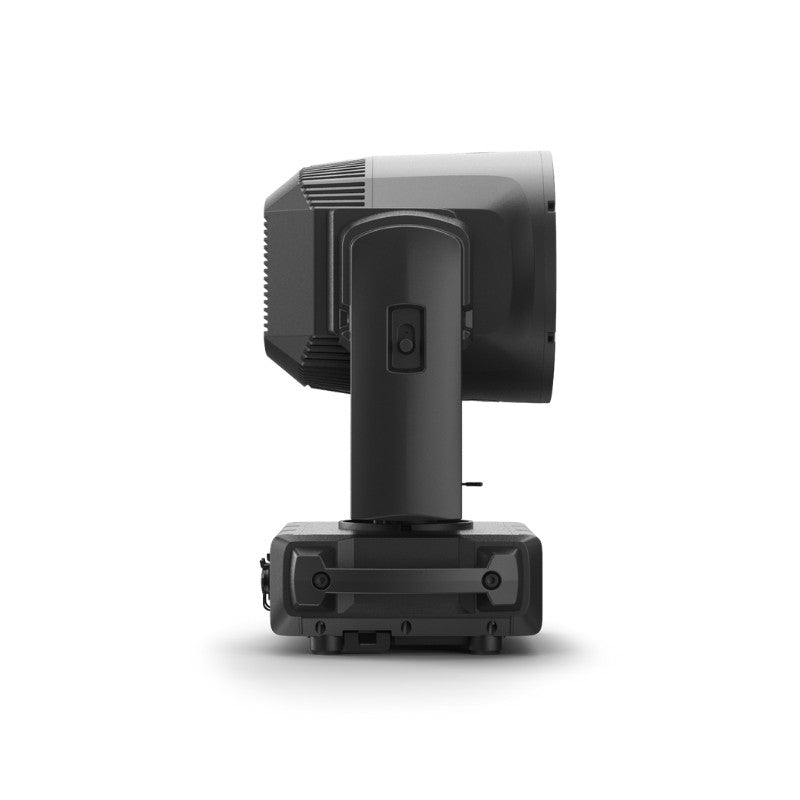

Triton Blue Python W7 (PHYTON 420) – IP65 7×60W RGBW wash moving head with 4°–54° zoom and ArtNet/sACN/KlingNet control

Triton Blue Python W7 (PHYTON 420) – IP65 7×60W RGBW wash moving head with 4°–54° zoom and ArtNet/sACN/KlingNet control

The Triton Blue Python W7 , also known as the PHYTON 420 , is an IP65 wash moving head designed to perform at its best in concerts, festivals, theater, television and outdoor events . It features 7 x 60W RGBW LEDs with a flux of 6,000 lm and up to 24,100 lux at 5 m (6°), combined with motorized zoom (beam 4°–34° / field 6°–54°) and pixel control . The 2,700–10,000 K CCT calibration makes it easy to match tungsten or daylight, while ArtNet , sACN and KlingNet networking protocols integrate the luminaire into modern pixel mapping workflows . Its IP65 sealed chassis , selectable PWM electronics (900 Hz–25 kHz) and professional dimmer curves make it a reliable, camera-ready tool.

Main features

• Light source: 7 × 60 W RGBW (life approx. 30,000 h) with 6,000 lm and 24,100 lux @ 5 m (6°).
• Optics and zoom: Ø160 mm lens (PMMA), 4°–34° beam / 6°–54° field ; homogeneous wash or concentrated beam as needed.
• Color & CCT: RGBW mixing with adjustable color temperature 2,700–10,000 K for color consistency in hybrid rig.
• Advanced control: DMX/RDM (17/21/45 channels), ArtNet , sACN , KlingNet and wireless control ; pixel mapping by rings/LEDs.
• Professional operation: 0–100% dimmer with linear, square, inverse square, and S-curve curves; normal/pulse/random strobe .
• Precise movement: Pan 540°/630° and Tilt 270° with feedback and mechanical locks.
• Quiet and robust: Auto/Silent/Theater/Constant ventilation modes (≤40–50 dB) and real IP65 for outdoor use.
• Physical connectivity: DMX 5-pin IN/OUT and Seetronic SAC3MPX-LY for power.

Product benefits

• Outdoor/indoor versatility: IP65 protection and wide zoom to cover everything from sharp spotlights to large bathrooms.
• Integration into show networks: ArtNet/sACN/KlingNet protocols for synchronization with video and media servers.
• Camera-ready: Selectable PWM and precise dimmer minimize broadcast flicker.
• Performance with fine control: high output, stable color and pixel mapping for dynamic looks.

Use cases

• Festivals and tours : IP65 rigs with powerful wash coverage and pixel effects.
• Theater/TV : Adjustable CCT, quiet operation and smooth dimmer transition.
• Corporate events : color integration with stage designs and attractive pixel mapping .

Frequently Asked Questions

• Is it suitable for light rain? Yes, the IP65 rating allows for outdoor use with good mounting and connection practices.
• Does it have pixel control? Yes, with section/LED control in addition to group mode.
• What network protocols does it support? ArtNet , sACN , and KlingNet , as well as DMX/RDM .

Description for projects

IP65 wash moving head with 7×60 W RGBW , 6,000 lm , 24,100 lux @ 5 m (6°), zoom (beam 4°–34° / field 6°–54° ), CCT 2,700–10,000 K ; DMX/RDM control (17/21/45 ch), ArtNet , sACN , KlingNet ; dimmer 0–100% with 4 curves and strobe ; Pan 540°/630°, Tilt 270°; PWM 900 Hz–25 kHz ; 5-pin DMX and Seetronic connectors SAC3MPX-LY ; operation −20 °C to +45 °C ; max. consumption 440 W. Includes EU cable, 2 omega cable glands and safety cable.
