Audibax Seattle 6L - Pair of 2-way passive PA speakers 200W (6.5", 8 Ω)

Audibax Seattle 6L - Pair of 2-way passive PA speakers 200W (6.5", 8 Ω)

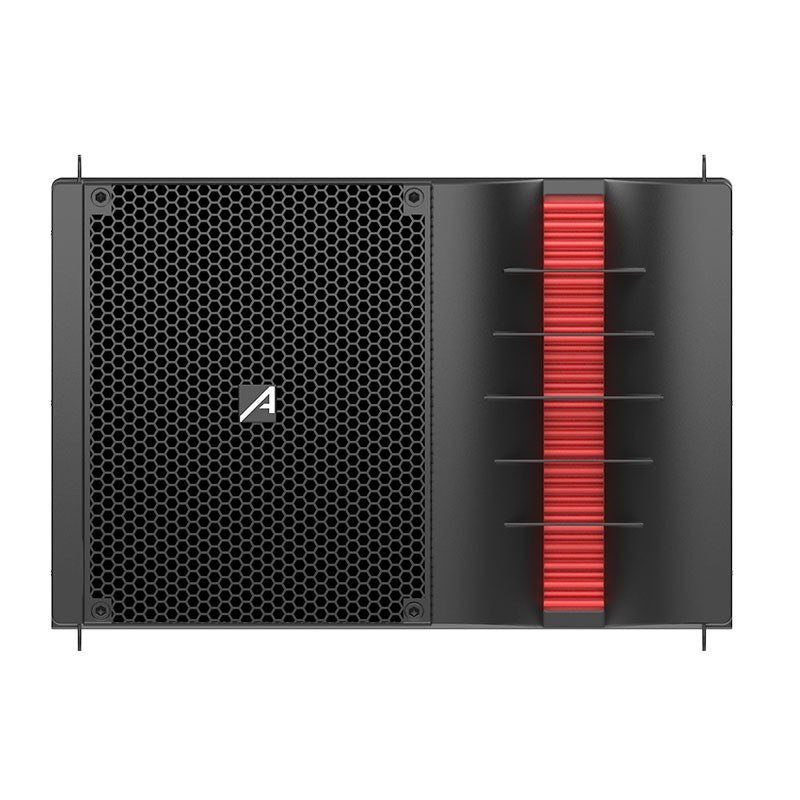

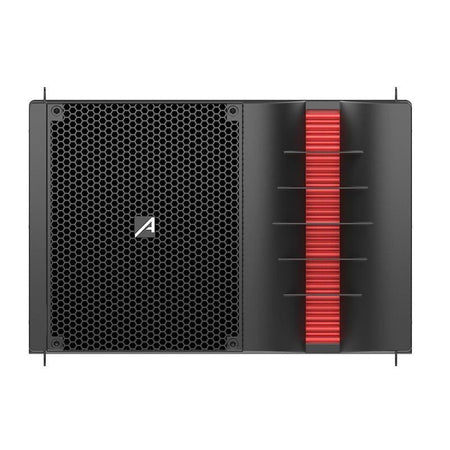

The Audibax Seattle 6L are passive 2-way speakers designed for portable sound reinforcement and fixed installations. Each cabinet features a 6.5" woofer ( 1.5" voice coil) and a 1" tweeter with a horn , delivering a maximum SPL of 118 dB and a wide frequency response of 65 Hz to 20 kHz . Their 120° (H) × 90° (V) directivity ensures even coverage in medium-sized rooms, while the ABS enclosure combines lightness and durability for everyday use.

With an 8 Ω impedance and 200 W RMS power (400 W peak), they integrate easily with standard amplification. They feature a 36 mm tripod flange , suspension points , and dual 6.3 mm jacks in parallel (input/thru) for quick pairing. Their commercial format is sold in pairs , streamlining stereo deployment in events, multipurpose rooms, educational centers, and corporate spaces.

Main features

• 2-way with 6.5" woofer ( 1.5" voice coil) and 1" HF motor with horn.
• 200 W RMS (400 W peak), 8 Ω ; Max SPL 118 dB .
• Frequency response : 65 Hz – 20 kHz.
• Dispersion : 120° (H) × 90° (V) for wide and uniform coverage.

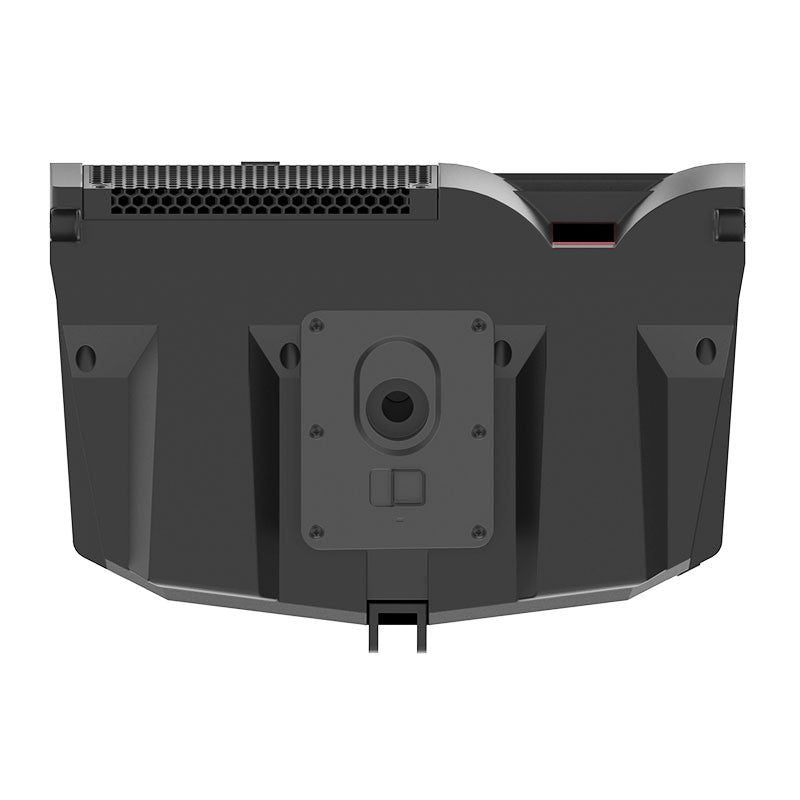

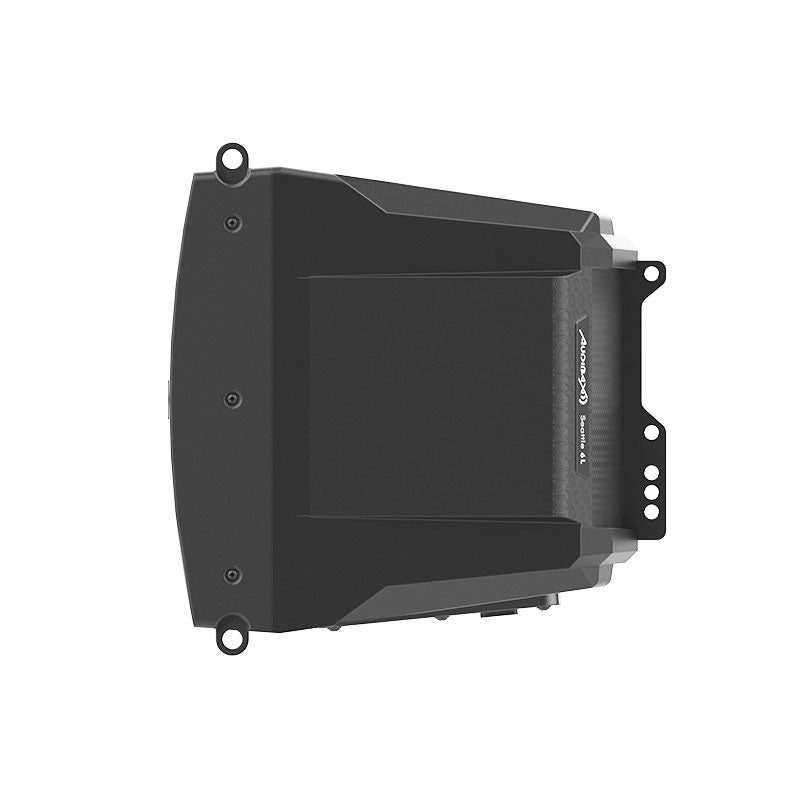

• Mounting : standard Ø36 mm flange for tripod and hanging points .

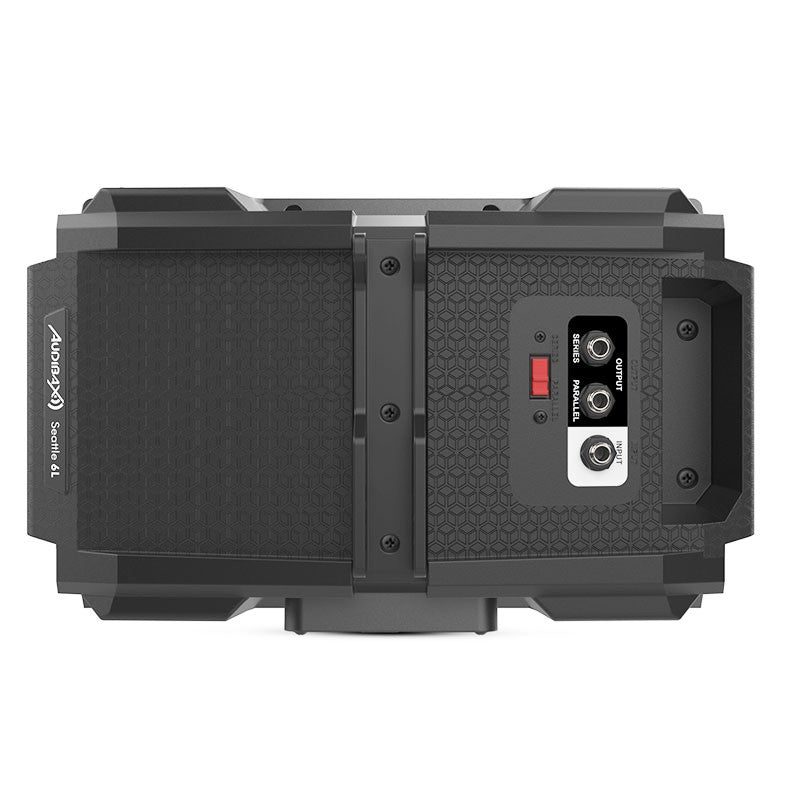

• Connectivity : 2 × 6.3 mm jacks in parallel (input/thru) for daisy-chaining.
• Enclosure : Lightweight and durable ABS ; metal front grille.

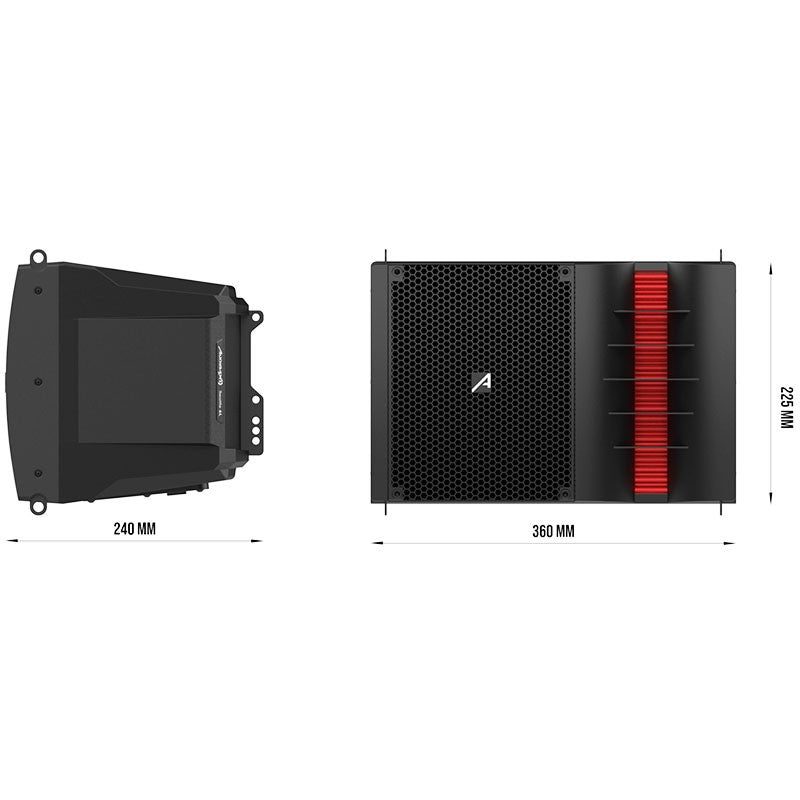

• Dimensions per unit : 360 × 220 × 220 mm ; weight per unit : 8.5 kg .

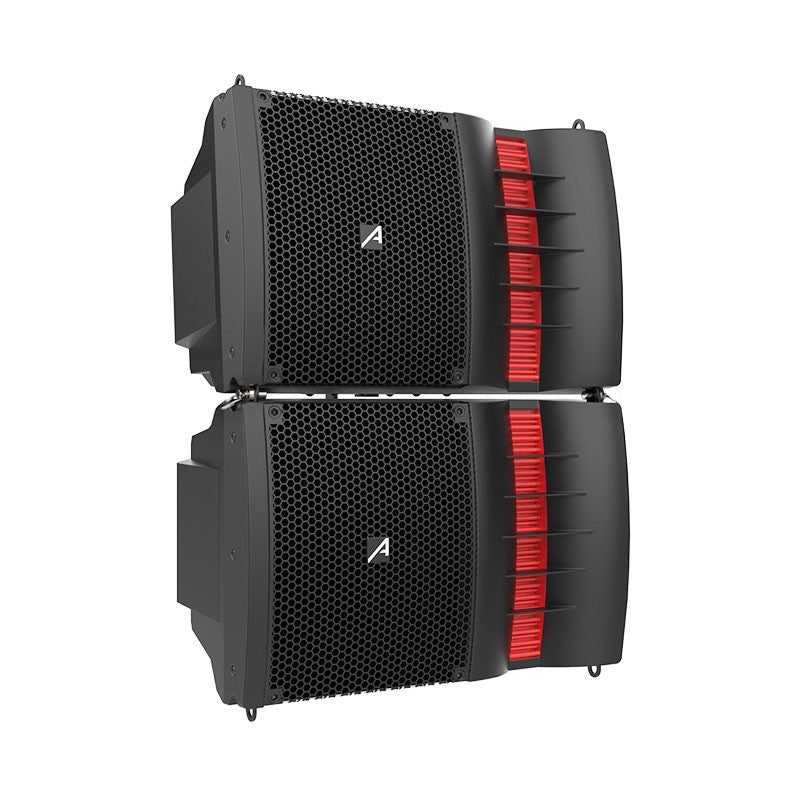

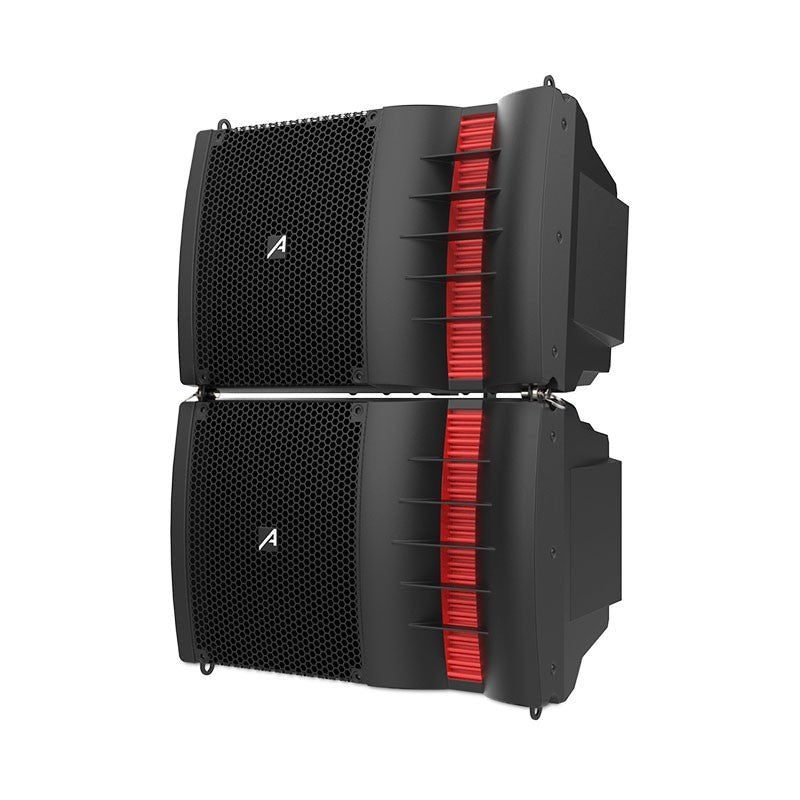

• Sales format : pair of speakers.

Benefits for your installation

• Clear and consistent sound in voice and ambient music thanks to its horn-equipped tweeter.
• Quick deployment on tripod (36 mm) or hung with flying points depending on the project.
• Cable flexibility with dual 6.3 mm jacks in parallel to link multiple boxes.
• Robustness and lightness of the ABS enclosure for intensive use in rental and installation.

Use cases

• Events and rental : voice reinforcement, background music, presentations and conferences.
• Educational and corporate centers : classrooms, small auditoriums, multipurpose rooms.
• Hospitality and retail : ambiance and signage in bars, restaurants and shops.
• Houses of worship and civic centers : speeches and light music with good intelligibility.

Frequently Asked Questions

• Are they sold individually or in pairs? The Seattle 6L is sold in pairs .
• What connectors does it include? Two 6.3 mm jacks in parallel (input/thru) to link another box.
• Can I mount them on a tripod? Yes, they have a 36mm flange ; they also have suspension points .
• What is the impedance? 8 ohms per speaker.

Installation and connection

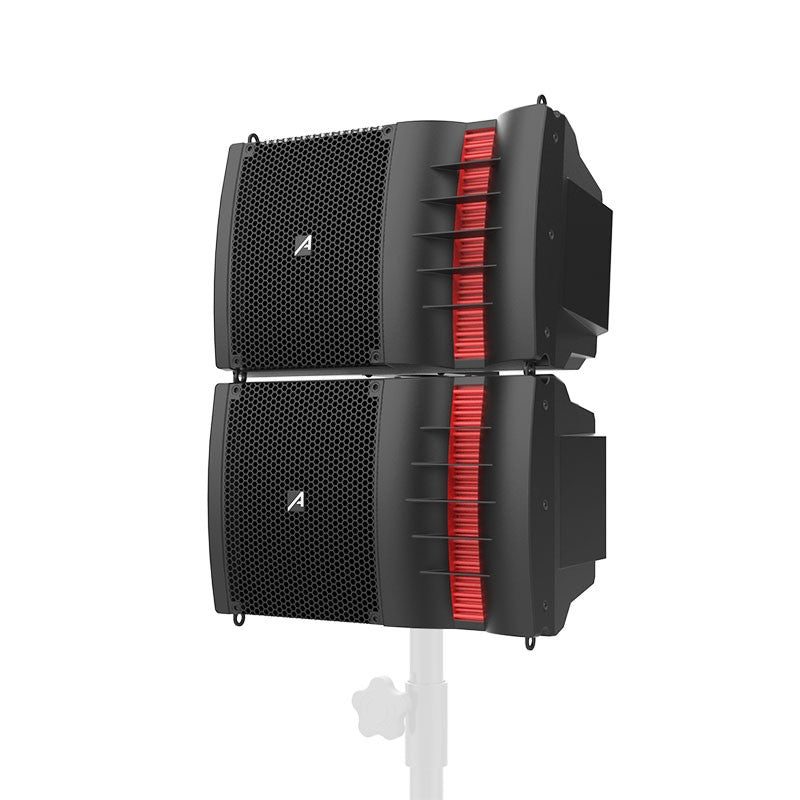

For portable applications, mount each unit on a 36 mm tripod and orient the speaker to cover the audience area (120° × 90° directivity). Connect the amplifier to the first speaker using a 6.3 mm jack and, if necessary, connect the second speaker in parallel using the thru connector. Observe the correct polarity and do not exceed the system's power rating.

Project description

2-way passive speaker (pair); 6.5" woofer (1.5" voice coil), 1" HF with horn; 8 Ω; 200 W RMS (400 W peak); max. SPL 118 dB; frequency response 65 Hz–20 kHz; coverage 120° (H) × 90° (V); connectivity 2 × 6.3 mm jack in parallel (input/thru); mounting with Ø36 mm flange and flying points; ABS enclosure; dimensions per unit 360 × 220 × 220 mm; weight per unit 8.5 kg.
