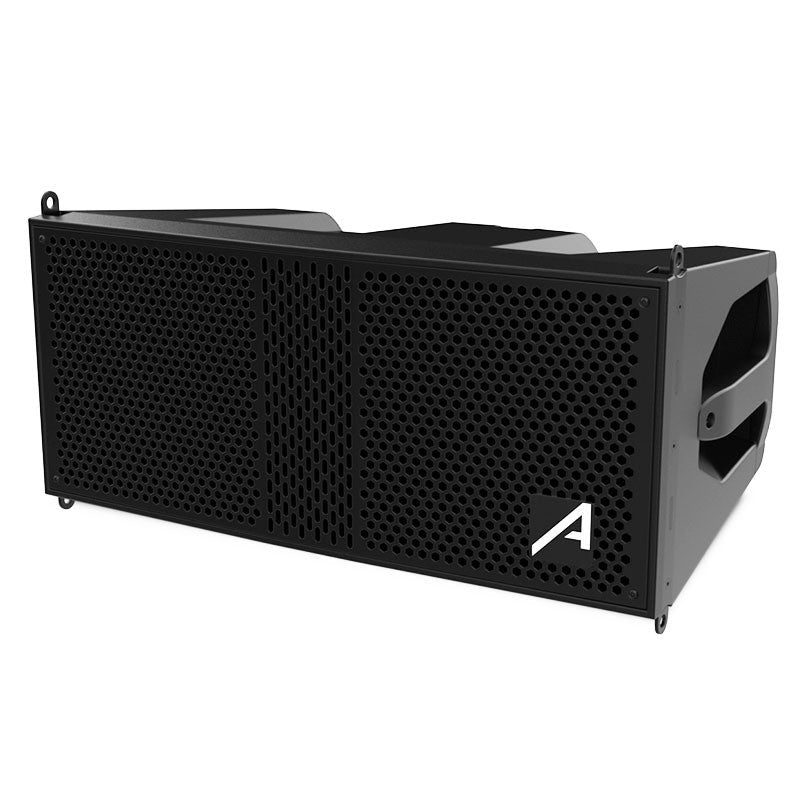

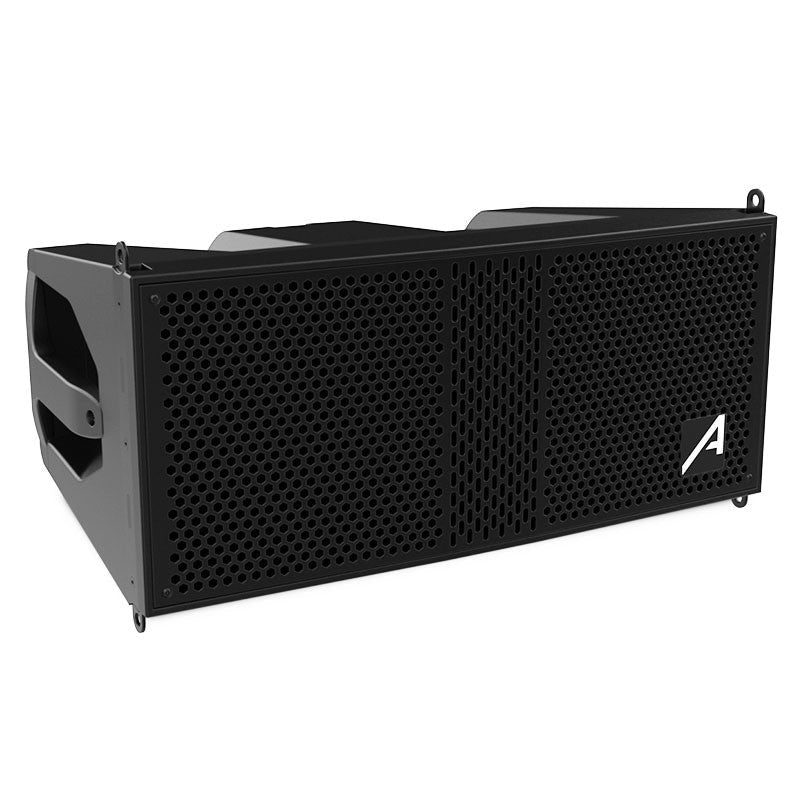

Audibax Seattle 261LA - 2x6.5" active line array module with DSP and 120° x 15° dispersion
The Audibax Seattle 261LA is a compact and robust active line array module designed for rental and permanent installation . It integrates 500W RMS amplification and DSP presets for consistent performance right out of the box. Its 2-way architecture combines two 6.5" woofers with a 1.5" compression driver on a waveguide, achieving a wide 120° horizontal dispersion and 15° vertical control, ideal for stacking or flying multiple units to cover audiences evenly. The ABS enclosure, low weight (15.25 kg), and 460 × 320 × 200 mm dimensions facilitate transport and rigging. It features XLR mic/line inputs and XLR outputs for linking, as well as a 36 mm tripod flange and fly points for suspension.
Main features
-
Active 2-way architecture: 2 × 6.5" (LF) + 1.5" HF driver with waveguide.
-
Power and control: 500 W RMS with pre-selectable DSP presets for quick system adjustment.
-
Controlled coverage: H120° × V15° for wide coverage and stacking/floating with minimal overlap.
-
Level and range: Max SPL 124 dB , nominal response 80 Hz – 20 kHz .
-

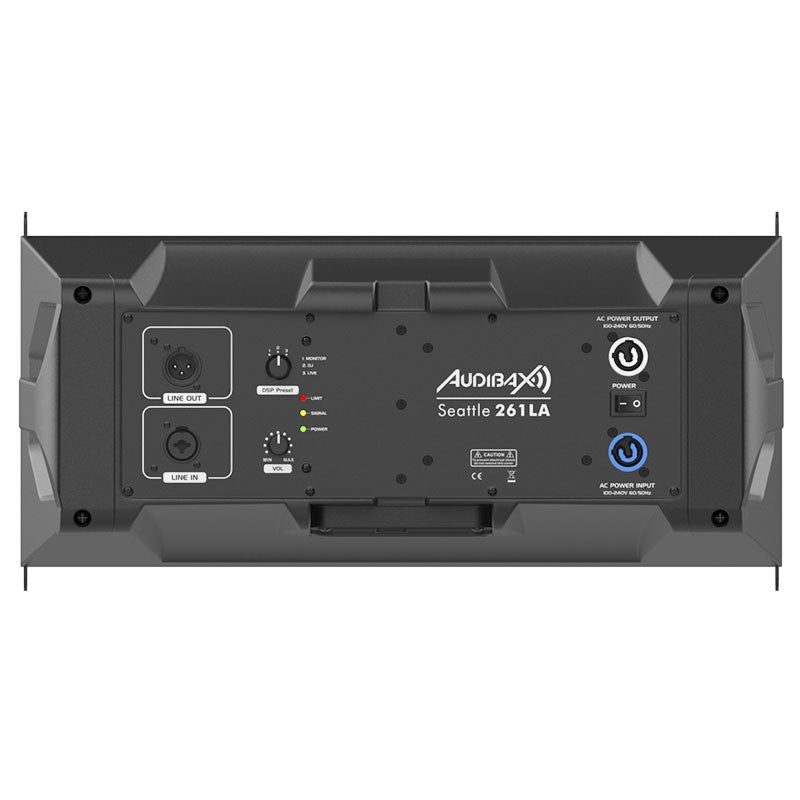

Connectivity: XLR Mic/Line input and XLR output for daisy-chaining units.
-

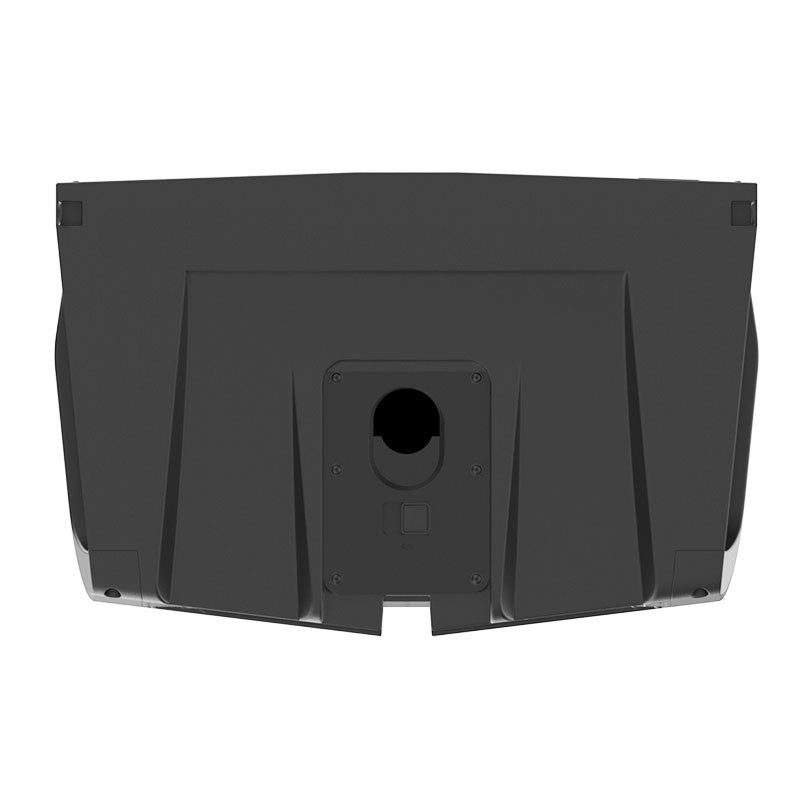

Mounting: 36mm flange for support and flying points for rigging.
-
Construction: Durable ABS enclosure; 15.25 kg and 460 × 320 × 200 mm .
-
Applications: sound reinforcement in events, auditoriums, clubs, theaters and multipurpose spaces.
Product benefits
-
Quick and consistent deployment: DSP presets allow you to achieve a balanced sound in just a few steps.
-
Homogeneous coverage: 120° horizontal for wide rooms and 15° vertical that simplify the curvature of arrays.
-
Mounting versatility: tripod or flown use; perfect as a main modular system or as front-fill /zones.
-
Lightweight and durable design: ABS chassis and low weight for efficient transport and rigging.
Use cases
-
Corporate events and trade shows: comprehensive coverage with clear voices and program music.
-
Halls and clubs: main modular arrangement or reinforcement of tracks and side areas.
-
Theaters and auditoriums: discrete arrays with good intelligibility and projection control.
-
Fixed installation: music bars, temples and cultural centers with preset configuration.
Frequently Asked Questions
Is an external amplifier necessary?
No. It is an active module with internal 500W RMS amplification and integrated DSP.
Can it be mounted on a tripod?
Yes. It has a 36mm flange ; it also offers fly points for array suspension.
What connectivity does it offer?
XLR Mic/Line input and XLR output for linking to another module or stage.
What is the coverage?
120° (horizontal) × 15° (vertical), suitable for mounting multiple units with minimal interference.
Usage recommendations
- For arrays, respect the necessary curvature according to throw distance and hanging height.
- Align with subwoofers by applying the corresponding preset and phase/delay settings.
- When mounting on a tripod, orient the axis of the arrangement towards the audience and avoid early reflections.
Project description
2-way active line array module with 2 × 6.5" (LF) + 1.5" HF , 500 W RMS with DSP presets , 120° × 15° dispersion , 124 dB max SPL , 80 Hz–20 kHz , XLR Mic/Line input, XLR output, 36 mm flange and flying points , ABS enclosure, 460 × 320 × 200 mm , 15.25 kg , black color.
