Audibax Java 4 TB - Pair of 4″ passive wall-mounted speakers for 100V/70V and low impedance (8 Ω)

Audibax Java 4 TB - Pair of 4″ passive wall-mounted speakers for 100V/70V and low impedance (8 Ω)

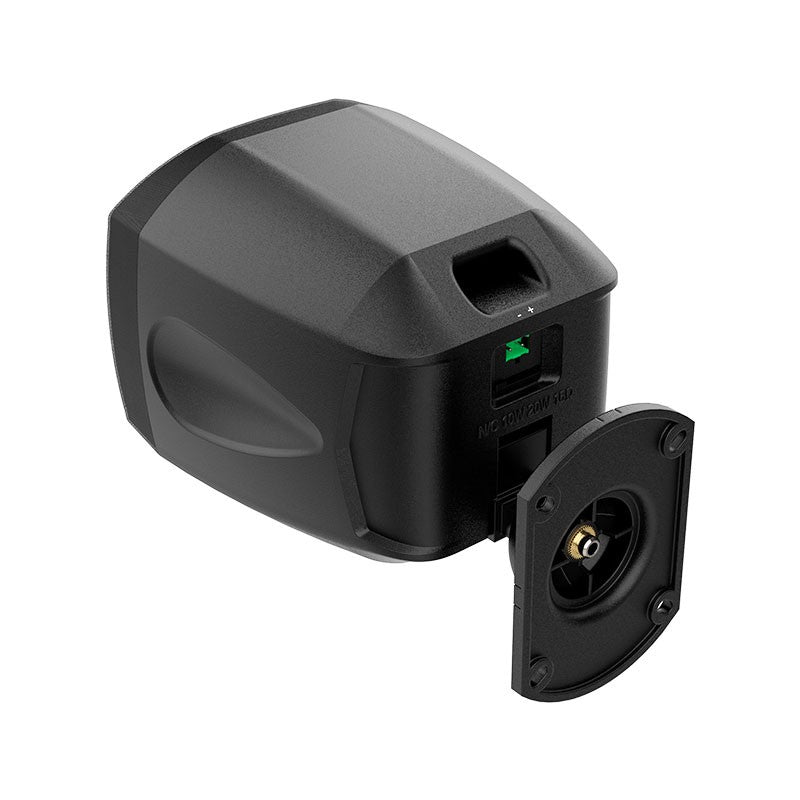

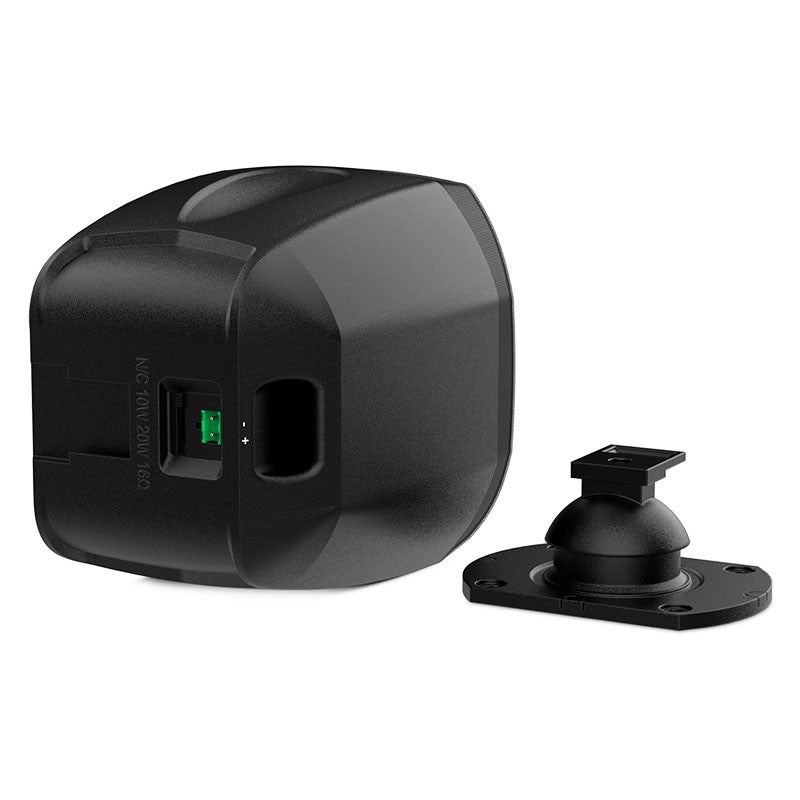

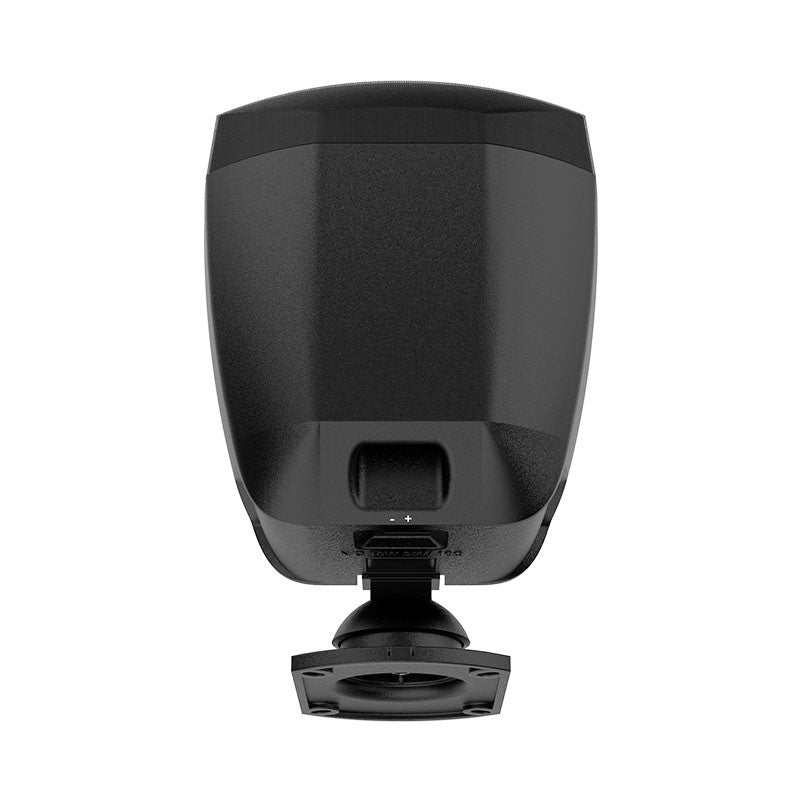

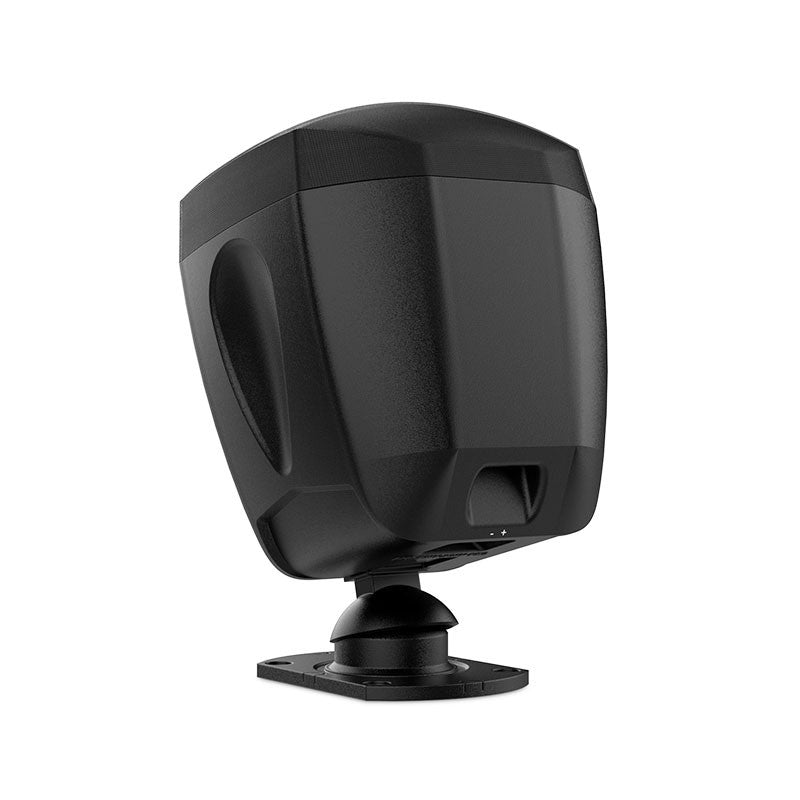

The Audibax Java 4 TB are a pair of passive wall-mounted speakers designed for discreet, high-quality sound reinforcement in commercial spaces, hospitality venues, and residential areas. Their design features a 4" woofer with an ABS enclosure and a swiveling ball-joint mount, allowing the sound beam to be directed towards the listening area. They operate on both 70/100V line voltage and low impedance (8 Ω) , making them easy to integrate into new or existing installations.

They offer a frequency response of 120 Hz–20 kHz , sensitivity of 83 ± 2 dB , and a maximum level of 97 ± 2 dB (1 m) , sufficient for background music and clear announcements. Supplied as a pair , they include ball joint mounts , Phoenix connectors , and screws for quick and secure installation. According to the manufacturer, they are suitable for indoor and outdoor use; for outdoor installations, it is recommended to follow good mounting practices and ensure adequate protection of the mounting point.

Main features

• Installation format: passive wall speakers with adjustable bracket (ball joint) and screw fixing.
• Electrical compatibility: operates at 70/100 V and Lo-Z 8 Ω for maximum flexibility.
• Transducer: 4″ woofer in a durable ABS enclosure.
• Response and pressure: 120 Hz–20 kHz , 83 ± 2 dB sensitivity and 97 ± 2 dB max. SPL (1 m).
• Clean connection: Phoenix terminal included for safe wiring during installation.
• Complete set: delivered in pairs with brackets, connectors and screws.

Benefits for the project

• Real versatility: the same box is suitable for extensive 100V networks or 8Ω zones , simplifying replacements and expansions.
• Aesthetic integration: discreet design in black that blends in with walls and furniture.
• Quick installation: ball joint support, Phoenix and screws included to reduce on-site time.
• Intelligibility and coverage: 120 Hz–20 kHz curve optimized for background music and clear messages.

Use cases

• Retail and commercial chains: homogeneous background music and advertisements.
• Food service and hospitality: dining rooms, bars, covered terraces and passageways.
• Offices and education: common areas, waiting rooms and classrooms.
• Residential: terraces and multipurpose rooms where discretion and quality are prioritized.

Frequently Asked Questions

• Do they include everything needed for assembly? Yes: 2 speakers , 2 ball joint mounts , 2 Phoenix connectors , screws and manual .
• Do they need a specific amplifier? They require an installation amplifier compatible with 70/100 V or 8 Ω , depending on the mode chosen.
• Can I use them outdoors? The manufacturer indicates they are suitable for both indoor and outdoor use . For exposed outdoor areas, install them under cover or with protection that complies with local regulations.
• Are they sold individually? No, this model is sold in pairs .

Installation recommendations

• Size the total power at 70/100 V with a margin of 20–30% in the amplifier.
• Orient the enclosures with the ball joint support towards the listening area to improve uniformity.
• Use the appropriate cable section and terminate it in the Phoenix connector , respecting polarity.

Project description

Pair of Audibax Java 4 TB passive wall-mounted speakers. 4″ (paper cone); 120 Hz–20 kHz ; 20 W RMS ; 70/100 V and Lo-Z 8 Ω ; sensitivity 83 ± 2 dB ; max. SPL 97 ± 2 dB (1 m) ; ABS enclosure; bracket/screw mounting; Phoenix connector; 148 × 27 × 138 mm ; net weight 1.23 kg ; black . Includes 2 ball joint brackets, 2 Phoenix connectors, and screws.
