Audibax AHP-200A - Portable headphone amplifier with 2 XLR inputs, 3.5mm output and stereo/mono selector

Audibax AHP-200A - Portable headphone amplifier with 2 XLR inputs, 3.5mm output and stereo/mono selector

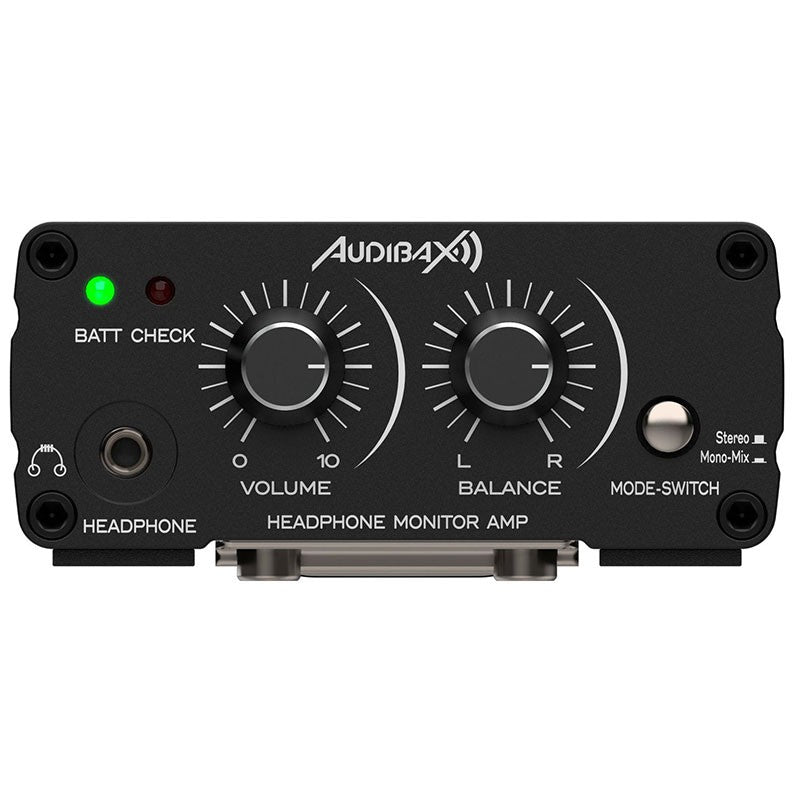

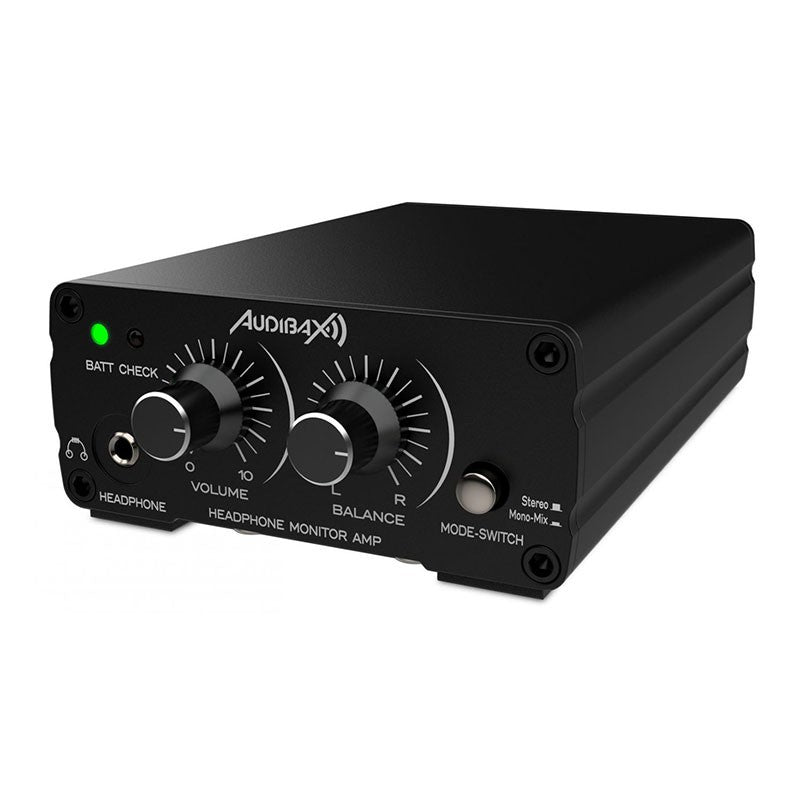

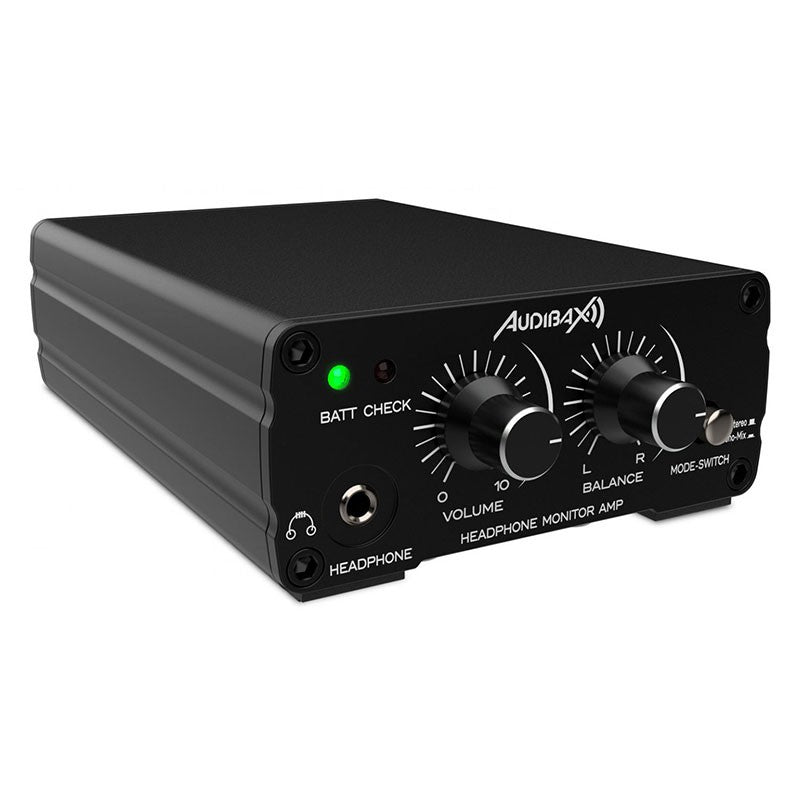

The Audibax AHP-200A is a compact headphone amplifier designed for personal monitoring in live performances, studios, and broadcast environments. It features two balanced XLR inputs for receiving left/right mixes or two mono signals, and a 3.5 mm (mini-jack) headphone output . A stereo/mono switch allows for instant monitoring, while the balance control adjusts the L/R channel ratio. Its aluminum chassis with protective pads is designed for heavy-duty use and includes a battery LED indicator that changes color according to the power level. It operates on a 9V battery or a 9V DC adapter , offering maximum flexibility for mobile setups.

Main features

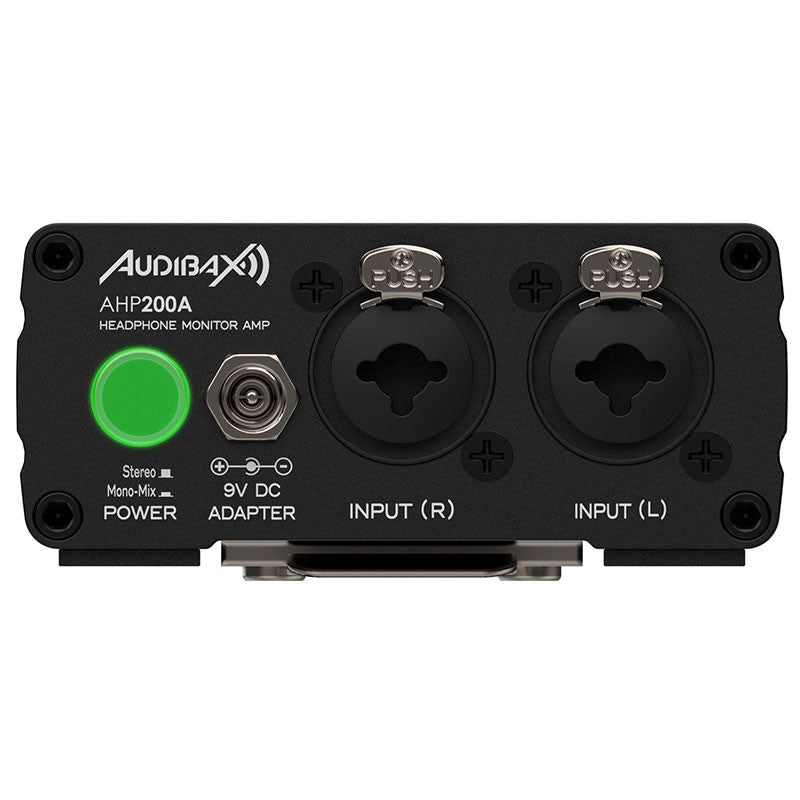

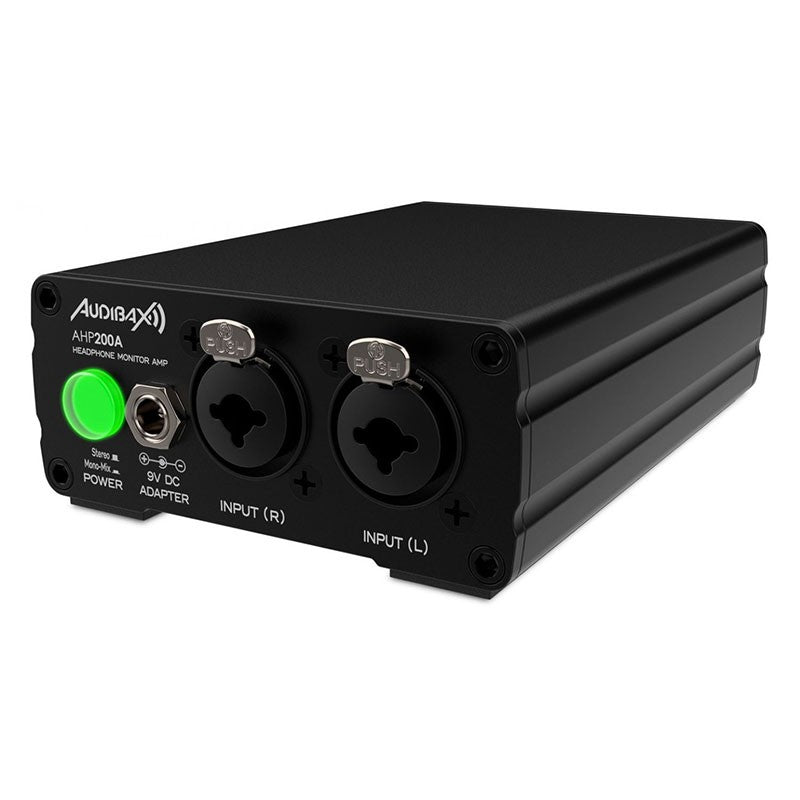

• Inputs and output: 2 × balanced XLR (L/R or two mono) + 1 × 3.5mm stereo headphone output.
• Listening modes: Stereo/Mono selector and Balance control to adjust the mix to your liking.
• Dual power supply: 9V battery or DC 9V (jack), with LED battery status indicator .
• Performance: 30 Hz–20 kHz (±2 dB) ; compatible with headphones of ≥ 10 Ω per channel.
• Construction: Durable aluminum housing with shock-absorbing foam pads.

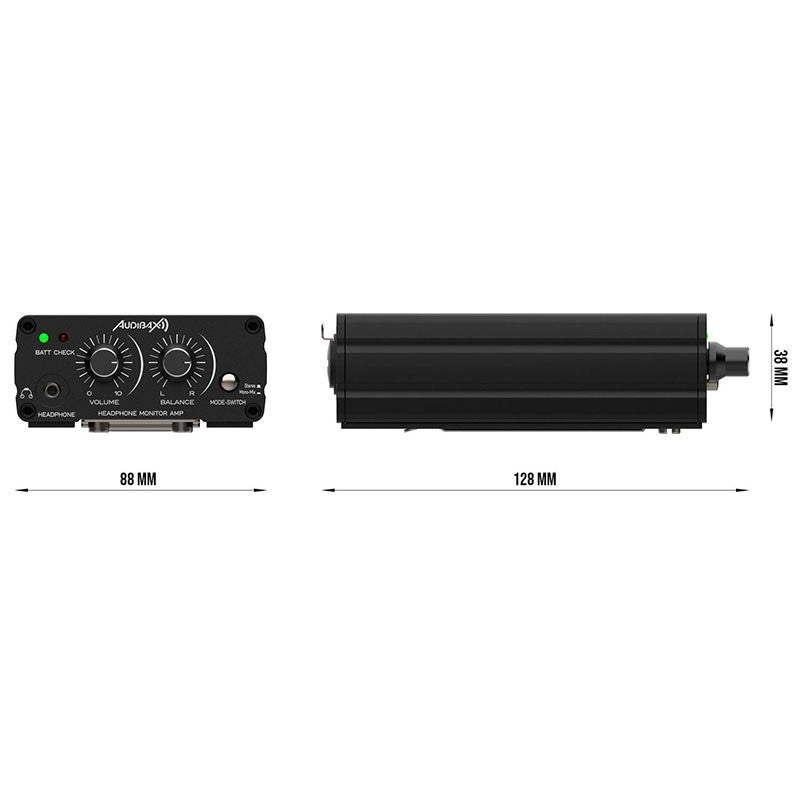

• Portable format: 128 × 88 × 38 mm , 0.9 kg , easy to integrate into belt clips, pedalboards or desktops.

Product benefits

• Versatile monitoring: switch between stereo and mono in seconds; adjust the balance to prioritize vocals, click, or instrument.
• Professional connectivity: balanced XLR inputs that reduce noise and allow long runs from the console or stagebox.
• Autonomy on the go: powered by a 9V battery when there is no socket nearby; adapter option for extended sessions.
• Touring reliability: aluminum chassis and protected controls for daily use on stages and in mobile studios.

Use cases

• Stage (in-ear): musicians who need their personal mix with balance control between vocals/click and band.
• Studio and home studio: independent listening station for performers or broadcasters.
• Corporate events and AV: discreet monitoring for presenters, interpreters and technicians.

Frequently Asked Questions

Can I use it in mono with a single input?
Yes. Activate Mono mode and adjust the Balance to send the signal to both ears.

Does it need phantom power?
No. It is powered by a 9V battery or a 9V DC adapter . It does not require and should not receive phantom power.

What type of headphones does it support?
Any model with a 3.5 mm connector and impedance ≥ 10 Ω . For very sensitive IEMs, start with low volume.

Does it have a battery indicator?
Yes, an LED shows the status and changes color when it's time to replace the battery.

Usage tips

• In stereo mode, it uses both XLR (L/R) inputs to maintain image and pan of the mix.
• In noisy environments, set the table level and use the AHP-200A's volume knob for fine adjustments.
• If you're working with a battery, carry a spare; the LED will warn you when the level gets low.

Project description

Portable headphone amplifier with 2 × balanced XLR inputs , 1 × 3.5 mm stereo output , Stereo/Mono selector , Balance control , 30 Hz–20 kHz (±2 dB) response , headphone impedance ≥ 10 Ω , LED battery indicator , 9 V battery or DC 9 V power supply, aluminum chassis, dimensions 128 × 88 × 38 mm , weight 0.9 kg , black color, IP20 indoor use.
